Description
The photovoltaic accessories and cable kit comes with all the cables and accessories you need to connect a 100W Renogy panel and controller to your battery bank. Renogy tray cables offer easy connection between batteries and charge controllers. They are designed with specialized terminal rings for battery connection and exposed wire ends for fast connection to a charge controller. Adapter kit cables allow connection between solar panels and charge controllers, featuring waterproof solar connectors on module ends and exposed wire for charge controller terminal connection. The Renogy Z-Bracket Mount System can be used to easily mount and install a single solar panel.
If you have any questions regarding this product, please submit a case.
Key Features
Durable Design- Renogy's cables are TUV tested, UV light resistant and waterproof.
- Light weight aluminum brackets.
- Expand system by installing more modules and /or wiring.
- Ready to connect any Renogy accessory to a 100W module or PV system.
- Easily expand your system using additional wiring or mounting brackets.
- Easy installation and DIY friendly.
- The kit offers all components required for Renogy’s small scale photovoltaic system installation.
- This kit allows the customer the flexibility to expand their system as needed and is built for 100W systems.

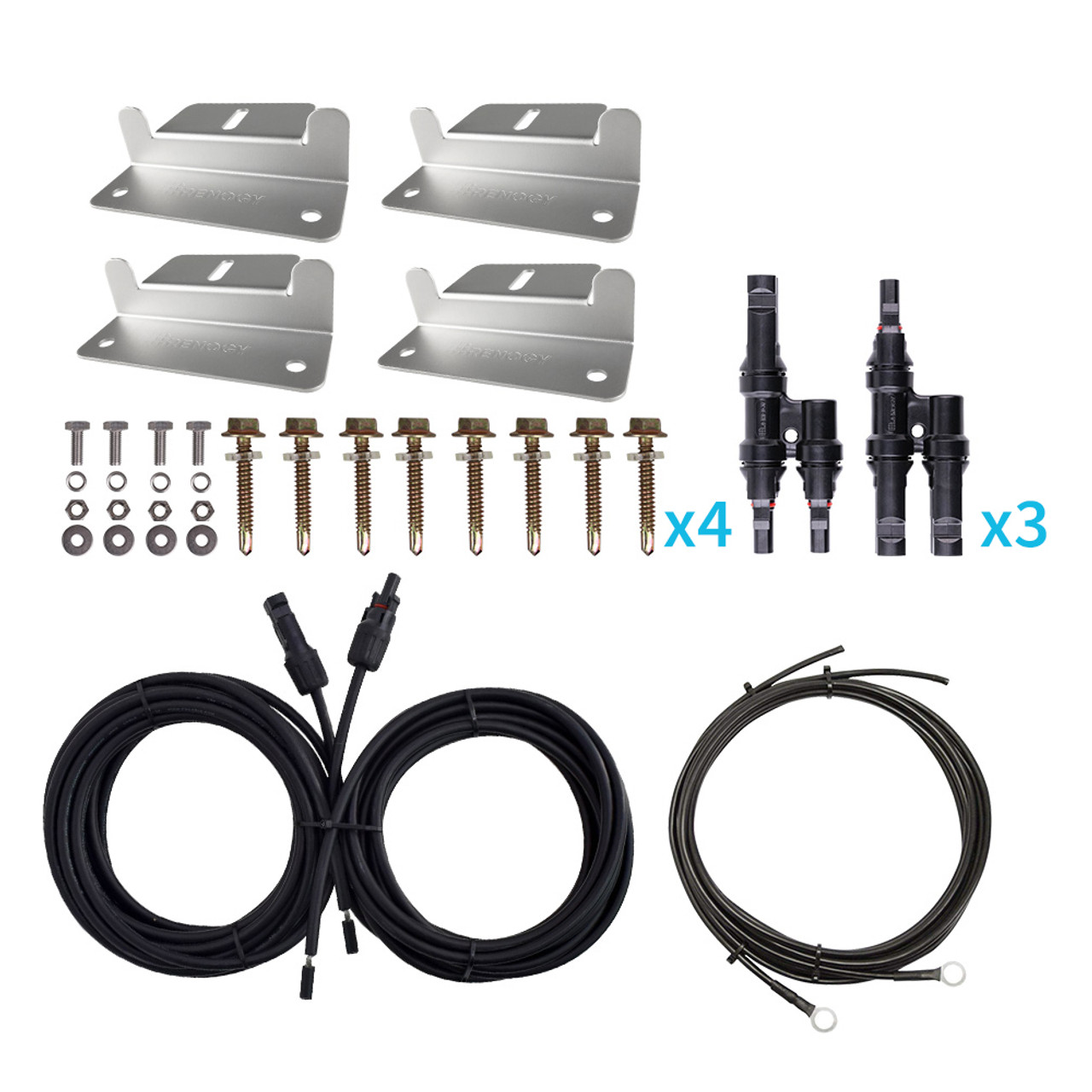

Package Includes
|
Renogy Solar Tray Cables
1 x
|
Renogy Solar Adaptor Kit
1 x
|
|
Mounting Z Brackets
4 x |
MC4 Branch Connectors MMF+FFM Pair
3 x
|
| RENOGY 8FT 8AWG SOLAR TRAY CABLES | |
|---|---|
| Length: 8ft | AWG: 8 |
| Temperature: -40°F to +185°F | Rating Voltage: 600/1000V |
| RENOGY 20FT 10AWG SOLAR ADAPTOR KIT | |
|---|---|
| Length: 20ft | AWG: 10 |
| Temperature: -40°F to +185°F | Rating Voltage: 600/1000V |
| Normal Cross Sectional Area of the Conductor (mm2): 6.0 | Diameter of Wires in Conductor (mm): 3.02±0.08 |
| Min. Wall Thickness of Insulation (mm): 0.85 | Min. Wall Thickness of Sheath (mm): 1.08 |
| Number of Wires in Conductor: 84 | IP 65 Protection |
| Conductor: Tinned copper wire |
| RENOGY SOLAR PANEL MOUNTING Z BRACKET | |
|---|---|
| Four Z Shape Solar Panel Brackets | Four M6-16 Hex Cap Bolt |
| Four M6 Split Lock Washer | Eight M6 Flat Washer |
| Four M6 Hexagonal Nut | Eight #11 Self-Drilling Cap Screw and Plastic Retaining Ring |
| RENOGY SOLAR PANEL MC4 BRANCH CONNECTORS (PAIR) | |
|---|---|
| Withstanding voltage: 1000V DC(TUV), 600V(UL) | Contact Resistance: 1m |
| Protection Class: Class II | Temperature: -40°F to +194°F |
| Protection Degree: IP67, mated |
Warranty Information
| Accessories | 1-year material warranty |
