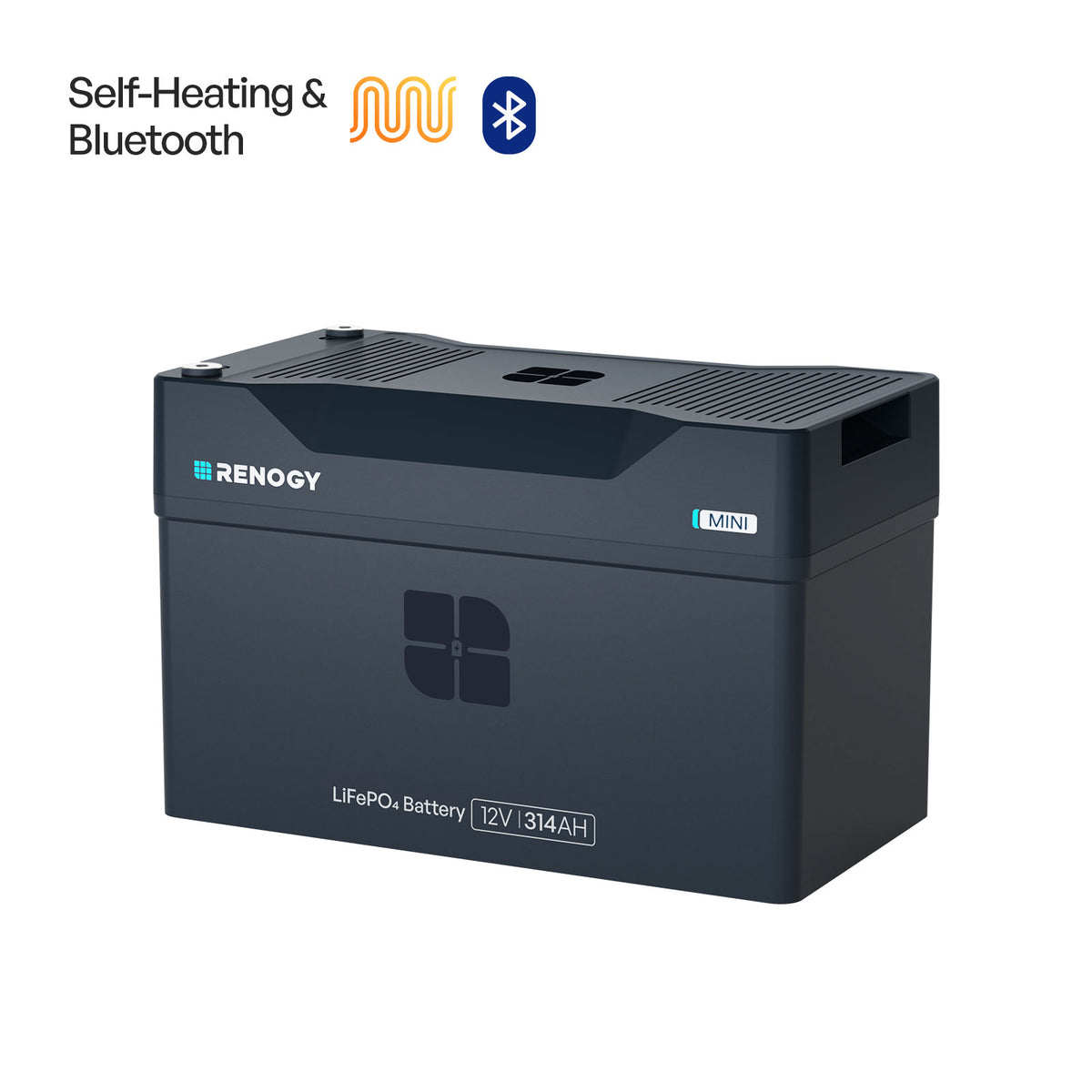

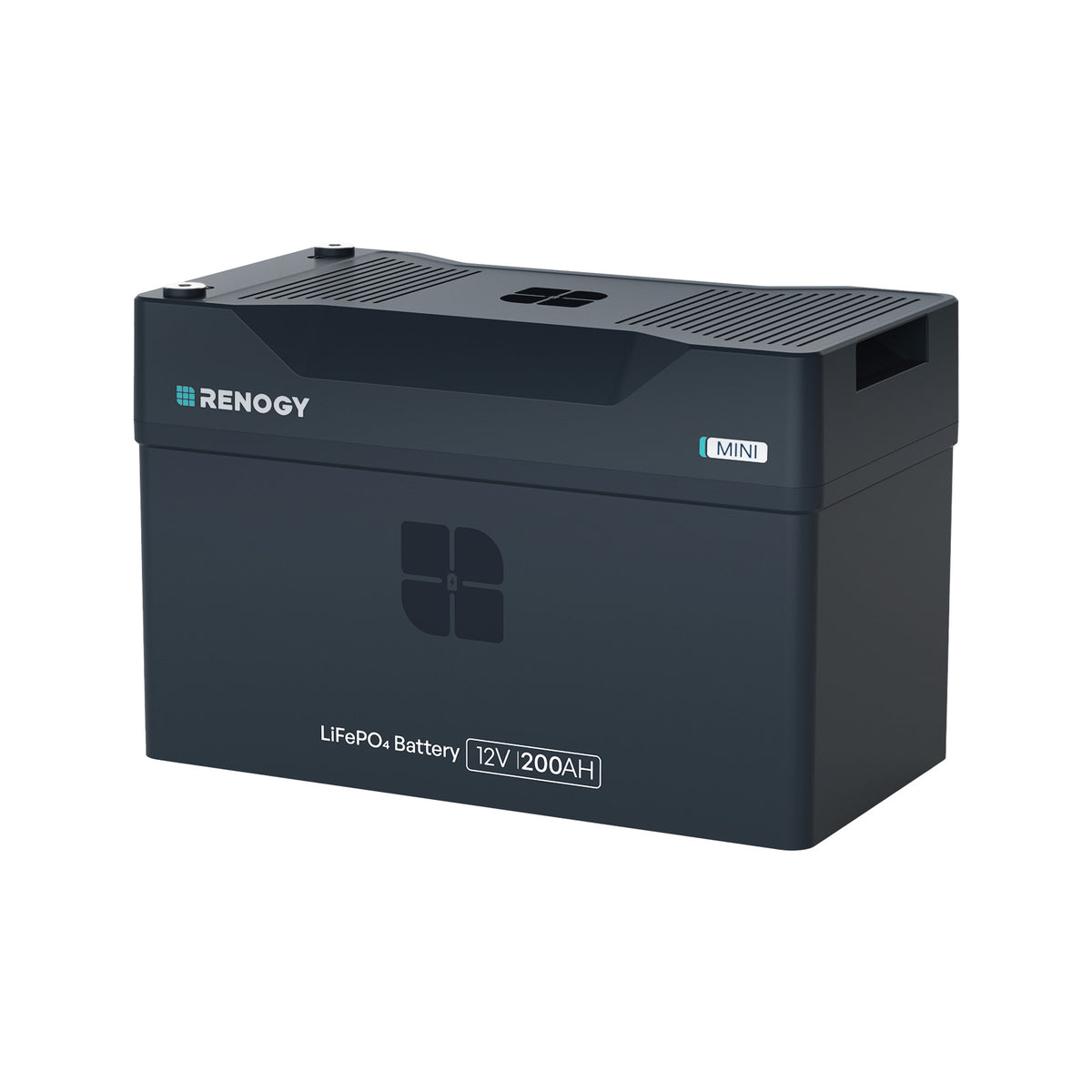

Reserve Mini Smart 12V 200Ah / 314Ah LiFePO4 Battery with Self Heating & Bluetooth

SKU: RBT-L12314-C1-CA
C$999.99
Key Features
  • Get more capacity in less space with compact 200Ah and 314Ah capacity options.
  • Get up to 35% faster self heating on the 314Ah model to resume charging sooner.
  • Built in Bluetooth enables app monitoring from up to 49 ft away.
  • Get smarter battery protection with 60+ multi level BMS protections.
  • Stay protected inside and out with IP65 exterior protection, a V0 casing, and flame retardant materials around the cells.
Feature
Pack
Quantity:
Payment Methods
Delivery Methods
Delivery time: 3-9 business days. (Excludes Remote Areas) Fast Shipping
Fast Shipping on All Products

Shipping Policy

We hope you enjoyed your online shopping experience with Renogy. Please read below for more information about our shipping.

Shipping Policies

1.All orders must have a valid street address. RENOGY does not accept PO Box addresses, some items cannot be delivered to PO Boxes due to shipping restrictions.

2.Shipping times are calculated based on business days (Monday to Friday), excluding holidays and weekends.

3.Depending on your order, your items may arrive in multiple packages. Once your order is shipped, you can click here to track your package. We understand that professional installation is often desired. However, we strongly suggest that you wait until receiving your complete order and verifying the condition of the products before scheduling any work to commence with your new Renogy products.

4.Packages cannot be rerouted after they have been shipped. If you need to change the address, please e-mail us at service.renogy.com.

5.If the outer packaging is damaged upon delivery, please refuse the package and contact us immediately. If refusing the delivery is not possible, please provide relevant pictures to facilitate our after-sales service.

6.We do not support self-pickup service from our warehouse. If you have such a need, please e-mail us at service.renogy.com.

7.If the package is shipped via FedEx, UPS, UniUni, or Canada Post, we can request a Proof of Delivery (POD) from the logistics provider. If you need, please e-mail us at service.renogy.com. However, for Purolator, only the delivery record on the official website can be used as the proof of delivery.

Order Processing and Transportation

For details, please refer to the content of the Shipping Policy

Please note:

The estimated time is for reference only and may be extended during major promotions, holidays, or other special circumstances.

From November to February, which belongs to the winter season, the delivery time will be extended by approximately 3-7 business days.

Delivery to Yukon, Nunavut, and the Northwest Territories is temporarily unavailable due to a shipping issue. We apologize for the inconvenience and appreciate your understanding.

Additional Freight Fees (Estimates):

Renogy offers free ground shipping for many of our products to most areas. For oversized products or shipments to remote areas, additional shipping fees will be charged. When you check out, simply enter your detailed address, and the system will automatically calculate the shipping cost for you. If you refuse to pay the additional shipping fee, please e-mail us at service.renogy.com to provide a non-remote address. Otherwise, Renogy reserves the right to cancel the order.

30-Day Return and Refund Service (7-Day for Batteries)

Return & Refund Policy

Thank you for shopping with Renogy. Our goal is 100 percent customer satisfaction. But in the event something isn’t quite right, we 've made the return process super easy.



Order Cancellation

Customers can cancel transactions any time before Renogy begins the shipping process. The shipping process typically begins within 30 minutes of placement of the order, so you can cancel the order yourself within 30 minutes of placing it. If unable to cancel an order before shipping, please refuse the package if you know the tracking information, you can also contact the Renogy Customer Service team for help (please note we cannot guarantee that an order can be successfully cancelled or a package intercepted if it has already been shipped).

Customers can make returns in accordance with Renogy’s Return Policy.



Renogy 30-Day Return Policy

For returns of products purchased online at ca.renogy.com, customers need to contact Renogy customer service within 30 days of receiving the item to initiate the return process. To be eligible for return, items must be in the original packaging unused, undamaged, unmodified, and have a return authorization number provided by Renogy. Proof of purchase must be provided by the customer to begin the return process.

1) Original packing: it should be the original container or covering which is used to package the product, including all accessories, attachments as well as manual, etc.

2) Return authorization number: customer needs to first contact Renogy customer support team for getting the RMA number before returning the order.

Note:

Please note that due to certain transportation regulations, AGM and GEL batteries are not eligible for a 30-day unconditional return or exchange. However, for lithium batteries and partially specified inverters, we provide a 7-day window for returns or exchanges, allowing for greater flexibility, this is usually indicated on the relevant product page.

Upon receiving your package, we kindly advise keeping the original packaging handy for any potential future needs.



Shipping Costs of Return

1. Shipping costs for product returns will be paid by Renogy under the following conditions:

  • Product was damaged during shipping or warehouse handling
  • Product defects
  • Incorrect product was delivered

The customer is responsible for any return shipping costs when product is returned under any other conditions. Costs vary by shipping location.

Packages delivered to a designated pick-up location must be collected within 5 business days. Unclaimed packages will be automatically returned to the sender. If reshipment is required, the customer will be responsible for both the original shipping fee and the return shipping cost resulting from the unclaimed package.

Renogy does NOT accept returns of items that have been modified in any way. Any modifications will render the Renogy warranty null and void. Any modified products returned to Renogy will be shipped back to the customer at the customer’s expense. For approved returns, Renogy will provide a prepaid return shipping label.

For returns due to customers' subjective reasons (such as change of mind or schedule changes, etc.), within the allowed return window, the shipping cost for returns should NOT be borne by Renogy. Unauthorized returns may result in processing delays, additional fees, or other complications. To ensure a smooth return process and protect your interests, please request a Return Merchandise Authorization (RMA) before returning any item.

2. All refurbished/open-box products do not support returns, refunds, or exchanges for non-quality issues. The warranty period for any refurbished/open box product is 6 months, during which any quality issues can be contacted for after-sales service.



Refunds

For returns related to customer preferences (not related to defects, shipping damage or wrong product delivered) made within the 30 day return period, a 10% restocking fee will be charged.

For returns related to customer preferences (not related to defects, shipping damage or wrong product delivered) made within the 30 day return period, the return shipping cost will NOT be covered by Renogy.

After receiving the returned item, Renogy will issue a refund within 7-10 business days. Renogy will notify the customer by email once the refund has been processed. The refund will be processed through your original payment method. It may take some time before your refund is posted on your bank account or credit card statement. If you have not received a refund within this period, please first check your credit card transaction or bank account again. If the refund isn’t received after 7-10 business days, please contact the Renogy Customer Support Team. All returned items will be inspected to ensure they meet Renogy’s return policy.

If damage results due to improper handling during the setup or installation, whether it is done professionally or by the customer, the product is no longer eligible for replacement or refund.

If your payment card uses a currency other than CAD, the refunded amount may differ from your original order amount due to exchange rate fluctuations. This difference is determined solely by your card issuer and is beyond Renogy's control.



Product Return Process

1. To request authorization for return, contact Renogy customer service. Once customers have contacted Renogy they will be asked to provide the reason for the return, and a receipt or proof of purchase.

2. The Renogy Customer Service Team will determine whether the purchase is eligible for return. After confirming the order is eligible, Renogy will issue a Return Material Authorization (RMA) number and a prepaid return shipping label. The customer must clearly mark the RMA number on the package and include the dated proof of purchase with the product.

3. For returns made within the 30-day right of withdraw period and returns requested after 30 days of receipt that are unrelated to product defects, (such as no longer needing to change plans, etc.), within 14 days after getting RMA, customers should ship out the product to Renogy.

4. For products being returned due to quality issues, which are beyond 30 days’ return period but within warranty period, Renogy will provide instructions on how to properly package the product to return it safely. Do not ship the product before receiving the proper shipping safety instructions.

Note: Do not return any items without the RMA confirmation from the Renogy Customer Support Team. For returns without RMA confirmation, the refund or replacement will not be processed, and the items will be returned to the sender.

5. The warehouse does not accept personal drop-offs. Unauthorized returns without prior approval may lead to processing delays, additional charges, or other complications. To protect your rights, please follow the standard return procedure.



Replacement:

1. Damage issue: Within 30 days of placing an order, please provide photos of the damaged product and packaging, along with the shipping label. If the situation is confirmed by Renogy Customer Service, Renogy will prioritize reissue.

If damage results due to improper handling during the setup or installation, whether it is done professionally or by the customer, the product is no longer eligible for replacement.

2. Quality issue: Please contact our Technical Support team at service.renogy.com for troubleshooting assistance within the warranty period.

Please be prepared with a multimeter and your invoice or the following information:

  • Order number
  • Proof of purchase
  • Video or photo of the damaged/defective product Mailing address
  • Contact telephone number

3. Please note that replacement products can only be sent to the original order 's country of purchase, as cross-border reshipping is not currently available.

This policy applies only to Renogy products purchased through ca.renogy.com.



FOR THIRD-PARTY PURCHASE

Thank you for purchasing a Renogy product from one of our approved third-party vendors. Returns and refunds for purchases made through these third-parties (Walmart, Home Depot, Best Buy, Amazon LLC, etc.) must be handled through the vendor's return policy. Renogy cannot assist in third-party returns and refunds. Renogy can only offer replacements for products still within the warranty period.

6% OFF Coupon for New Subscriber
Lifetime Customer Support

Call Us

Speak with a Renogy Specialist Available Monday-Friday, 8AM - 5PM (ET)


1 (909) 287 7111

Show More Benefits Show Less
Description
Includes
Specs
FAQ
Downloads
Reviews

Ready for the Road Ahead

Reserve Mini Smart 314Ah&200Ah LiFePO4 Battery

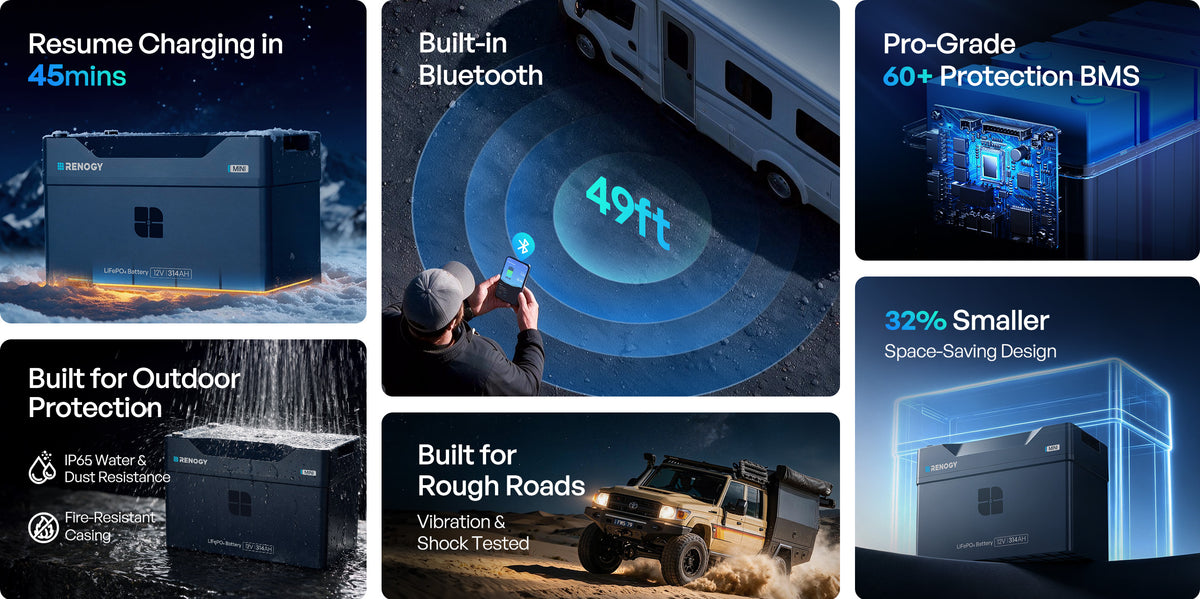

Highlight Features

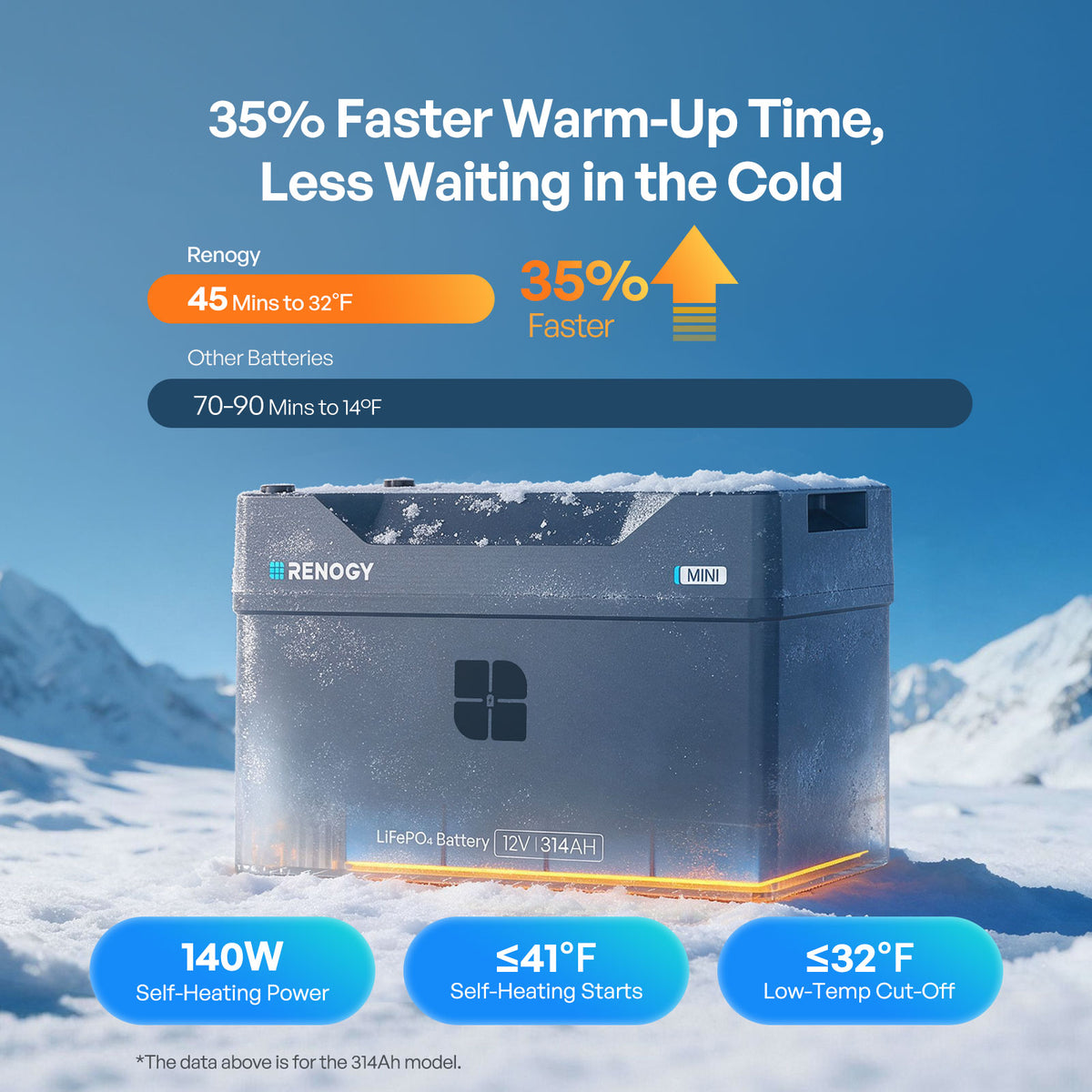

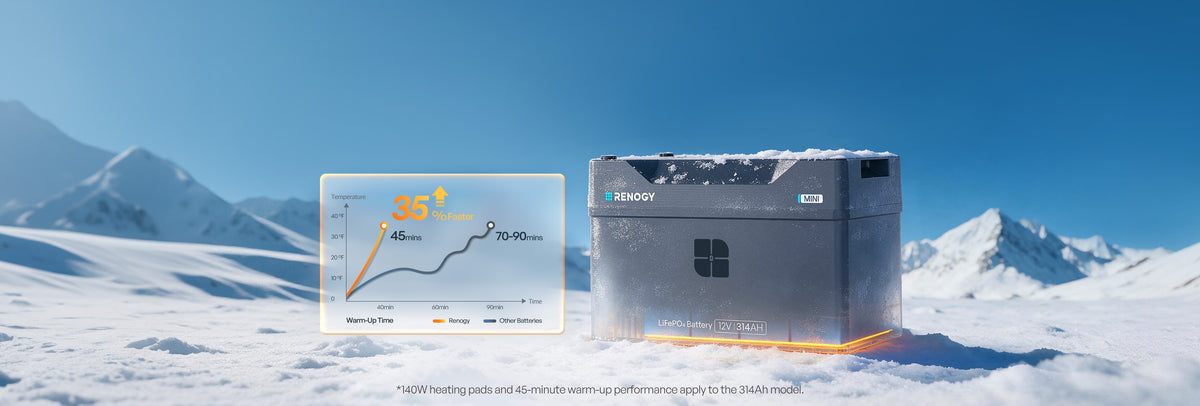

Resume Charging in Just 45 Minutes

With built in 140W heating pads, the Reserve Mini Smart 314Ah Battery helps reduce cold weather charging delays by warming the battery from 14°F to 32°F in as short as 45 minutes, so you can get back on the road sooner.

Low-Temp Cut Off Protection

In cold conditions, Low-Temperature Protection automatically pauses charging to help protect battery cells from potential damage.

Automatic Self-Heating

When charging is needed in cold weather, built-in 140W heating pad to warm the battery from 14°F to 32°F in as little as 45 minutes, helping bring it back to a charge-ready range.

Ready to Charge Faster in the Cold

When cold weather slows you down, Reserve Mini Smart 314Ah Battery helps you get charging again sooner, so you can get back on the road and spend more time enjoying the journey.

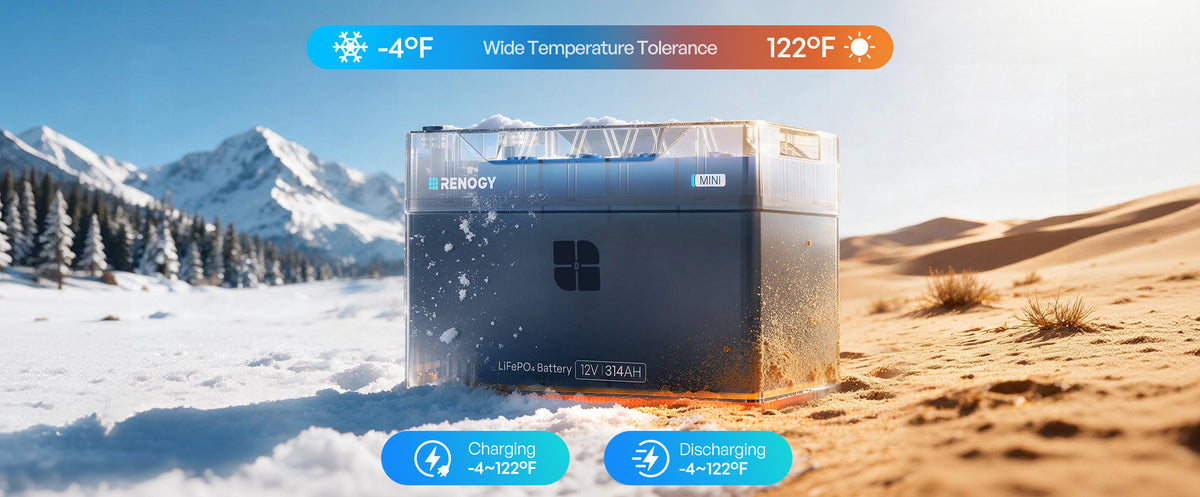

Stay Powered Through Temperature Changes

From freezing mornings to high-heat days, Reserve Mini Smart 314Ah Battery is designed to help keep your
RV and Off-Grid systems powered through changing conditions.

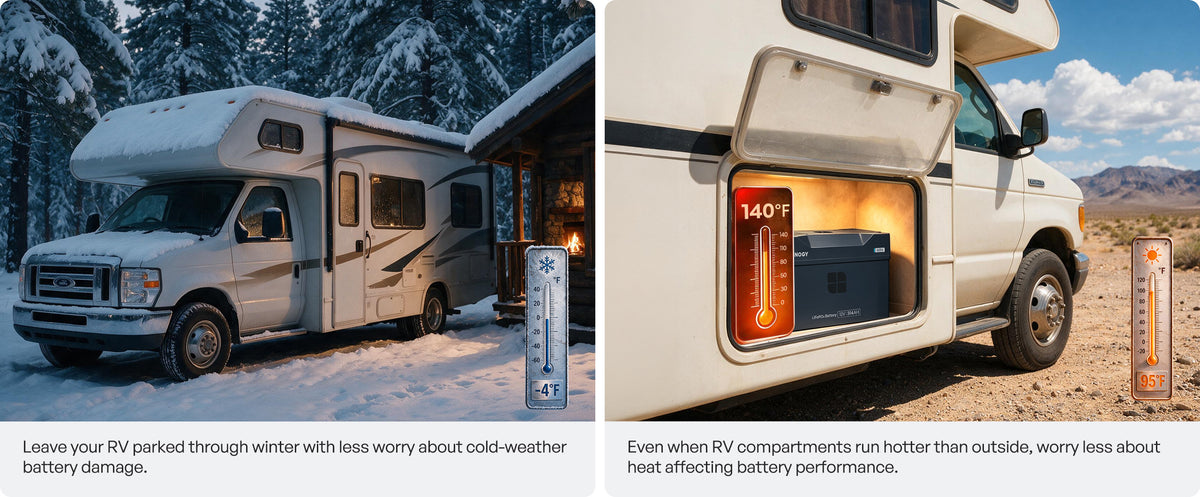

Peace of Mind, Even When Not in Use

With a wide storage temperature range from -4°F to 140°F, you can worry less about your battery while your RV sits between trips.
Stay Powered Through Temperature Changes

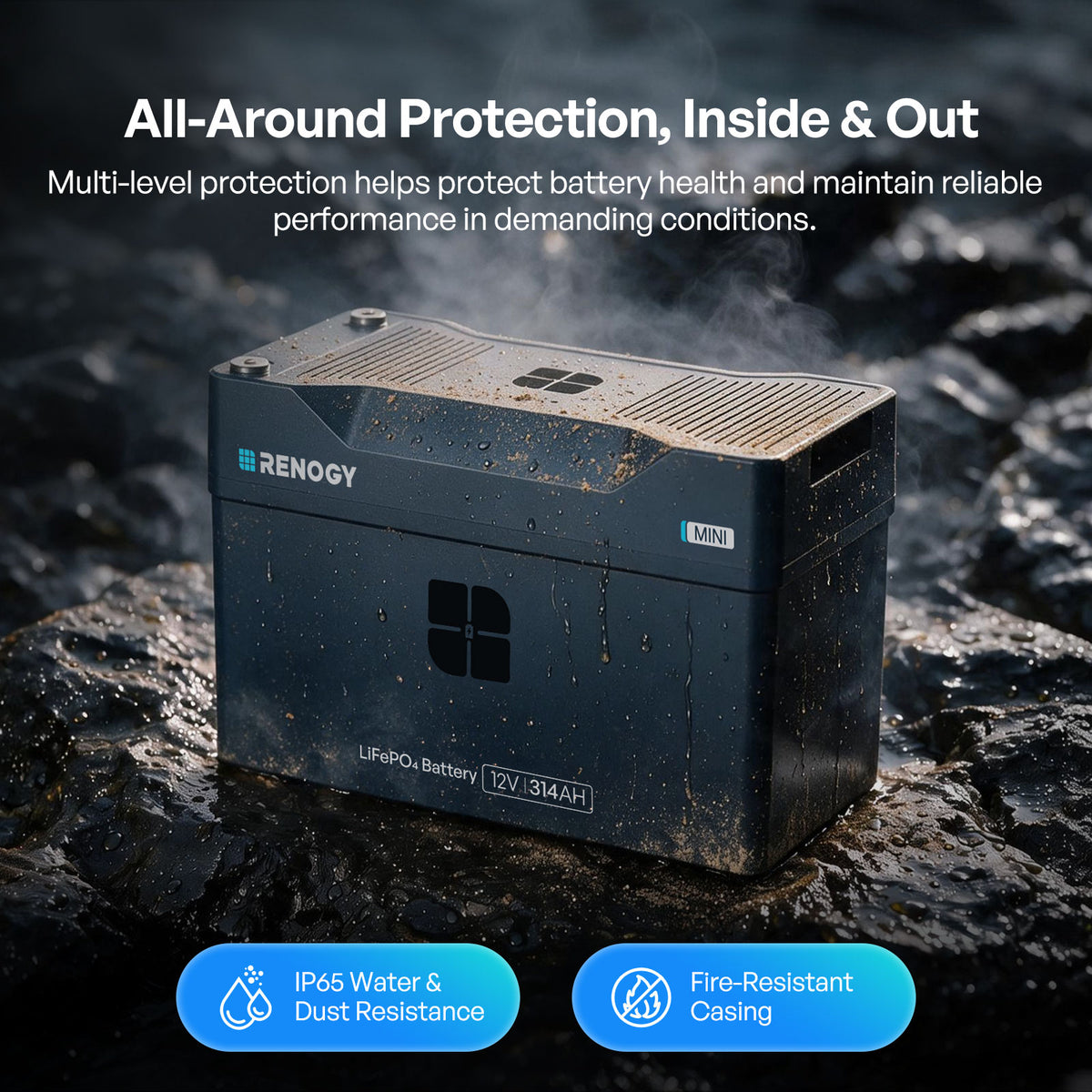

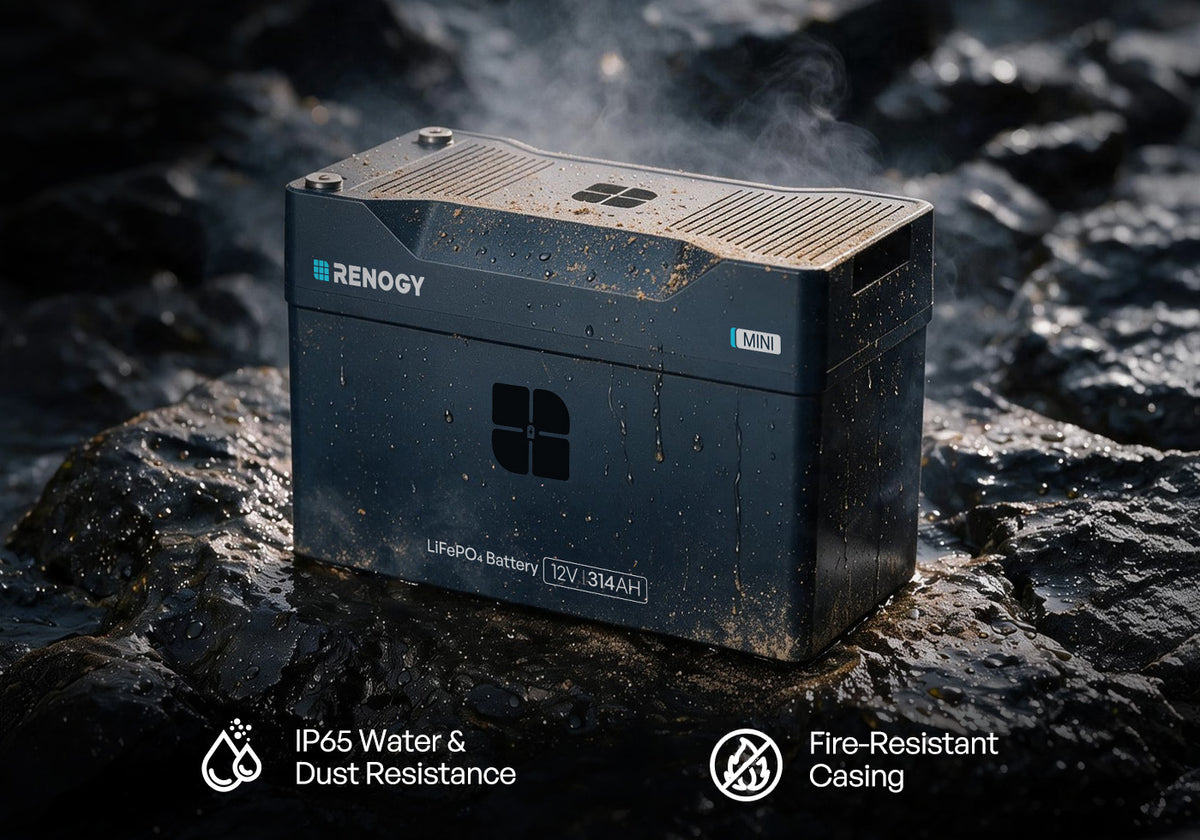

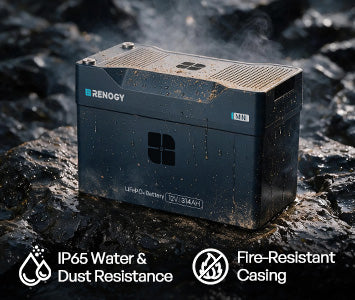

Durable Protection for Outdoor Use

Built to handle the outdoors, a durable IP65-rated enclosure and V-0 flame-retardant materials help protect against dust, water, and flame spread in demanding conditions.
Durable Protection for Outdoor Use

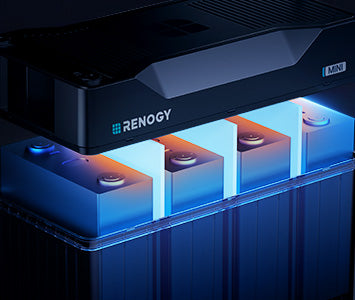

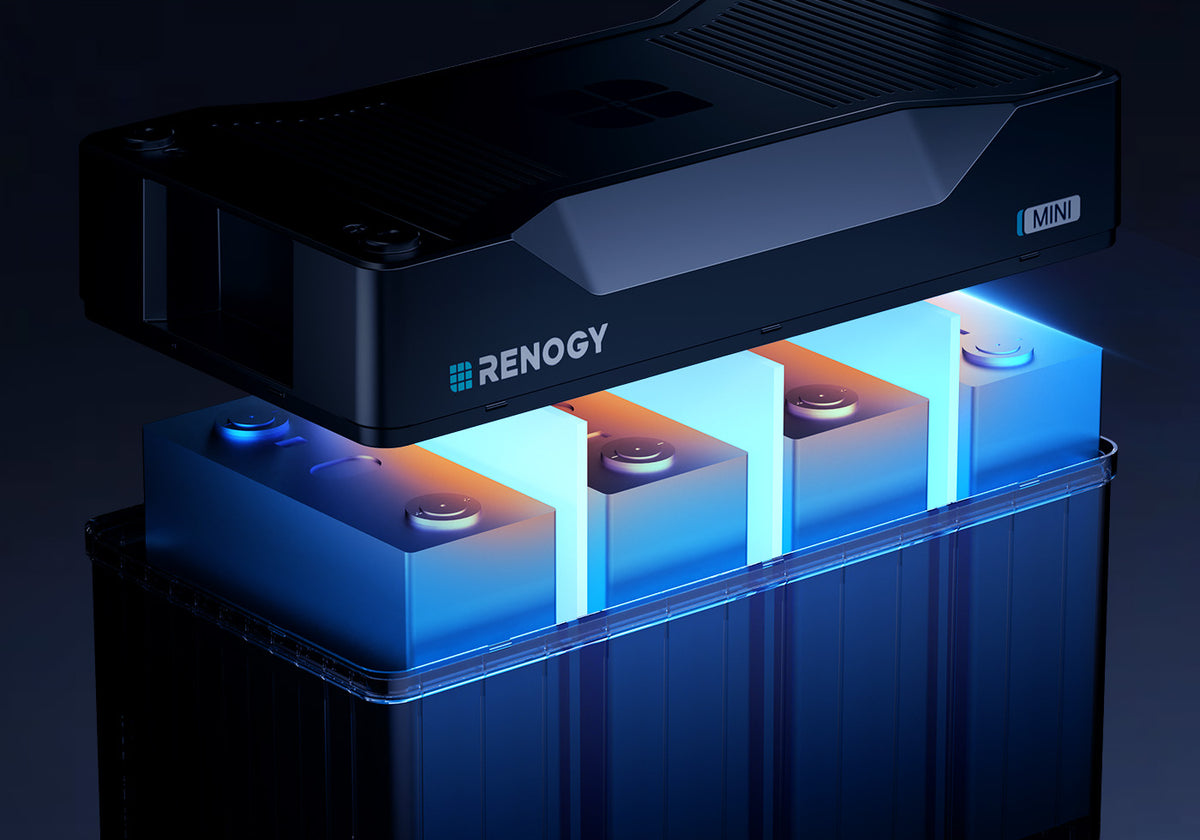

Protection You Can Rely on, Starting at the Cell Level

UL level safety design and flame retardant materials around the cells help contain localized thermal issues, reducing the risk of one cell problem spreading through the battery and giving you greater confidence in the safety of the entire system.
Protection You Can Rely on, Starting at the Cell Level

Durable Protection for Outdoor Use

Built to handle the outdoors, a durable IP65-rated enclosure and V-0 flame-retardant materials help protect against dust, water, and flame spread in demanding conditions.
Durable Protection for Outdoor Use

Protection You Can Rely on, Starting at the Cell Level

UL level safety design and flame retardant materials around the cells help contain localized thermal issues, reducing the risk of one cell problem spreading through the battery and giving you greater confidence in the safety of the entire system.
Protection You Can Rely on, Starting at the Cell Level

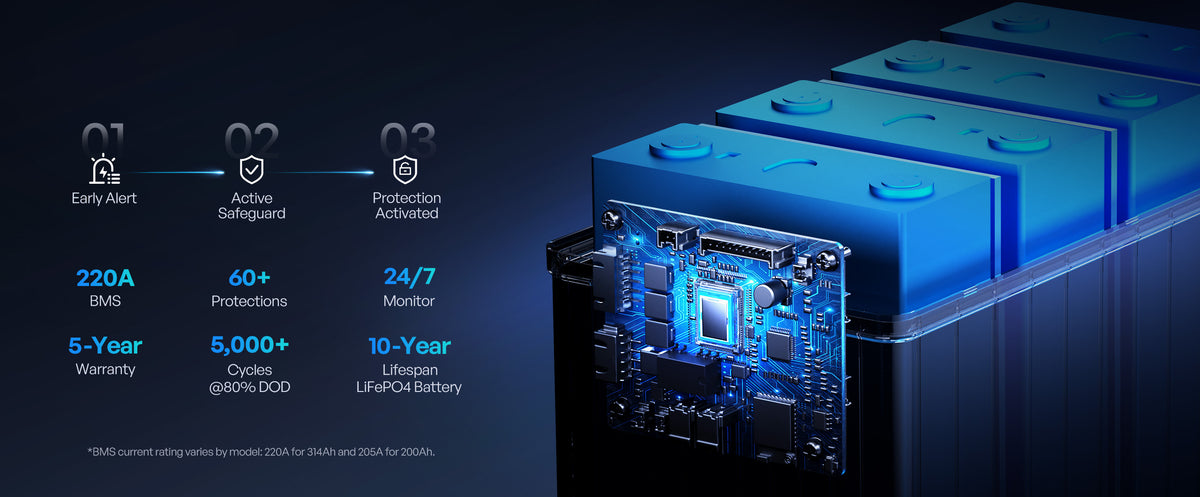

Multi Level BMS Protections for More Reliable Power

A smarter BMS with 60+ protections responds progressively to different levels of risk and pinpoints specific battery issues, helping reduce unnecessary shutdowns under heavy system loads from multiple high demand appliances.

Proven Through Harsh-Condition Testing

Built to handle demanding mobile environments, Reserve Mini Smart 314Ah Battery retained ¹99.2%+ voltage after vibration, shock, and durability testing, helping deliver stable power through tough conditions.

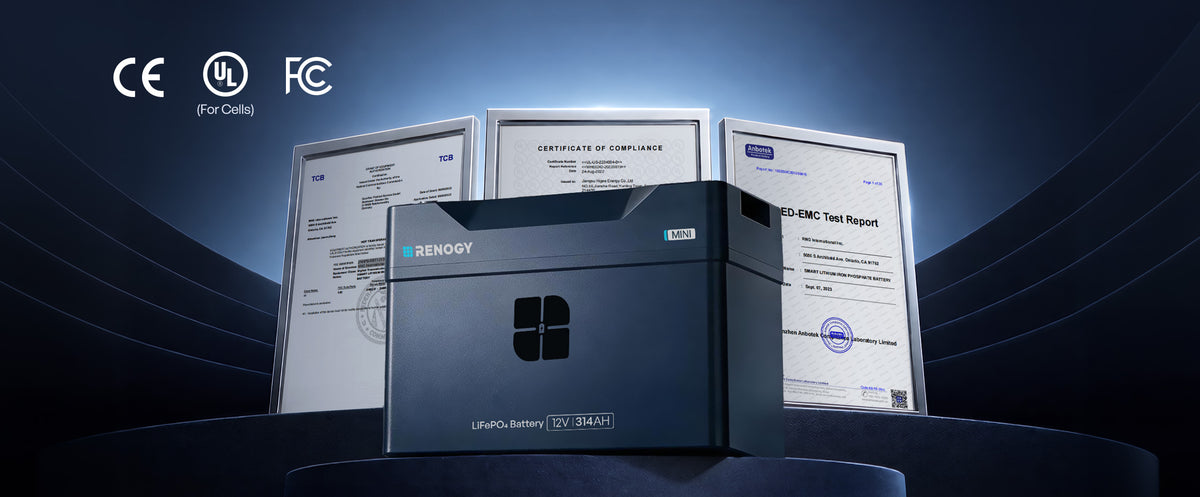

Certified for Trusted Quality

Backed by rigorous testing and certifications including UL, FCC, and CE, Reserve Mini Smart 314Ah Battery meets recognized safety and compliance requirements for confident use.
Multi Level BMS Protections for More Reliable Power

Real-Time Battery Insights, Right on Your Phone

With built-in Bluetooth, the Renogy App puts key battery information at your fingertips, helping you monitor status,
track performance, and stay informed wherever you are within range.

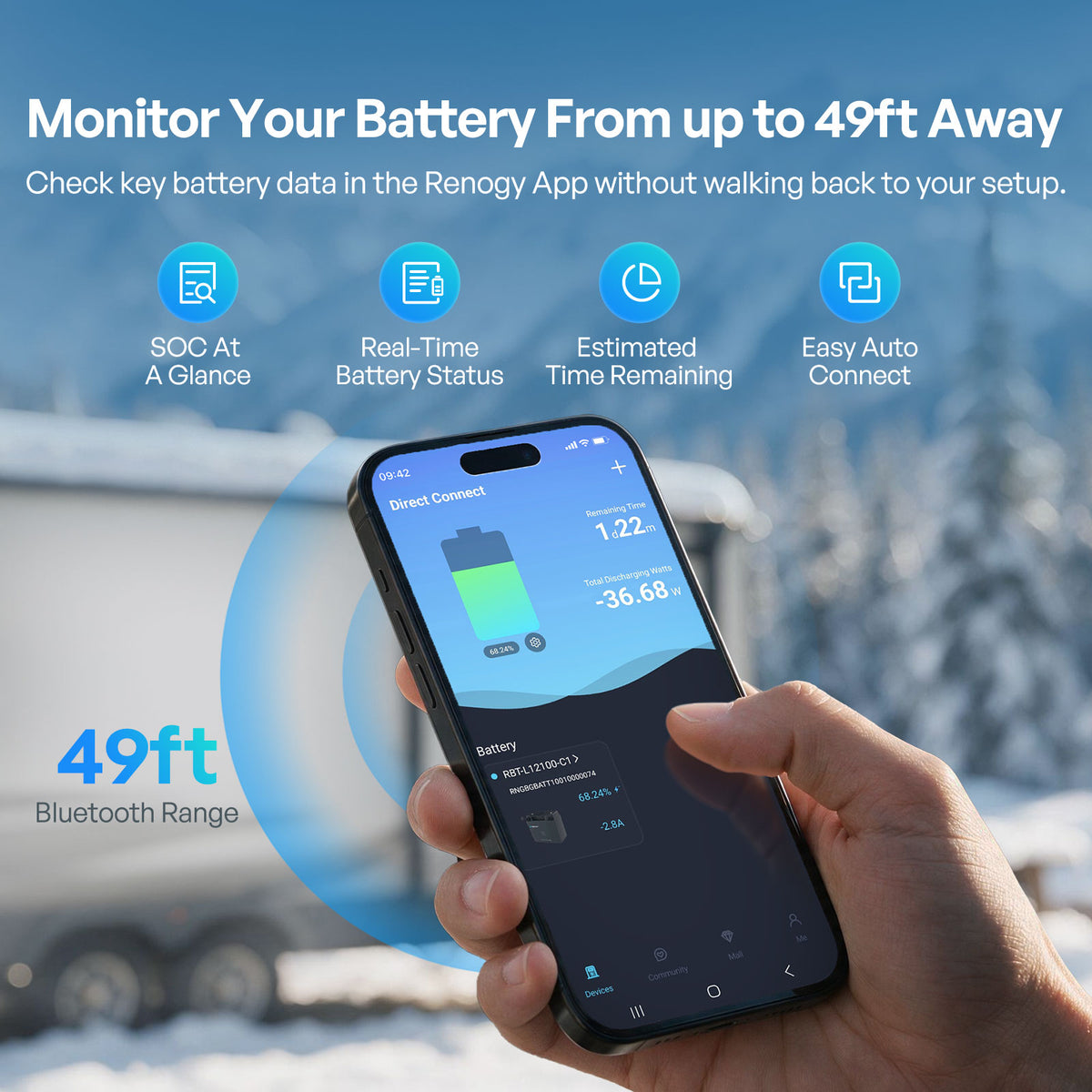

50% Longer Bluetooth Range for Easier Monitoring

Monitor battery status from up to 15m away through the Renogy App, giving you more freedom to stay connected around your RV or Off-Grid setup.

One App. Simplified Energy Management.

Connect your Reserve Mini Smart Battery and compatible Renogy devices in the Renogy App to monitor your entire setup from one place, making it easier to check system status and stay in control.
Real-Time Battery Insights, Right on Your Phone

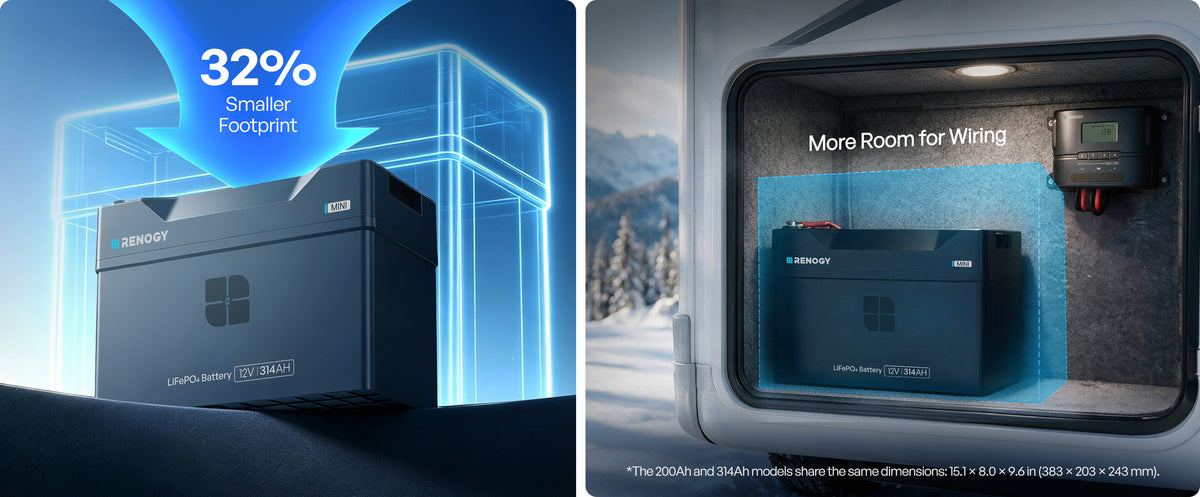

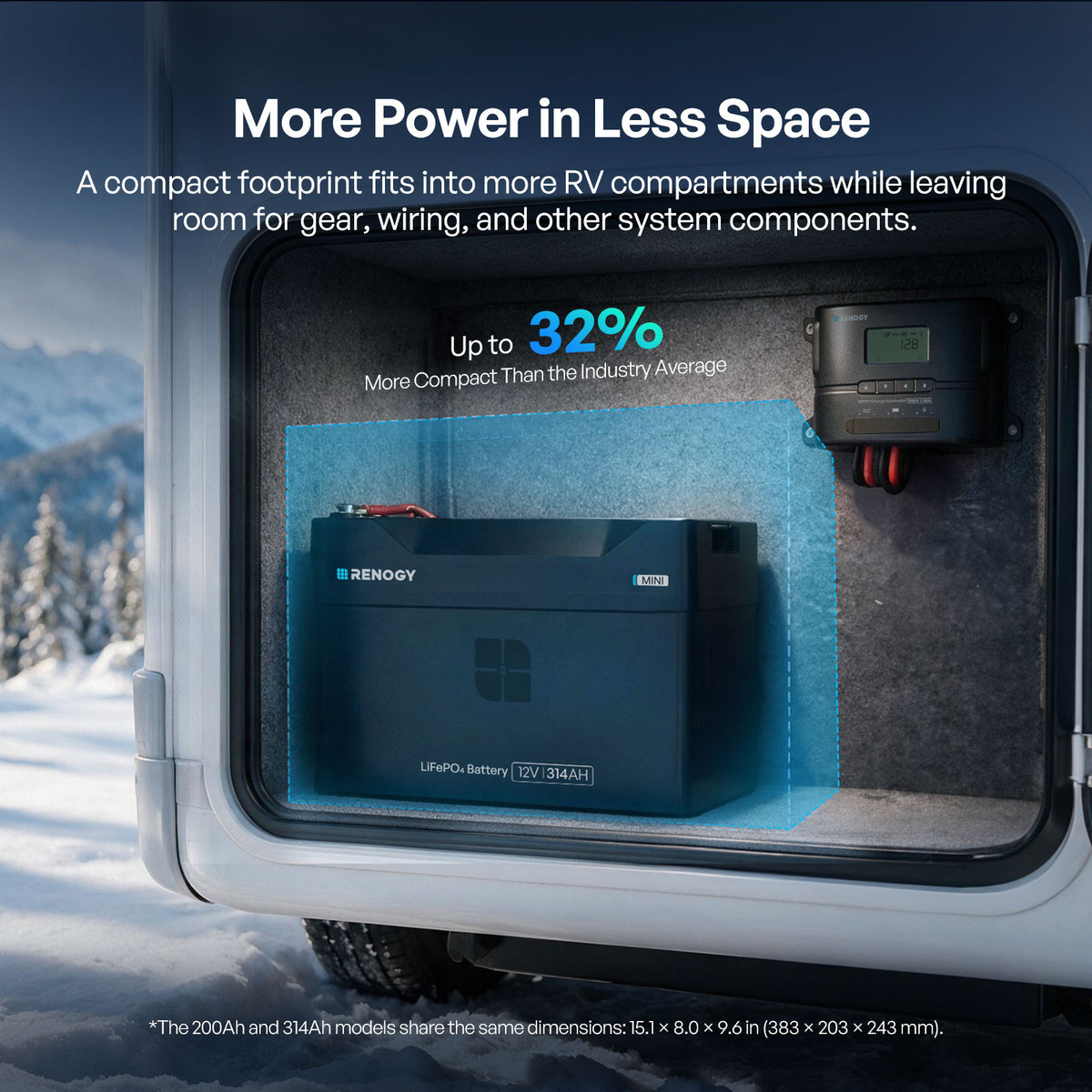

More Power in Less Space

A compact footprint makes it easier to add more battery capacity while leaving room for wiring, accessories, and other RV essentials.

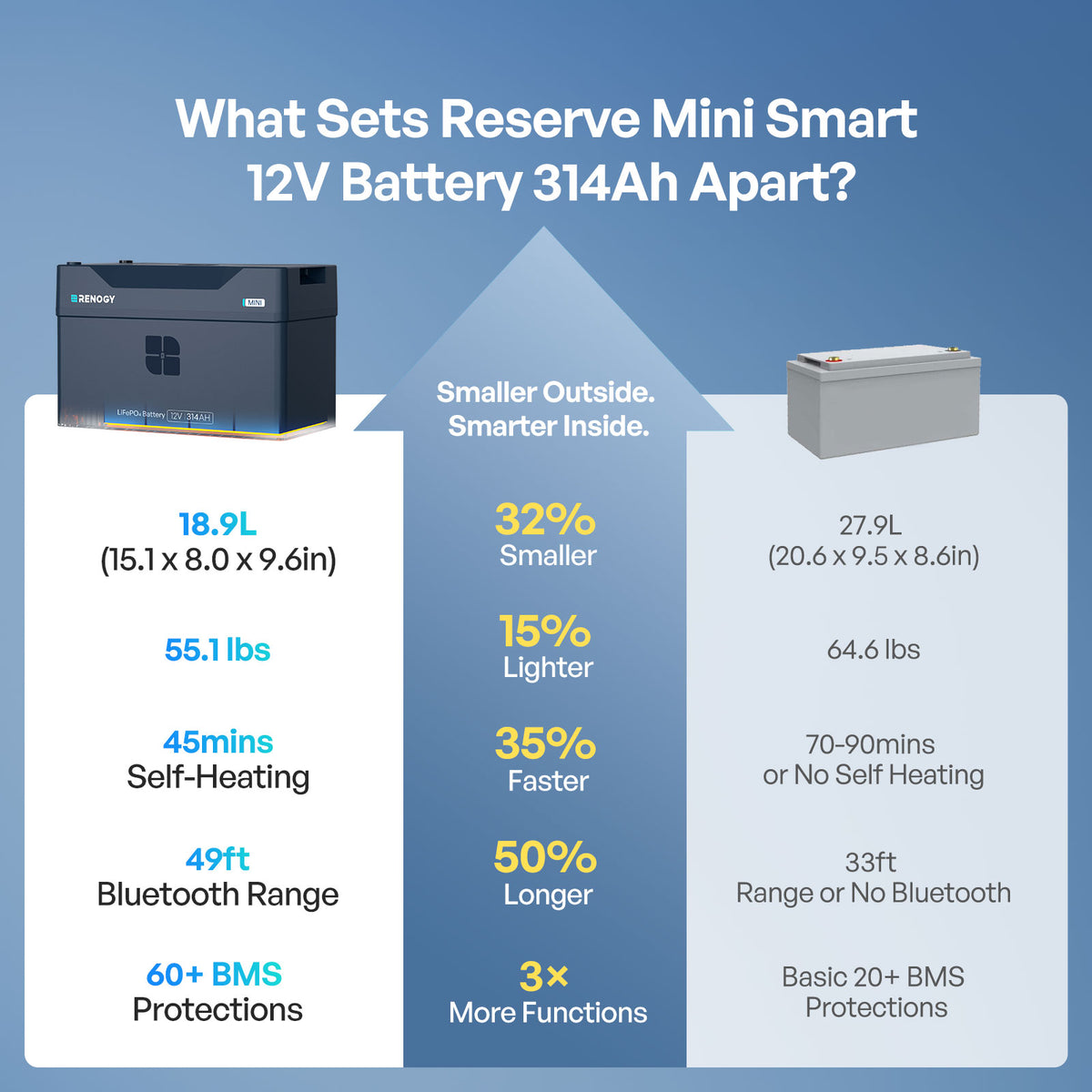

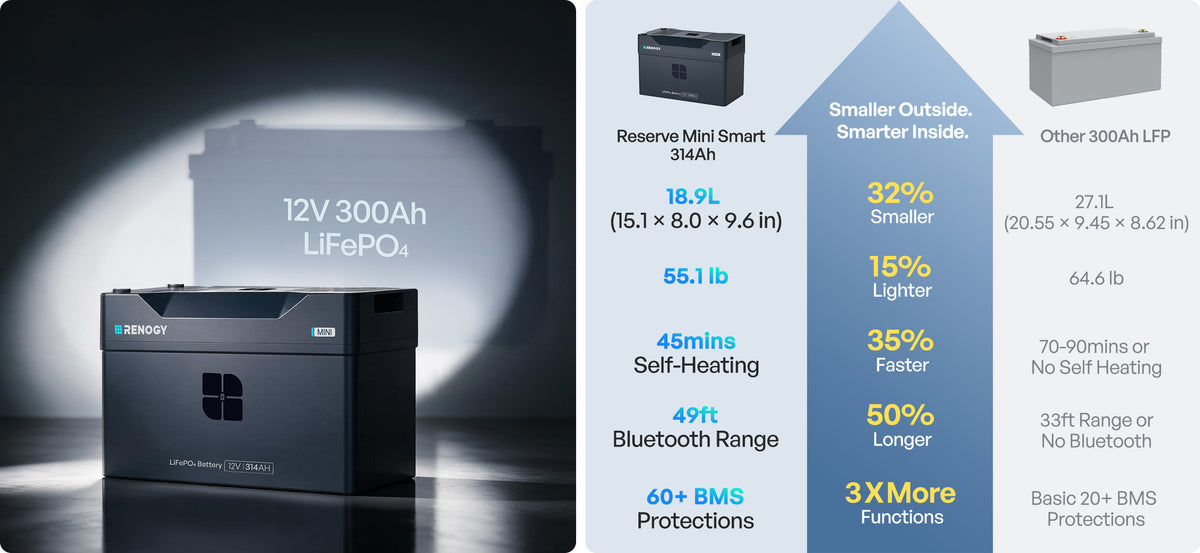

What Sets Reserve Mini Smart 12V Battery 314Ah Apart?

What Sets Reserve Mini Smart 12V Battery 314Ah Apart?

What Sets Reserve Mini Smart 12V Battery 314Ah Apart?

One 314Ah Battery for Everyday RV Essentials

Keep daily comforts running for about 1.6 days, so you can stay off grid longer with fewer charging worries.

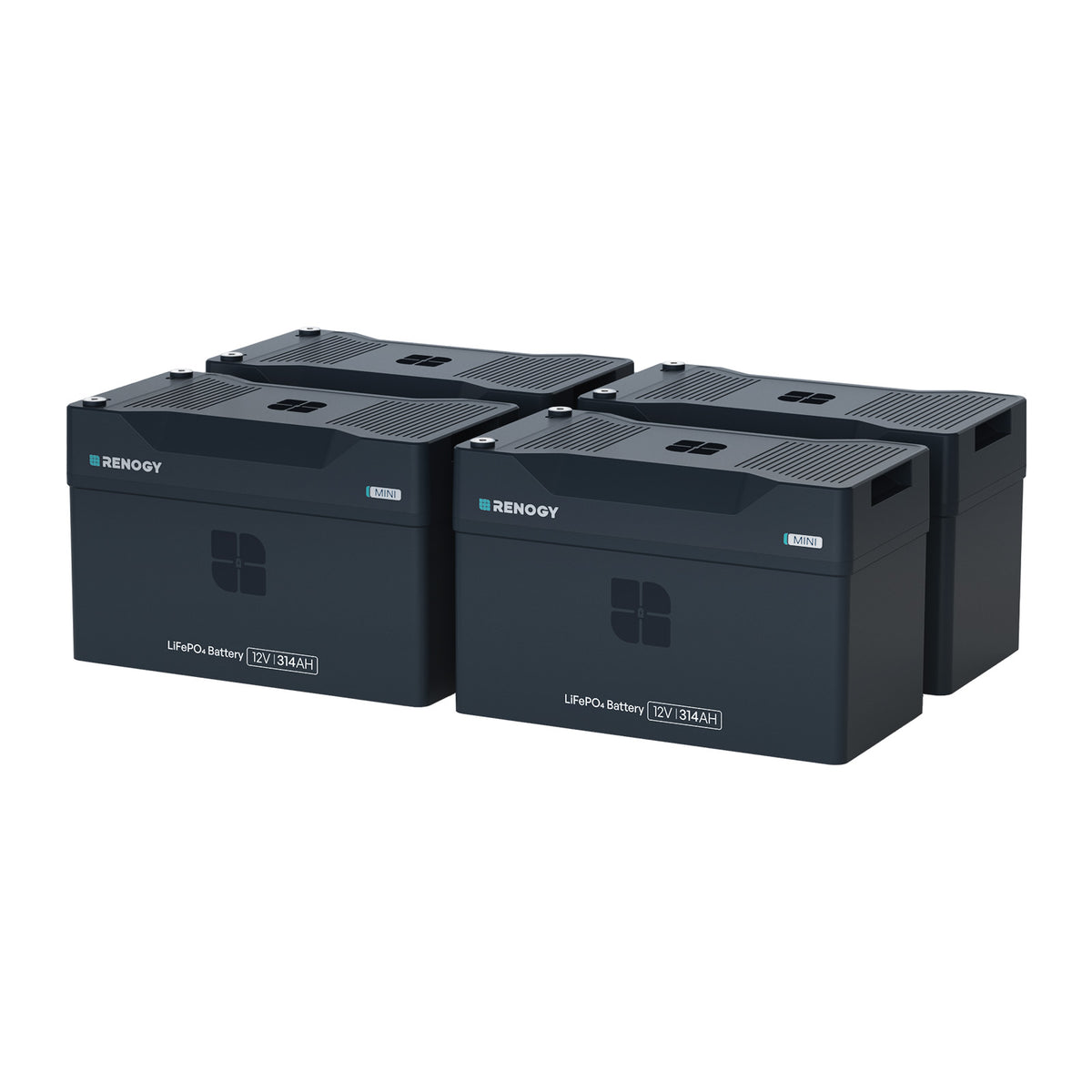

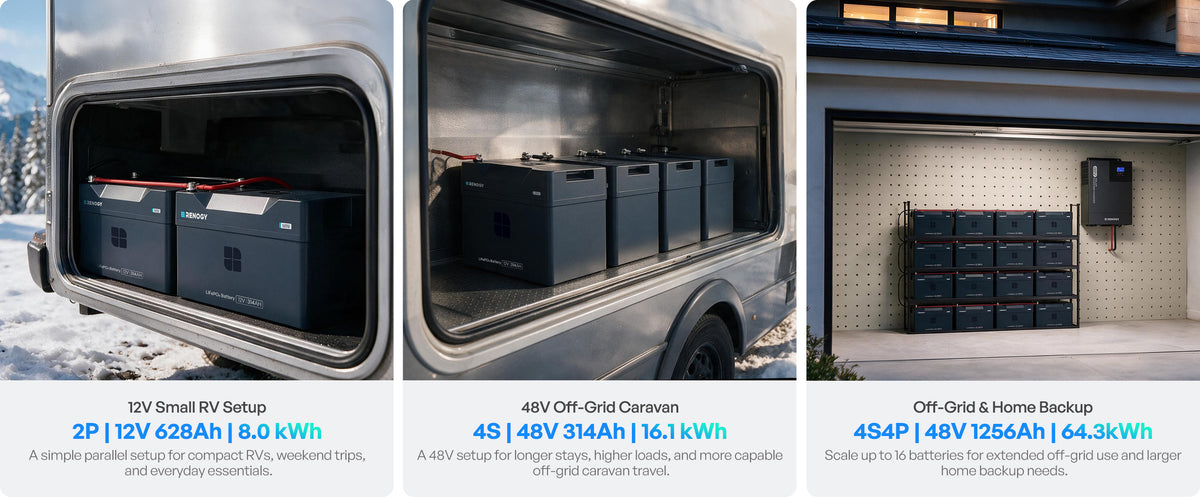

Expand in Series or Parallel for the Power You Need

From compact RV setups to 48V off grid caravans and whole home backup, Reserve Mini Smart 314Ah expands flexibly to match the way you travel and live.

Built for Wherever You Need Power

From weekend camping and home backup to off-grid cabins and marine systems, Reserve Mini Smart delivers dependable power across a wide range of applications.
One 314Ah Battery for Everyday RV Essentials

Charge Your Way, Wherever You Go

Charge Your Way, Wherever You Go

From home to campsite to Off-Grid destinations, five charging options give you more flexibility to
keep your battery powered wherever your journey takes you.
From home to campsite to Off-Grid destinations, five charging options give you more flexibility to
keep your battery powered wherever your journey takes you.
AC ChargingAC Charging
AC Charging
Solar + MPPTSolar + MPPT
Solar + MPPT
Alternator + DC-DC ChargerAlternator + DC-DC Charger
Alternator + DC-DC Charger
Generator + AC ChargerGenerator + AC Charger
Generator + AC Charger
Portable Power Station + AC ChargerPortable Power Station + AC Charger
Portable Power Station + AC Charger
Global Partners

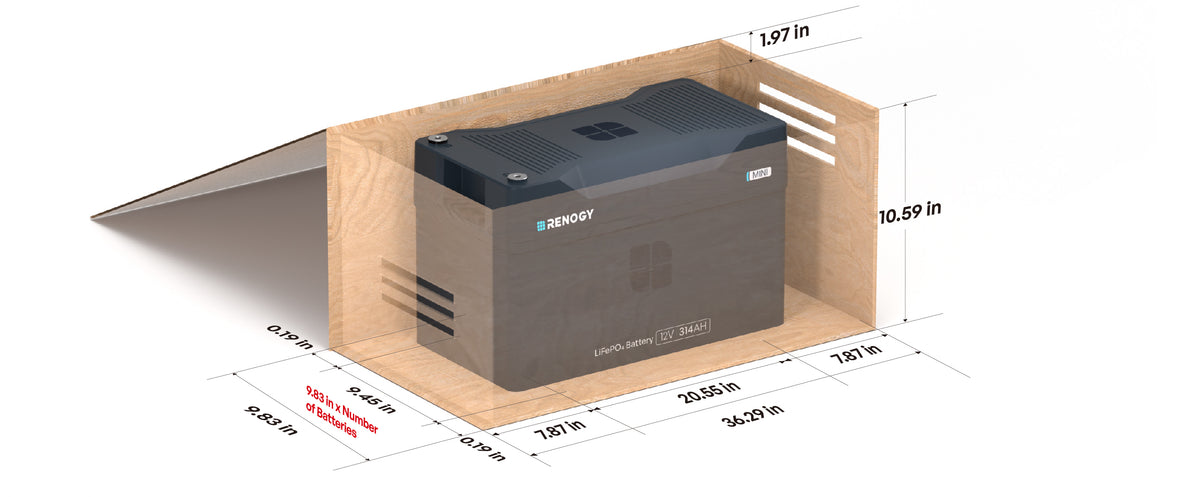

Dimensional Reference Guide

Before installing the battery, ensure a clearance of 1.97-3.94in (5-10cm) above the battery, and leave at least
7.87in (20cm) on the side with the busbars for optimal installation.

12V 200Ah & 314Ah Package Includes

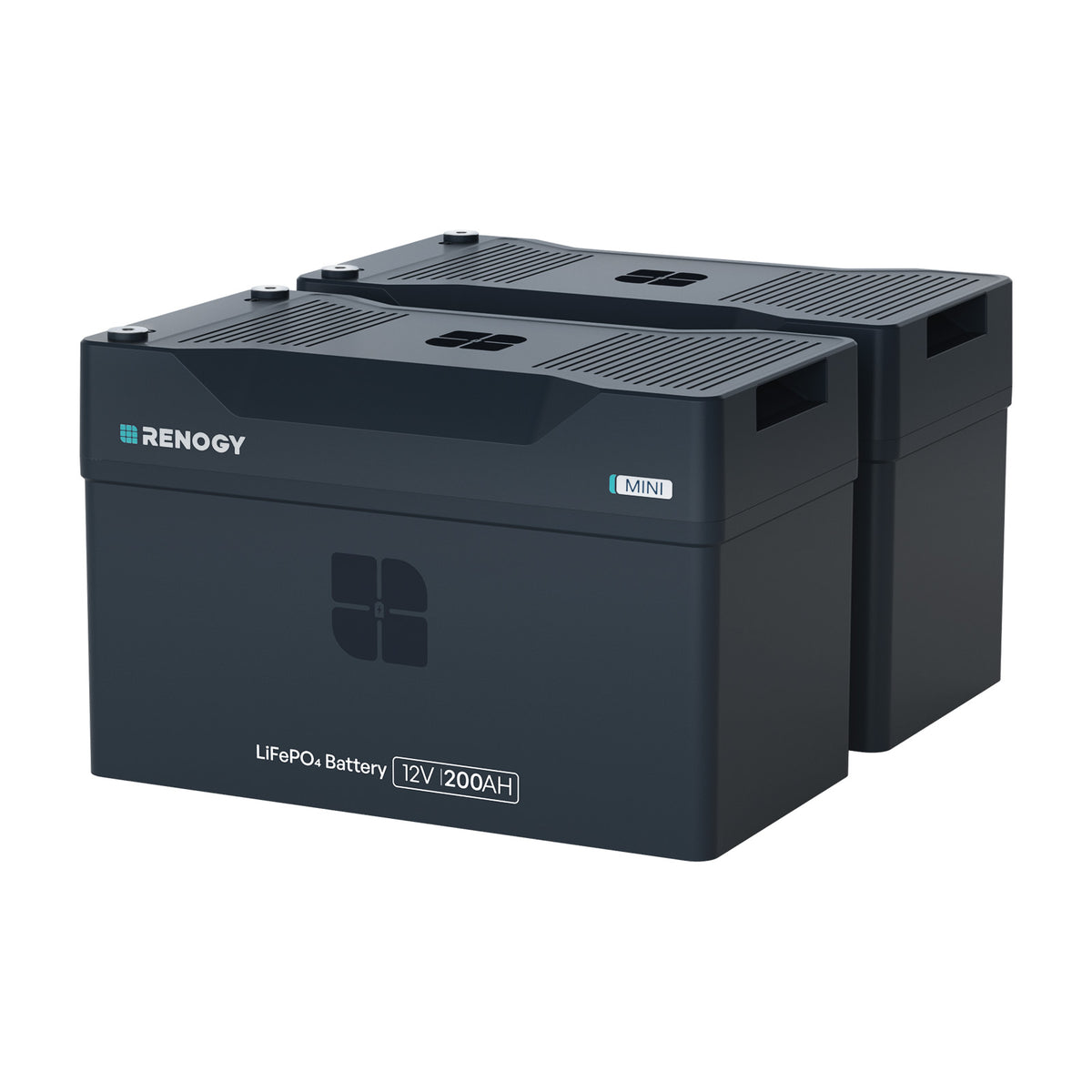

Reserve Mini Smart 12V 200Ah/314Ah LiFePO4 Battery

Reserve Mini Smart 12V 200Ah/314Ah LiFePO4 Battery

x 1
Insulation Sleeves

Insulation Sleeves

x 2
Long Terminal Bolts

Long Terminal Bolts

x 2
Terminal Bolts

Terminal Bolts

x 2

Product Comparison

A table comparing the facets of 2 products
Facet
Reserve Mini Smart 12V 200Ah / 314Ah LiFePO4 Battery with Self Heating & Bluetooth
View Details
Reserve Mini Smart 12V 200Ah / 314Ah LiFePO4 Battery with Self Heating & Bluetooth
View Details
Product Marketing Name
Product Marketing Name Renogy Reserve Mini Smart 12V 314AhRenogy Reserve Mini Smart 12V 200Ah
Cell Type
Cell Type Lithium Iron PhosphateLithium Iron Phosphate
Warranty
Warranty 5-year5-year
Cycle Life
Cycle Life >5000 cycles @ 80% DOD>5000 cycles @ 80% DOD
Nominal Voltage
Nominal Voltage 12.8V12.8V
Rated Capacity
Rated Capacity 314Ah200Ah
Energy
Energy 4,019Wh2,560Wh
Max. Expansion (Parallel & Series)
Max. Expansion (Parallel & Series) Series &Parallel (4S & 4P) Series &Parallel (4S & 4P)
Certifications
Certifications MSDS, UN38.3, FCC, CE, PSE, RCM, IC, RoHS, and UKCAMSDS, UN38.3, FCC, CE, PSE, RCM, IC, RoHS, and UKCA
Communication
Communication BluetoothBluetooth
Self-Heating Power
Self-Heating Power 140W80W
BMS
BMS 220A205A
Max. Continuous Output Power
Max. Continuous Output Power 2,560W2,560W
Max. Continuous Charge Current
Max. Continuous Charge Current 215A165A
Max. Continuous Discharge Current
Max. Continuous Discharge Current 220A220A
Max. Discharge Current Peak
Max. Discharge Current Peak 1,000A@1s1,000A@1s
Charge Method
Charge Method CC-CV (Constant Current-Constant Voltage)CC-CV (Constant Current-Constant Voltage)
Charge Voltage
Charge Voltage 14.4V14.4V
Charge Temperature Range
Charge Temperature Range -4 to 122°F (-20 to 50°C)-4 to 122°F (-20 to 50°C)
Discharge Temperature Range
Discharge Temperature Range -4 to 122°F (-20 to 50°C)-4 to 122°F (-20 to 50°C)
Storage Temperature Range
Storage Temperature Range -4 to 140°F (-20 to 60°C)-4 to 140°F (-20 to 60°C)
Low-Temperature Protection
Low-Temperature Protection <32℉ (0℃)<32℉ (0℃)
Automatic Discharge Cut-Off
Automatic Discharge Cut-Off Yes (via BMS)Yes (via BMS)
Automatic Charge Cut-Off
Automatic Charge Cut-Off Yes (via BMS)Yes (via BMS)
Automatic Charge Recovery
Automatic Charge Recovery Yes (when temperature rises above 32°F/0°C)Yes (when temperature rises above 32°F/0°C)
Terminals Bolt Size
Terminals Bolt Size M8M8
Weight (Approx.)
Weight (Approx.) 55.1 lbs (25.0kg)43.2 lbs (19.6kg)
Dimension
Dimension 15.1 x 8.0 x 9.6 in (383 x 203 x 243mm)15.1 x 8.0 x 9.6 in (383 x 203 x 243mm)
Housing Material
Housing Material ABS+PC (V0 flame-retardant rating)ABS+PC (V0 flame-retardant rating)
Protection Class
Protection Class IP65IP65

Frequently Asked Questions

Will this battery fit in my existing RV battery compartment?

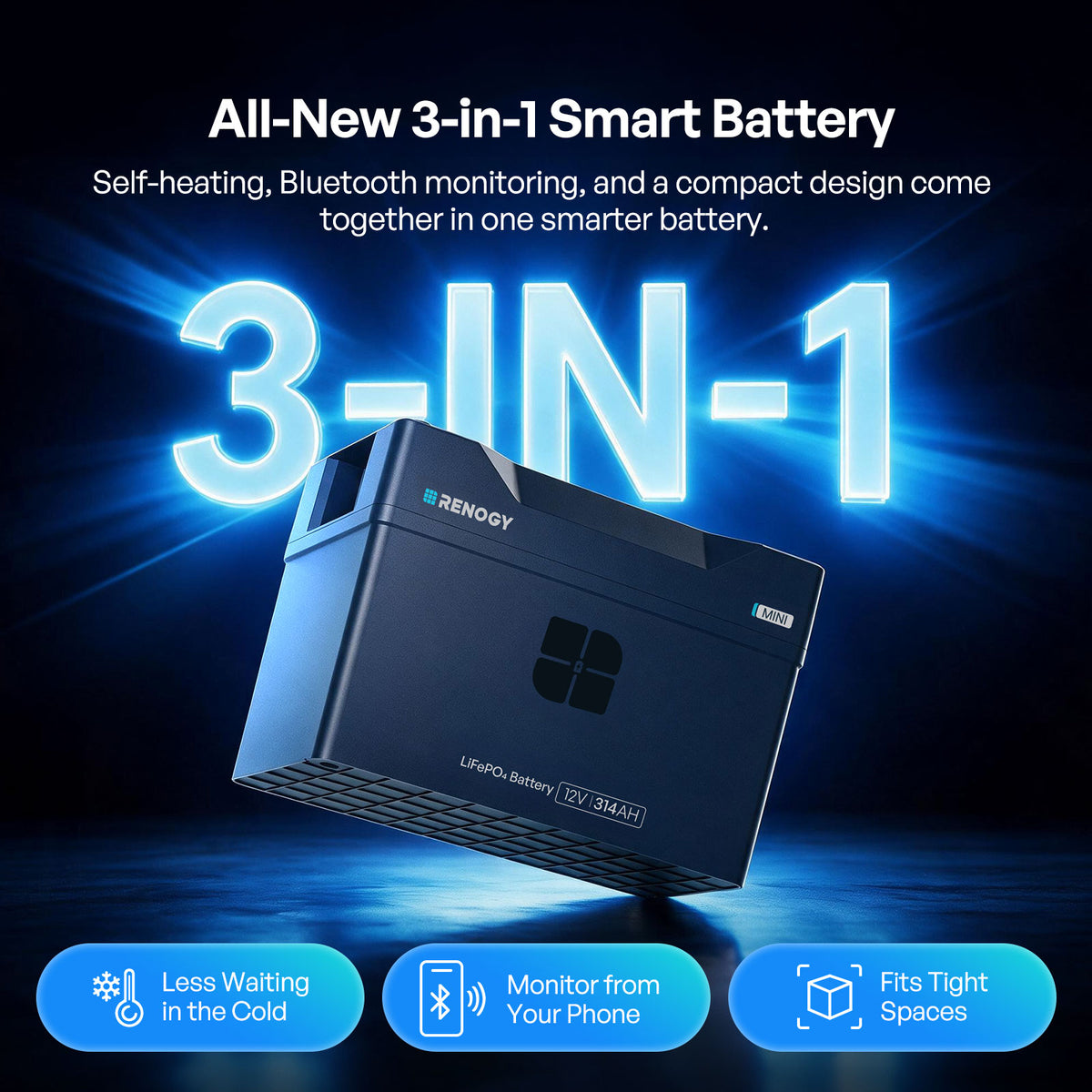

Reserve Mini Smart 314Ah Battery delivers 314Ah of capacity in a compact 15.1 x 8.0 x 9.6in footprint, helping you add more battery power in tight RV spaces. Before purchase, measure your battery compartment and leave enough clearance for wiring, terminals, and securing the battery.

What is the difference between the Reserve Mini Smart 200Ah and 314Ah Batteries?

Both batteries share the same compact size: 15.1 x 8.0 x 9.6in. The 200Ah model weighs 43.2 lbs, while the 314Ah model weighs 55.1 lbs and provides more capacity in the same footprint.

The models also use different self-heating systems. The 200Ah battery uses 80W heating pads, while the 314Ah battery uses 140W heating pads for faster cold-weather warm-up. Choose the 314Ah if you want maximum capacity in the same space, or choose the 200Ah if you want a lighter battery with the same compact fit.

What happens if I charge the battery in cold weather?

When the battery temperature drops below 41°F (5°C), self-heating can start automatically once stable charging is detected. This helps warm the battery so charging can resume safely in cold conditions.

Self-heating starts when the charge current reaches at least 15A and the charger voltage is at least 0.8V above the battery voltage. Heating stops automatically when the battery temperature rises above 50°F (10°C).

How long will the Reserve Mini Smart 314Ah Battery last?

The battery is rated for over 5,000 cycles at 80% DOD and is backed by a 5 year warranty, supporting years of regular RV and off grid use.

How can I tell how much battery I have left?

Built-in Bluetooth lets you check SOC, voltage, current, power, remaining time, and battery alerts directly in the Renogy App.

How can I charge this battery?

You can charge it with solar through an MPPT controller, a vehicle alternator through a DC to DC charger, shore or grid power through an AC charger, a generator through an AC charger, or a compatible portable power station through an AC charger.

Can I connect more batteries later if I need more capacity?

Yes. You can expand the system up to 4S4P, with as many as 16 matching Reserve Mini Smart 314Ah / 200Ah batteries.

Can the 314Ah battery handle high power appliances?

Yes. The 314Ah model supports up to 220A continuous discharge, with peak discharge capability of 1,000A for 1 second to help handle brief startup demands. Actual appliance support also depends on your inverter and overall system setup.
