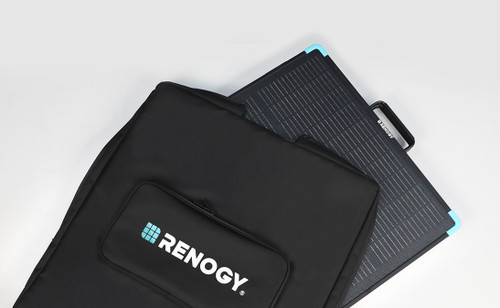

Renogy 100W N-type Compact Portable Solar Panel
The most durable high-wattage solar suitcase with robust kickstands and N-type cells.

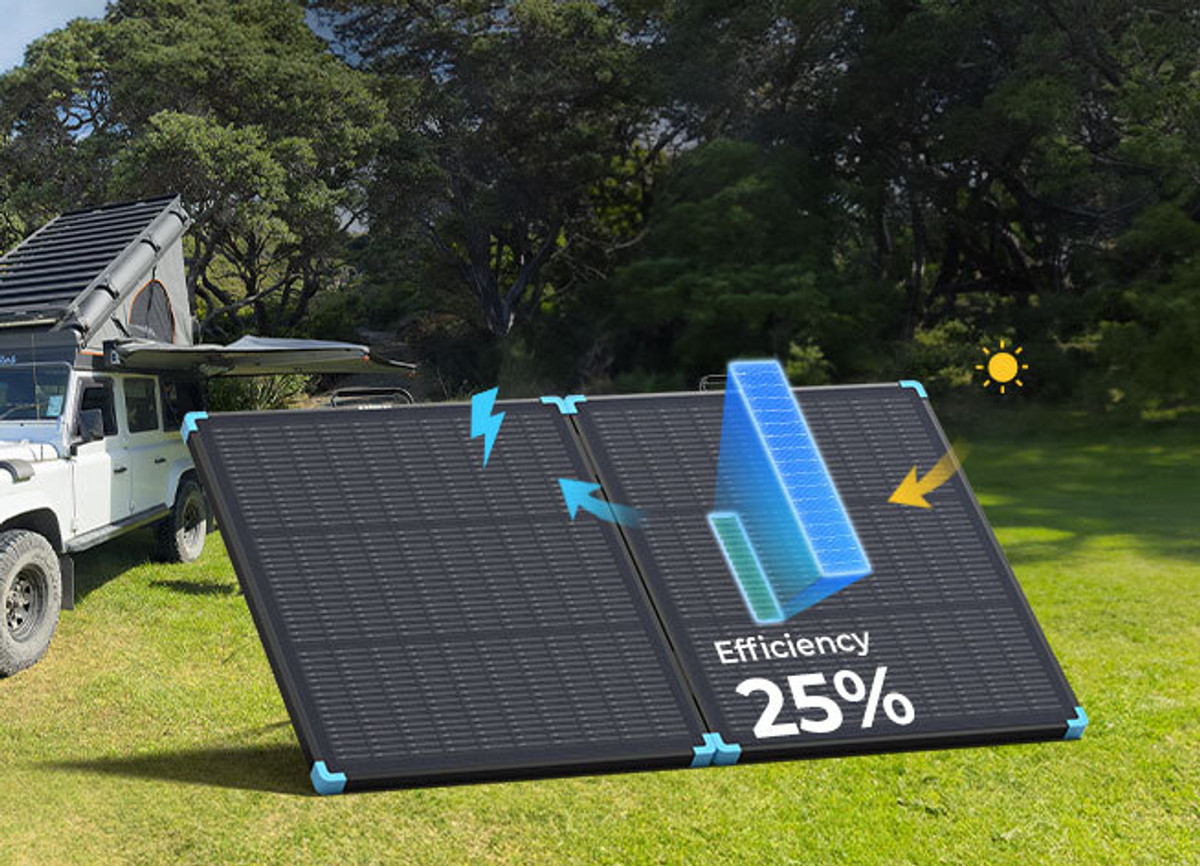

Ultimate Reliability with Impeccable Efficiency
Maximizing module potential with 25% cell efficiency while harnessing compact solar cell layouts for enhanced module efficiency.
Instant Backup Power
Pairs seamlessly with a portable power station for plug-and-play emergency backup power.

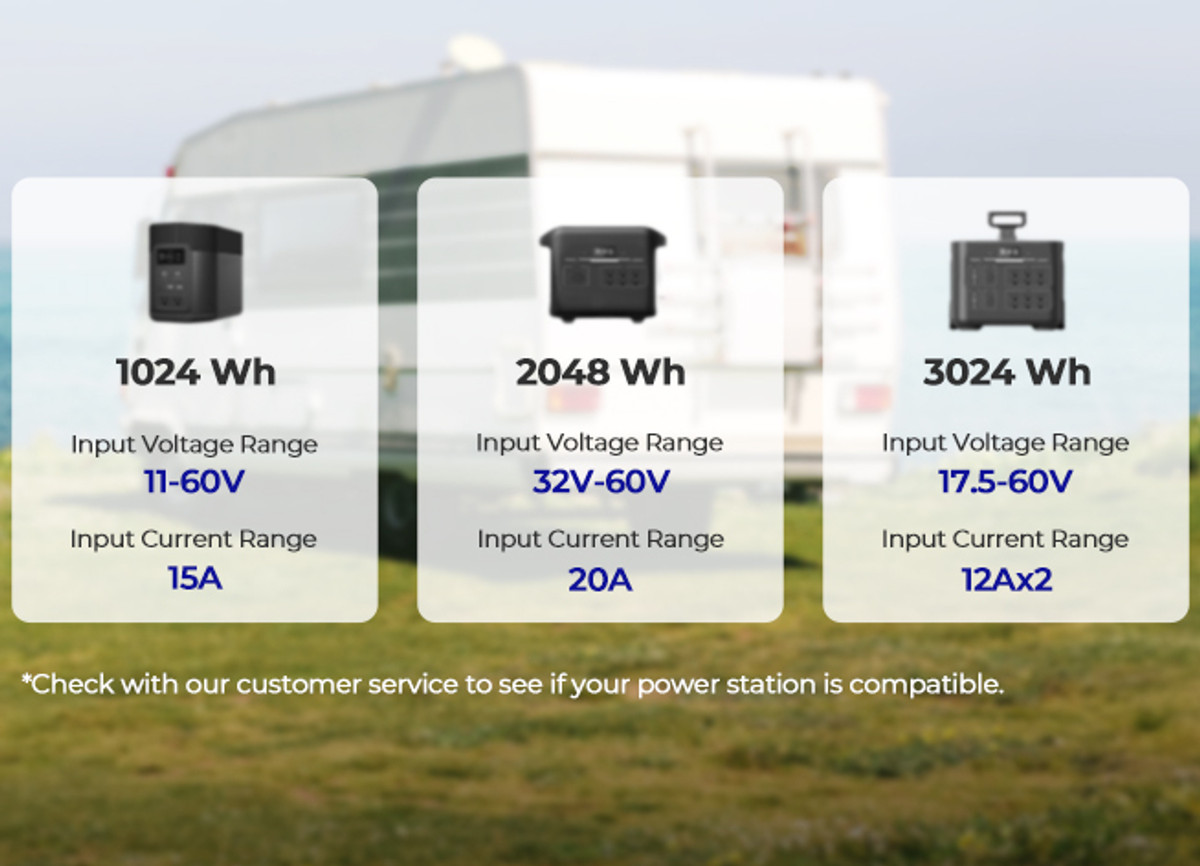

Compatible with Most Power Stations
Ensure the portable power station’s specs match the solar panel’s DC input range.
Charge Power Stations
Charge Batteries

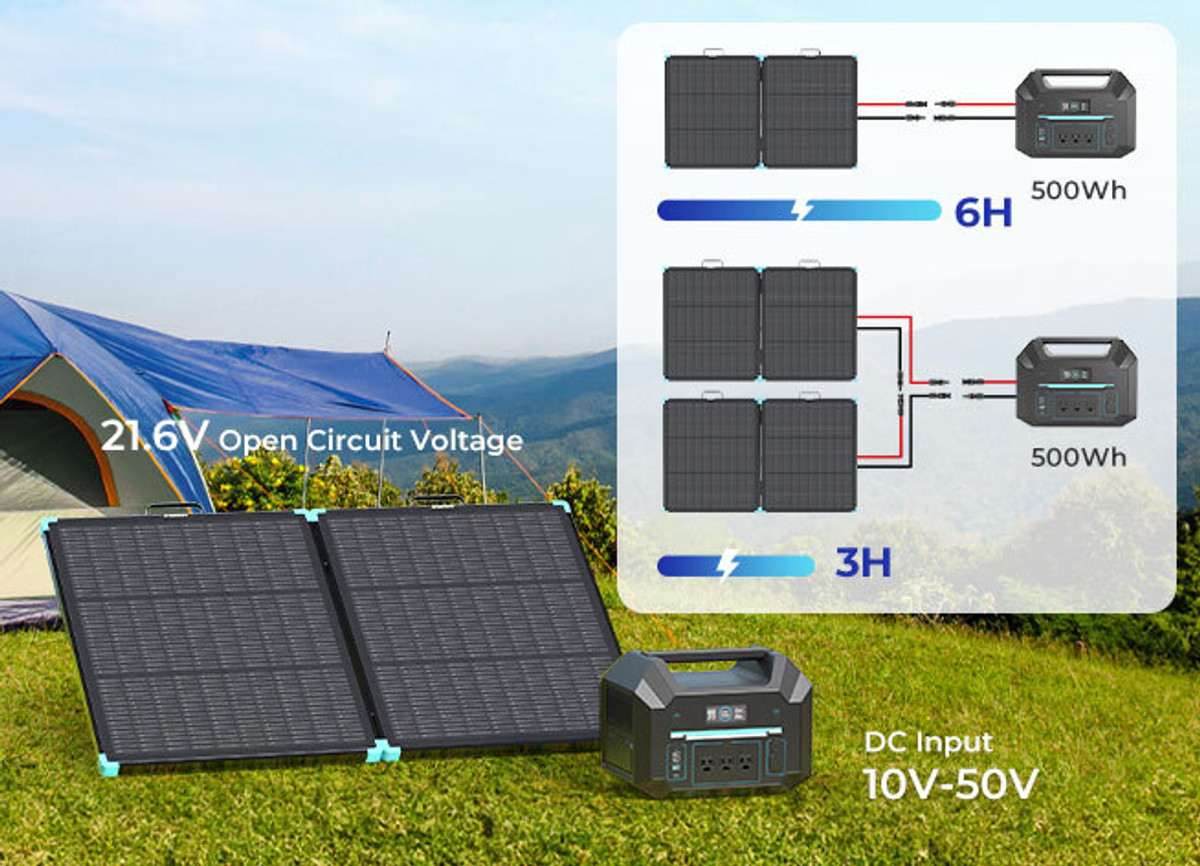

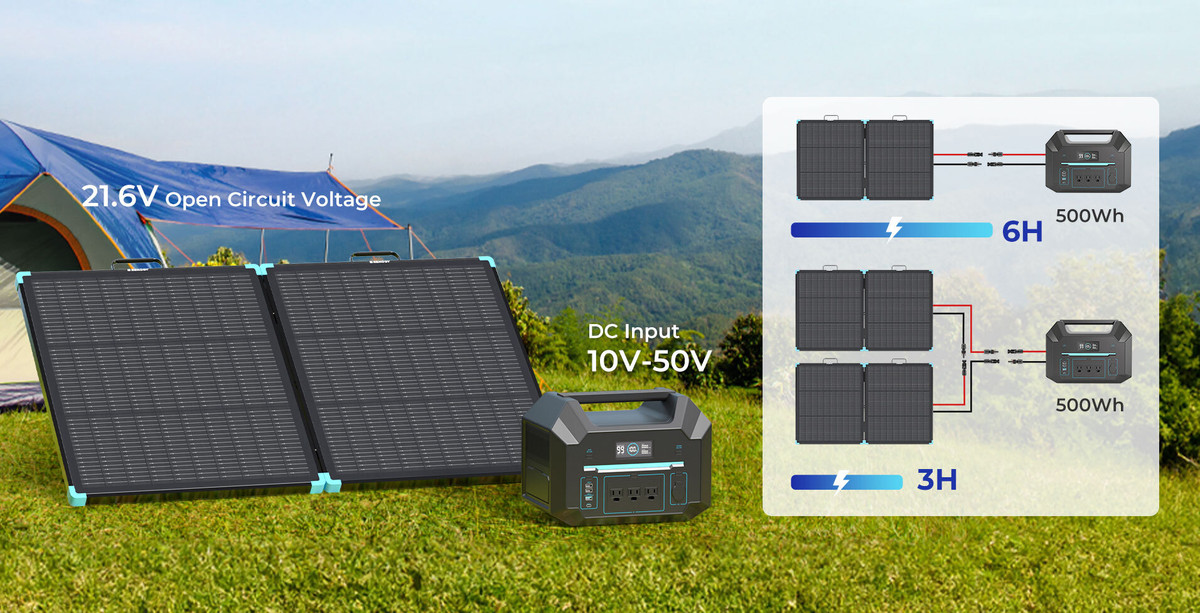

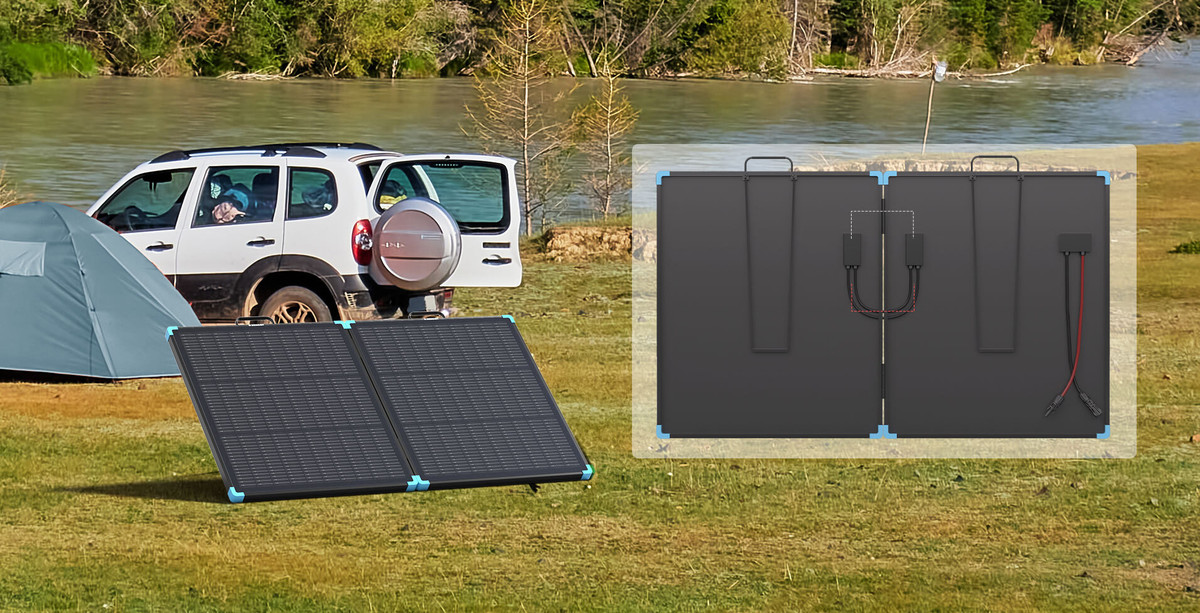

Portable Power Anywhere
Parallel two panels to boost power and charge faster in high-demand outdoor scenarios.

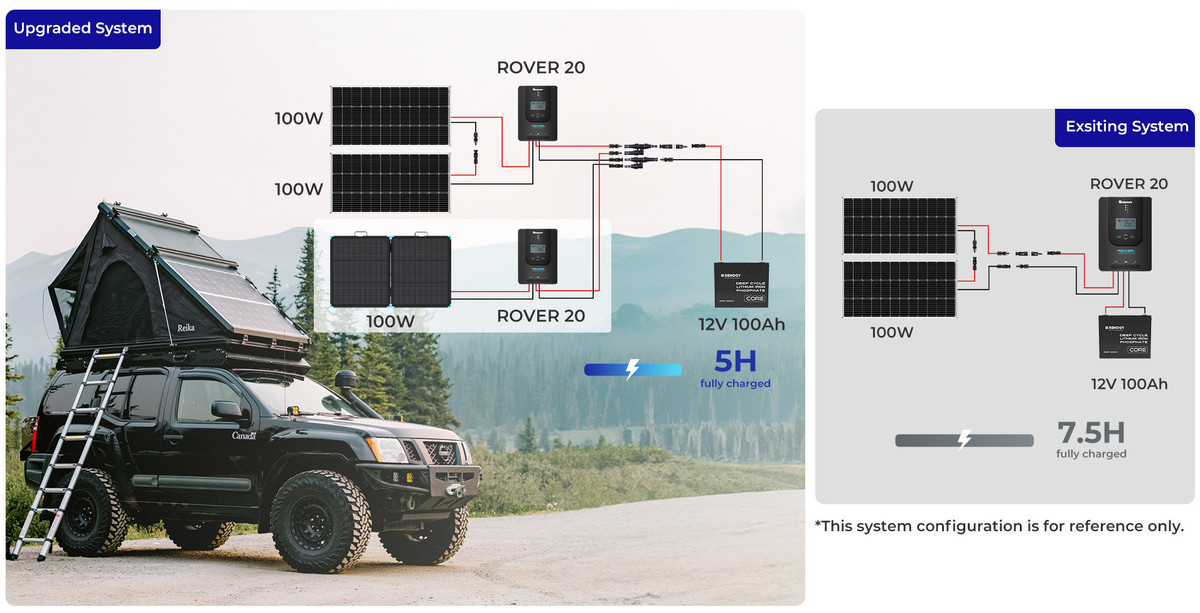

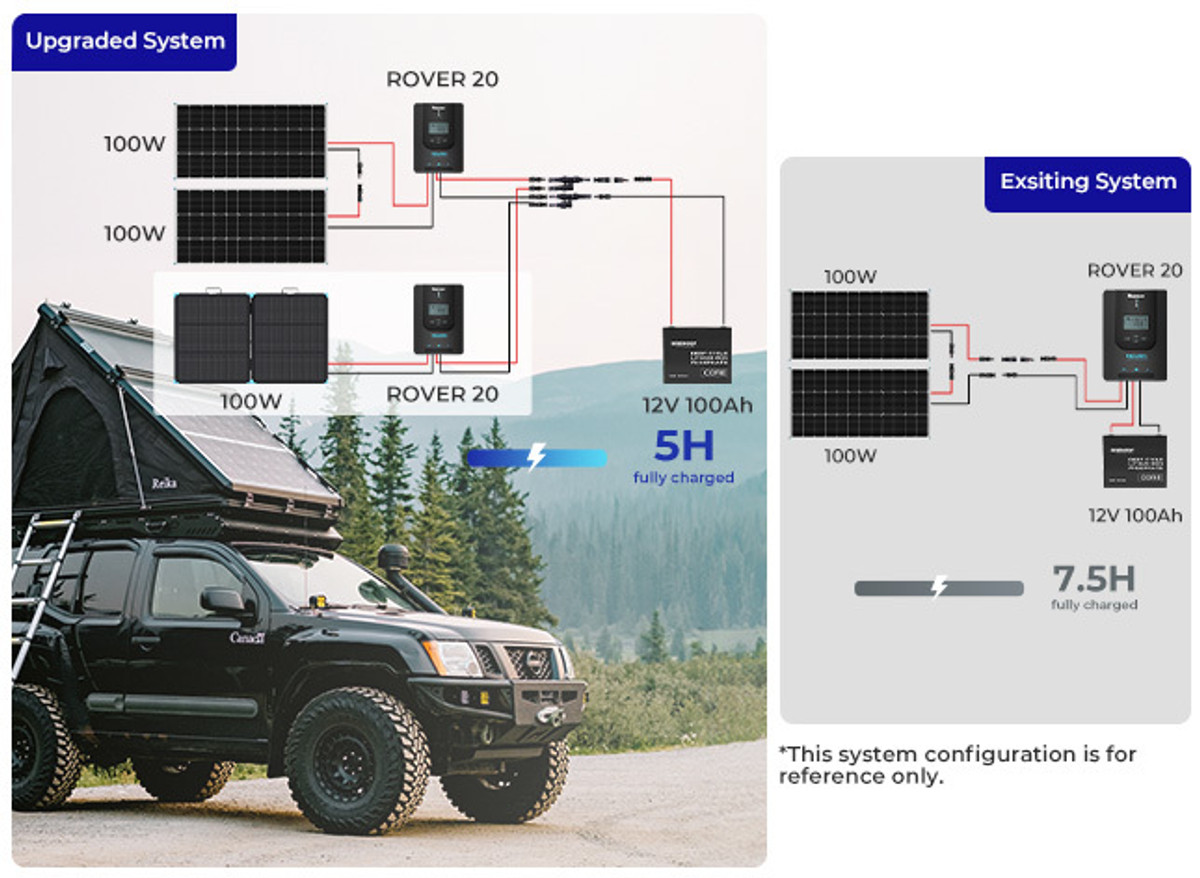

The Dynamic Power Boost for Existing Solar Systems
Please ensure that the PV input voltage remains lower than the controller solar input voltage.

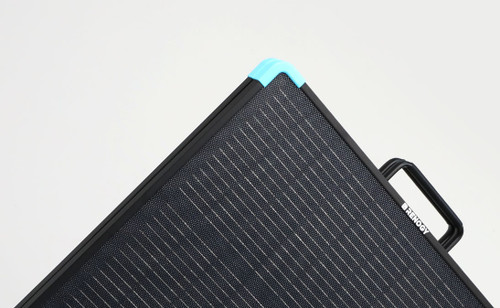

Robust Structure
Uninterrupted Output

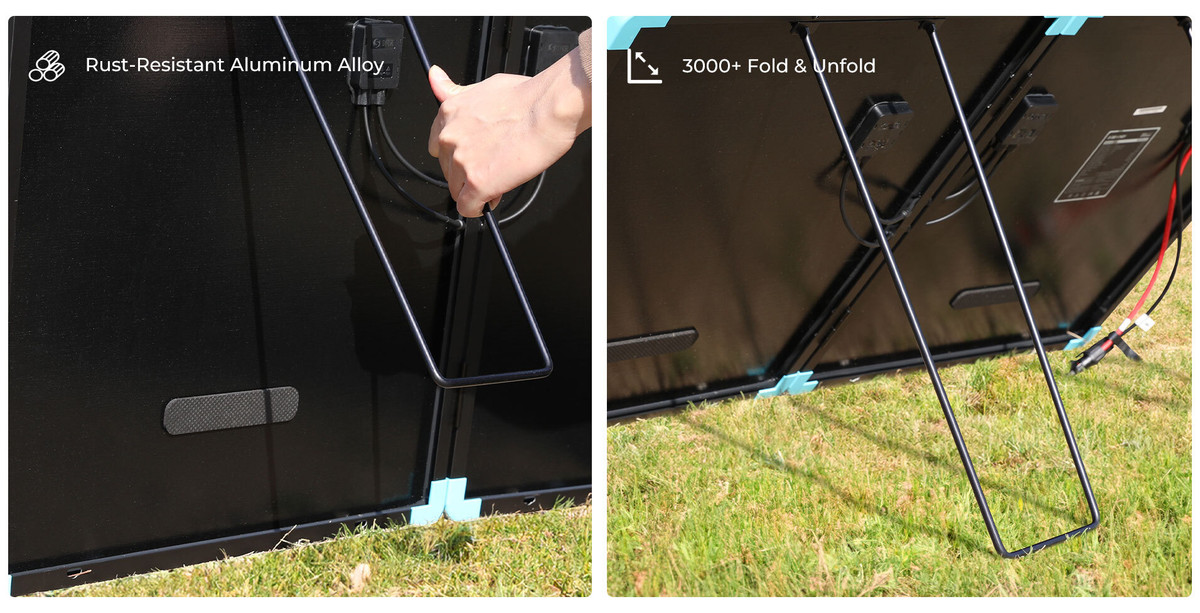

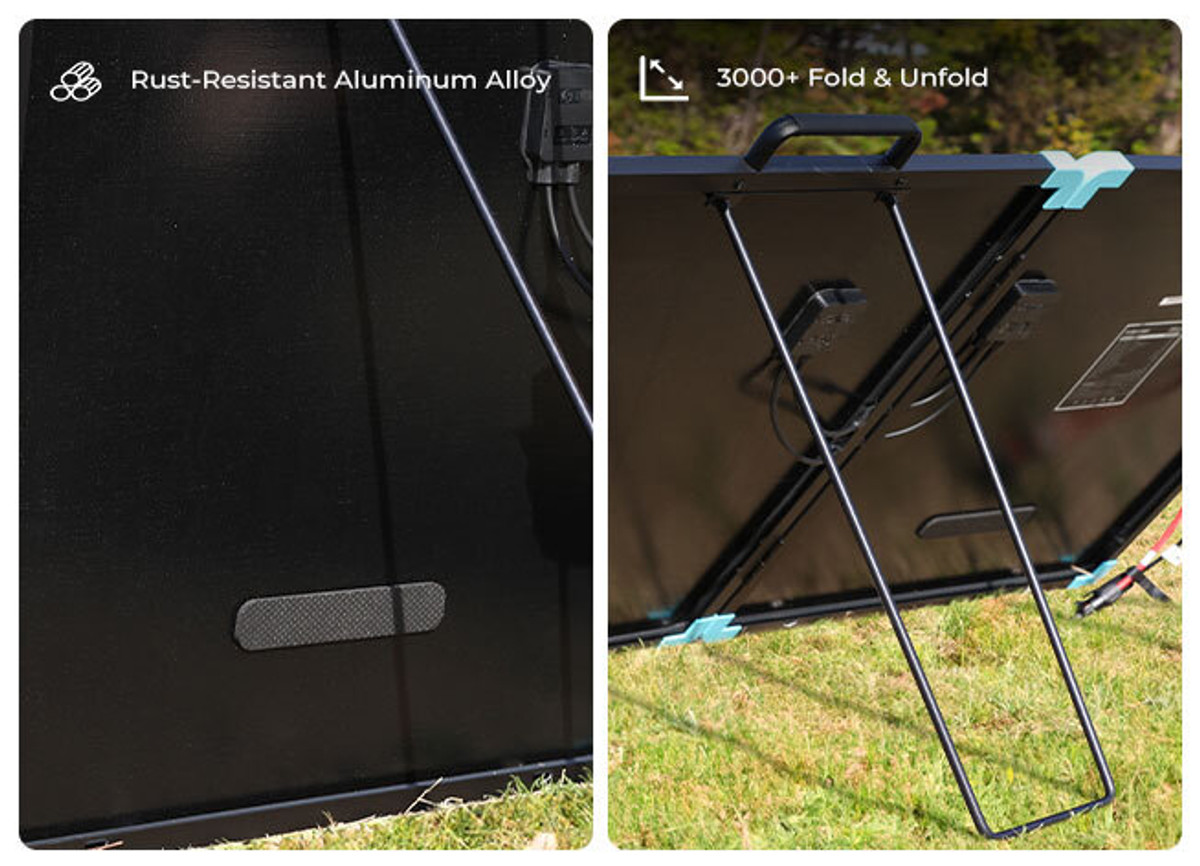

Robust Structure for Consistent Panel Output
Sturdy, rust-resistant kickstands allow maximum power generation.

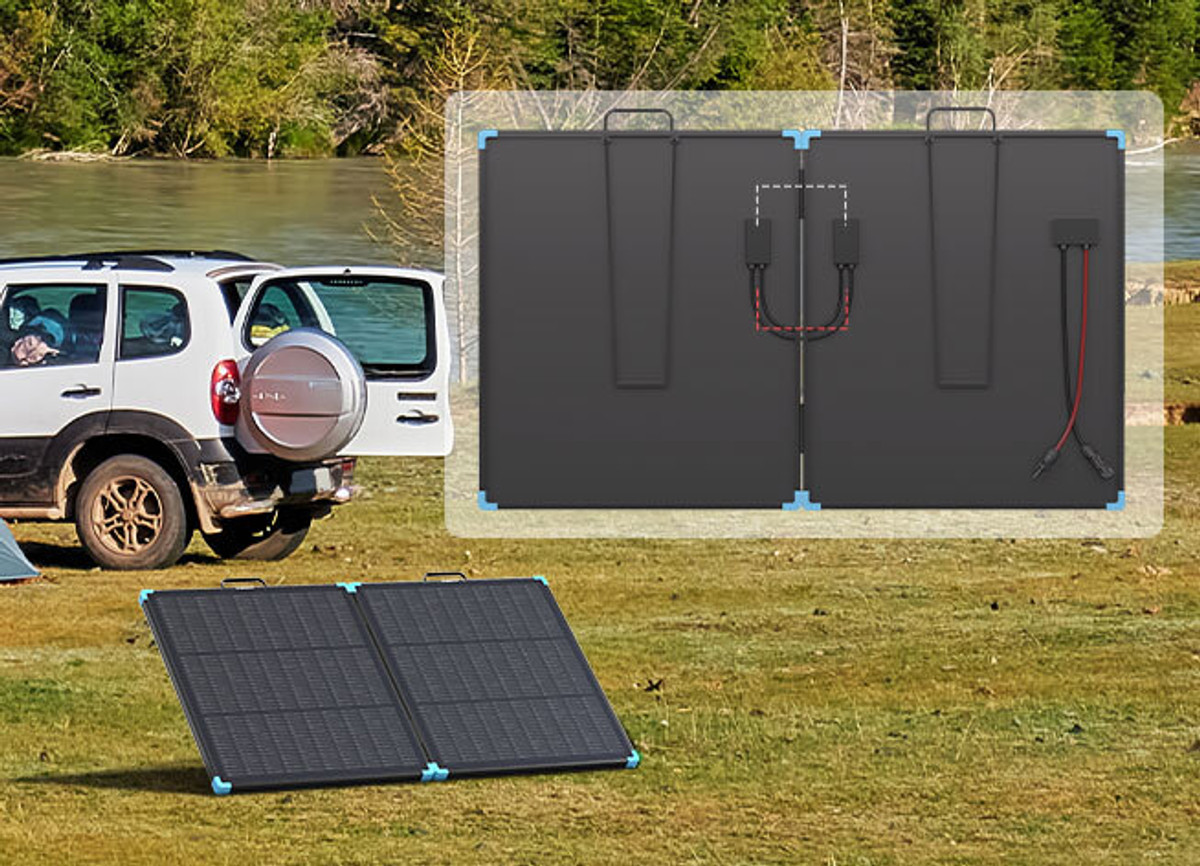

Uninterrupted Brilliance in Partial Shading
Parallel wiring ensures individual shadows won't diminish the overall efficiency of the interconnected panels.

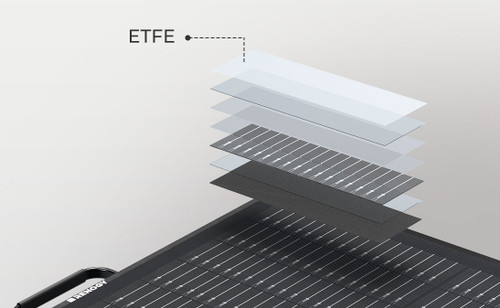

Unyielding Strength for Extended Outdoor Reliability
Find the Right Portable Solar Panel for You
Scroll down to explore detailed comparisons and find the perfect fit.
Why Choose Renogy
Redefining excellence in solar solutions.
Package Includes
Renogy 100W N-type Compact Portable Solar Panel
x 1
Max Power at STC
100W
Open Circuit Voltage
21.6V
Short Circuit Current
5.83A
Optimum Operating Voltage
18.7V
Optimum Operating Current
5.4A
Maximum System Voltage
600VDC
Maximum Series Fuse Rating
15A
Cell Efficiency
24.8%
Module Efficiency
15.2%
Operating Temperature
-40°F~185°F / -40℃~85℃
Dimensions
1048*625*20mm（41.3*24.6*0.8in）
Dimensions（folded）
523*625*40mm（20.6* 24.6 * 1.6 in）
Weight
4.02kg/8.86 lb
Warranty
3 Year
Certifications
CE，Rohs&CA65，
Manufactured in a Certified ISO 9001 Facility
Manufactured in a Certified ISO 9001 Facility
Frequently Asked Questions
What do I need to complete my off-grid solar power system ?
A solar panel has to be connected a charge controller to regulate current, and a battery to store the electrical power. You will need adapter kit cables to wire the solar panel(s) and charge controller, and tray cables connecting the charge controller to a deep-cycle battery.
What does off-grid and on-grid mean ?
On-grid simply means solar power equipment (array or solar panel) is connected to the electrical grid, while off-grid refers to systems that are not connected to the grid and therefore store the generated power for later use. Off-grid systems are not affected by grid blackouts.
Why is my solar panel under producing ?
Solar panel performance may be hindered for a number of reasons. Most commonly environmental conditions such as indirect sunlight, temperature rise, cloudy sky, and dirt and stain build up on the top glass will cause a reduced power output.
How should I connect solar panels in my electrical circuit (series vs parallel)
Solar panels can be connected in series or in parallel to meet your electrical circuit size and power demand. Connecting solar panels in series will have the effect of adding up their operating voltage output, while system current output will be the same as that for one panel. While, connecting solar panels in parallel will have a different effect; individual panels operating current output will add up to be the system output current, while system output voltage will be the same as the output voltage of one solar panel. To meet the optimum power output and system rating for your power system, you can use both parallel and series connections.
How many solar panels do I need ?
The best way to gauge how many solar panels you need, is to understand and define the power load needed from this system. Power is measured in Watts, and capacity is commonly measured in Watt-hours (multiplying power output in watts by the required number of hours of operation multiplied by a safety factor of 1.5-2). Therefore, it is wise to size your battery bank first based on the minimum required capacity, and accordingly decide how many panels or how much power input is needed.
What does the 12V/24V in the product title of the solar panel mean? Why is it different from the value on the label/specification sheet of the solar panel?
The 12V/24V in product titles (ex. 150W 12V CIGS Solar panel) does not refer to the actual voltage (Voc or Vmp) of the solar panels, but rather to the voltage of the solar system or energy storage system to which the panel is best suited. The voltage of the solar panel must be higher than the solar system voltage.
