CAD $29.99
CAD $45.99
x1

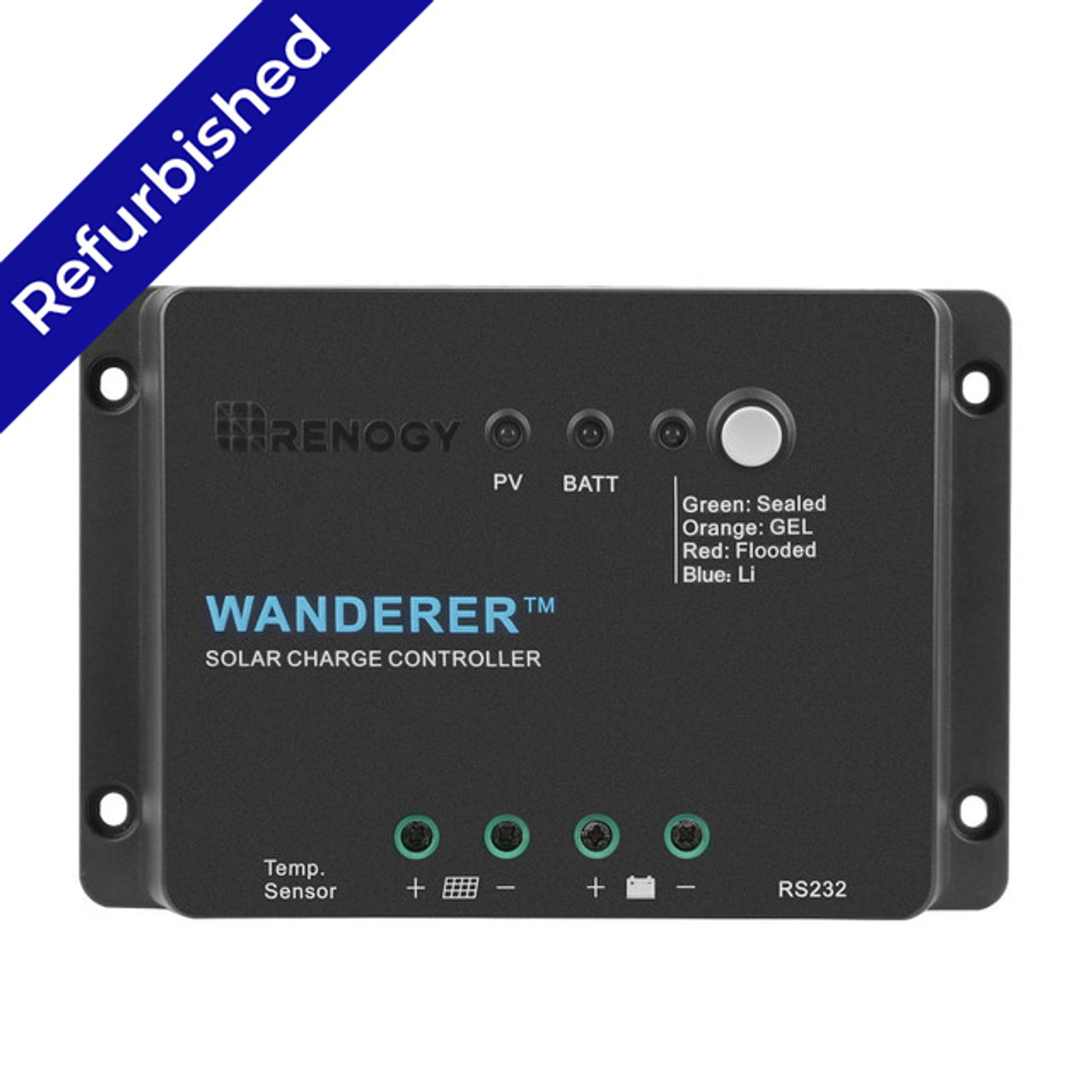

Refurbished Wanderer Li 30A PWM Charge Controller 12V

SKU: RNG-CTRL-WND30-LI-RE-CA
(No reviews yet)
Write a Review
Enter your email address to be notified when this item is back in stock.
CAD $29.99
CAD $45.99
SAVE C$16.00
34%OFF
+ 290   Renogy Rays after purchase.
  Learn more
12V System Compatibility
Battery Options: AGM, Gel, Flooded, & Lithium
Smart 4-Stage Charging & Temp Compensation
Robust Protection & LED Charge Status
Real-Time Energy Data via RS232 & BT-1 App
Load More
See the specs
Renogy Wanderer Li 30A PWM Charge Controller
Refurbished Wanderer Li 30A PWM Charge Controller 12V
CAD $29.99
CAD $45.99
CAD $29.99
CAD $45.99
Sold Out
Want to purchase in bulk? Request Bulk Purchase Prices

Return & refund policy



Description

The Renogy Wanderer-Li is a 30A PWM solar charge controller that integrates efficient PWM charging to increase battery life and improve system performance. Designed with a simple interface for ease of use, the controller uses multiple LED indicators to notify users of charge status and battery information. This newly improved model has two advanced features: an RS232 port and Lithium battery charging. With the addition of the RS232 port, users can now connect and communicate with the Renogy BT-1 Bluetooth module. By adding the BT-1 to the Wanderer-Li, you can now use the smartphone app, DC Home, to monitor and adjust your solar system remotely. With the inclusion of the Lithium Battery Mode, the 30A negative-ground controller is now capable of charging various 12V battery types and banks, including most 12V lithium models available on the market.

Warranty: 6-month. For non-quality issues, we do not accept returns and exchanges.

If you have any questions regarding this product, please submit a case.

Key Features

  • Optimized for a 12V system; Deep cycle Sealed (AGM), Gel, Flooded and Lithium battery option ready. (Please set the voltage manually to charge lithium batteries.)
  • Smart 4 Stage PWM charging (Bulk, Boost, Float, and Equalization) and temperature compensation increases battery life and improves system performance.
  • Intelligent protection against reverse polarity, overcharging, short-circuit, and reverse current. Multiple LED indicators for easy to read charge status and battery information.
  •  The integrated RS232 port can work with the BT-1 Bluetooth module to deliver real-time energy data across the DC Home smart phone app & Renogy ONE M1

Package Includes

 Wanderer Li 30A PWM Charge Controller

Wanderer Li 30A PWM Charge Controller

1 x



Options: BT-1 Bluetooth Module

BT-1 Bluetooth Module

1 x

Specification

The Renogy Wanderer Li 30A Negative PWM Charge Controller
Nominal Voltage: 12 VDC Max. PV Input Power: 400W
Rated Charge Current: 30A Max. PV Input Voltage: 25 VDC
Self-Consumption: <10mA High Voltage Disconnect: 16V
Boost Duration: 120 min Temperature Compensation: -3mV/°C/2V
Working Temperature: -20°F - 113°F Storage Temperature: -31°F - 176°F
Max Gauge Size: Up to 8AWG Weight: 0.65 lbs
Dimensions: 6.45 x 4.31 x 1.76 inches Enclosure: IP20
Options: BT-1 Bluetooth Module
Model: BT-1 Input Voltage: 5V-12V
Standby Power Consumption: 0.04W Operating Power Consumption: 0.05W
Communication Range: ≤15m Serial Baud Rate: Fixed Baud Rate 9600bps
Cable Length: 5.00 m (16.4 ft) Dimensions: 2.6 X 2.01 X 0.61 In
Installation Dimensions: 57.5, φ3.2mm (2.26, φ0.13in) Operation Temperature: -20°C to 75°C(-4°F to 167°F)
Protection Grade: IP54 Weight: 120 g (4.2oz)
