-A dual charging solution with 12V/24V boost and buck logic.
-Compact & lightweight with IP67 waterproof rating.
-Featuring auto-switching charging mode while prioritizing green power.
-CE, FCC, RoHS certified with comprehensive test reports.
-Bluetooth Energy Monitoring with wired CAN communication.
RENOGY IP67 50A DC-DC Battery Charger with MPPT
Introducing the RENOGY IP67 50A DC-DC Dual Input Battery Charger with MPPT, a slim, waterproof dual charging solution perfect for confined spaces. Equipped with intelligent boost and buck logic, it seamlessly accommodates 12V/24V-12V/24V voltage systems, elevating DIY possibilities to the uttermost.

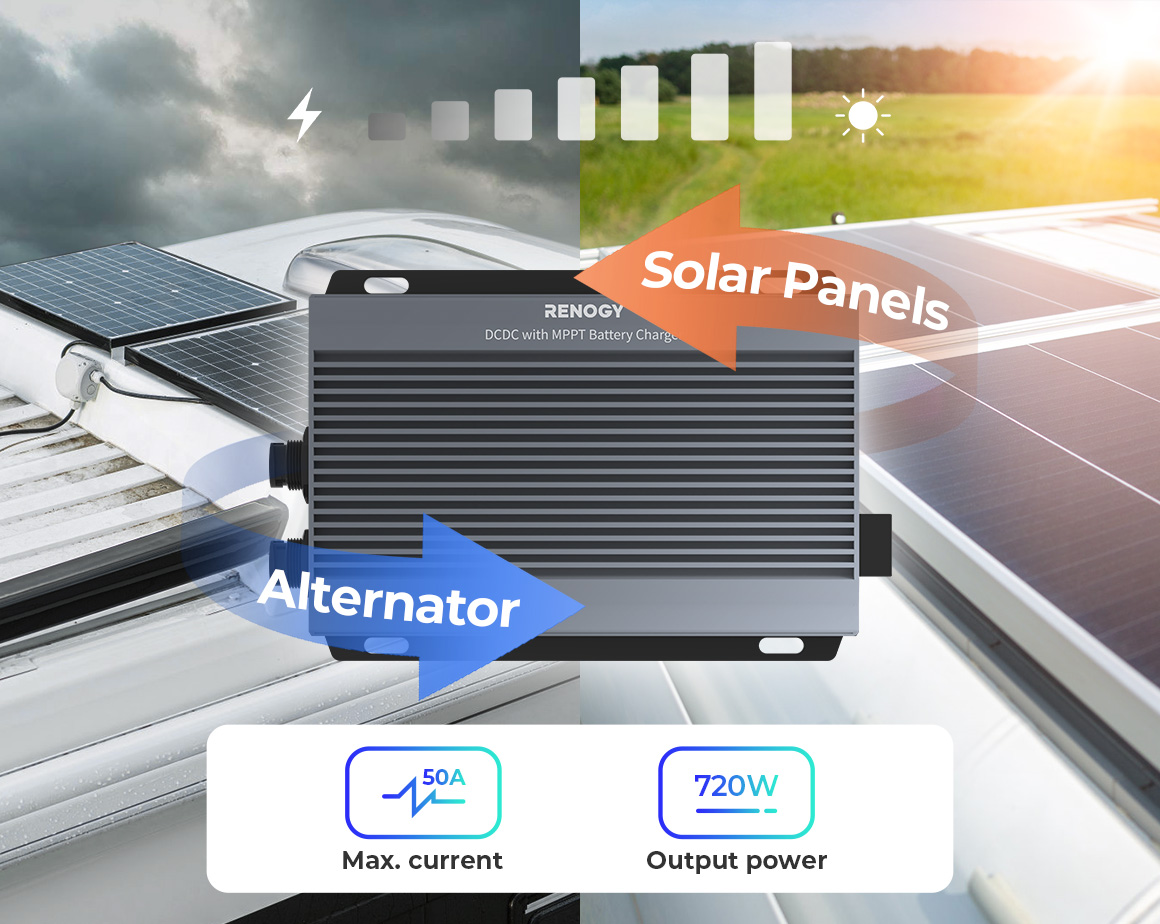

Renogy's exclusive intelligent charging logic prioritizes solar energy, efficiently charging your house battery while easing the load on generators. This innovative product combines vehicle and solar power, automatically adjusting modes based on sunlight intensity. Maximizing energy utilization, it boasts a robust 50A current and an impressive 720W output power.
Renogy IP67 Dual Input Battery Charger seamlessly switches to solar charging in ample sunlight and smoothly transitions to generator charging during low light, ensuring uninterrupted device power. Embrace an eco-conscious charging experience without compromising efficiency or space, redefining sustainable energy utilization.
Ultimate Reliability with Impeccable Efficiency
The battery charger efficiently meets the needs of the house battery while providing a trickle charge to the starter battery, ensuring that the vehicle can always start reliably.

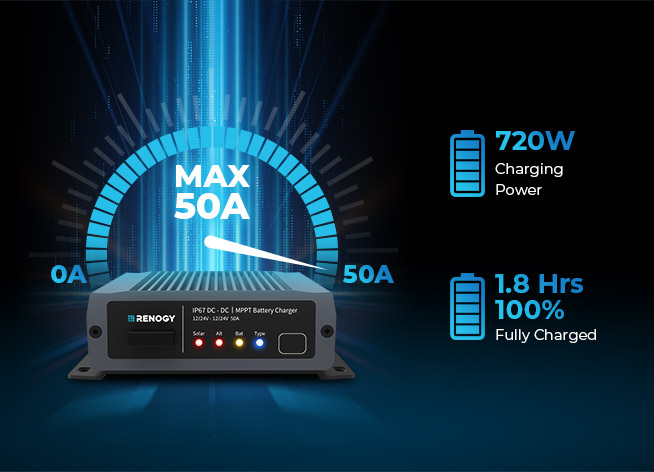

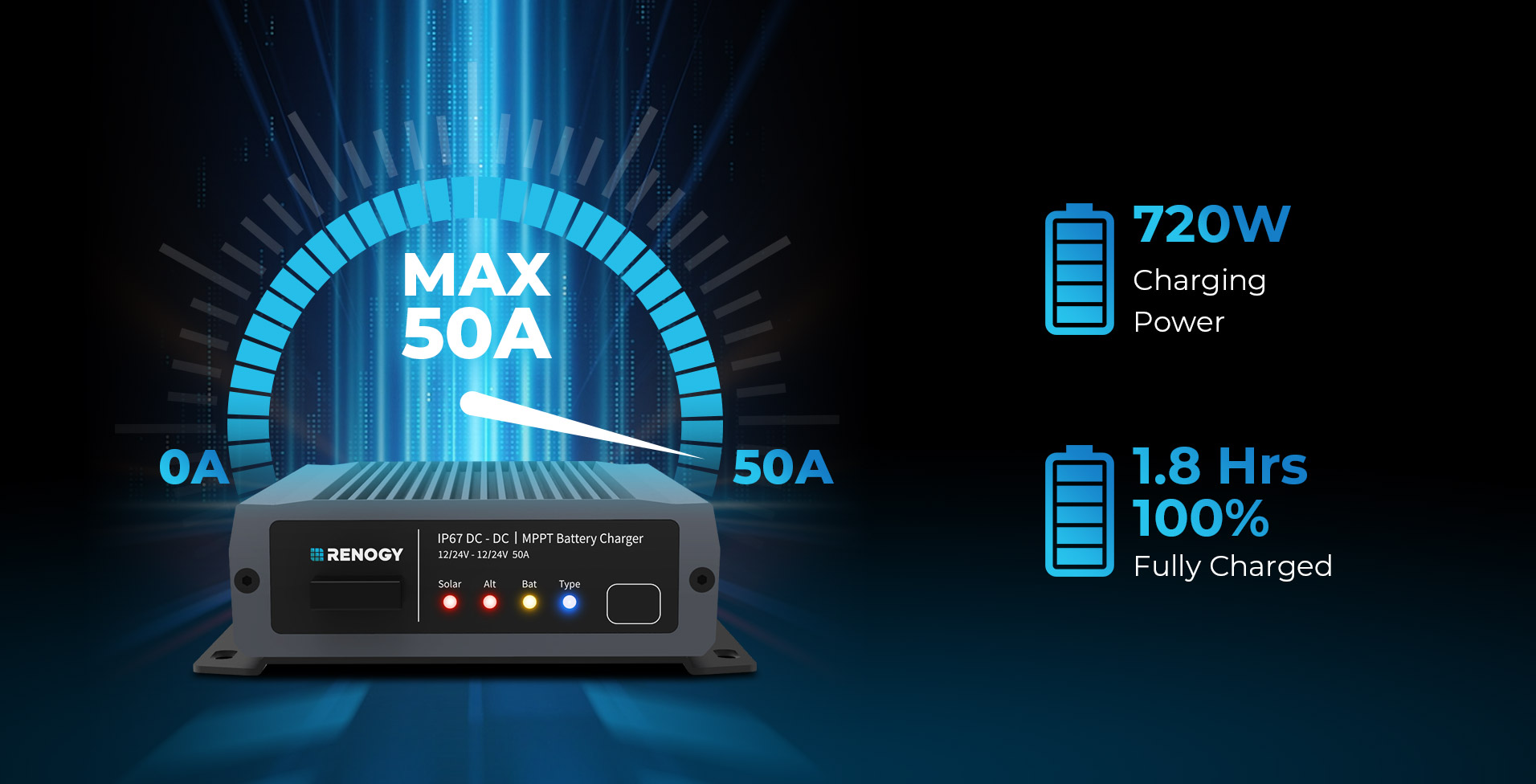

Fast Charging Speed
720W charging power allows a 1.2kWh battery to be fully charged within 1.8 Hrs.
Robust and Resilient Design
Sheet metal casing gives the charger a robust shell that withstands drops and impacts.
Withstand extreme temperatures from -31℉ to 176℉ and maintain full-load operation even at 131°F.
The all-around glue filling design provides complete protection for the charger and ensures a high level of water resistance.

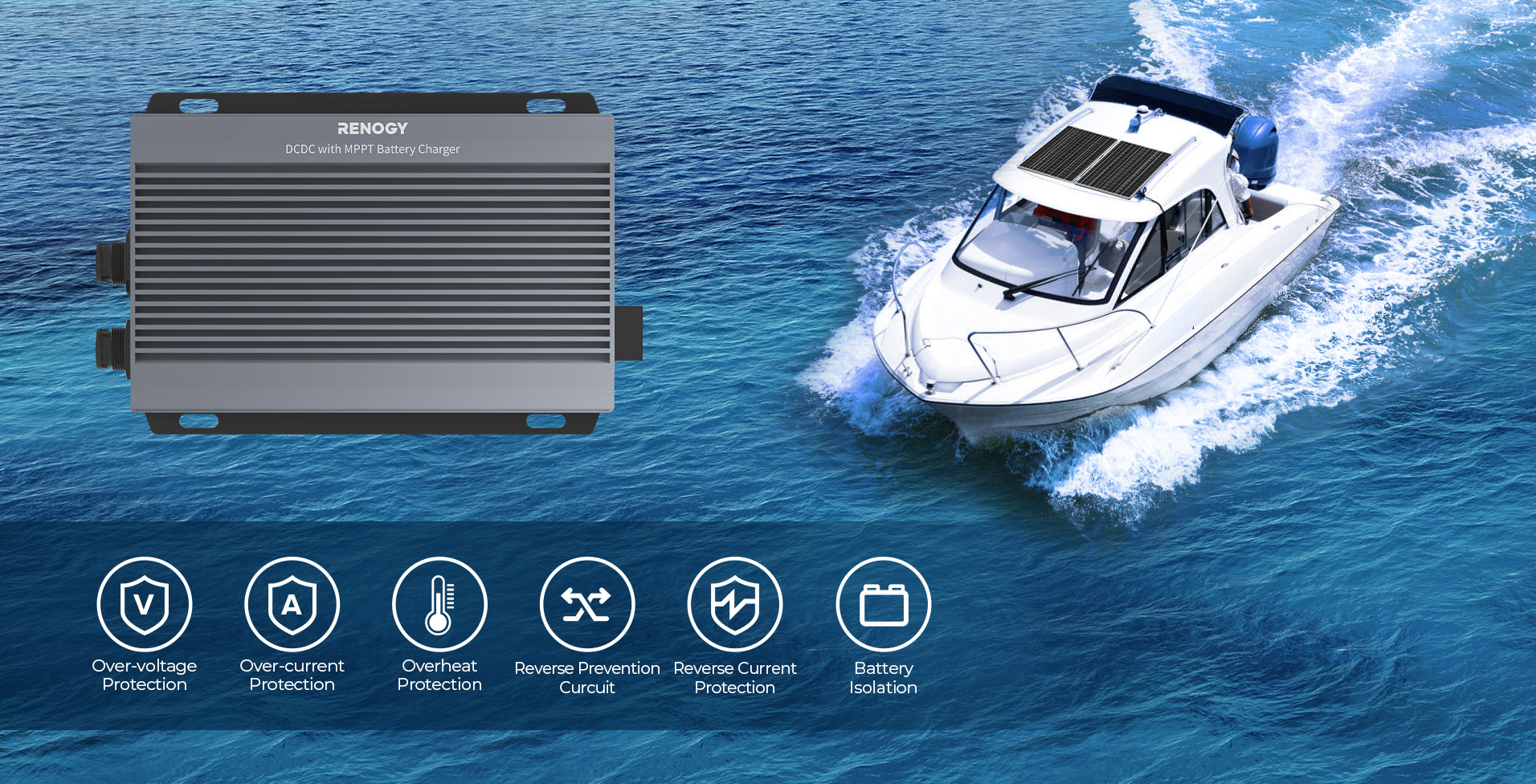

Charge Faster than You Think
Comprehensive electric protections safeguard the charging process.

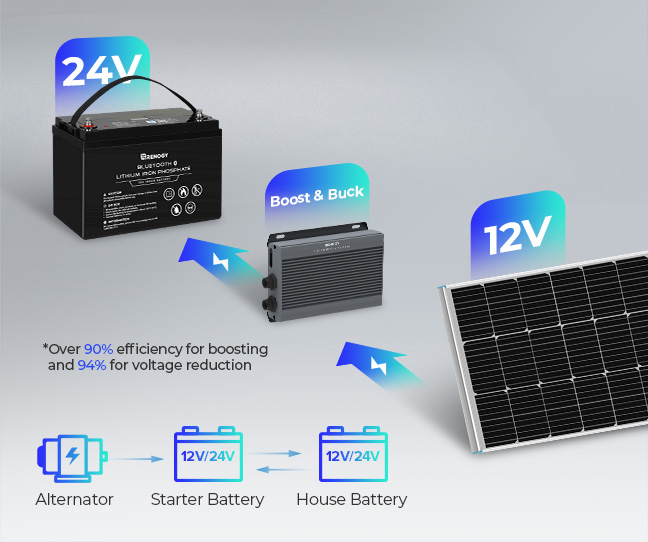

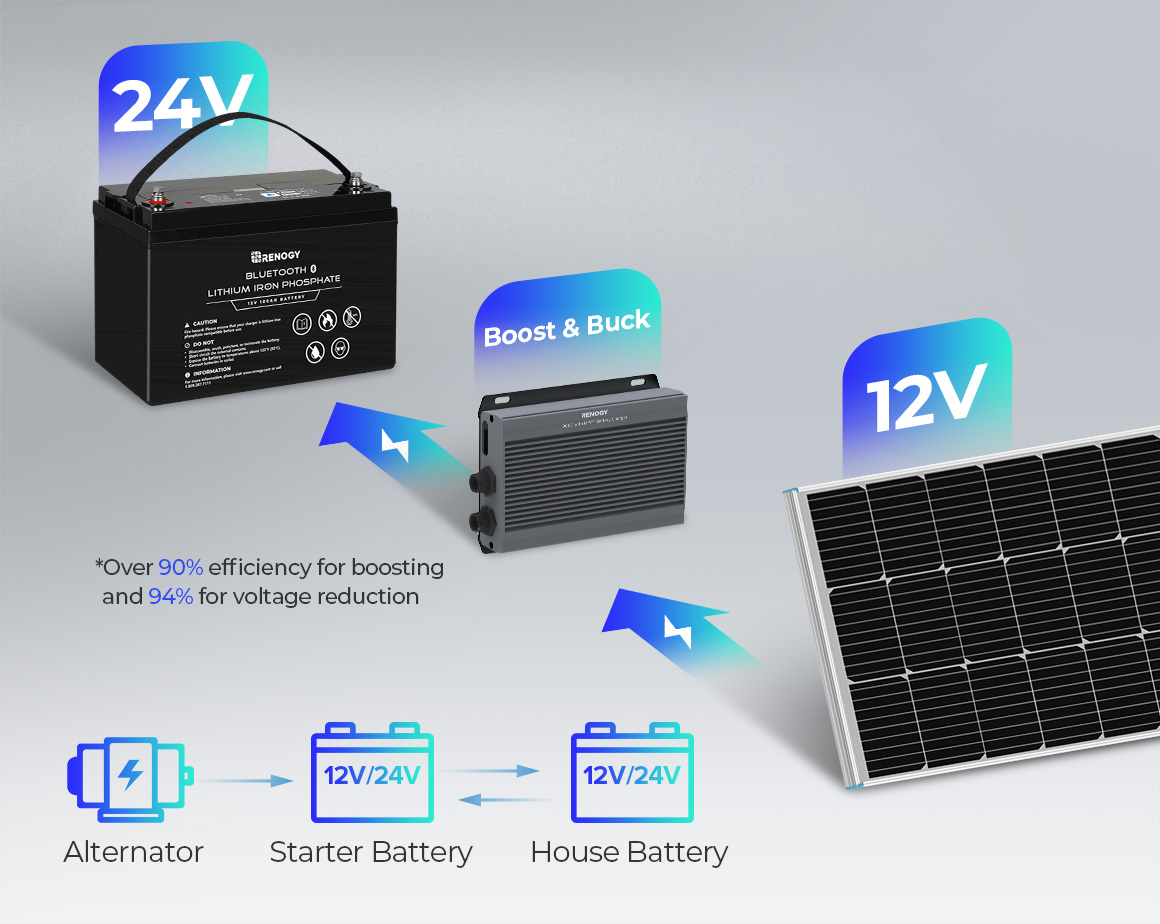

Intelligent Boost and Buck Logic
Effortlessly convert between 12V and 24V systems with over 90% efficiency for boosting and 94% for voltage reduction, offering a dual charging solution adaptable to various DIY configurations.
Extremely Compact and Lightweight
Compact and light enough to be mounted in engine compartment and side storeroom, allowing for a more spacious and comfortable living space.

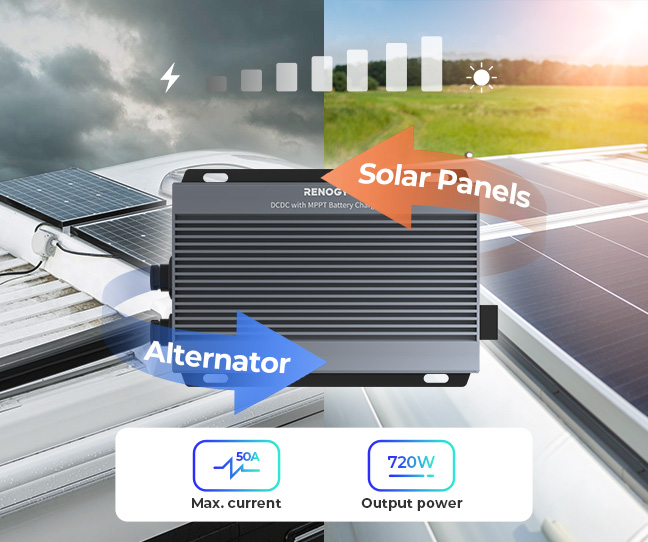

Prioritize Solar Green Energy
Feature auto-switching charging mode while prioritizing green power, achieving 97% charging efficiency, and delivering 720W high charging power for a greener approach.
Smart Living Unleashed
Compatible with both built-in Bluetooth and wired CAN communication to get real-time data, striving for the most reliable experience for off-grid users.
- 1 x RENOGY IP67 50A DC-DC with MPPT Battery Charger
- 1 x Battery Temperature Sensor
- 1 x Quick Guide
- 4 x M8 Terminal Ring
- 1 x ST4 x 20mm Install Screw
|System Voltage: 12V/24V - 12V/24V||Input Fuse Rating: 75A-100A|
|Solar Input Voltage: 50 VDC||Output Fuse Rating: 75A-100A|
|Output Voltage: 9-16 VDC||Charging Efficiency: 94%|
|Alternator Input: 13.5-16 VDC||Temperature Compensation: -3mV / ℃ / 2V (Non-Lithium) and 0mV / ℃ / 2V; no compensation (Lithium)|
|Maximum Output Current Rating: 50A||Idle Power Consumption:＜100mA|
|Output Power: 720W||Battery Types: AGM/SLD , GEL ,FLD ,LI,USER|
|Maximum Operating Altitude: 3500m||Enclosure Rating: IP67|
|Terminal Range: 8AWG-4AWG||Dimensions: 7.01 x 4.78 x 1.47 in/178.2 x 121.5 x 37.5mm|
|Communication Protocol: Modbus ; RV-C||Weight: 4.10 lb / 1.86 kg|
|Operating Temperature Range: -31℉ to 176℉/-35℃ to 80℃||Certification: CE;RoHS;FCC Part 15 class B|
|Storage Temperature Range: -40℉ to 176℉/-40℃ to 80℃||Warranty: 3-year material warranty|
|Humidity: 0%-95%, No Condensation||Protection: Reverse Polarity Protection/Overvoltage Protection/Over Discharge Protection/Overcurrent Protection/Over Temperature Protection/Overcurrent Protection|
1. What is the significance of the system voltage value of 12/24V-12/24V for IP67 chargers?
When the IP67 charger is connected to the solar panel, it can use the 12V solar panel to boost the voltage to charge the 24V Housing battery; it can use the 12V solar panel to buck the voltage to charge the 12V Housing battery. When the IP67 charger is connected to the starter battery, the 12V starter battery can be utilized to boost the voltage to charge the 24V Housing battery; the 12V starter battery can be utilized to charge the 12V Housing battery.
2. What are the solar input requirements for this charger?
(1) The charger is suitable for up to 720W solar panel. (2) The charger is compatible with up to 50V solar panel input. (3) The charger is compatible with both rigid and flexible modules.
3. What type of alternator is this charger compatible with?
The charger is compatible with smart alternators and traditional alternators, the working voltage of different alternators will be different. The product itself comes with Bluetooth communication function, you can connect to DC Home or Core via Bluetooth, and then adjust the appropriate input voltage value of the charger according to the characteristics of the working voltage of different types of alternators.
4. How do I set the battery type on this charger?
Way 1: The charger itself has a button to set the battery type, the button is next to the "Type" indicator, press it briefly to select a different battery type. Way 2: The charger itself comes with Bluetooth communication, you can connect our Core, DC Home to change the battery type.
5. How to view data without a display?
The charger itself comes with Bluetooth communication, you can connect to our Core, DC Home to view the charger's data.
