Renogy 20A/30A/40A/60A/100A  ANL Fuse Set w/ Fuse
20A/30A/40A/60A/100A/200A/300A/400A ANL Fuse Set w/ Fuse
CAD $27.99
CAD $27.99
Add to cart
Adding to cart… The item has been added
Shop alone
Start group buy
Option
Renogy 20A/30A/40A/60A/100A  ANL Fuse Set w/ Fuse

Return & refund policy
Make appointment with specialist
Phone Call
Write a Review
Free Shipping
Reliable Warranty
Secure Payment



Description

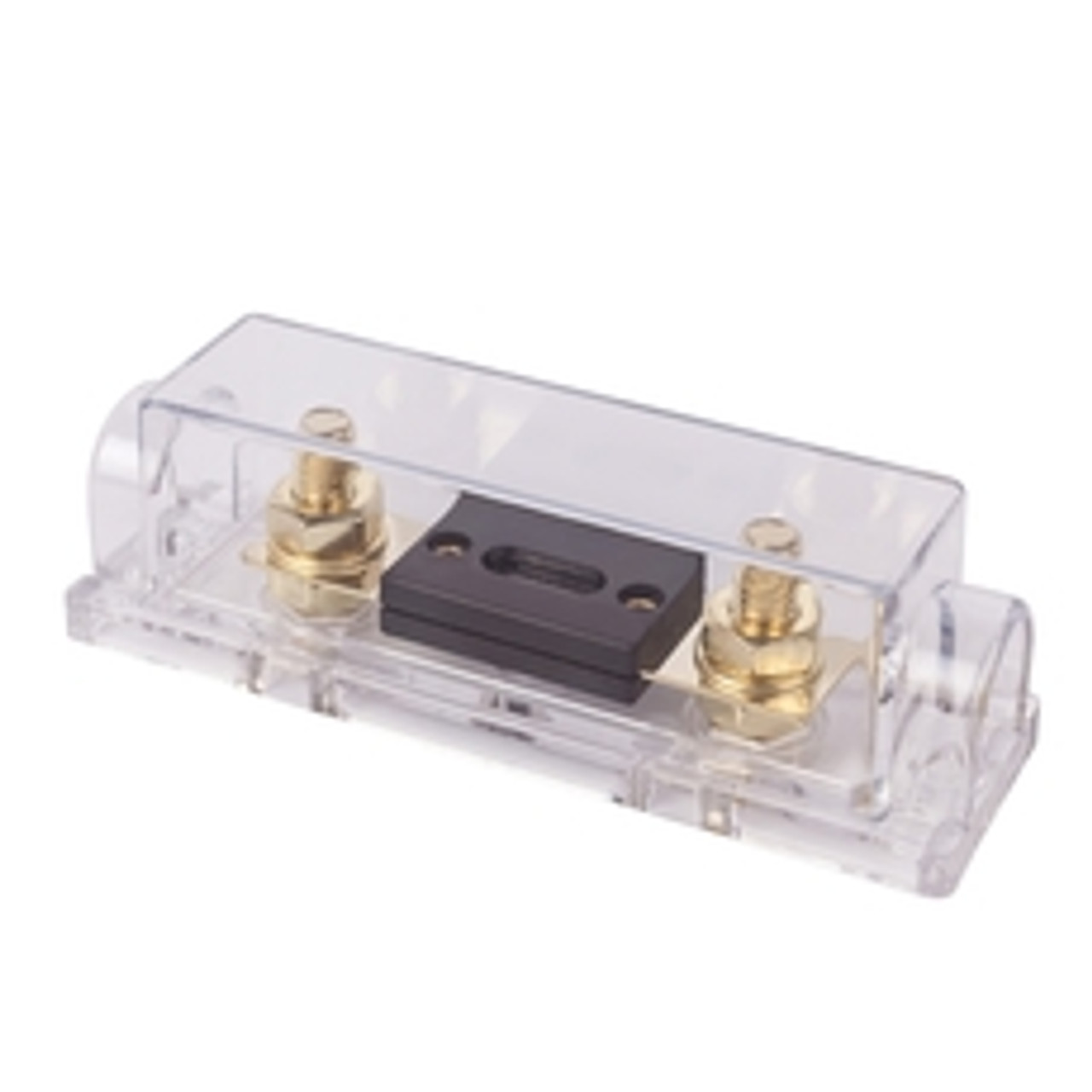

The Renogy ANL fuse offers complete protection to your system, protects your charge controller, battery, inverter, and connecting wires from over-current, and ensures you get the longevity out of your system that expected. This fuse is composed of high-quality alloy and brass copper materials and comes with a clear protective non-conductive resistant cover which is ideal for custom installation and can be easily added to your solar system.

The 40A DC Protection Kit is suitable for: 40A MPPT/PWM Charge Controller,40A DC-DC Battery Charger.

If you have any questions regarding this product; please submit a case.

Key Features

Safeguard Your System
  • The Renogy ANL fuse offers complete protection to your system, protects your charge controller, battery, inverter, and connecting wires from over-current, and ensures you get the longevity out of your system that expected. Ignition protection guarantees the safe use of the fuse in RVs, boats, or any other closed environments.
Multiple Specifications are Available
  • Renogy offers multiple specifications of the ANL fuses to meet the requirement of different size systems. Optional specifications including 20A/30A/40A/60A/100A/200A/300A/400A.The protective cover is compatible with all specifications.
High Quality and Easy to Use Design
  • The Renogy ANL fuse is composed of high-quality alloy and brass copper materials and come with a clear protective non-conductive resistant cover which is ideal for custom installation and can be easily added to your solar system.
System Suitability
  • The fuse is designed to work with RENOGY ANL Fuse Block.
Environment Friendly
  • The Renogy ANL fuse is RoHS compliant, which confirms that it's free from environmentally hazardous, difficult-to-dispose substances.

Package Includes



Renogy 20A/30A/40A/60A/100A/200A/300A/400A ANL Fuse Set w/ Fuse

Renogy 20A/30A/40A/60A ANL Fuse Set w/ Fuse

1 x





Renogy 20A ANL Fuse Set (Included Fuse)
Current Rating: 20A Voltage Rating: 72V
Interrupt Capacity:40A  Terminal Bolt Size: M8(5/16")
Dimension: 123 x 37 x 40 mm/4.86 x 1.46 x 1.58 inch Weight: 0.11kg/0.24Ib
Renogy 30A ANL Fuse Set (Included Fuse)
Current Rating: 30A Voltage Rating: 72V
Interrupt Capacity:60A  Terminal Bolt Size: M8(5/16")
Dimension: 123 x 37 x 40 mm/4.86 x 1.46 x 1.58 inch Weight: 0.11kg/0.24Ib
Renogy 40A ANL Fuse Set (Included Fuse)
Current Rating: 40A Voltage Rating: 72V
Interrupt Capacity: 80A  Terminal Bolt Size: M8(5/16")
Dimension: 123 x 37 x 40 mm/4.86 x 1.46 x 1.58 inch Weight: 0.11kg/0.24Ib
RENOGY 40A DC Protection Kit
This 40A DC Protection Kit is suitable for: 40A MPPT/PWM Charge Controller,40A DC-DC Battery Charger
Renogy 40A ANL Fuse Set(Included Fuse)
Current Rating: 40A Voltage Rating: 72V
Interrupt Capacity: 80A  Terminal Bolt Size: M8(5/16")
Dimension: 123 x 37 x 40 mm/4.86 x 1.46 x 1.58 inch Weight: 0.11kg/0.24Ib
Renogy 2ft 8AWG Fuse Cable
Length: 0.67 ft AWG: 8
Rating Voltage: AC Uo/U 0.6/1 KV, DC 1.8KV Temperature: -40℉ to + 194℉
Renogy 60A ANL Fuse Set (Included Fuse)
Current Rating: 60A Voltage Rating: 72V
Interrupt Capacity:120A  Terminal Bolt Size: M8(5/16")
Dimension: 123 x 37 x 40 mm/4.86 x 1.46 x 1.58 inch Weight: 0.11kg/0.24Ib
Renogy 100A ANL Fuse Set (Included Fuse)
Current Rating: 100A Voltage Rating: 72V
Interrupt Capacity: 200A  Terminal Bolt Size: M8(5/16")
Dimension: 123 x 37 x 40 mm/4.86 x 1.46 x 1.58 inch Weight: 0.11kg/0.24Ib
Renogy 200A ANL Fuse Set (Included Fuse)
Current Rating: 200A Voltage Rating: 72V
Interrupt Capacity: 400A  Terminal Bolt Size: M8(5/16")
Dimension: 123 x 37 x 40 mm/4.86 x 1.46 x 1.58 inch Weight: 0.11kg/0.24Ib
Renogy 300A ANL Fuse Set (Included Fuse)
Current Rating: 300A Voltage Rating: 72V
Interrupt Capacity: 600A  Terminal Bolt Size: M8(5/16")
Dimension: 123 x 37 x 40 mm/4.86 x 1.46 x 1.58 inch Weight: 0.11kg/0.24Ib
Renogy 400A ANL Fuse Set (Included Fuse)
Current Rating: 400A Voltage Rating: 72V
Interrupt Capacity: 800A  Terminal Bolt Size: M8(5/16")
Dimension: 123 x 37 x 40 mm/4.86 x 1.46 x 1.58 inch Weight: 0.11kg/0.24Ib


Warranty Information


Accessories 1-year material warranty


Certification
