Description
The Renogy 10A Wanderer solar charge controller integrates efficient PWM charging to increase battery life and improve system performance. With a simple interface for ease of use, this controller comes equipped with fully comprehensive self-diagnostics and electronic protection functions to prevent damage from installation mistakes or system faults. Designed for off-grid solar applications, this advanced charge controller is compatible with various types of 12V/24V batteries, including Lithium!
Note: Please set the voltage manually to charge lithium batteries.
If you have any questions regarding this product, please submit a case.
Key Features
- Optimized for a 12V/24V system; Deep cycle Sealed (AGM), Gel, Flooded and Lithium battery option ready. (Please set the voltage manually to charge lithium batteries.)

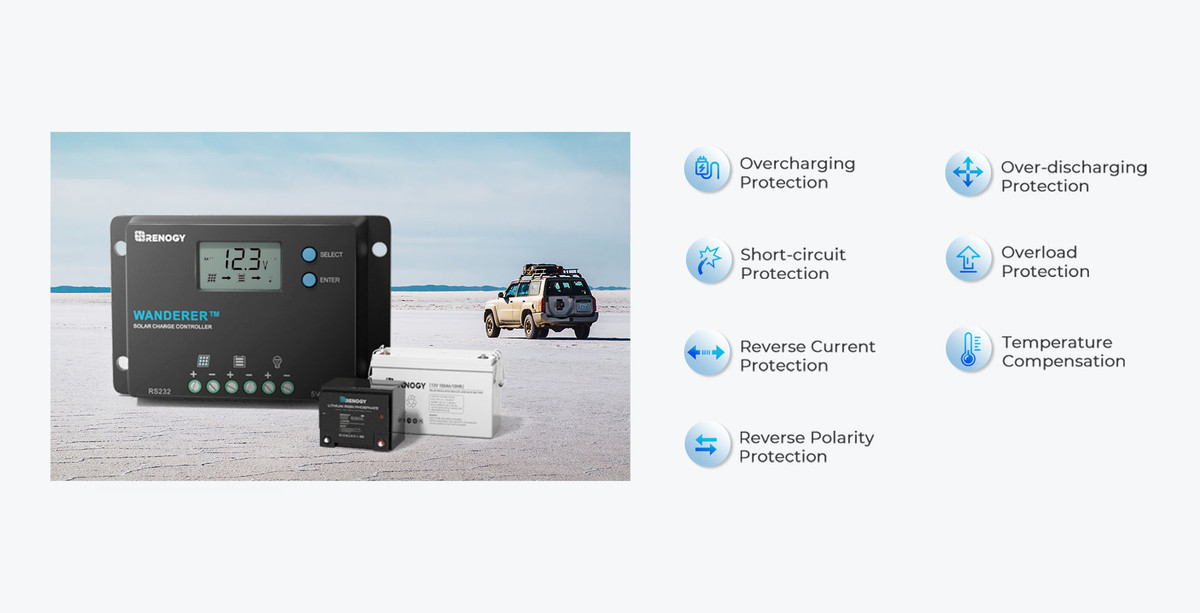

- Smart 4 Stage PWM charging (Bulk, Boost, Float, and Equalization) and temperature compensation increases battery life and improves system performance. Intelligent protection against reverse polarity, overcharging, short-circuit, and reverse current.

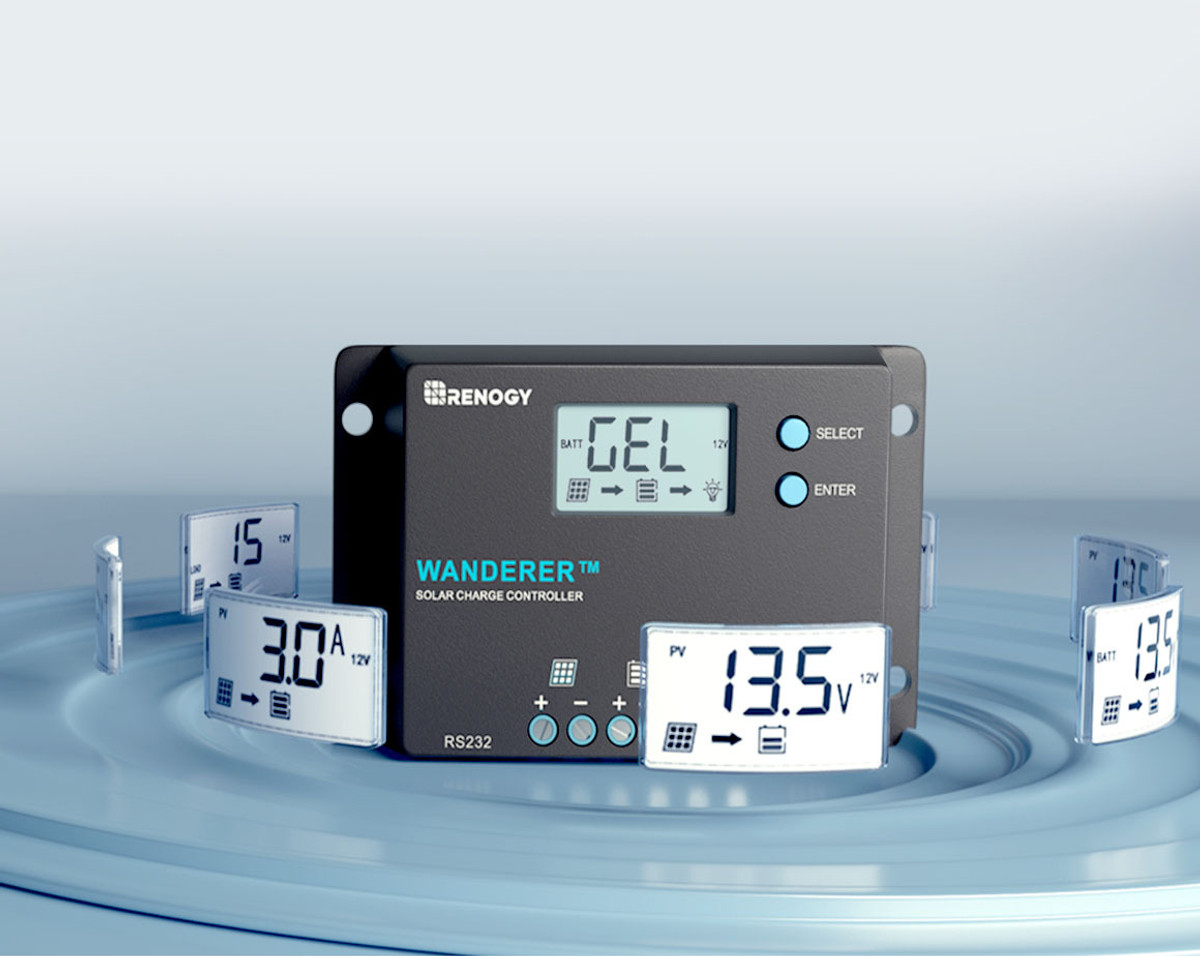

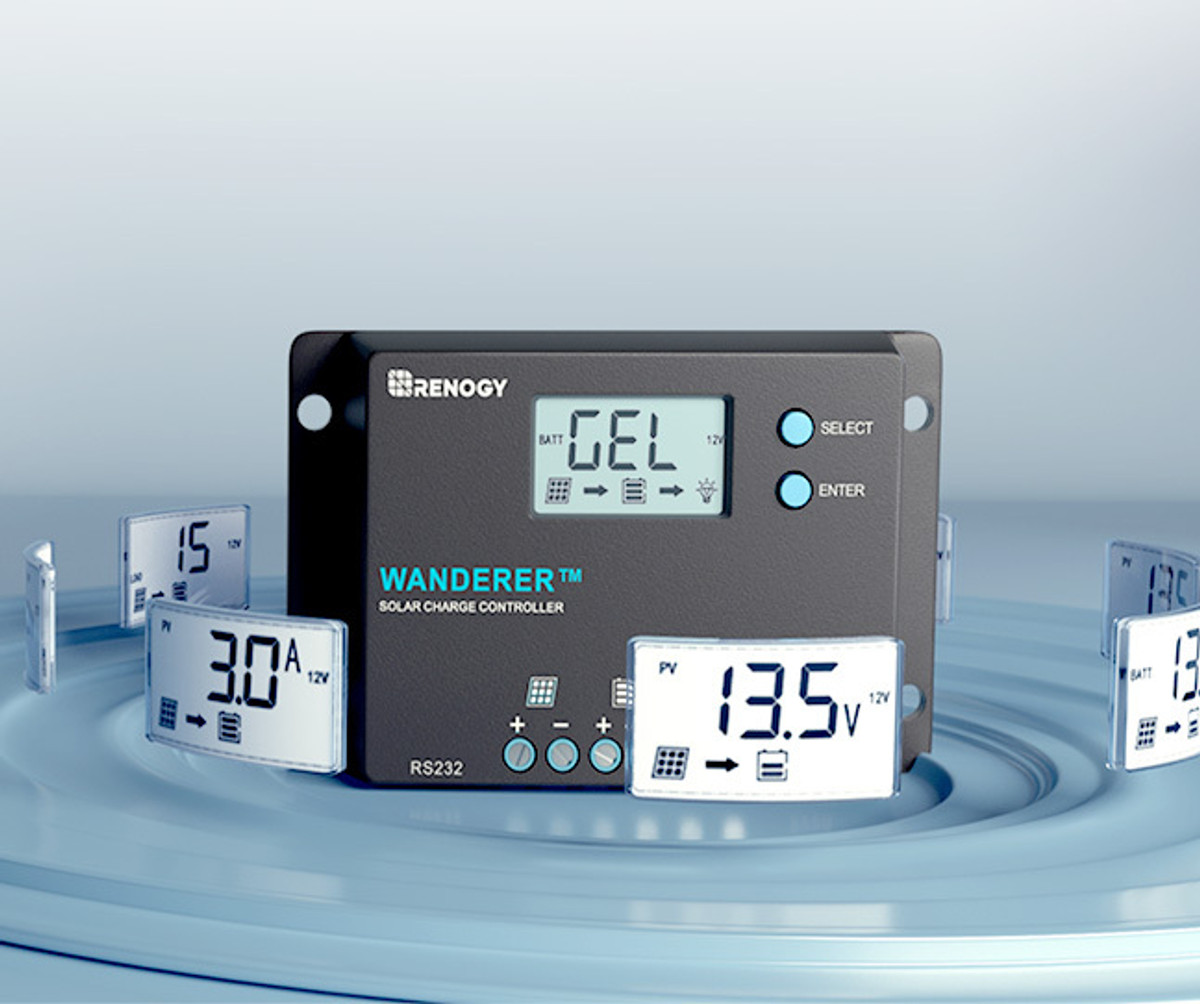

- Backlit LCD screen for displaying system operation, diverse load control and error codes.
- Integrated 5V 2A USB ports to charge USB devices.
- Compact in size makes it easy to install virtually anywhere.
- Capable of charging over-discharged lithium batteries.

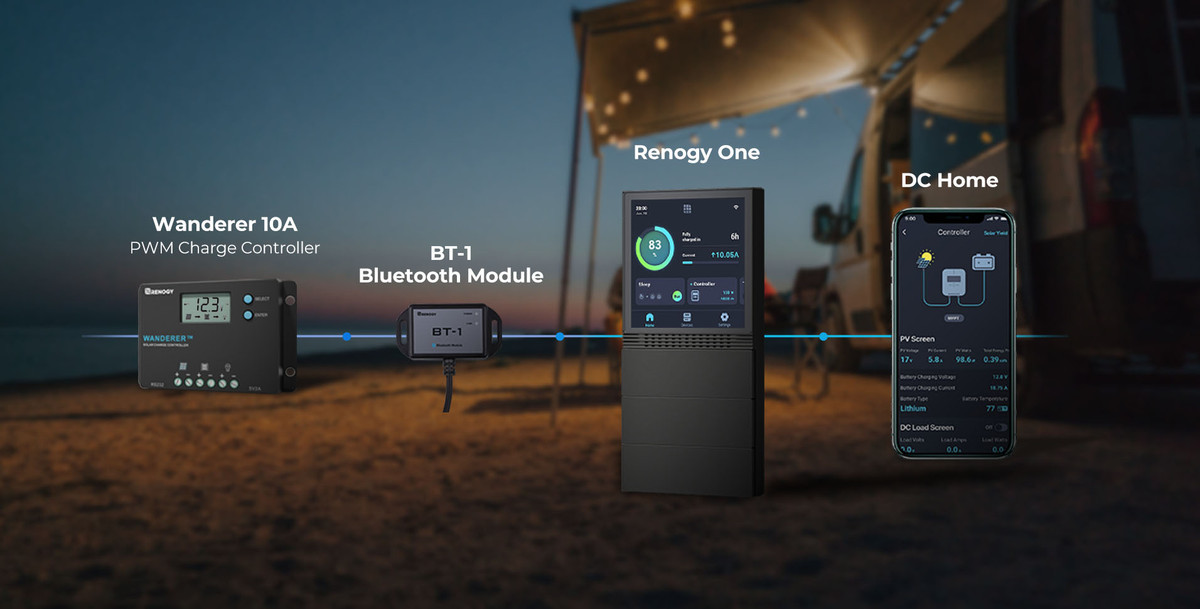

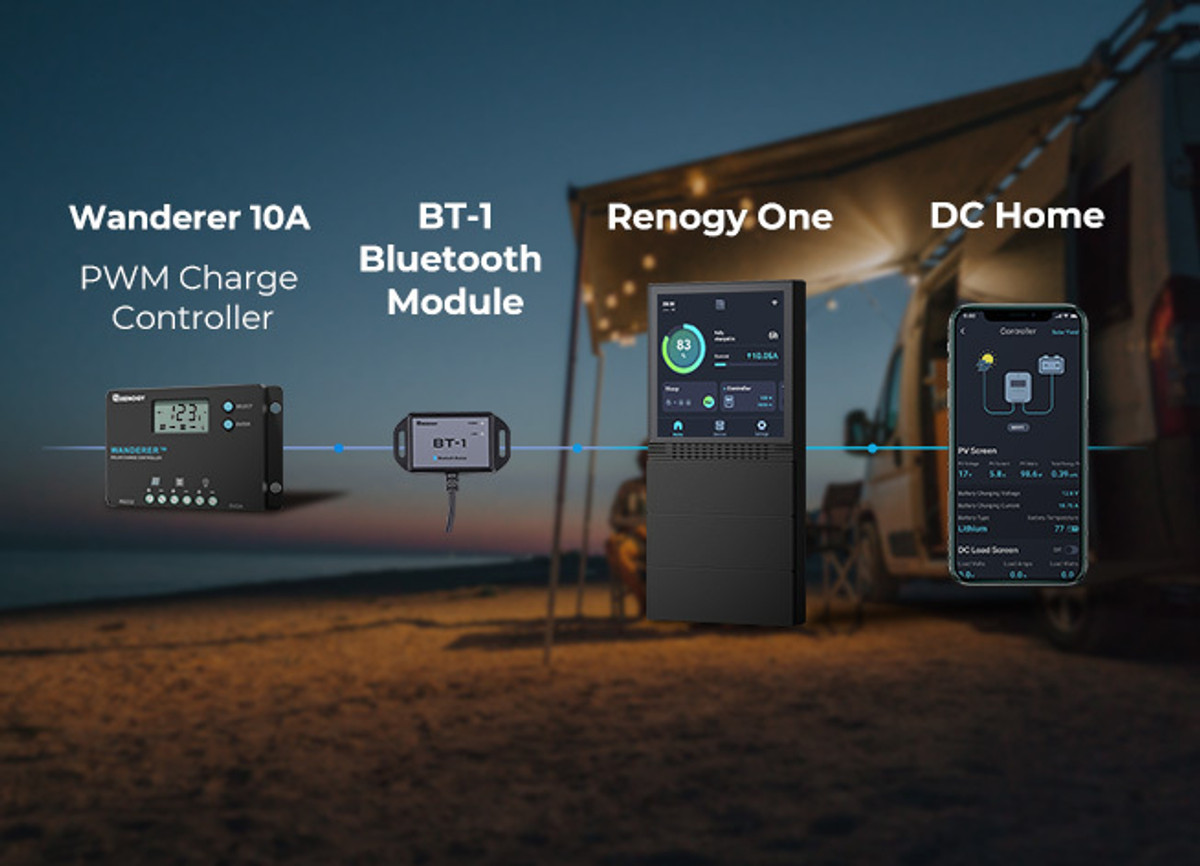

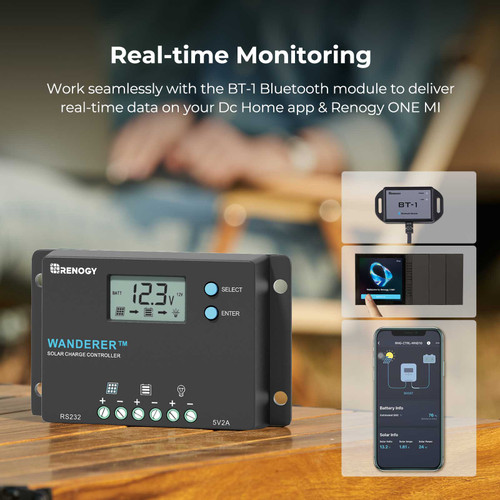

- Integrated RS232 port allows communication with BT-1 Bluetooth module and usage of Renogy BT smartphone app.
Package Includes
|
Wanderer 10A PWM Charge Controller
1 x
|
Bluetooth Module BT-1
1 x
|
| Wanderer 10A PWM Charge Controller | |
|---|---|
| Nominal Voltage: 12V/24V Auto Recognition for non-lithium batteries | Rated Charge Current: 10A |
| Max Gauge Size: Up to 12AWG | Max. PV Input Voltage: 50 VDC |
| Self-Consumption: <10mA | Temperature Compensation: -3mV/°C/2V |

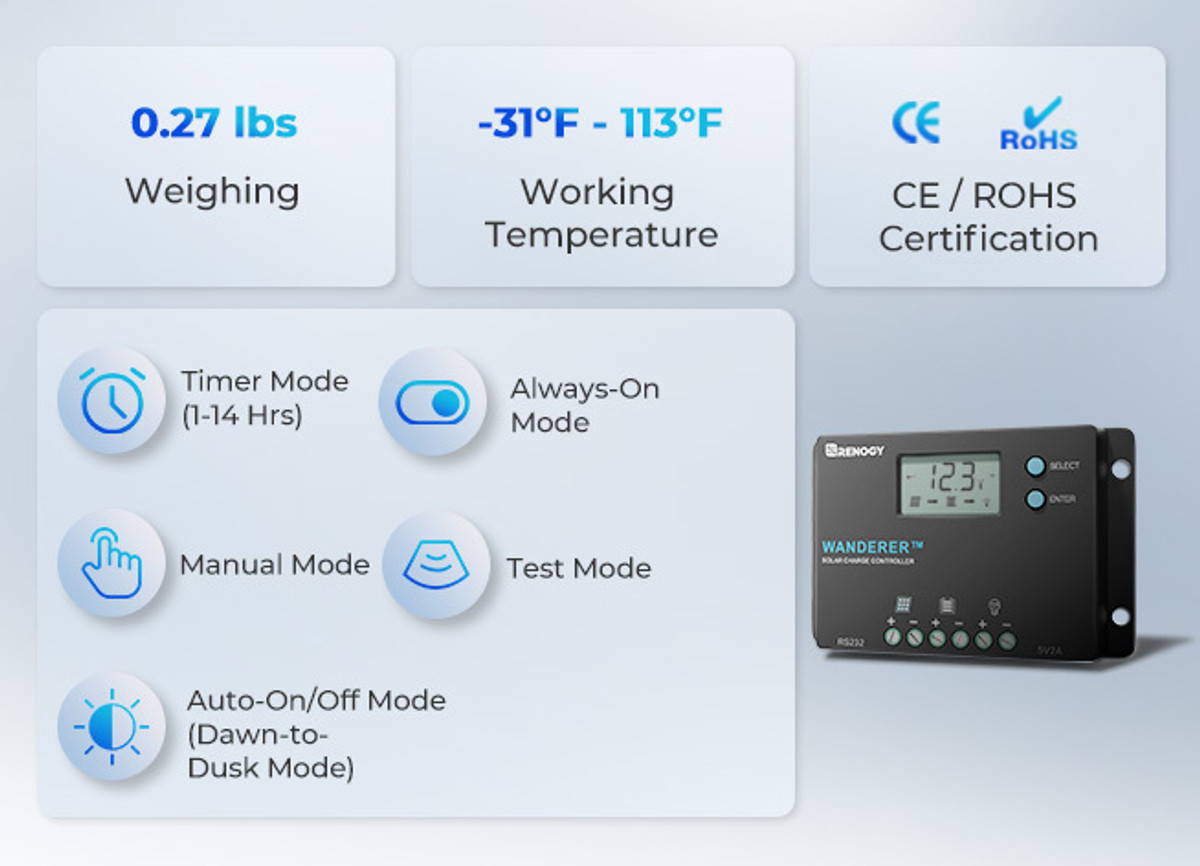

| Working Temperature: -31°F - 113°F / -35°F - 45°F | USB port：5V, 2A max |
| Dimensions: 4.7 x 3.0 x 1.1 in / 119x75x27.5mm | Weight: 0.27 lbs / 122.47g |
| RENOGY BT-1 BLUETOOTH MODULE （RCM-BT1） | |
| Compatibility: | |
| Compatible PWM Charge Controller | RNG-CTRL-WND10,RNG-CTRL-WND30-LI,RNG-CTRL-ADV30-LI |
| Compatible MPPT Charge Controller | RNG-CTRL-RVR20,RNG-CTRL-RVR30,RNG-CTRL-RVR40,RNG-CTRL-RVR60,RNG-CTRL-RVR100 |
| Compatible App | Renogy DC Home App available in both the App Store and Google Play |
| Mechanical Specifications: | |
| Communication Range | ≤82ft (25m) |
| Cable Length | 16.4 ft (5.00m ) |
| Dimensions | 2.65 X 1.38 X 0.55 in (67.3 X 35 X 14 mm) |
| Weight | 4.58oz (130g ) |
| Operation Temperature | -4°F to 185°F ('-20℃~85℃) |
| Operation Specifications: | |
| Communication Protocol | RS232 |
| Port Type | RJ12 |
| Input Voltage | 5V |
| Protection Grade | IP54 |
| Standby Power Consumption | 0.04W |
| Operating Power Consumption | 0.05W |
| Serial Baud Rate | Fixed Baud Rate 9600bps |
Warranty Information

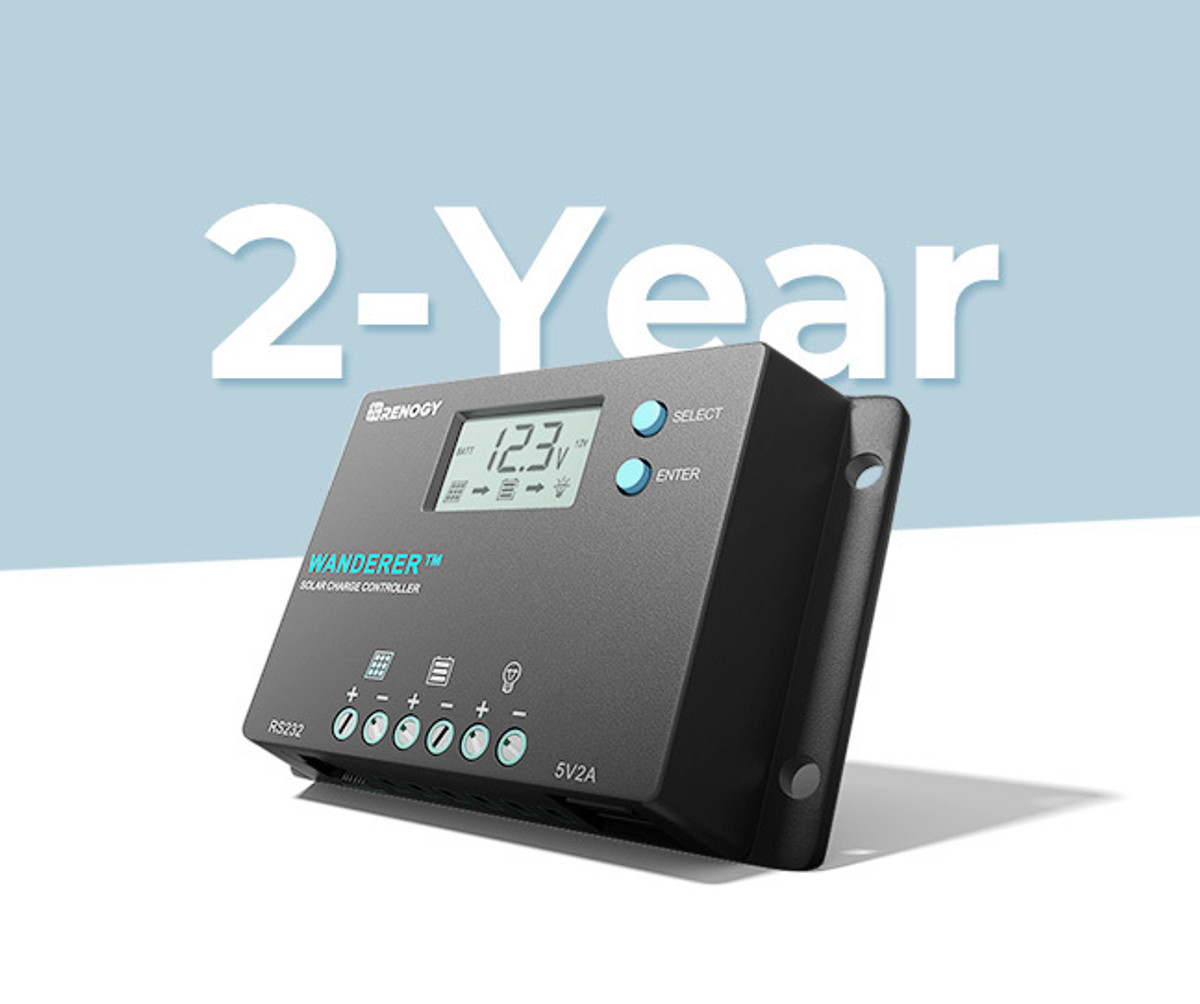

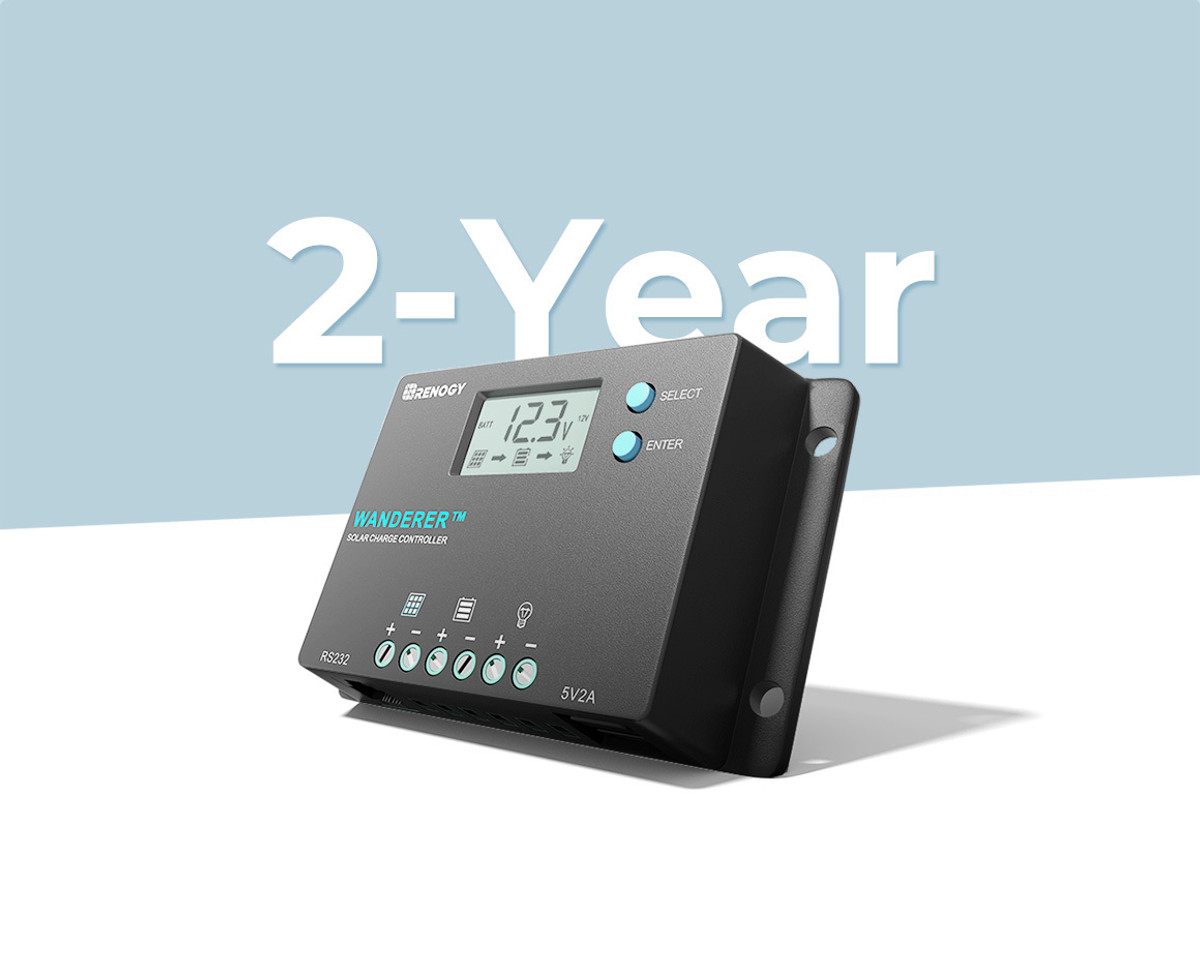

| Accessories | 2-year material warranty |
Certification
 |
 |
 |
 |
