Description

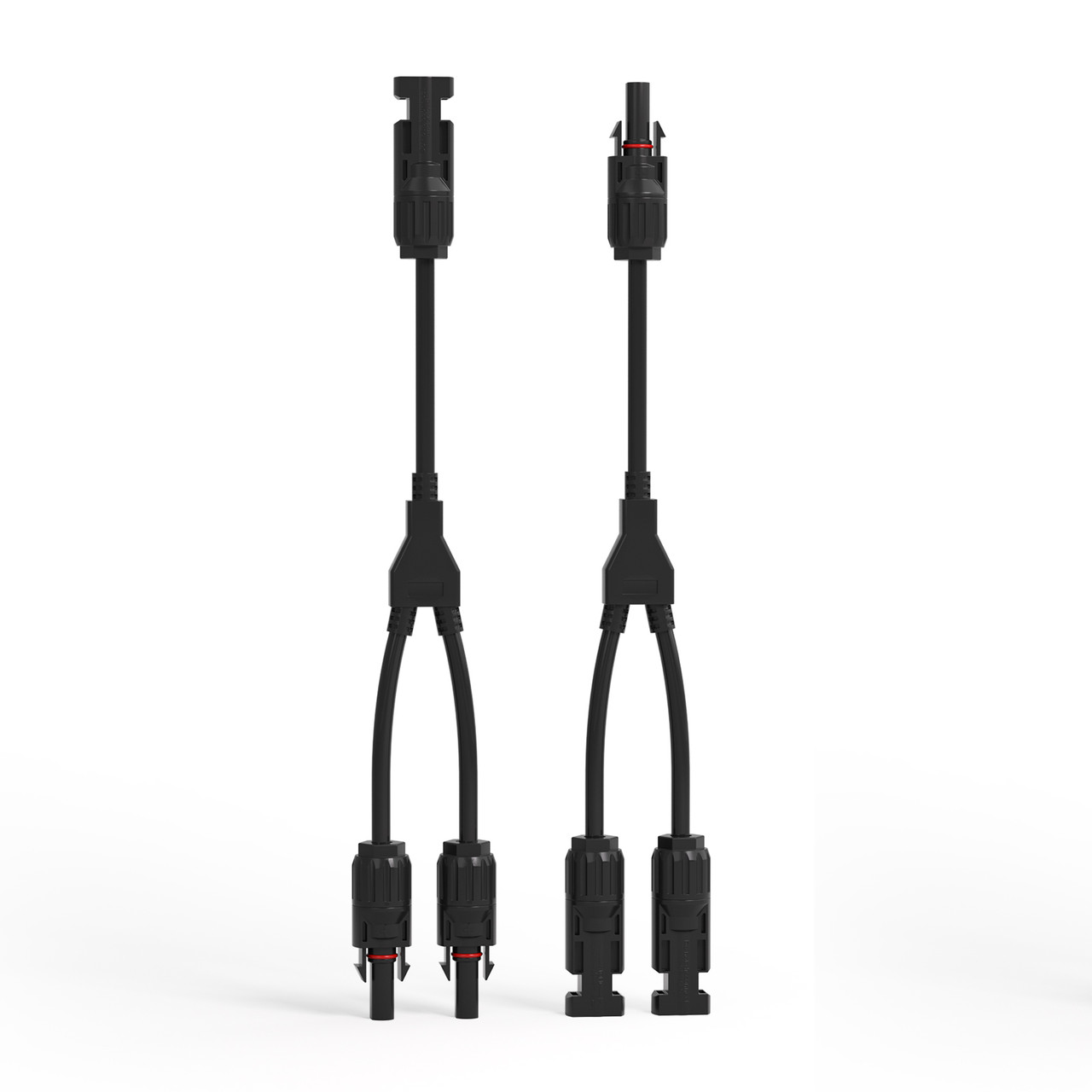

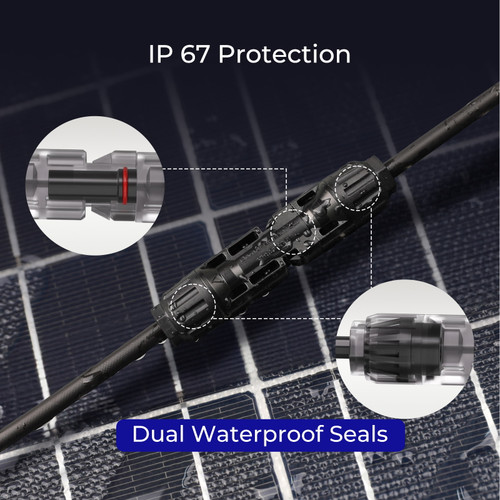

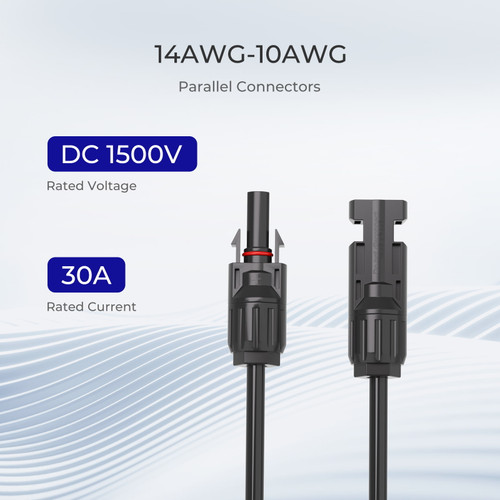

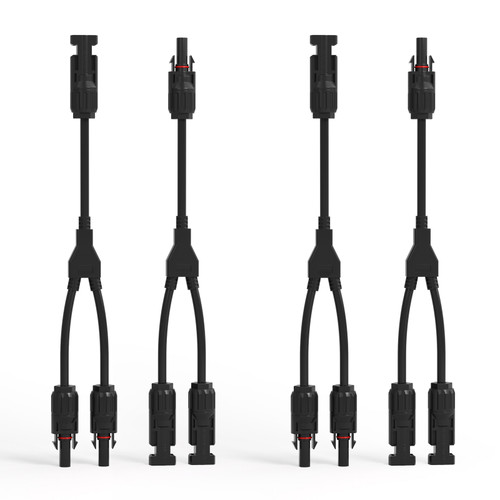

Renogy Solar Y Branch Connectors are used for connecting solar panels in parallel. The set includes 1 male to 2 female (M/FF) and 1 female to 2 male (F/MM) solar connectors, with a rated current of 30A and a rated voltage of 1500V DC. Constructed from premium PC material, these connectors are TUV & CE certified. With double-sealing waterproof rings, they offer IP67 protection. Designed for seamless integration, they work effortlessly with 14AWG to 10AWG (2.5mm² - 6mm²) solar cables. A 1-year material warranty is provided, reflecting our commitment to quality and customer satisfaction. With Renogy Solar Y Branch Connectors, you'll enhance safety and maximize your solar panels' power output. Whether you're starting a new solar project or expanding your existing setup, Renogy has you covered for efficient solar arrays.
Package Includes
Y Branch Connectors
x 1
Model
RPC0110EC-Y
Rated Voltage
1500V DC(IEC)
Rated Current
30A
Contact Resistance
0.5mΩ
Insulation Material
PC
Contact Material
Copper, tin plated
Temperature
-40℃-90℃/-40°F-194°F
Protection Degree
IP67 mated/IP2X unmated
Safety Degree
Ⅱ
Flame Class
UL94-HB/UL94-V0
Suitable Single Core Cable Section
2.5mm², 4mm², 6mm²
Frequently Asked Questions
Is this what i would need to add a 5th 100 watt panel to my other 4 100 watt system?
Depending on the input capacity of your controller and the amperage capacity of the wire you use, this product might help.
For wire sizethe male/female connectors, what range of gauges of wire do these accept?
Normally for 14-10 awg solar wire.
Why these solar connectors are so tightly and can't remove from solar panels?
"The tight design can prevent solar connectors from leaking by water. If you need to remove them from solar panels, you can use Renogy solar spanners."
