Pack Light. Power Big.

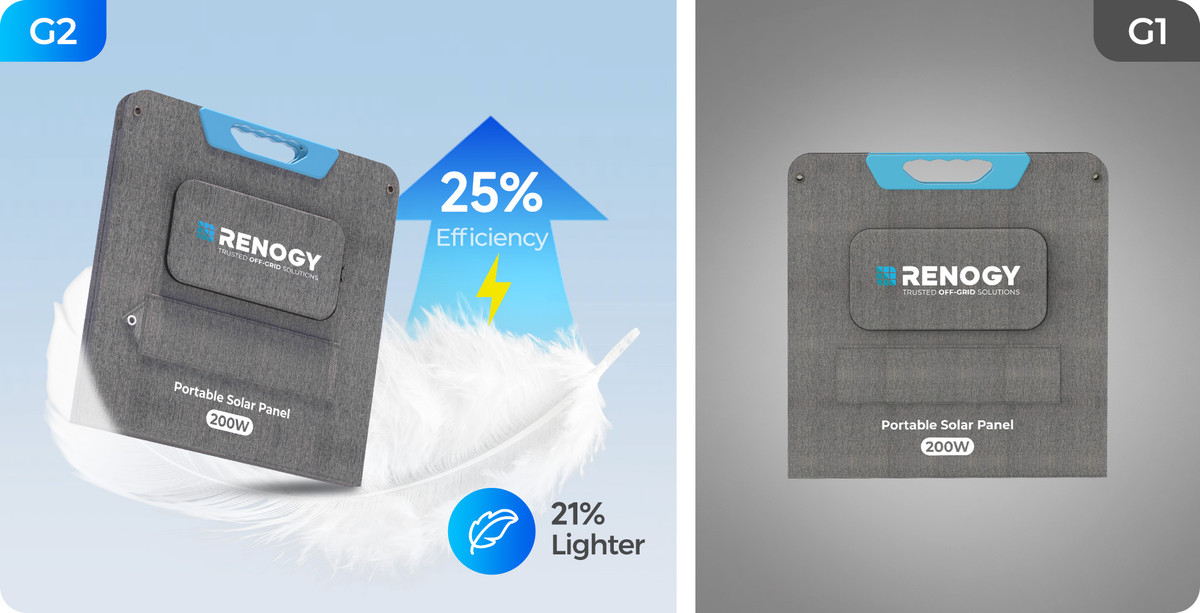

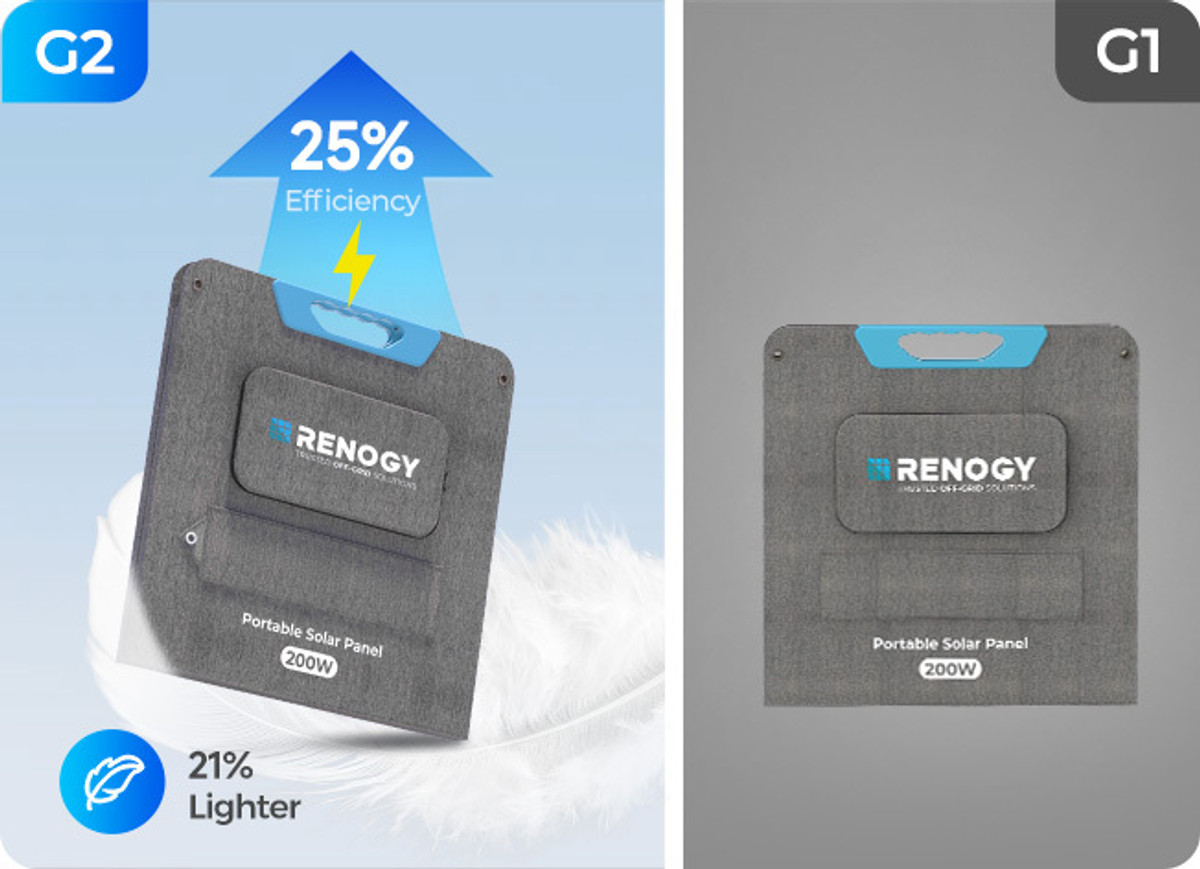

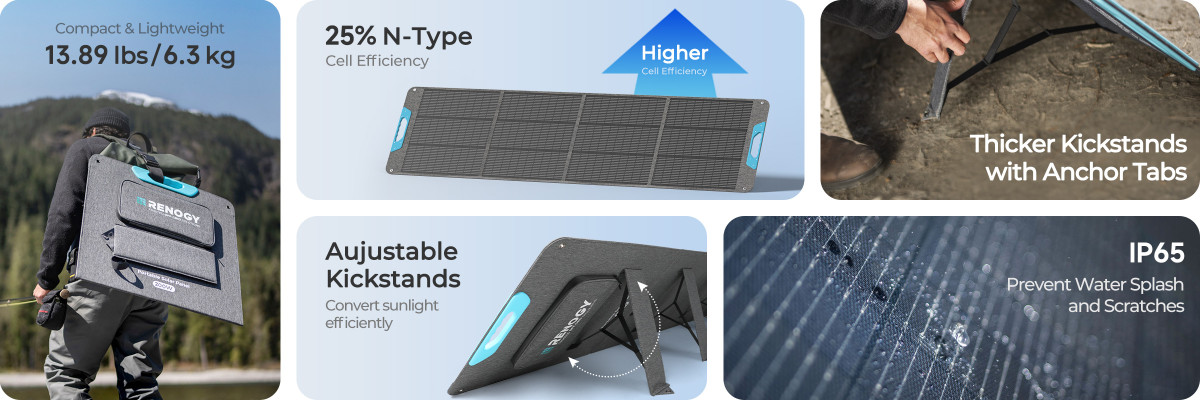

Featuring N-Type solar cells, this panel is 39% more compact while delivering higher efficiency

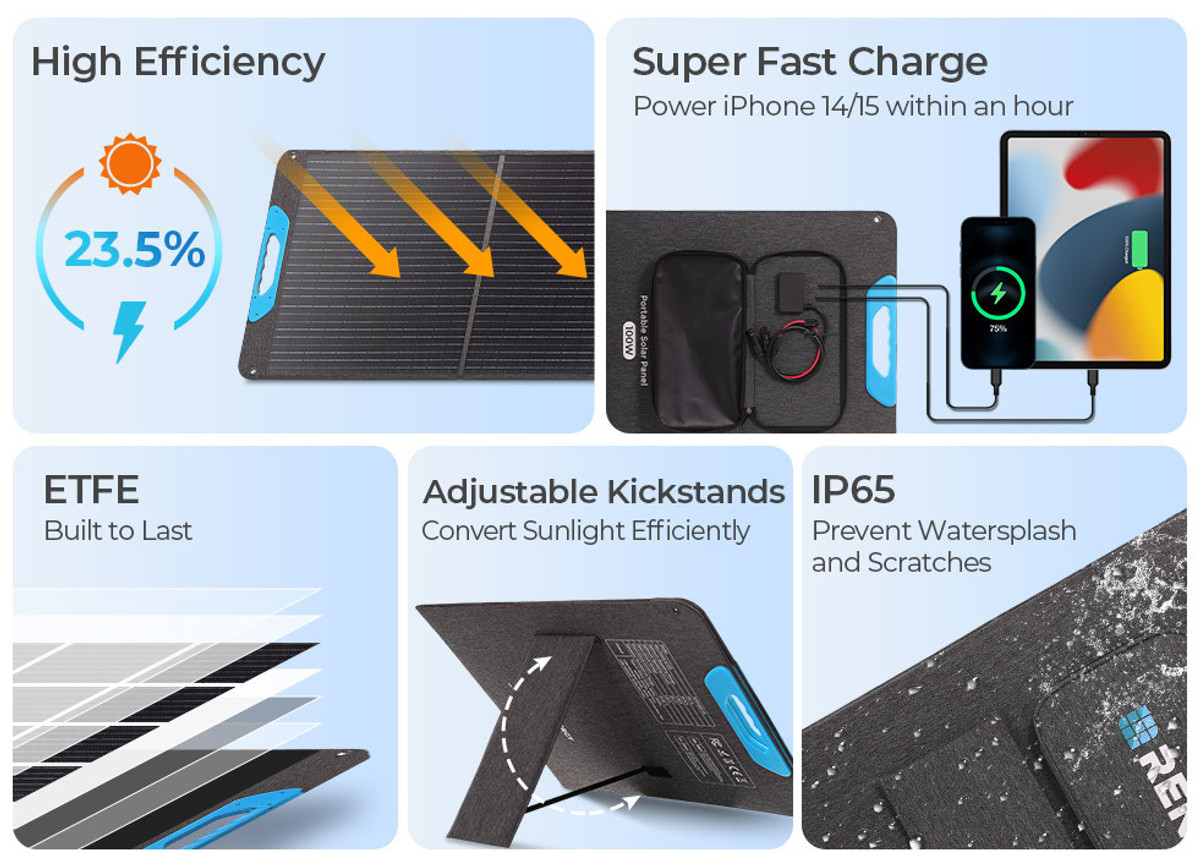

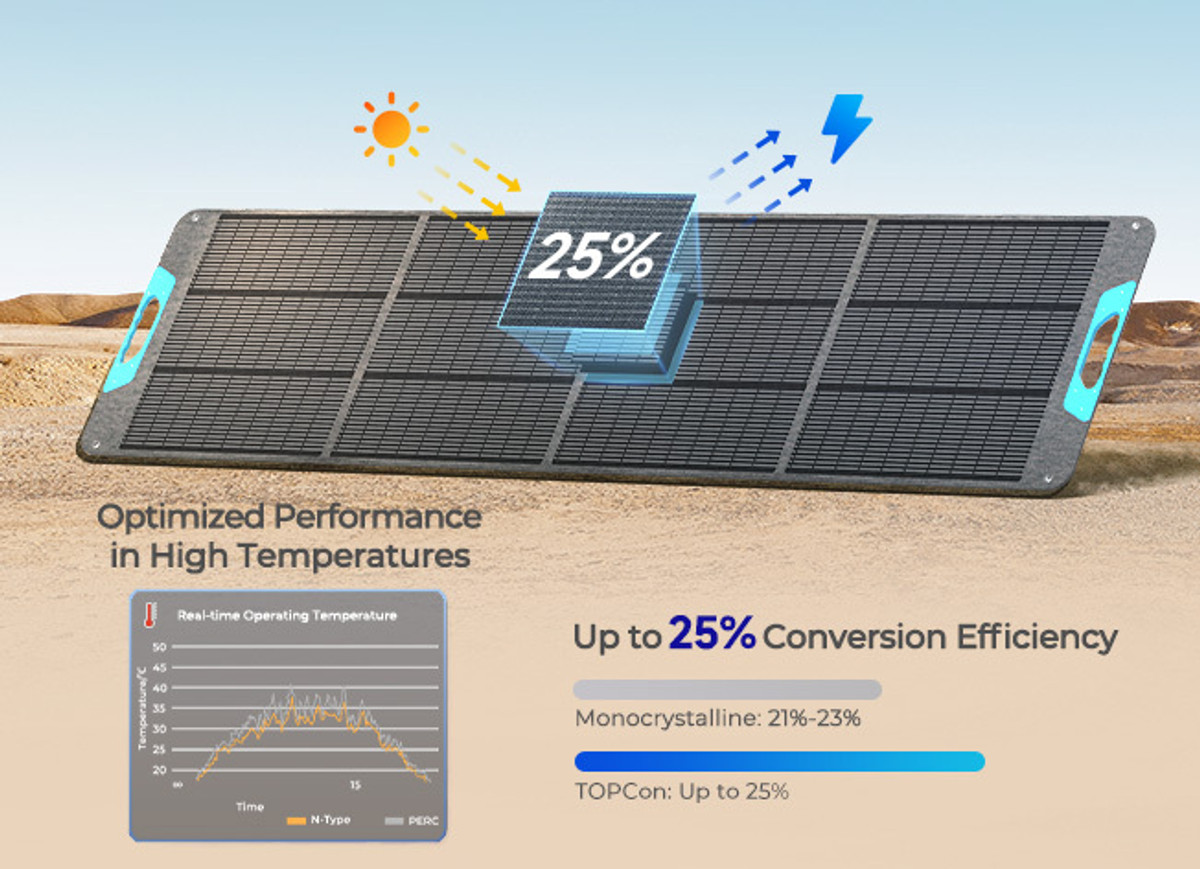

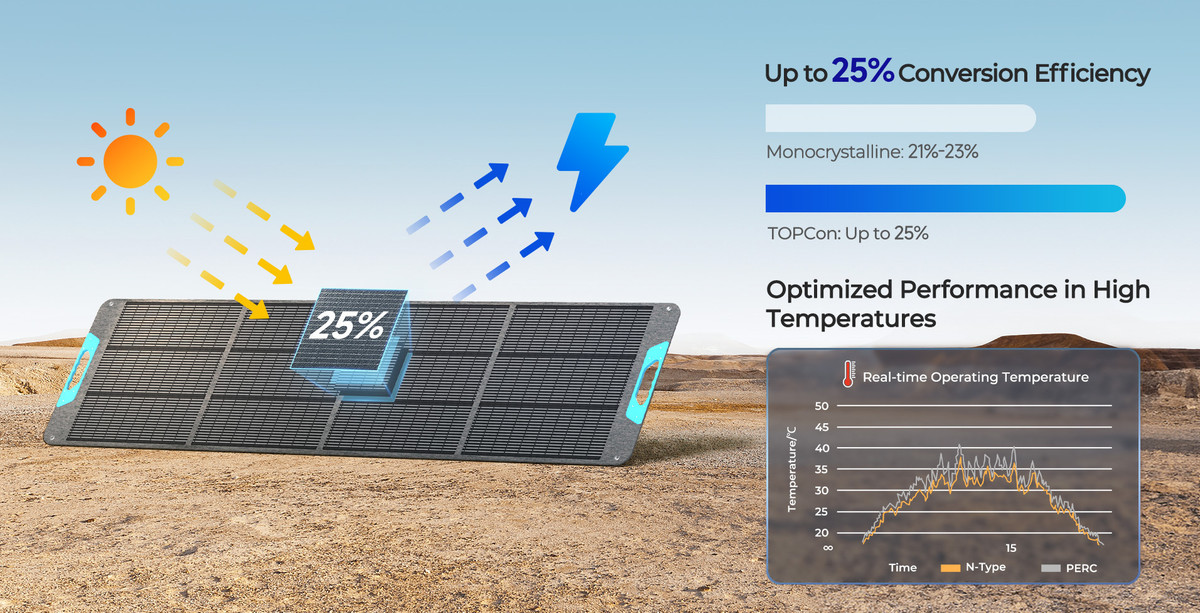

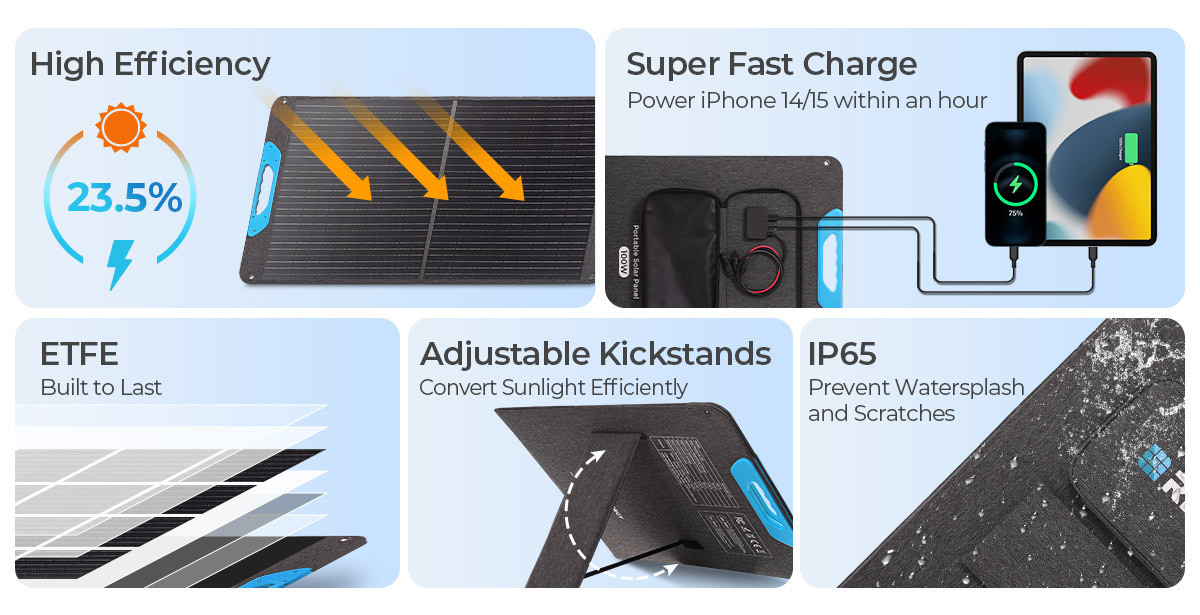

Upgraded N-Type Solar Cells for High Charging Efficiency
Premium solar cells with an energy conversion efficiency of up to 25% guarantee sufficient power output in daylight conditions
Upgraded N-Type Solar Cells for High Charging Efficiency
Premium solar cells with an energy conversion efficiency of up to 25% guarantee sufficient power output in daylight conditions

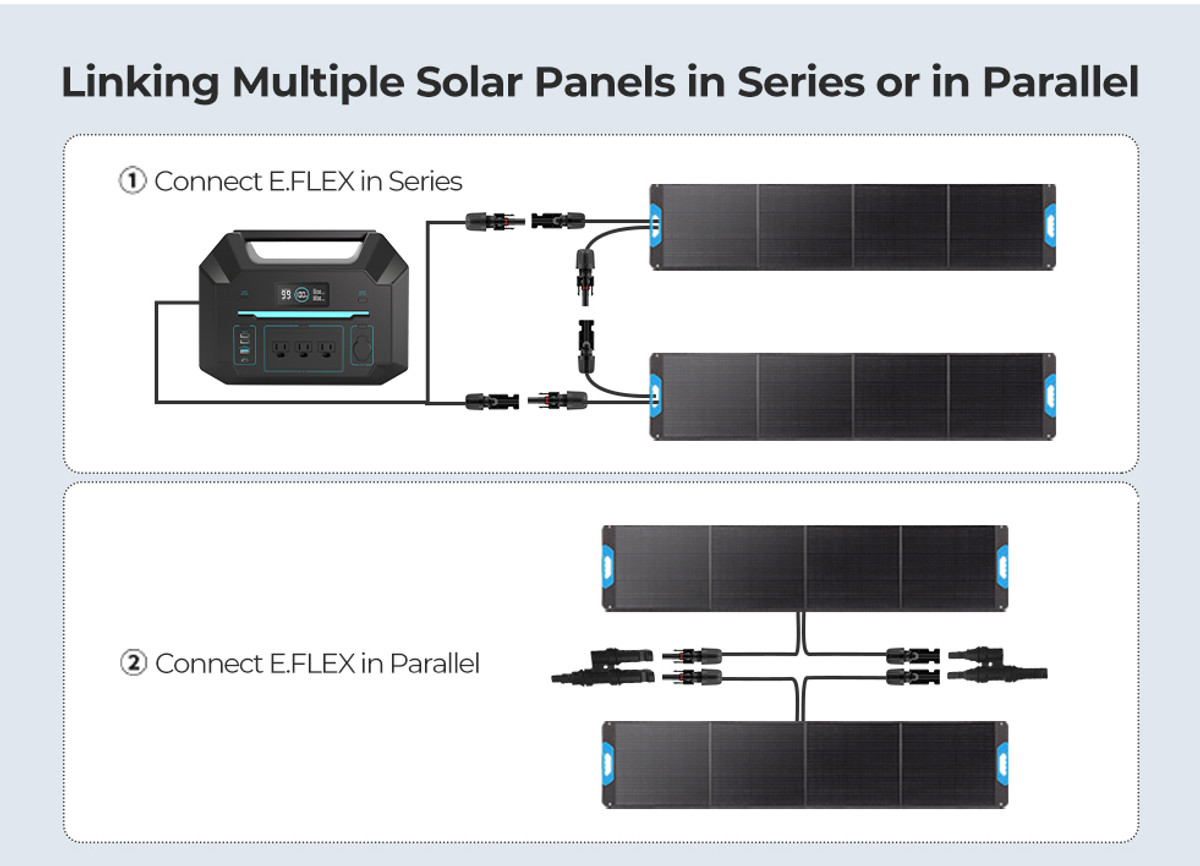

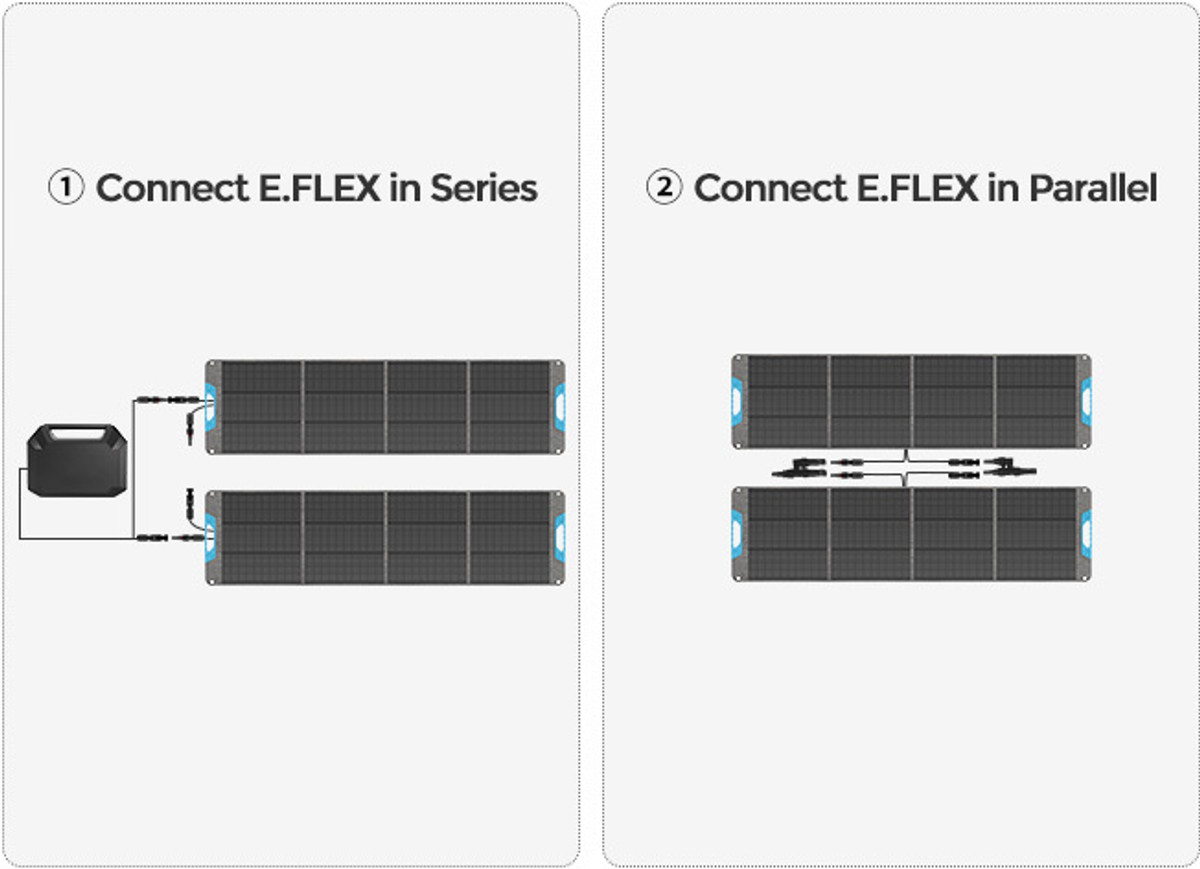

Series vs. Parallel

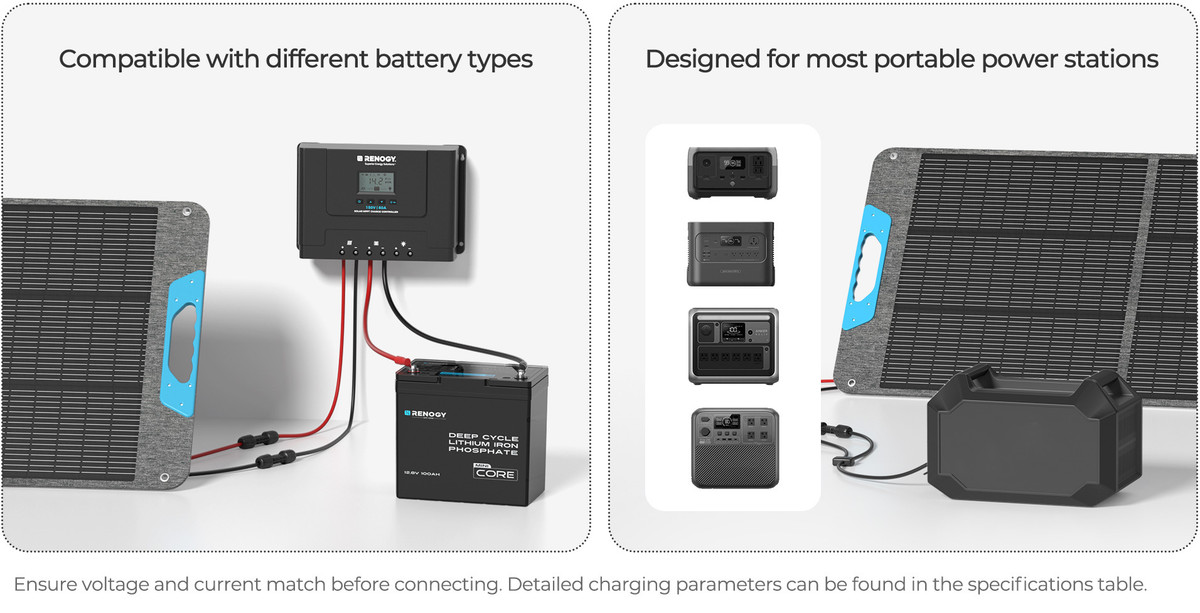

Seamless Compatibility

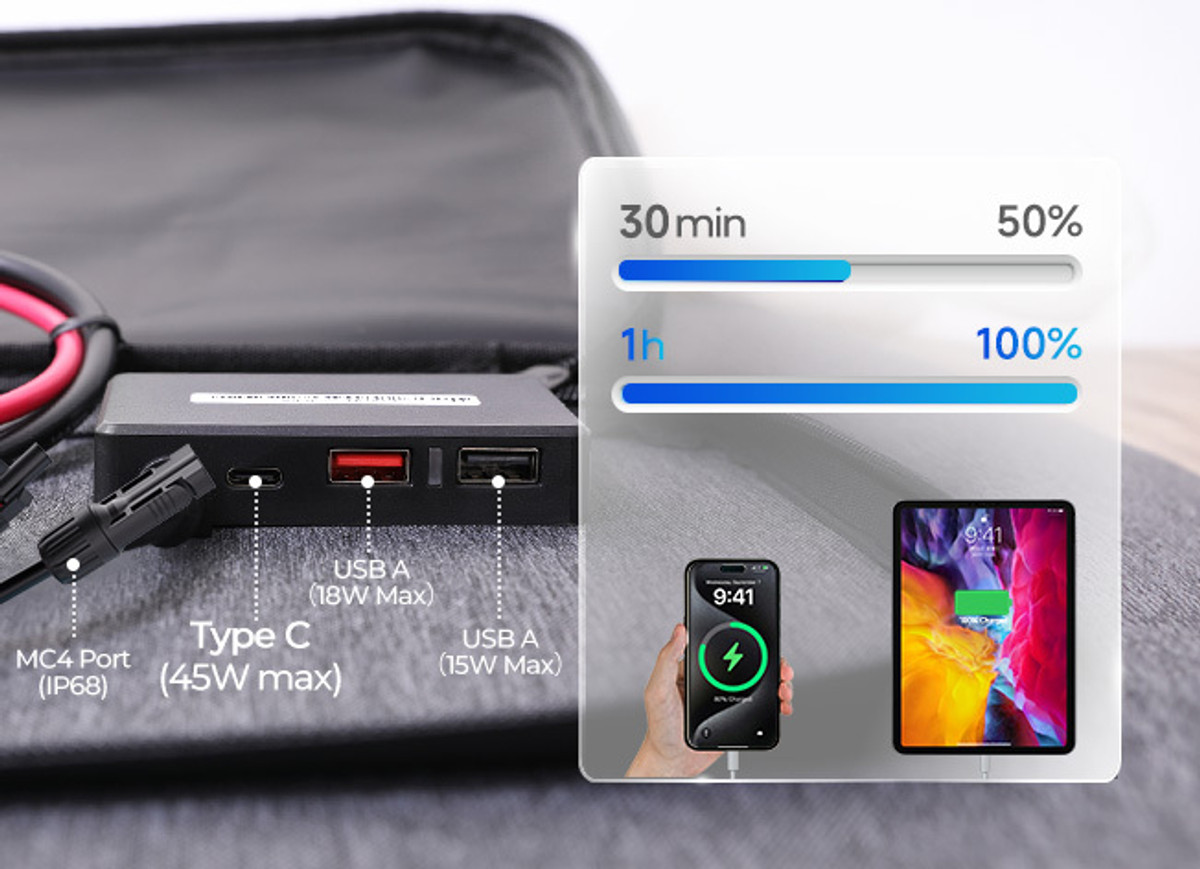

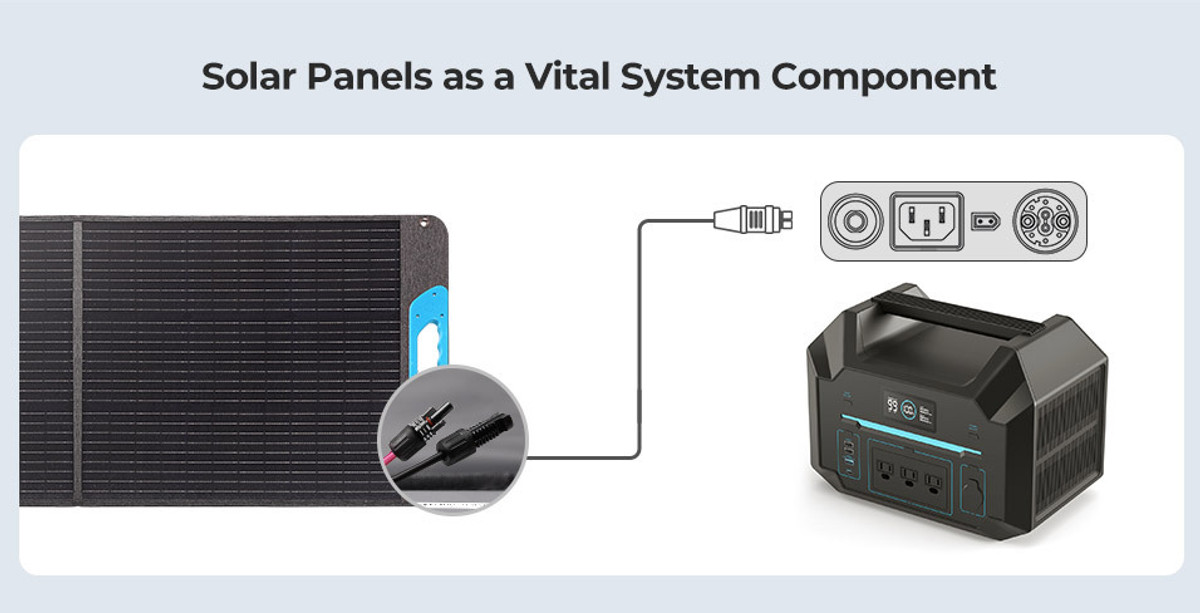

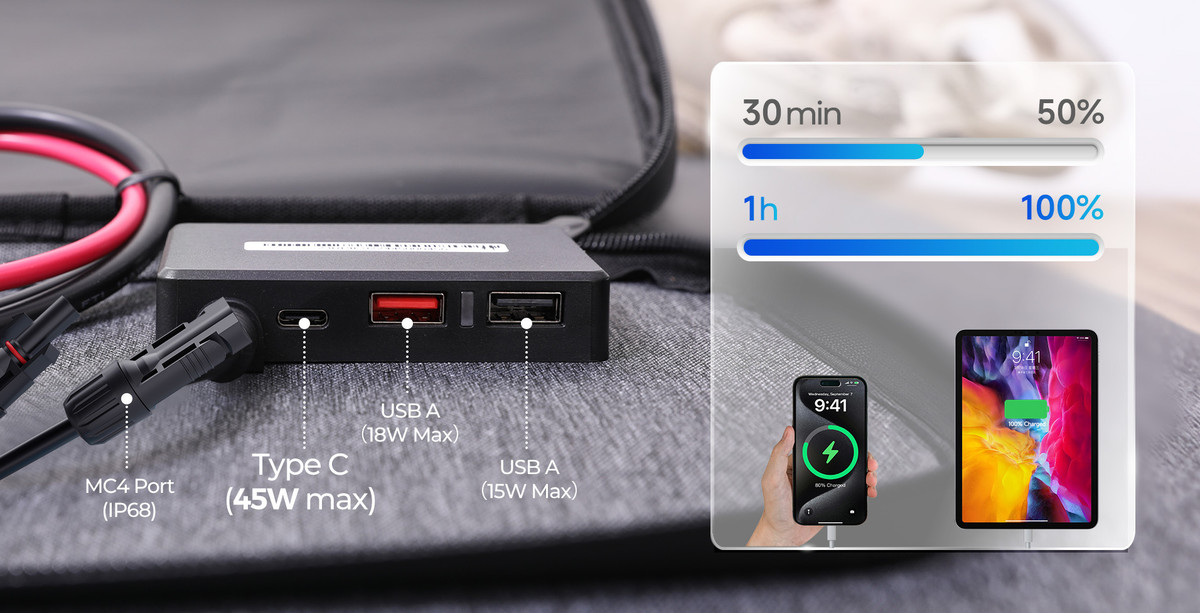

The FLEX 200W Solar Panel offers versatile charging with 1× MC4 output, 1× USB-C PD (up to 45W), and 2× USB-A ports (orange up to 18W, black up to 15W), supporting a wide range of devices.
Power small devices such as cell phones, tablets or laptops directly through the Type C/USB A output port
Package Includes
E.FLEX-CORE 200W Portable Solar Panel
x 1
User Manual
x 1
Ewarranty Card
x 1
Max Power at STC
200 W
Open Circuit Voltage
21.6V
Short Circuit Current
11.3A
Optimum Operating Voltage
18.8V
Optimum Operating Current
10.6A
Cell Efficiency
>25%
Operating Temperature
14°F to 149°F(-10℃ to +65℃)
Dimensions
23.72 x 22.99 x 1.97 in / 602.5 x 584 x 50 mm(fold),87.80 x 22.99 x 0.12 in / 2230 x584 x 3 mm (unfold)

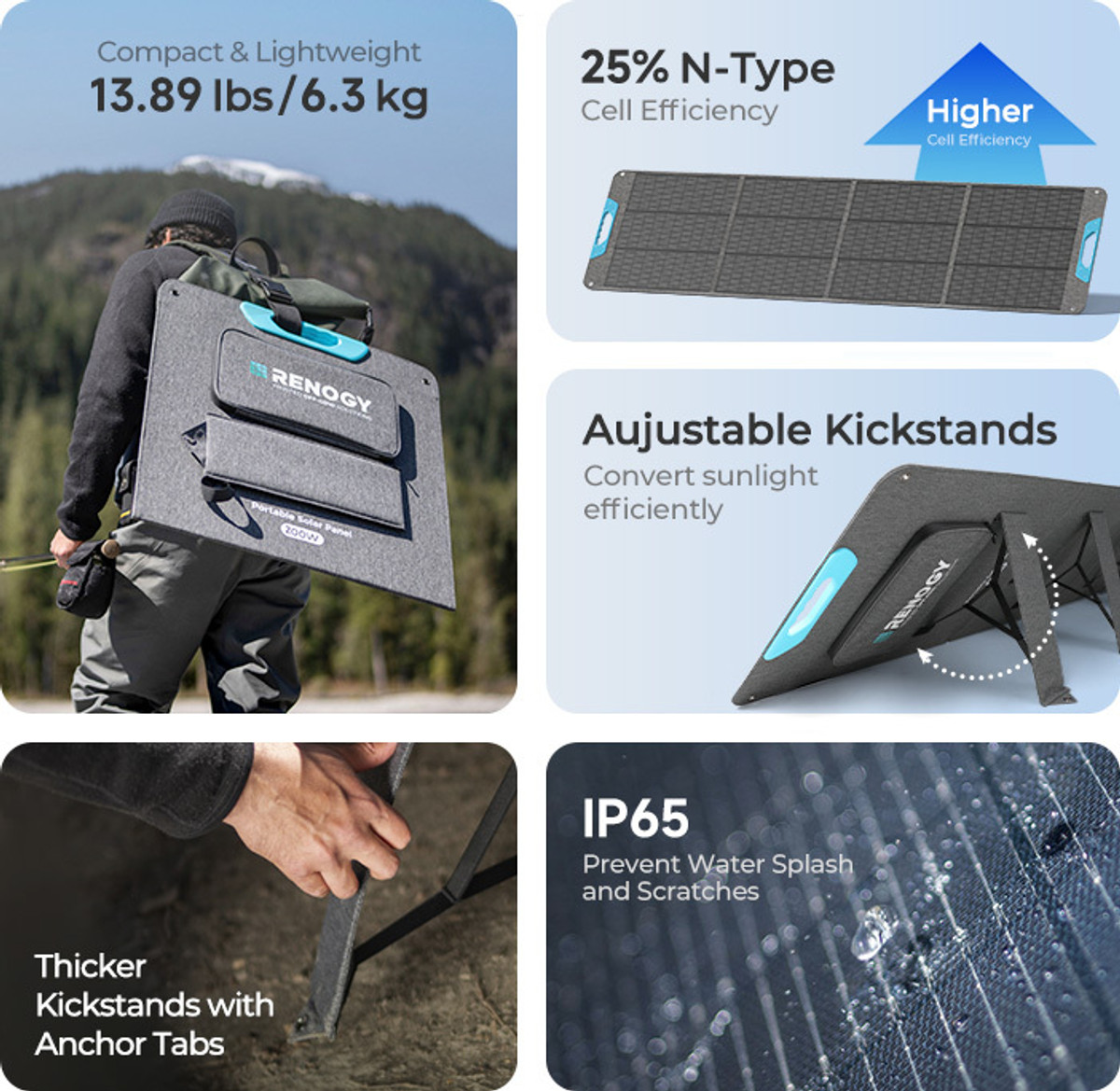

Weight
13.89 lbs. / 6.3 kg
Material and workmanship warranty
2 Years
Certifications
CE and RoHS compliant,FCC,Manufactured in a Certified ISO 9001 Facility,CA65,PSE
Frequently Asked Questions
1.What can this panel charge?

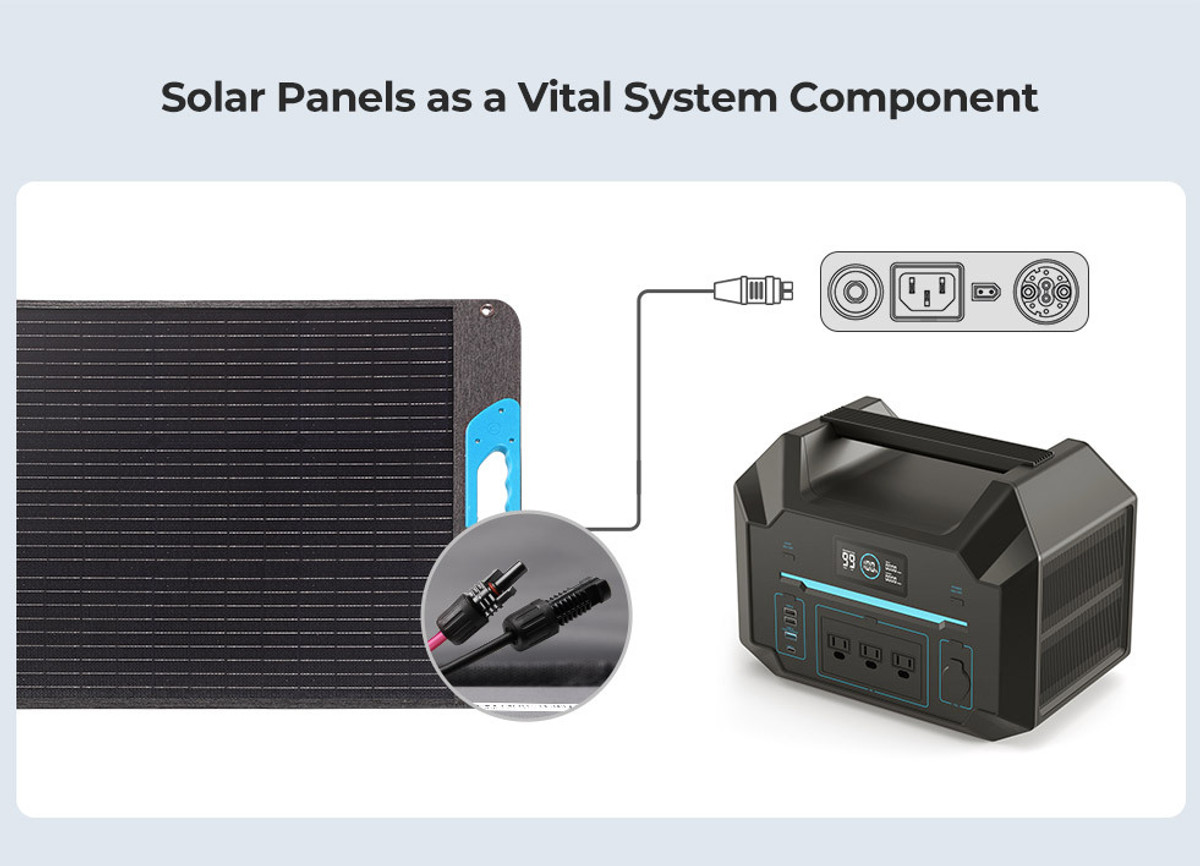

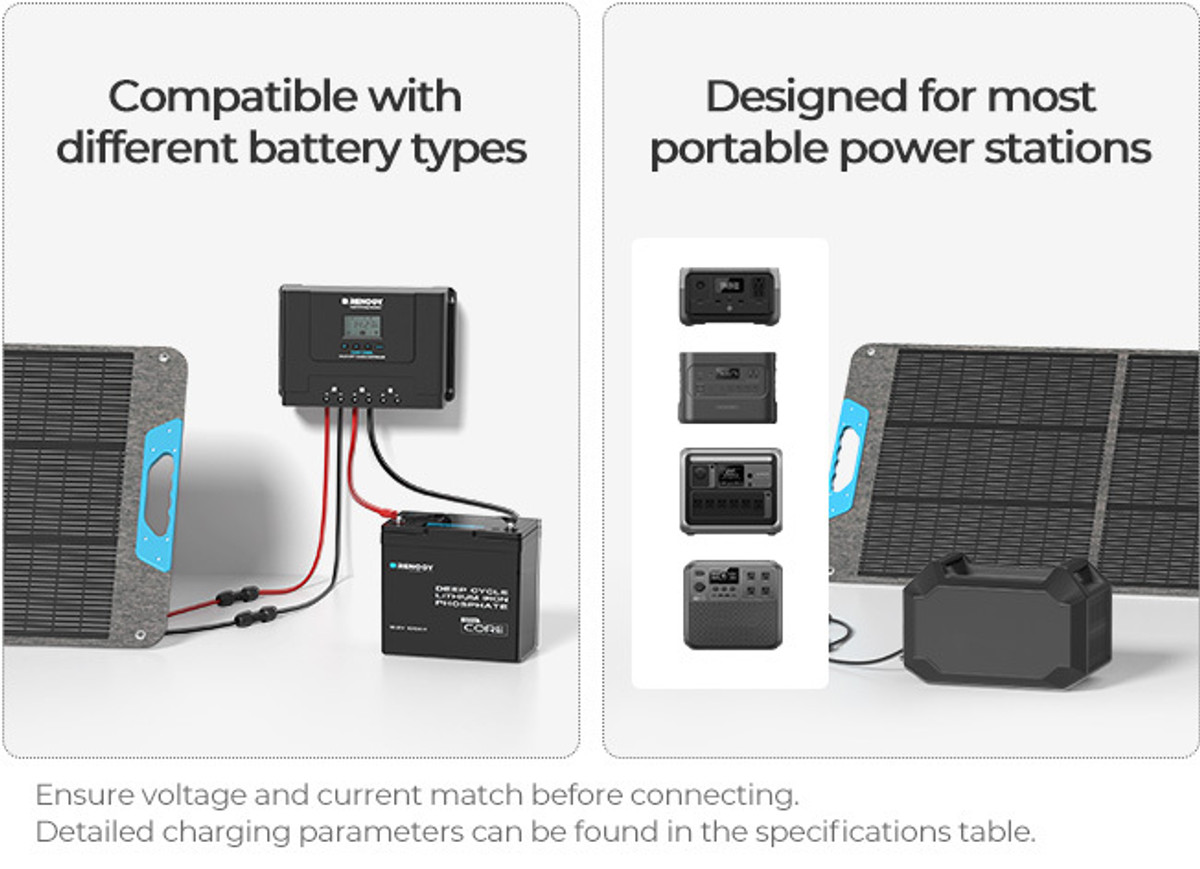

EFLEX solar panel can charge most of battery(controller needed) and power station, just need to ensure the open circuit voltage of panel will not exceed max DC input voltage power station or controller.
2.Why is my solar panel under producing?
Solar panel performance may be hindered for a number of reasons. Most commonly environmental conditions such as indirect sunlight, temperature rise, cloudy sky, and dirt and stain build up on the top glass will cause a reduced power output.

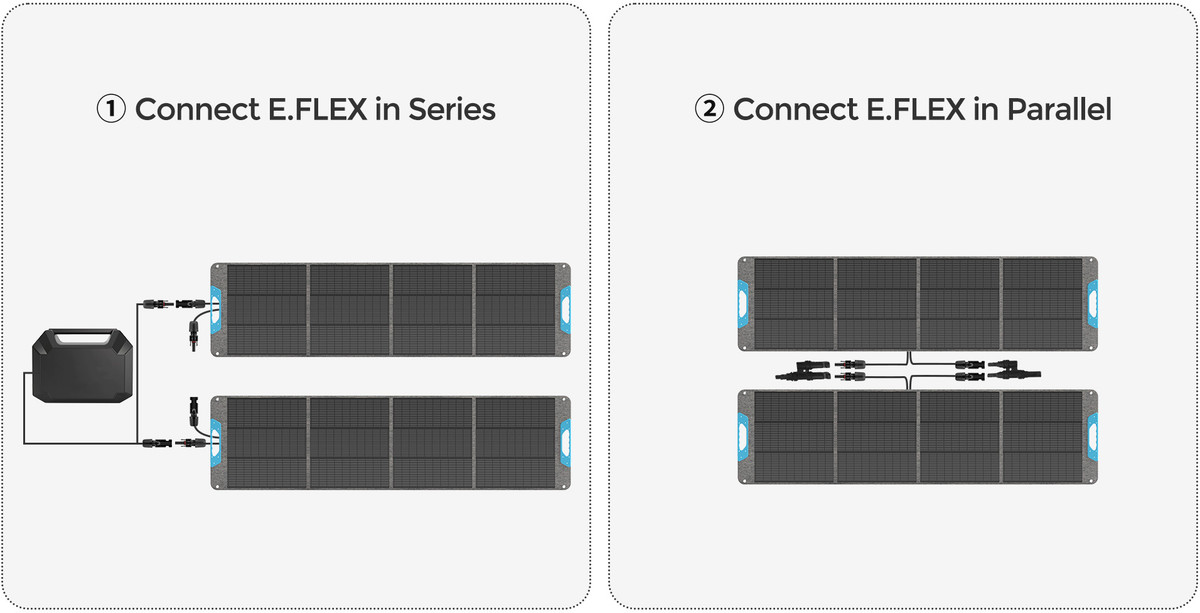

3.How should I connect solar panels in my electrical circuit (series vs parallel)?
Solar panels can be connected in series or in parallel to meet your electrical circuit size and power demand. Connecting solar panels in series will have the effect of adding up their operating voltage output, while system current output will be the same as that for one panel. While, connecting solar panels in parallel will have a different effect; individual panels operating current output will add up to be the system output current, while system output voltage will be the same as the output voltage of one solar panel. Please make sure the open circuit voltage of conected panel will not exceed Max DC input voltage of power station or controller.
4.How many solar panels do I need?
The best way to gauge how many solar panels you need, is to understand and define the power load needed from this system. Power is measured in Watt, and capacity is commonly measured in Watt-hours (multiplying power output in watts by the required number of hours of operation multiplied by a safety factor of 1.5-2). Therefore, it is wise to size your battery bank first based on the minimum required capacity, and accordingly decide how many panels or how much power input is needed.
