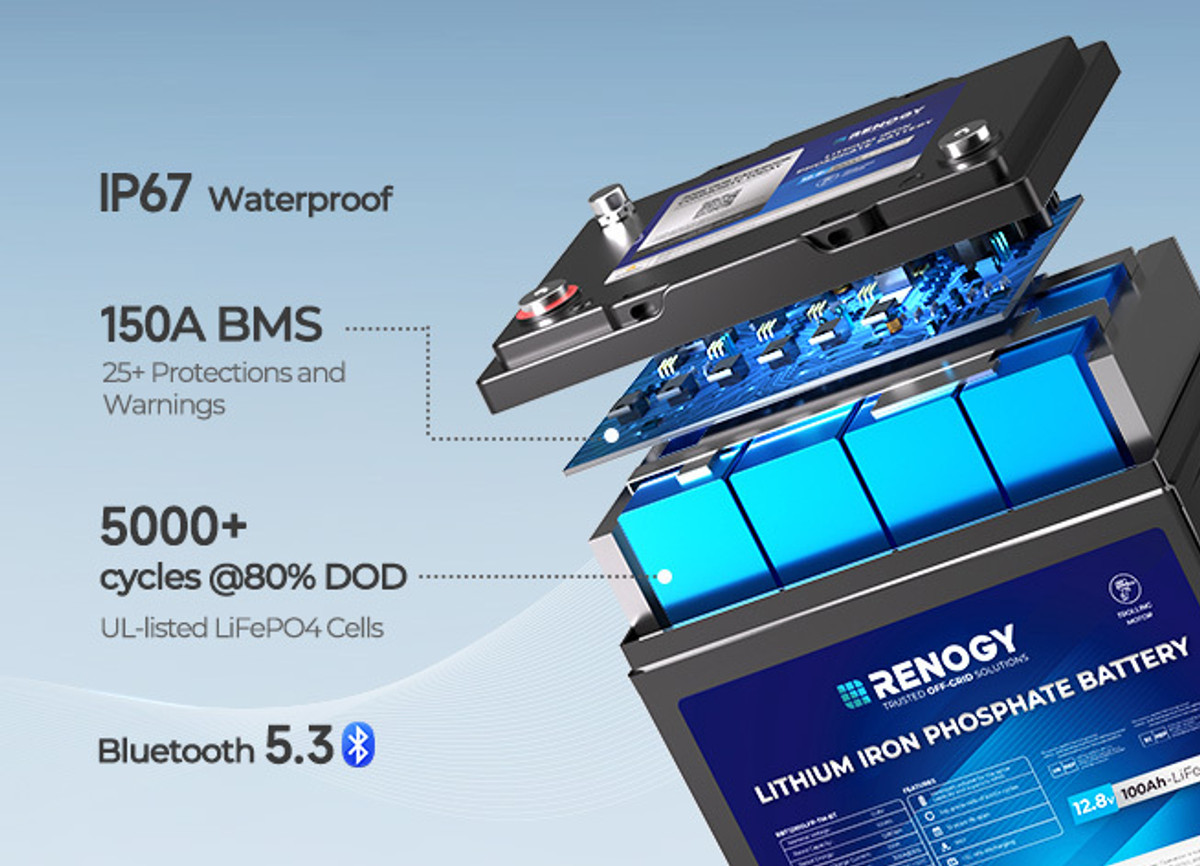

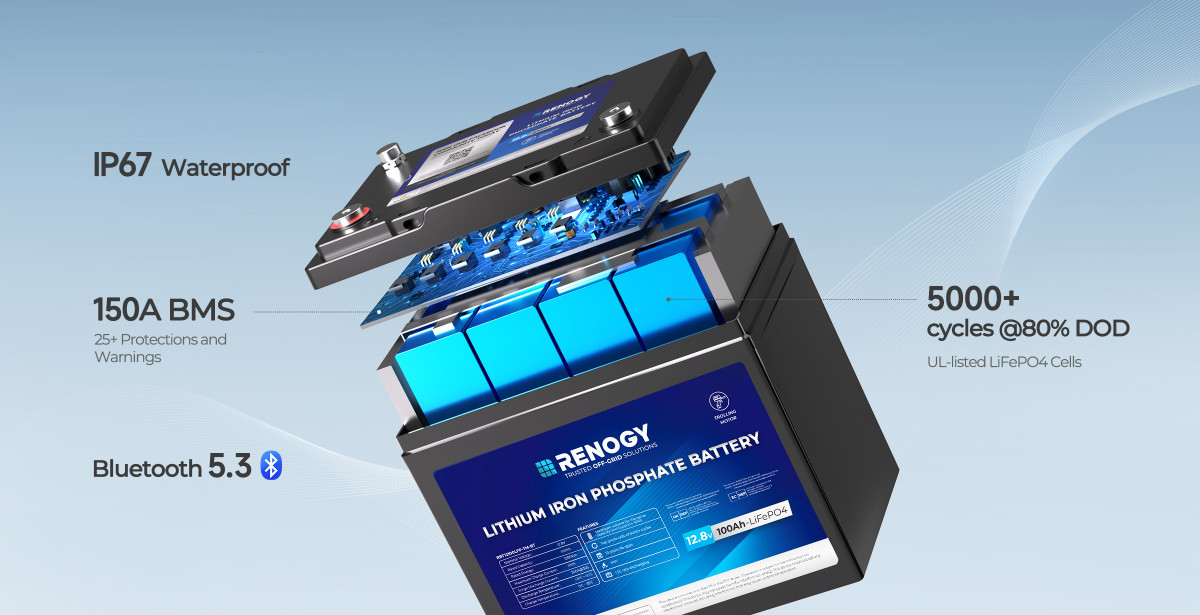

Inside the Renogy 12V 100Ah Trolling Motor LiFePO4
Real-Time Monitoring with Bluetooth 5.3
The built-in Bluetooth 5.3 enables real-time power tracking via the DC Home App, allowing you to access information such as system overview, fault alerts, and battery status.
Ready for Any Environment
Renogy’s rugged design offers advanced safety, superior moisture resistance for outdoor use, longer life span, and seamless real-time monitoring – all in one compact battery.
Made for Trolling Motors
Fully compatible with Minn Kota and other major trolling motor brands. Run a single battery for 30-55 lb motors, two in series for 70-90 lb motors, or three in series for 112-115 lb motors.
Scalable Power, Flexible Setup
Build your ideal power system with up to 4 batteries in series and 4 in parallel (4P4S), delivering up to 20.48kWh. Great for trolling motors, RVs, workshops, and off-road systems. Can adapt to various setup.
World-Class Standards, Rigorously Tested
The Renogy 12V 100Ah Trolling Motor LiFePO4 Battery meets global safety certifications, including MSDS, UN38.3, IC, FCC, CE, PSE, RCM, RoHS, and UKCA. Each unit undergoes thorough testing to ensure the reliable performance you can trust.
Package Includes
12V 100Ah Lithium Iron Phosphate Battery
x 1
Long Terminal Bolts
x 2
Insulating Sleeve
x 2
User Manual
x 1
Electrical Specifications
Rated Capacity (0.5C, 25°C)
100Ah
Nominal Voltage
12.8V
Energy
1280Wh
Cycle Life (0.5C/1C, 25℃)
6000 Cycles (80% DOD, 80% EOL)
Temperature Parameters
Operation Temperature Range
Charge: 32°F to 131°F (0°C to 55°C)
Operation Temperature Range
Discharge: -4°F to 131°F (-20°C to 55°C)
Storage Temperature Range
32°F to 113°F (0°C to 45°C)
Operation Relative Humidity
5% to 95%
Charging Parameters
Voltage Range
10.8V to 14.8V
Maximum Continuous Charge Current
100A
Discharging Parameters
Maximum Continuous Discharge Current
150A
Peak Discharge Current
300A@30s
Mechanical Specifications
Dimension (L x W x H)
10.24x6.61x8.23in/260x168×209 mm
Weight
21.83 lbs / 9.9 kg
Terminal Bolt Size
M8 x 1.25 x 12 mm
Protection Rating
IP67
Certifications
RCM, MSDS, UN38.3, FCC, CE, PSE, IC, RoHS, and UKCA
YES
Warranty
5-year material warranty
Yes
Frequently Asked Questions
I have 4 Renogy 100W 12V solar panels. Will these work with this LiFePO4 battery, or is the wattage too high?
Yes, but make sure that your solar charge controller is suitable for the output of your solar panels. Do not connect the solar panels directly to the batteries without using a solar charge controller. Contact us if you have any questions regarding the sizing of the solar charge controller for your system.
Can this battery be connected in series to build a 48-volt system?
Yes. Renogy 12V Core Series batteries can be connected in series to increase the voltage for an off-grid 24V, 36V, or 48V system. You can also connect the batteries in series first and then connect battery sets (same models required) in parallel to achieve a maximum capacity of up to 20.48 kWh.
How many Renogy 12V 100Ah Trolling Motor batteries can I connect at most?
The Trolling Motor batteries support versatile connections, including series, parallel, and series-parallel connection. You can connect up to 4 batteries in series, 4 in parallel, or 16 in the series-parallel connection. Batteries of the same model and similar capacity are required.
How long will the Renogy Trolling Motor batteries last?
Renogy 12V 100Ah Trolling Motor Batteries are capable of delivering 6000 cycles with a recommended 80% depth of discharge (DOD).
How to recharge my LiFePO4 batteries?
Whether you prefer charging batteries via solar, a DC-DC battery charger, or an AC-DC charger, we highly recommend a solar charge controller/charger that is compatible with LiFePO4 batteries.
