Cutting-Edge Technology for Superior Performance
Renogy's N-Type Solar Panels set a new standard in solar efficiency, outperforming traditional p-type PERC panels. With superior cell efficiency, an extended lifespan, and consistent high performance, these panels are designed to deliver reliable energy in any condition.
Exceptional Efficiency and Enhanced Output

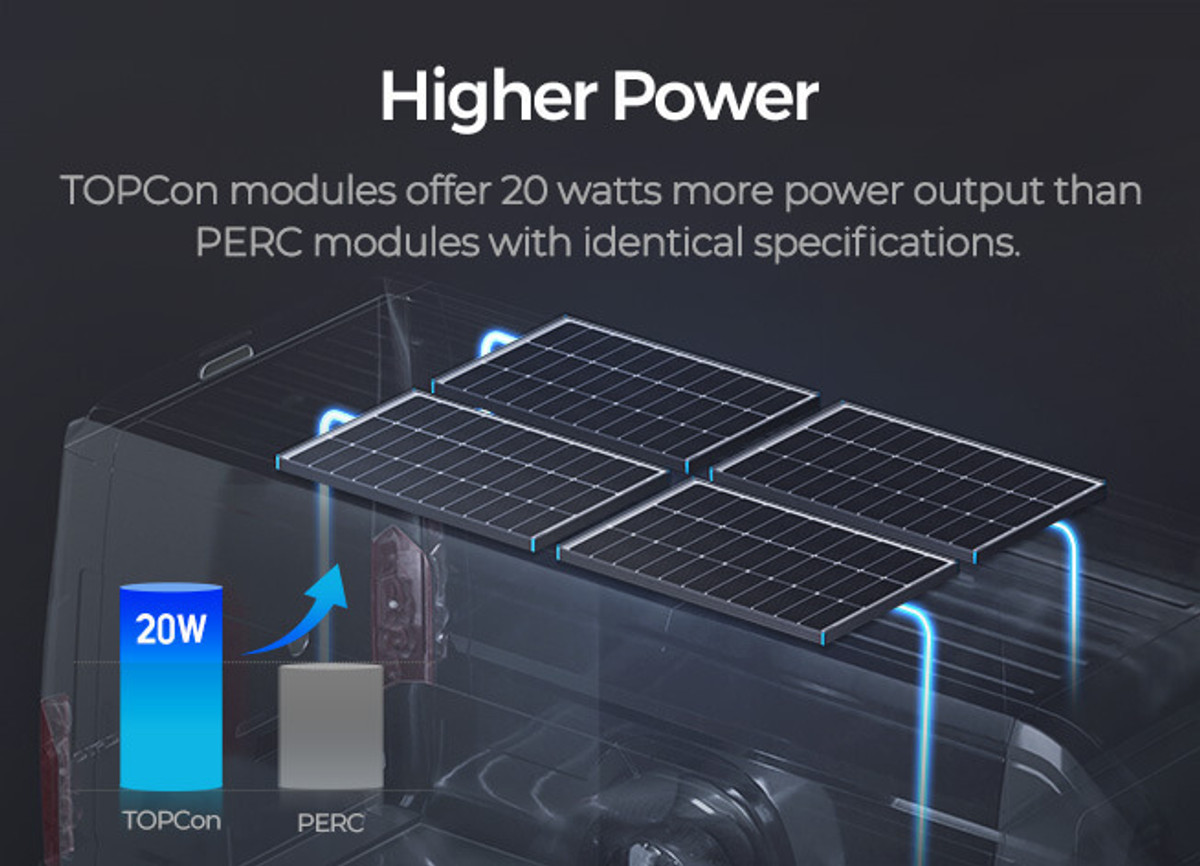

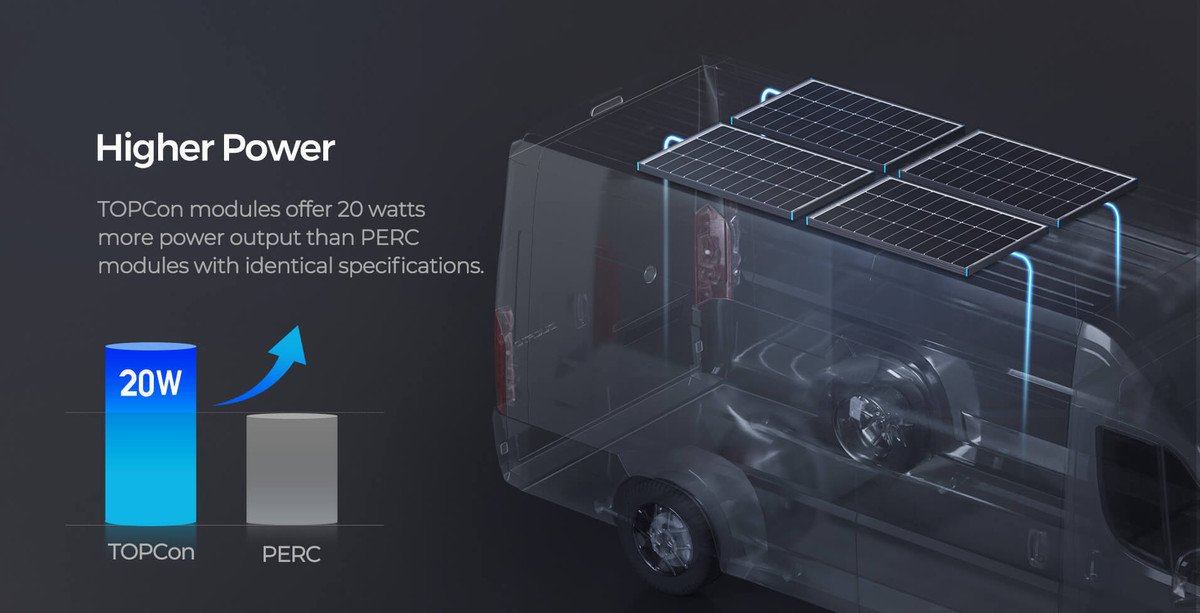

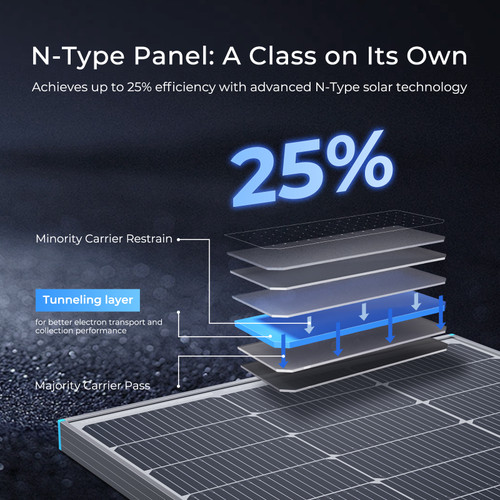

The Renogy 100W 12V N-Type Solar Panel achieves an impressive 25% conversion efficiency, delivering 20W more power output compared to conventional p-PERC panels of similar design. This enhanced performance translates to more energy and greater savings over time.

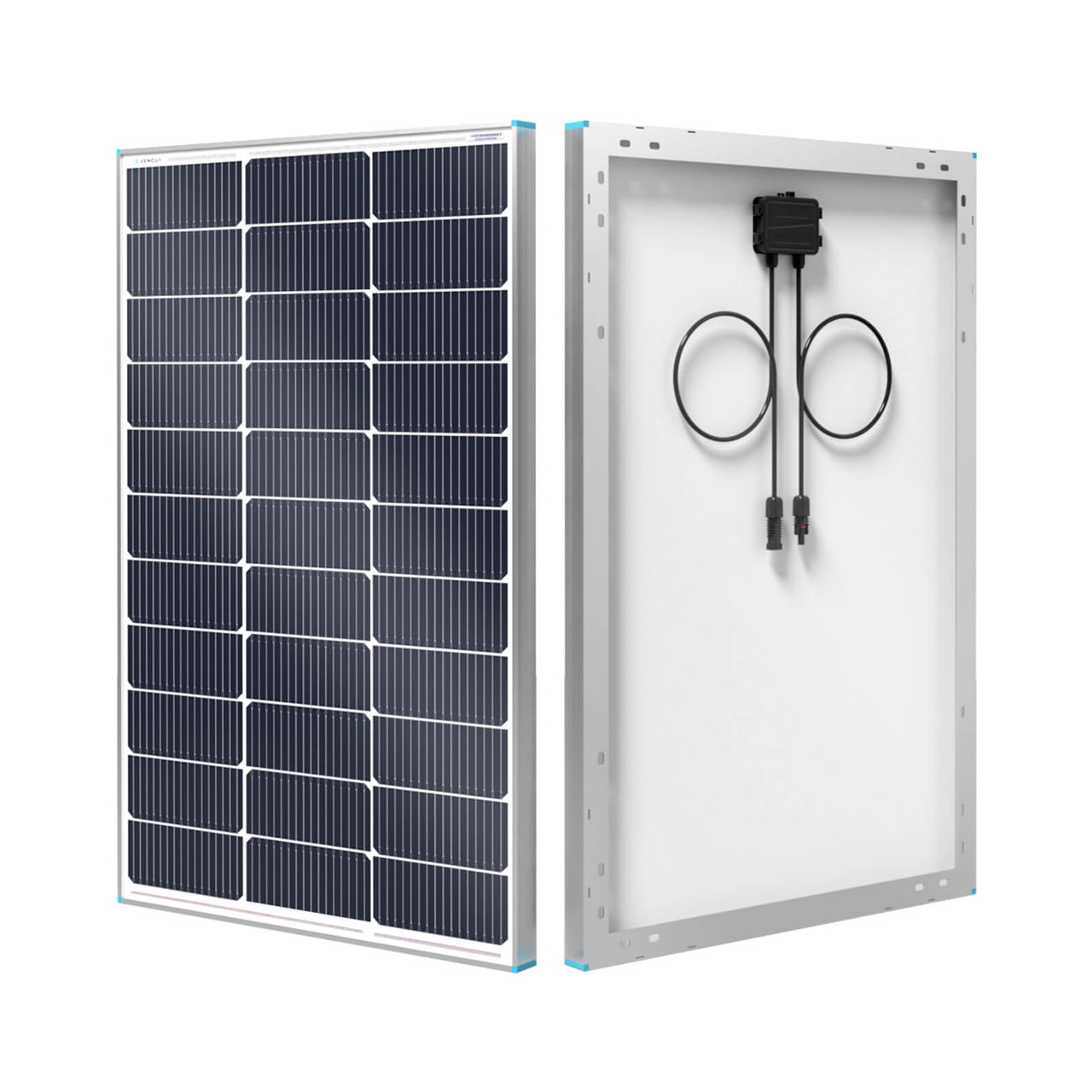

Premium Construction for Long-Term Reliability

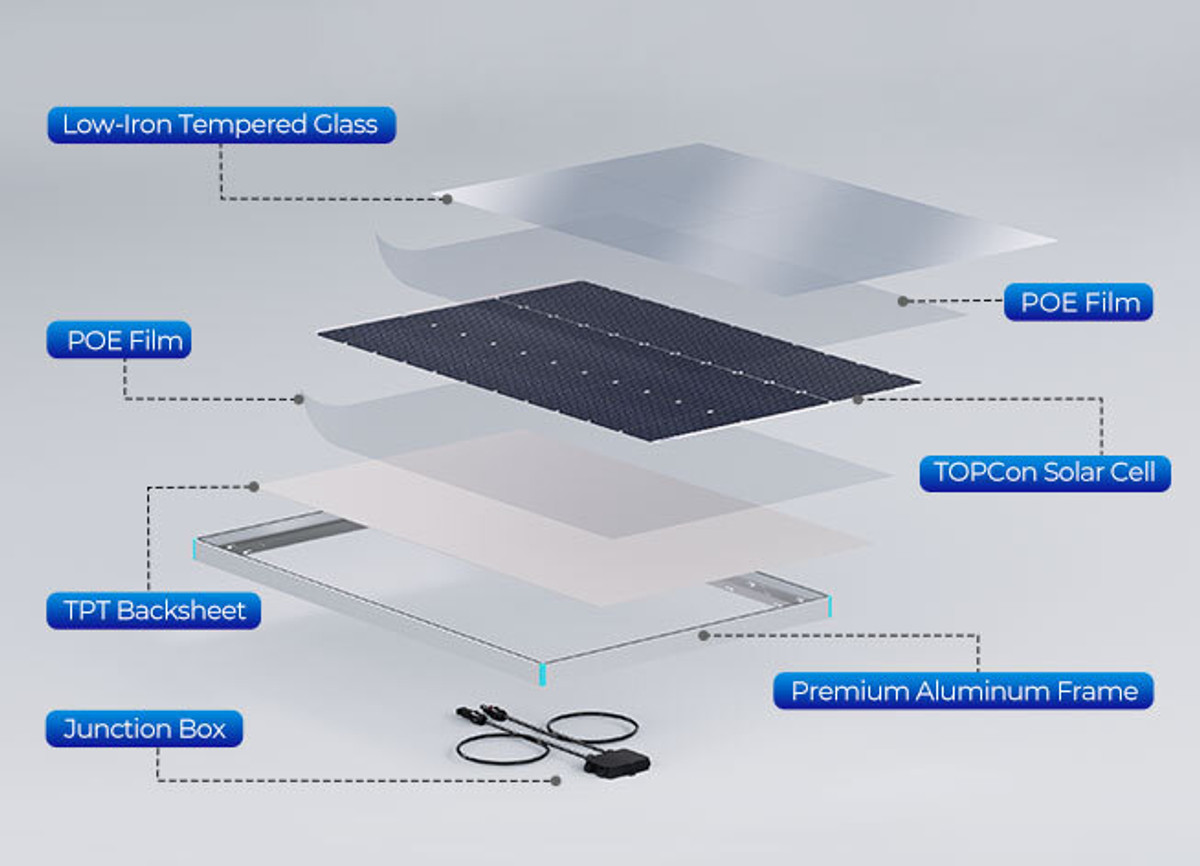

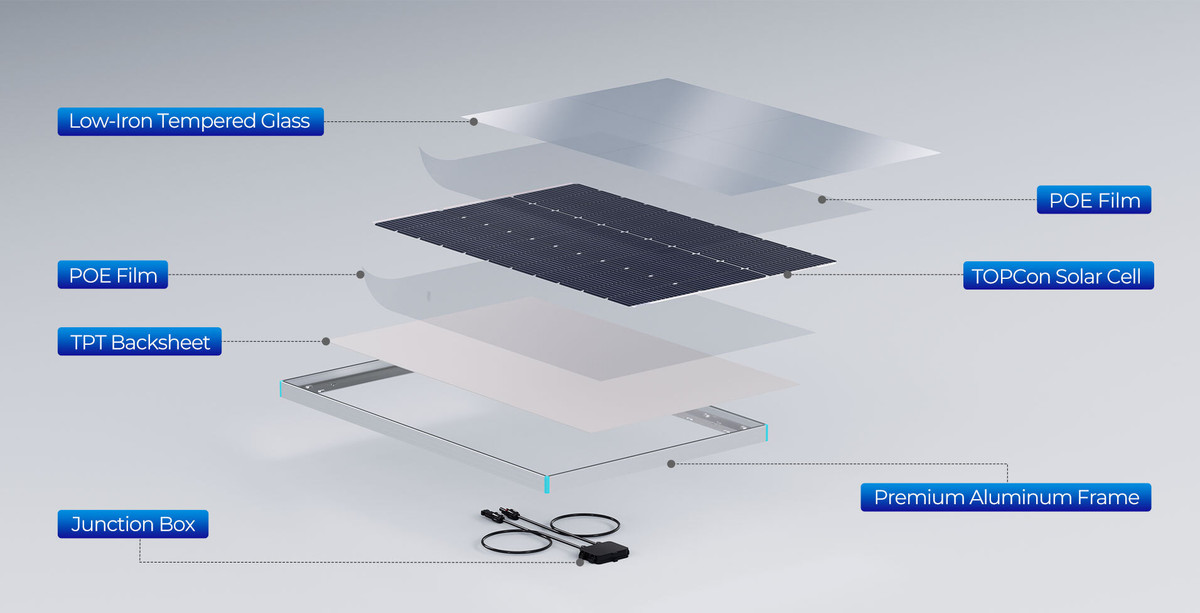

Engineered with precision, this panel features low-iron tempered glass, POE film, n-type solar cells, a TPT backsheet, IP67 solar connectors, an IP65-rated junction box, and a durable aluminum frame. These high-quality components ensure exceptional durability and reliable performance for years to come.

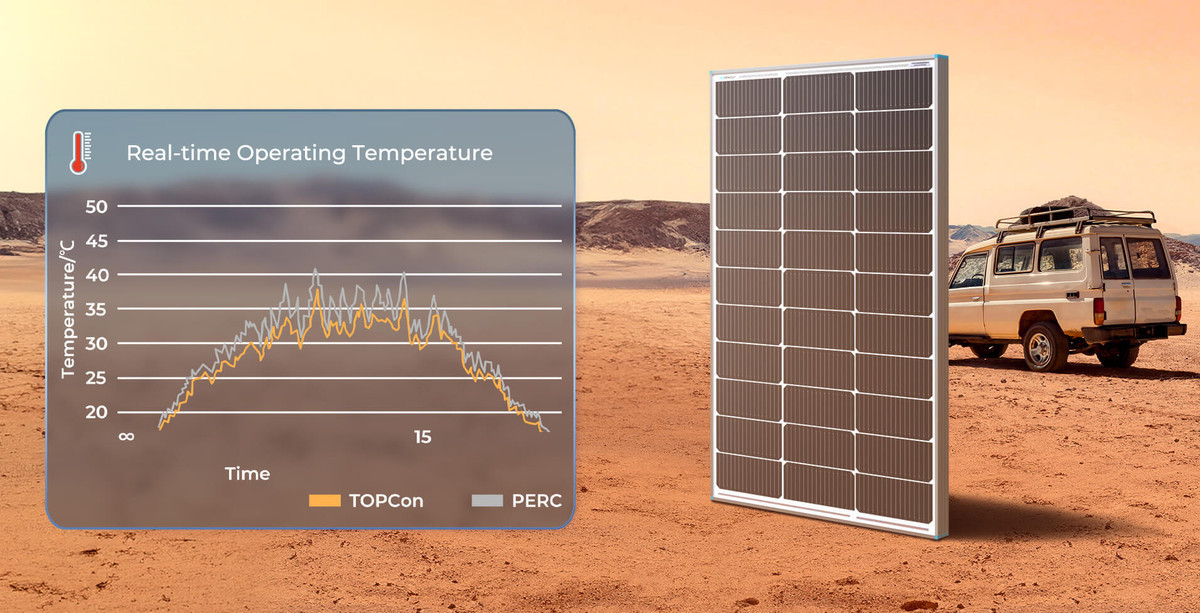

Optimized Performance in High Temperatures

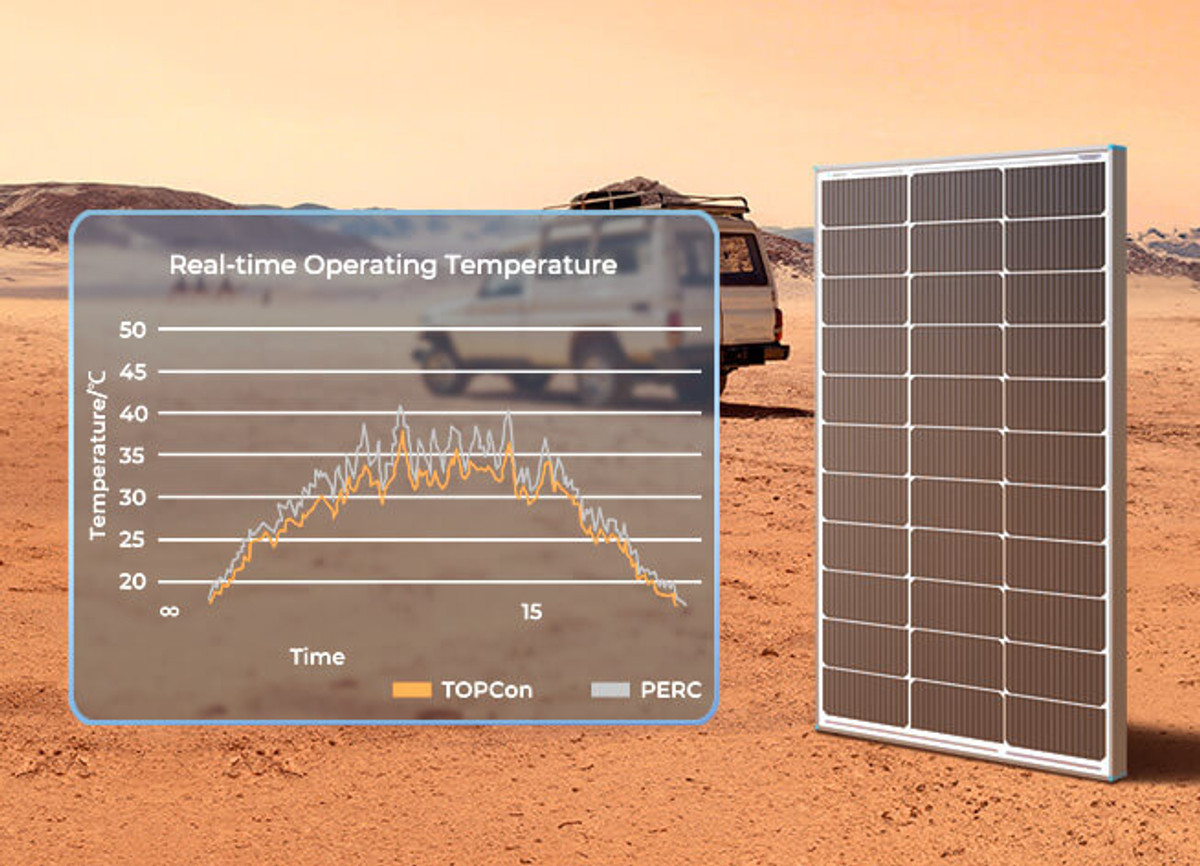

Thanks to a temperature coefficient of -0.29%/℃, Renogy's N-Type Solar Panels operate cooler in high temperatures, maintaining better energy production in hot climates compared to p-PERC panels. This makes them an ideal choice for challenging environments.

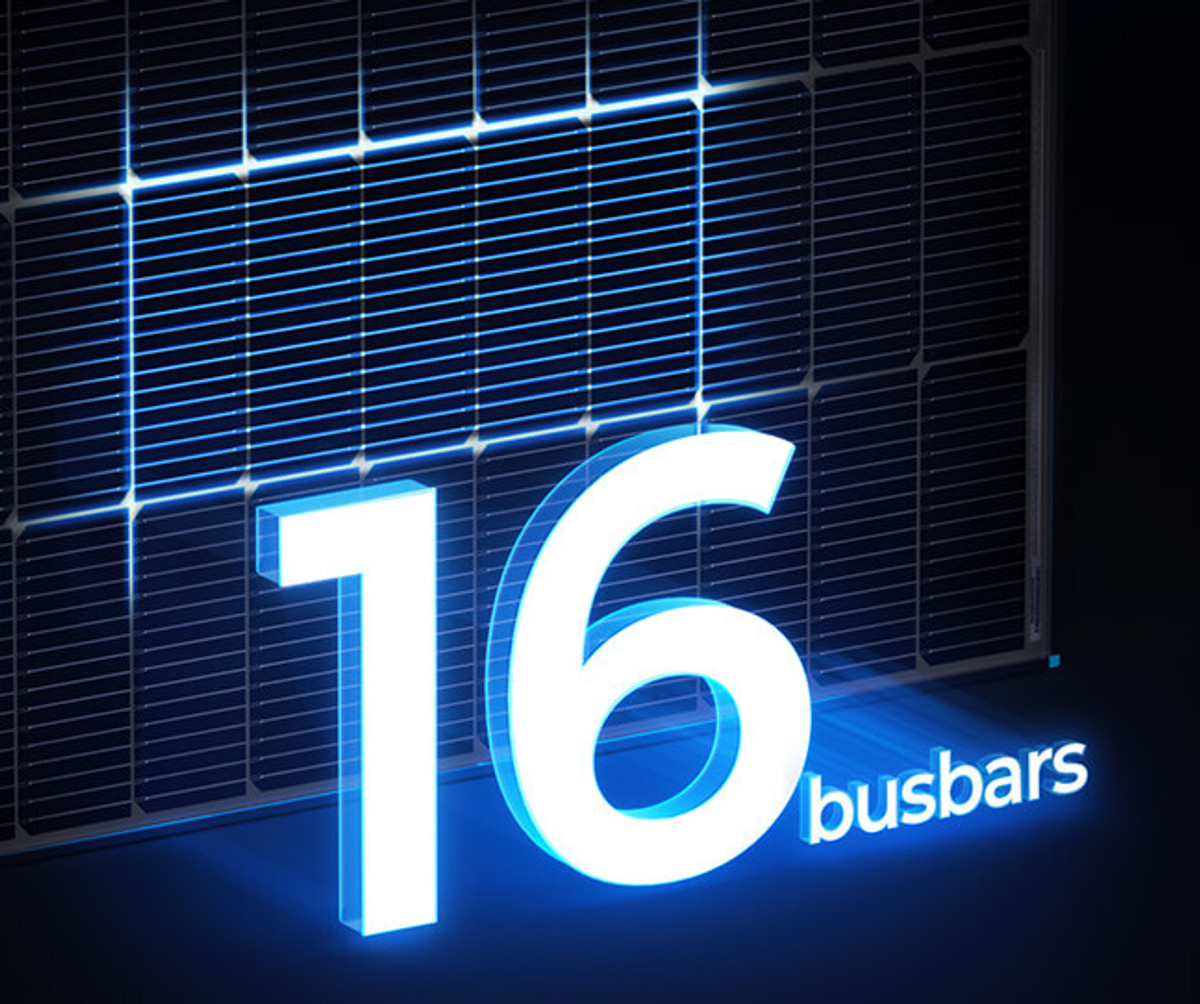

Advanced 16BB Cell Technology

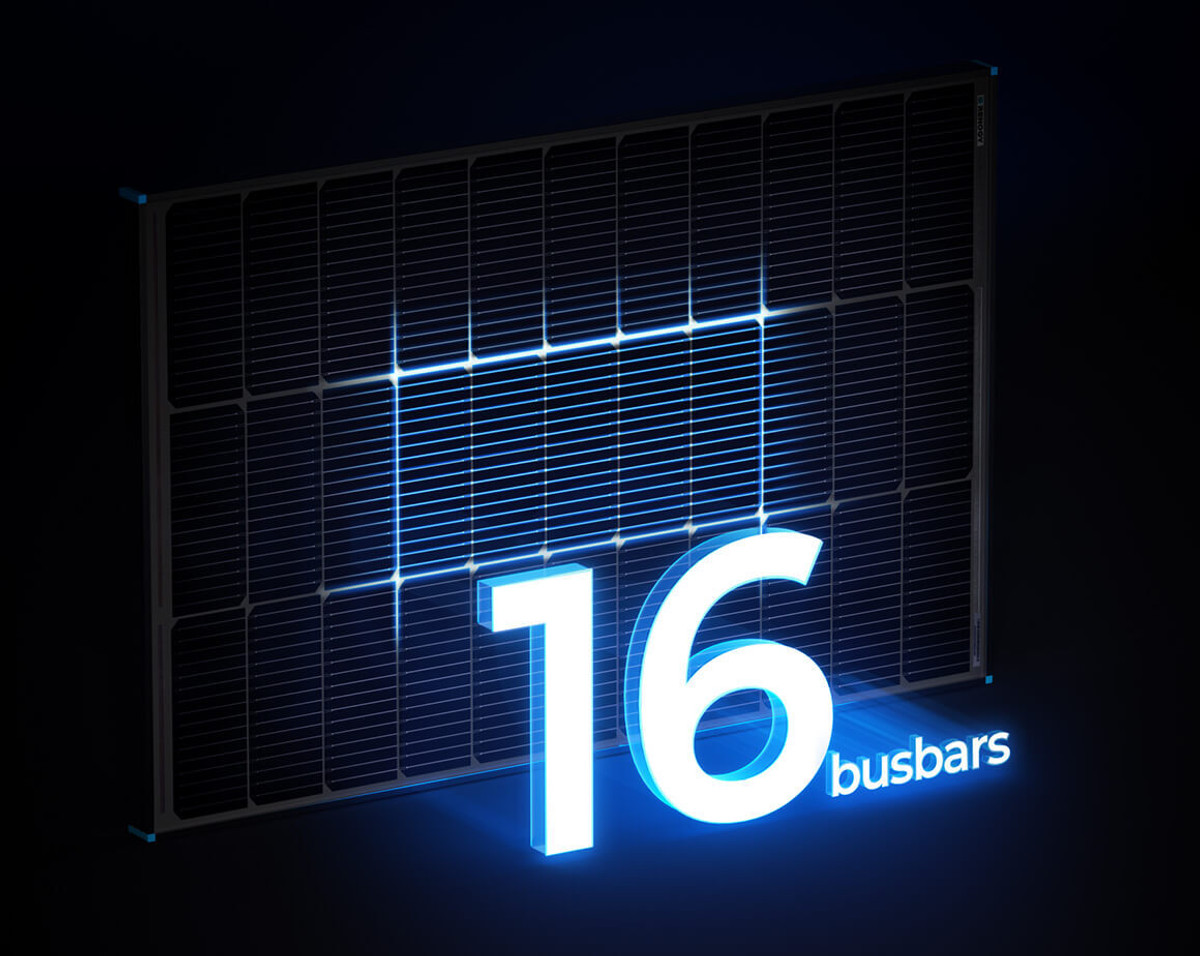

Equipped with 16-busbar (16BB) cell technology, these panels offer higher energy conversion rates while improving durability. The advanced design minimizes the risk of microcracks, ensuring a longer lifespan and consistent power output.

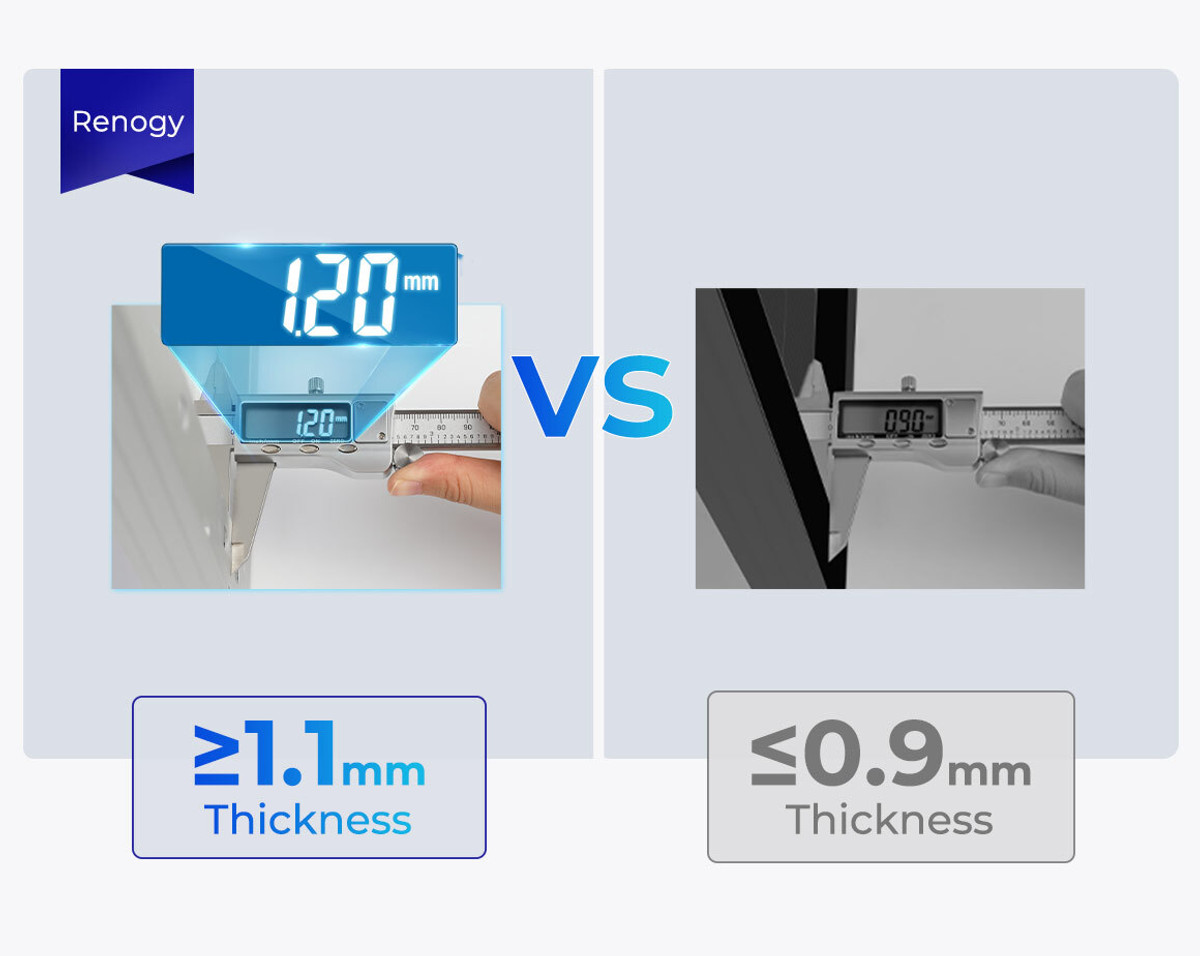

Reinforced Aluminum Frame for Maximum Durability

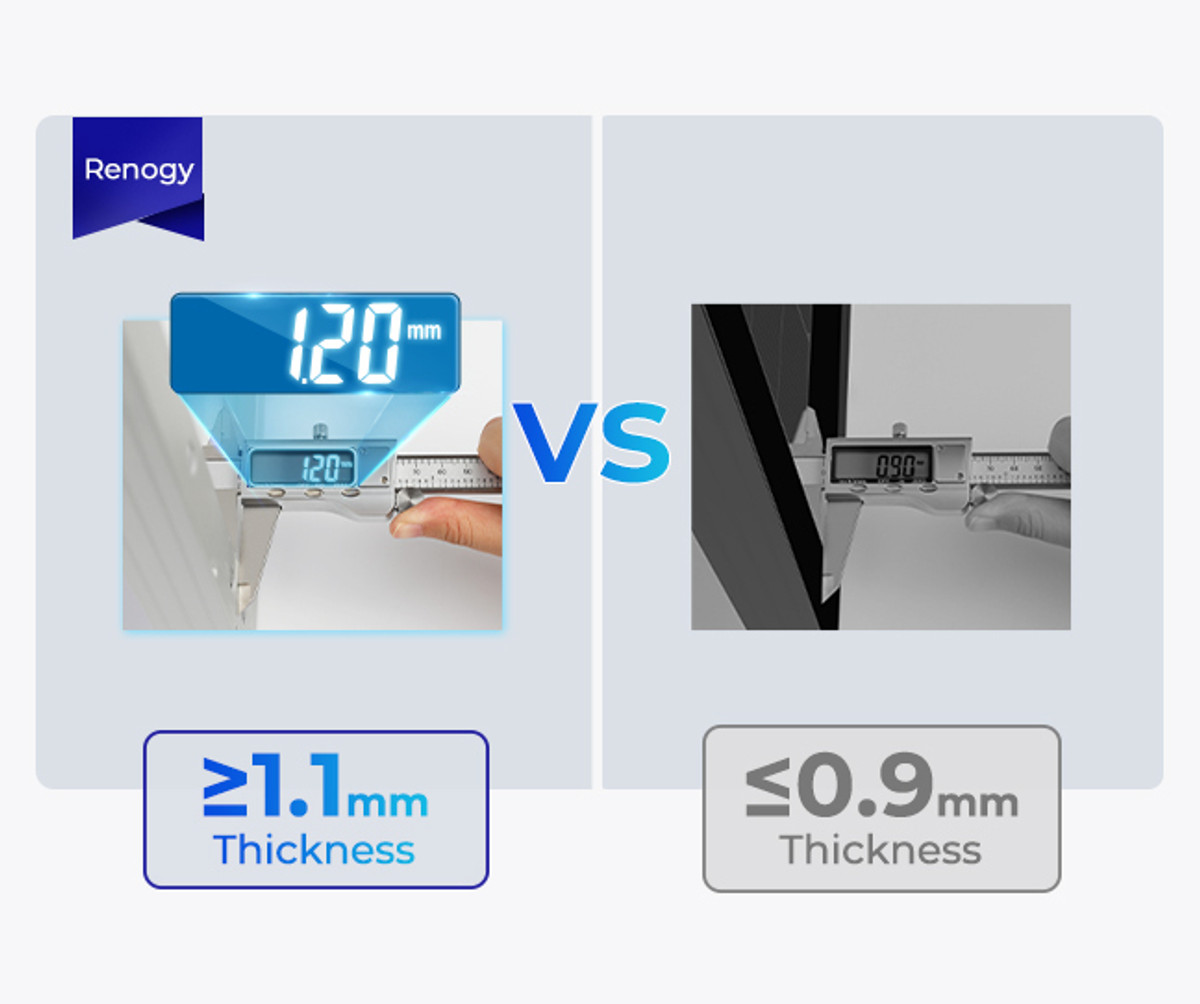

The robust aluminum alloy frame, with a thickness of over 1.1mm, provides superior strength and protection compared to competitor panels. This sturdier frame enhances the panel's ability to withstand harsh weather conditions, including high wind and snow loads.
Broad Compatibility with Charge Controllers

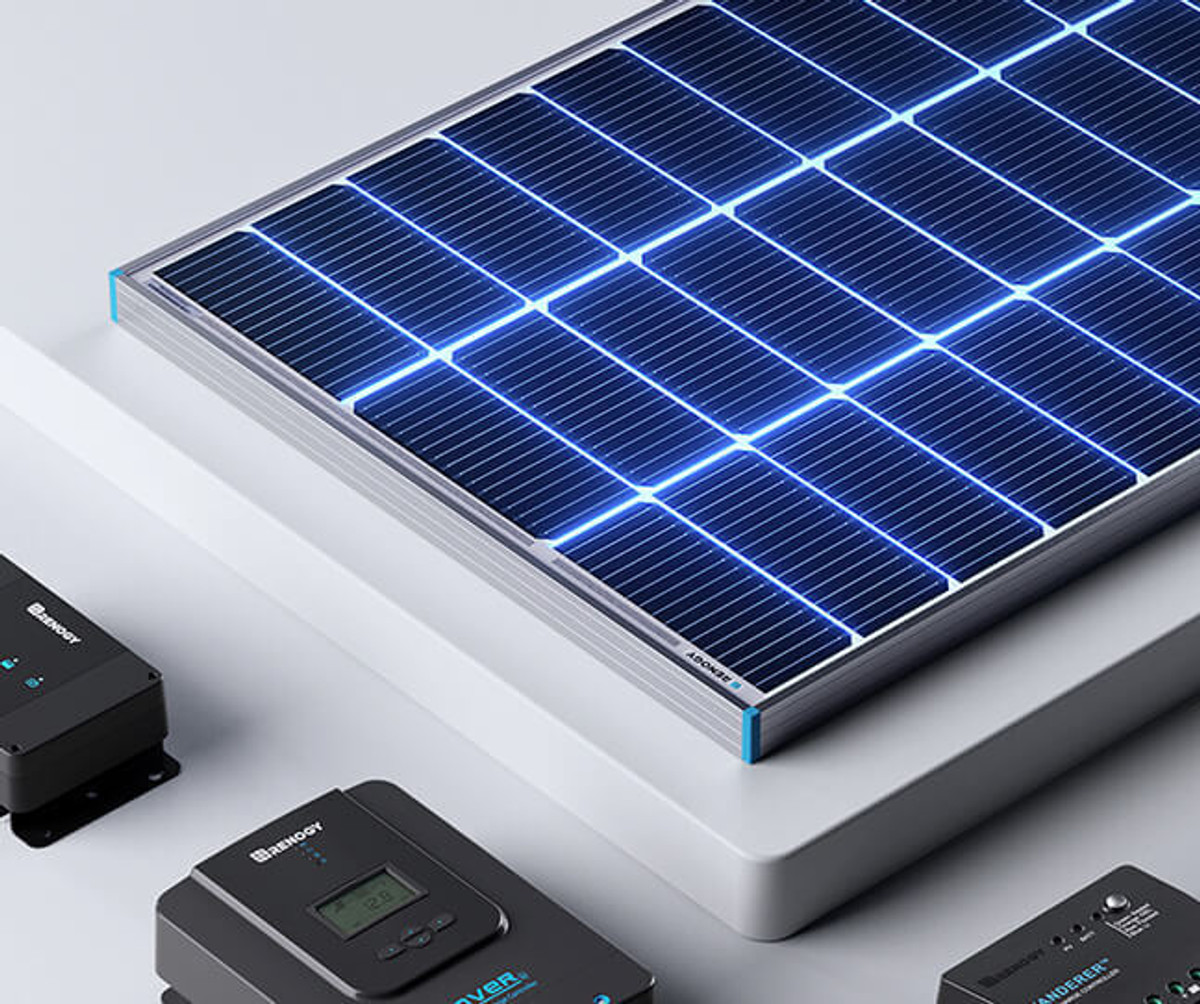

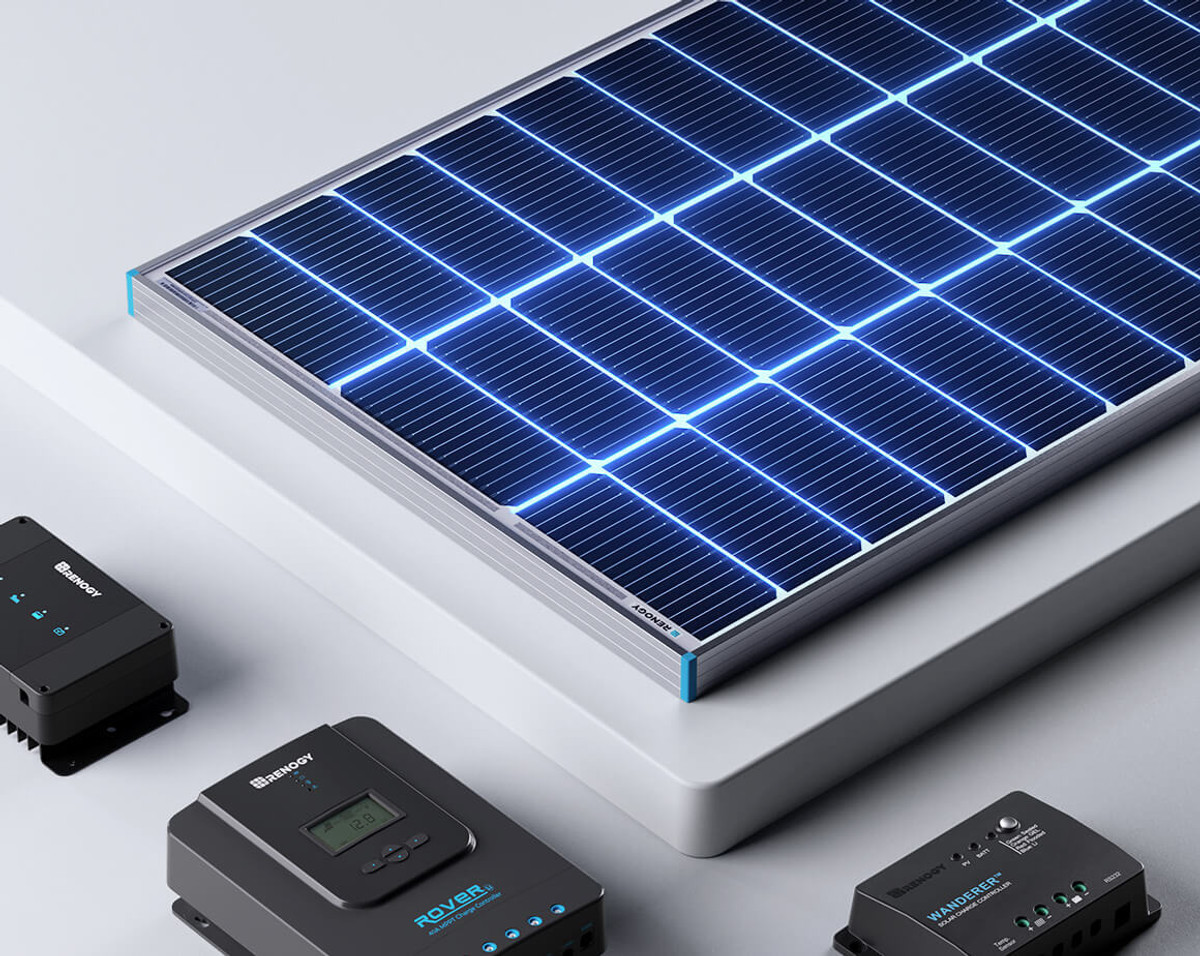

Designed with an open-circuit voltage of less than 25V, this panel is compatible with 99% of MPPT and PWM charge controllers, making it a versatile option for a wide range of solar setups.

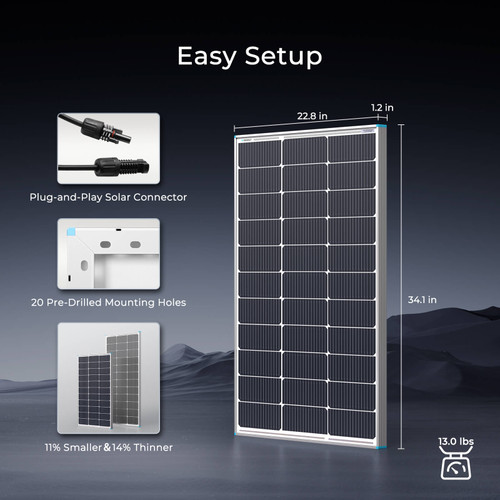

Compact Design for Easy Installation and Expansion

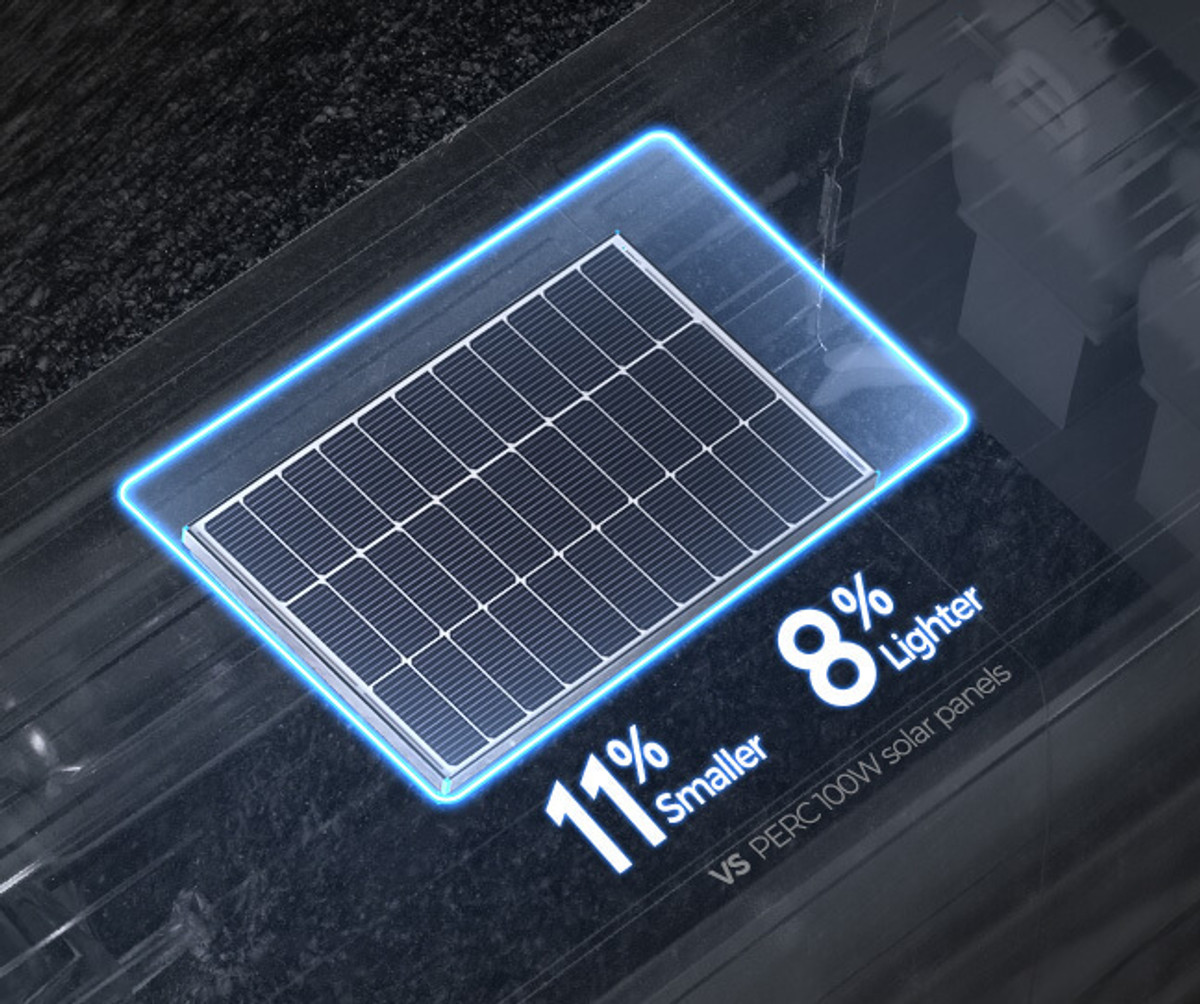

This 100W n-type solar panel is 8% lighter and 11% smaller than its p-type PERC counterpart. Its compact size simplifies installation and leaves additional space for panel expansion, making it perfect for both small and large-scale solar systems.
Find the Right Solar Panel for You
Scroll down to explore detailed comparisons and find the perfect fit.
Package Includes
100W N-type Solar Panel
x 1
User Manual
x 1
Warranty Card
x 1
Module Performance
Max Power at STC
100W
Module Efficiency
20%
Open Circuit Voltage
22.79V
Short Circuit Current
5.31A
Optimum Operating Voltage
19.97V
Optimum Operating Current
5.01A
Maximum System Voltage
600VDC
Maximum Series Fuse Rating
15A
Operating Temperature
-40°F~194°F / -40℃~90℃
Dimensions
865x578x30mm/34.1x22.8x1.2in
Weight
5.9kg/13.0lbs
Warranty
Material and workmanship warranty
10 Years
Performance Warranty
5 year 95% output warranty 10 year 90% output warranty 25 year 80% output warranty
Certifications
Manufactured in a Certified ISO 9001 Facility
YES
Frequently Asked Questions
What do I need to complete my off-grid solar power system ?
A solar panel has to be connected a charge controller to regulate current, and a battery to store the electrical power. You will need adapter kit cables to wire the solar panel(s) and charge controller, and tray cables connecting the charge controller to a deep-cycle battery.
What does off-grid and on-grid mean ?
On-grid simply means solar power equipment (array or solar panel) is connected to the electrical grid, while off-grid refers to systems that are not connected to the grid and therefore store the generated power for later use. Off-grid systems are not affected by grid blackouts.
Why is my solar panel under producing ?
Solar panel performance may be hindered for a number of reasons. Most commonly environmental conditions such as indirect sunlight, temperature rise, cloudy sky, and dirt and stain build up on the top glass will cause a reduced power output.
How should I connect solar panels in my electrical circuit (series vs parallel)
Solar panels can be connected in series or in parallel to meet your electrical circuit size and power demand. Connecting solar panels in series will have the effect of adding up their operating voltage output, while system current output will be the same as that for one panel. While, connecting solar panels in parallel will have a different effect; individual panels operating current output will add up to be the system output current, while system output voltage will be the same as the output voltage of one solar panel. To meet the optimum power output and system rating for your power system, you can use both parallel and series connections.
How many solar panels do I need ?
The best way to gauge how many solar panels you need, is to understand and define the power load needed from this system. Power is measured in Watts, and capacity is commonly measured in Watt-hours (multiplying power output in watts by the required number of hours of operation multiplied by a safety factor of 1.5-2). Therefore, it is wise to size your battery bank first based on the minimum required capacity, and accordingly decide how many panels or how much power input is needed.
What is the meaning of 12V in the product title，Why is this value different from the voltage of the solar panel？
When you open the product page, you will see a title like "xxx Watt 12 Volt Monocrystalline Solar Panel". The "12V" here does not refer to the voltage of this solar panel (VOC or VMP), but to the fact that one xxxW solar panel is suitable for 12V system (i.e. a 12V battery).Therefore, these are two completely different values with different meanings.
