Description

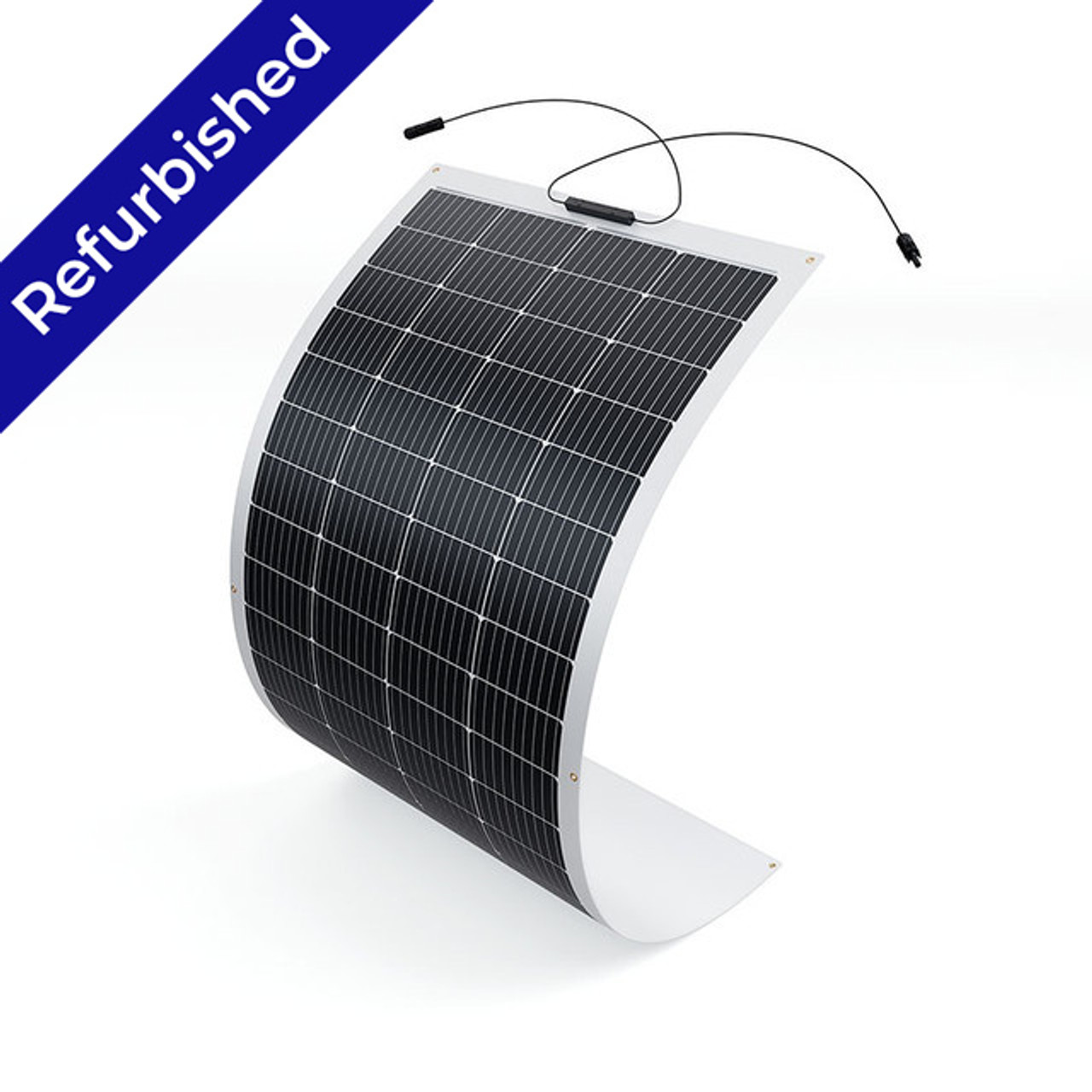

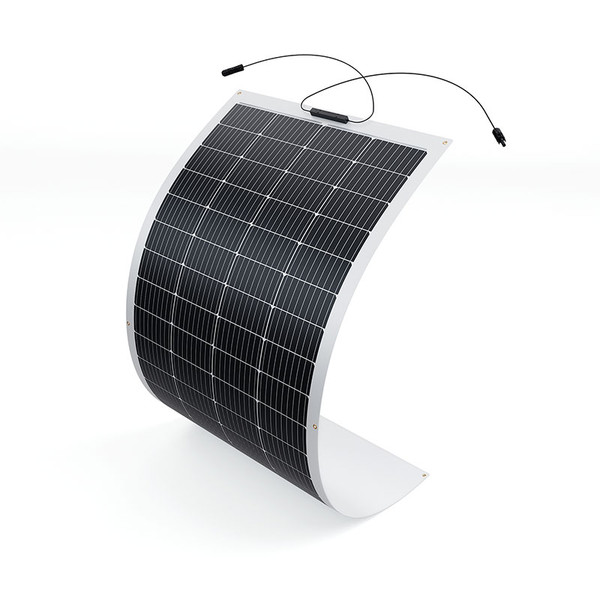

The Renogy 200W Lightweight Monocrystalline Solar Panel enhances module efficiency while minimizing its weight. It is the perfect option for any off-grid solar system, especially for transportation applications such as RVs and boats. This solar panel frame features a lightweight substrate and laminate, perfect for outdoor applications.
This solar panel combines high efficiency (PERC) monocrystalline solar cells with half-cut cell technology to improve electrical performance and power generation efficiency. This panel comes with pre-drilled mounting holes, solar connectors, and a junction box that allows easy and fast installation.
Warranty: 6-month. For non-quality issues, we do not accept returns and exchanges.
If you have any questions regarding this product, please submit a case.
Key Features
High Power Output- The Renogy 200W Flexible Monocrystalline Solar Panel can provide an average of 1000 Watt-hours of electricity per day (caculates with 5 hours sunlight).
- The solar panel suits most curved surfaces as it is bendable within 240 degrees. It weighs only 1/2 of the rigid panel and presents an all-black glare-free appearance.

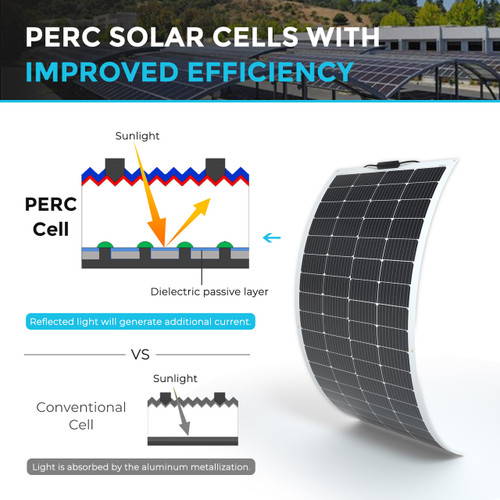

- It is equipped with half-cut PERC cell technology that enhances solar light capture and electrical performance, therefore improving the output efficiency.
- This solar panel accomplishes with IP67 rated waterproof junction box and solar connectors. Withstand up to 5400 Pa of heavy snow load and up to 2400 Pa of high wind.
- The panel comes with pre-drilled mounting holes and 12 AWG 27.6 inch long solar connector cables for quick and easy installation.
Package Includes
200 Watt 12 Volt Flexible Monocrystalline Solar Panel 1 x
|
Specifications | |
---|---|
Maximum Power at STC: 200W | Module Efficiency:16.7% |
Maximum Operating Voltage (Vmp):20.1V | Open-Circuit Voltage (Voc): 23.9V |
Maximum Operating Current (Imp):10.02A | Short-Circuit Current (Isc): 10.74A |
Operating Temperature: -40°F to 176°F (-40ºC to +80ºC) | Maximum Series Fuse Rating: 15A |
Maximum System Voltage: 600V DC (UL) | Solar Connectors: IP67 |
Weight: 10.8lbs(4.9kg) | Dimensions: 63.2x29.4x0.1 in (1605x748x3mm) |
Certifications: CE, ISO9001 |
Warranty Information
Panels |
6-month material and workmanship warranty |
Accessories | 6-month material warranty |
