Description
If you're looking for a convenient and portable power solution, the Renogy 100W Monocrystalline Foldable Solar Suitcase is the ideal choice.

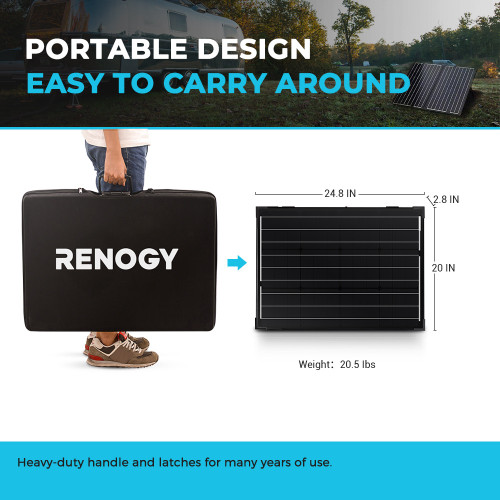

The Renogy 100 Watt 12 Volt Monocrystalline Portable Solar Suitcase is an entire solar power system incorporated into a single, compact suitcase. Weighing in at about 26.6 lb., this lightweight suitcase includes two 50 Watt Monocrystalline Solar Panels, one 20 Amp waterproof Voyager Charge Controller with an LCD Screen for power regulation, one tray cable with alligator clips for easy battery connection, and a protective casing for safe portability. The Renogy 100 Watt Solar Suitcase will make charging on the go as easy as 1-2-3!
NOTE: Item inspected & tested by seller to work like new. The item is used or returned by the customer but still works well. Significant signs of cosmetic damage can include scratches, dents, and worn corners. Packaging could be damaged or missing parts. Refurbished does not distinguish between version numbers, items received may be different from what is shown on the page. We do not accept returns or exchanges if there is no quality problem. Warranty 6 months.
If you have any questions regarding this product, please email submit a case!
Key Features
Reliable
- Excellent performance in low-light environments.
- Adjustable, corrosion resistant aluminum stand for maximum solar capture.
- Protective casing included.
Smart
- Compatible with GEL, Sealed Lead Acid, Lithium (LFP), and Flooded batteries.
- Charge controller with LCD display for collecting and adjusting operating parameters.
Safe
- 20A built-in 5-stage solar charge controller provides overcharge protection.
- Negative-ground charge controller for compatibility with an RV, boat, trailer, etc.
Package Includes
|
100 Watt Mono Foldable Solar Suitcase
1 x
|
20A Voyager Charge Controller
1 x
|
|
Solar Connectors to Alligator Clips w/ Fuse
1 x
|
|
Renogy 100W Foldable Solar Suitcase
|
Renogy 20A VOY Charge Controller |
| Maximum Power at STC: 100W |
Nominal Voltage: 12 VDC |
| Optimum Operating Voltage (Vmp): 20.3V |
Rated Charge Current: 20A
|
|
Optimum Operating Current (Imp): 2x2.47A
|
Max. PV Input Voltage: 26 VDC
|
|
Maximum System Voltage: 600VCD(UL)
|
Enclosure: IP65
|
|
Short-Circuit Current (Isc): 2 x 2.73A
|
Storage Temperature: -40°F to 185 °F
|
|
Open-Circuit Voltage (Voc): 24.3V
|
Operating Temperature: -40°F to 140°F
|
|
Weight:9.3kg/ 20.5 Ibs
|
Terminals: Up to 10 AWG
|
|
Dimensions: 573x772x133 mm / 22.6x30.4x5.3 in
|
Weight: 0.88 lbs
|
Warranty Information
| Panels |
6-month material and workmanship warranty
|
| Accessories |
6-month material and workmanship warranty |
Certification
1.Which kind of extension cord I should purchase with this panel for more mobility from my RV?
The Renogy Solar Panel Extension Cable will be able to make more space between your solar panels and the charge controller. There is multiple size choice, please choose the same size of cable for extension. And please also realize that the longer the extension, the greater the line loss. A bigger gauge will be required for longer runs.
2. Can I add more solar panels with the suitcase to expand my system?
This solar suitcase is designed for expansion, additional panels are added to the system available based on your needs and space. We suggest you add the same solar suitcase for expansion. The 20A charge controller included in the kit can accept expanding one additional 100W suitcase.
3. What type of batteries can be used with the kit?
Battery type compatibility depends on the charge controller specified compatible battery type. This solar kit comes with a Renogy Voyager 20A PWM waterproof charge controller. It supports Gel, AGM, Flooded, and Lithium batteries. Still, please set the correct battery type once it is installed and if a Lithium battery is connected, please manually set the system voltage due to the corresponding battery voltage. It also comes with a Lithium activation feature.
4.Can this kit charge two or more 12V batteries connected in parallel?
Yes, it's possible if the batteries have the same type and capacity and are wired in parallel as a single 12V battery bank.
5. Can I use this suitcase to charging my 120v receptacles directly?
The suitcase is not able to charge 120V power receptacles directly. Plus a 12v battery and inverter would give the 120v output you would want. The panel would recharge the battery, the battery will store the power, and the inverter would be able to supply the 120v power that you need.
6. Are these monocrystallin or polycrystallin panels?
The suitcase with 2 pcs 50W Renogy high quality monocrystalline solar panels.
7. Can I use this suitcase in ranniy days? Can rain damage the solar kit?

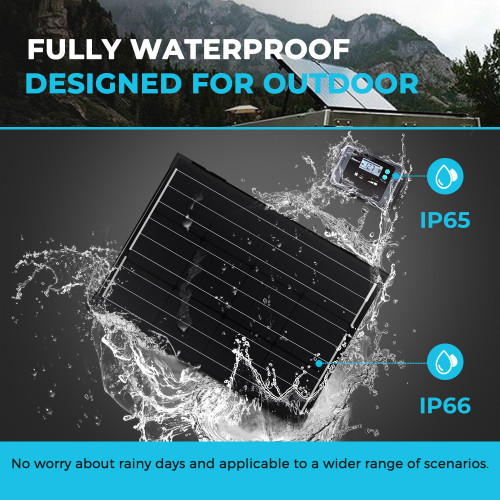

The solar panels are fully waterproof with IP66 class. It will be able to work on rainy days and applicable to a wider range of scenarios, such as marine, yacht, etc. But we recommend you to use it with a waterproof charge controller, since water into the regular controller may damage the internal circuitry. You can search and find a bundle system including this suitcase with a waterproof Renogy Voyager 20A charger controller.
8. Why is my solar panel underproducing?
Solar panel performance may be hindered for a number of reasons. Most commonly environmental conditions such as indirect sunlight, temperature rise, cloudy sky, and dirt and stain build up on the top glass will cause a reduced power output. This is a portable suitcase, you may try to move it in place or adjust the kickstands angels to get better sunshine. The ideal output of it will be around 500 Watt-hours per day (Calculated based on 100Wx5h expected sunlight availability).
Please click the links below to download the manuals:20A Voyager PWM Charge Controller
