400 Watt 12 Volt Monocrystalline Solar Starter Kit w/Wanderer 30A Charge Controller

Choose your option
Cancel
Confirm
×
Quantity: 1
CAD $499.99
CAD $749.99
x1

400 Watt 12 Volt Monocrystalline Solar Starter Kit w/Wanderer 30A Charge Controller

SKU: RNG-KIT-STARTER400D-WND30-CA
Write a Review
CAD $499.99
CAD $749.99
+   Renogy Rays after purchase.
  Learn more
View More
400 Watt 12 Volt Monocrystalline Solar Starter Kit w/Wanderer 30A Charge Controller
400 Watt 12 Volt Monocrystalline Solar Starter Kit w/Wanderer 30A Charge Controller
CAD $499.99
CAD $749.99
CAD $499.99
CAD $749.99
Add to cart
Adding to cart… The item has been added
Shop alone
Start group buy
Option
400 Watt 12 Volt Monocrystalline Solar Starter Kit w/Wanderer 30A Charge Controller

Return & refund policy
Make appointment with specialist
Phone Call
Write a Review
DESCRIPTION
【Efficient Performance】 The Starter Kit will produce an average of 2kWh of electricity per day (Based on 5 hours of direct sunlight condition). The Cell Efficiency can reach 22%. The bypass diode can ensure the panel has an excellent performance in a low-light environment and the TPT back sheet dissipates excess heat to ensure smooth output performance.
【Solid Quality】 Advanced encapsulation material with multi-layered sheet laminations protects cells from physical damage or distortion, improving cell performance and providing a long service life.
【Smart Function】 The Wanderer PWM Charge Controller is compatible with four different types of batteries: sealed, Gel, Flooded, and Lithium batteries. It also features advanced 4-stage charging (bulk, boost, float, and equalization) to ensure your battery is efficiently and safely charged to 100%.
【Full System Protection】 The Wanderer PWM Charge Controller has built-in protection to safeguard your systems, such as reverse polarity protection, battery overcharging protection, overload protection, and short circuit protection.
【Ready to Install】 This Renogy Solar Kit includes the equipment necessary for building a new system. The necessary cables, Z-brackets, Solar Y Branch Connectors and pre-drilled holes on the back frame of the panel allow fast and secure mounting.

The Renogy 400W Solar Starter Kit is easy for you to install, and it is the most economical choice for solar beginners. This Renogy Solar Kit includes the equipment necessary for building a new system: a solar panel, a charge controller, needed electrical wiring, Solar Y Branch Connectors and Z-brackets, making it an ideal choice for both off-grid and mobile solar power applications.

This Starter Kit will produce an average of 2kWh of electricity per day (Based on 5 hours of direct sunlight conditions). The 100W solar panel doesn't take up much roof space, but its energy can offset small and medium-size loads such as lighting, television, and coffee maker.

The Starter Kit can build a reliable and environmentally friendly power supply, perfect for RVs, campers, boats, sheds, and cabins. It can also be installed as a power supply for outdoor appliances and emergencies, and as a stand-alone power system.

Efficient Performance

The bypass diode can ensure the panel has an excellent performance in a low-light environment and the TPT back sheet dissipates excess heat to ensure smooth output performance. The Cell Efficiency can reach 22%.

Smart 4-stage Charging

The Wanderer PWM charge controller features advanced 4-stage charging (bulk, boost, float, and equalization) to ensure your battery is efficiently and safely charged to 100%.

Powerful Compatibility

The Wanderer PWM Charge Controller is compatible with four different types of batteries: Sealed, Gel, Flooded, and Lithium batteries. Connecting the BT-1 Bluetooth module to the RS232 communication port, you can monitor the system status in real-time through the DC Home app.

Please note the BT1 Bluetooth Module is not included.

Solid Quality

The corrosion-resistant aluminum frame with strong corner braces is designed for long-term outdoor use, giving the panels a long service life.

No Fear of Weather Challenge

The IP65 Junction Box protects against environmental particles and low-pressure water jets. These IP67 waterproof solar connectors ensure that the water and dust will not enter the connector during extended outdoor use. Effectively preventing water from seeping in.

Ready to Install

This Renogy Solar Kit includes the equipment necessary for building a new system. The necessary cables, Z-brackets, Solar Y Branch Connectors and pre-drilled holes on the back frame of the panel allow fast and secure mounting.

Wiring Diagram






100W Monocrystalline Solar Panel
Maximum Power: 100W Operating Temperature: '-40°F to 185°F(-40℃ to +85℃)
Open-Circuit Voltage (Voc): 22.3V Short-Circuit Current (Isc): 5.86A
Optimum Operating Voltage (Vmp): 18.6V Optimum Operating Current (Imp): 5.38A
Dimensions: 42.4 x 20.0 x1.4 in /1076 x 509 x 35 mm Weight: 14.3 lbs / 6.5 kg
Solar Y Branch Connectors Mounting Z Brackets (Set)
Withstanding Voltage: 1000V DC(TUV), 600V(UL) Eight Long Cap Bolts and Four Short Bolts
Protection Degree: IP67, mated Four Spring Washers and Four Washers
Wiring Size Range: 10, 12, 14 AWG Four Z Shape Solar Panel Brackets
Temperature: -40°F to +195°F Four Nuts
Solar Panel to Charge Controller Adaptor Kit(Set) Battery to Charge Controller Tray Cables(A pair)
Length:  20ft Length: 8ft
AWG: 10 AWG: 10
Rating Voltage: 600/1000V Rating Voltage: 600/1000V
Temperature: -40°F to +185°F Temperature: -40°F to +185°F
Wanderer Li 30A PWM Charge Controller 2000W 12V Pure Sine Wave Inverter
Nominal Voltage: 12 VDC Continuous Output Power: 2000W
Rated Charge Current: 30A Nominal Input Battery Voltage: 12V
Max. PV Input Voltage: 25 VDC Output Voltage: 115V
Max. PV Input Power: 400W (12V) Battery Terminal Size: M8

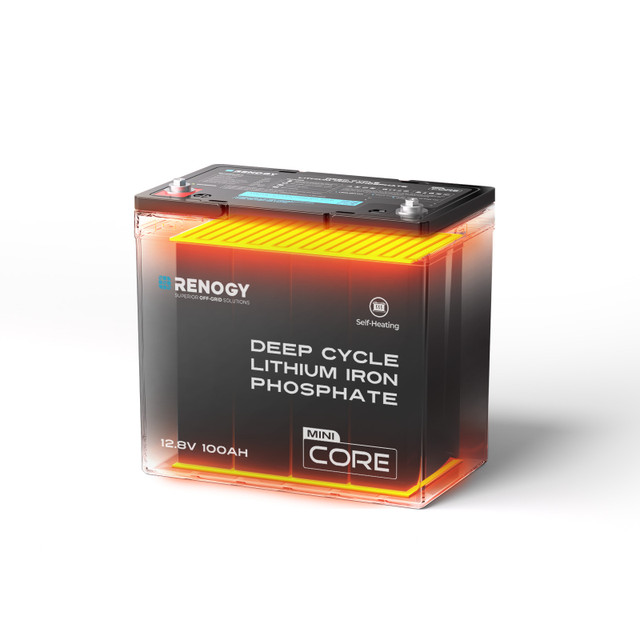

12V 100Ah Core Lithium Iron Phosphate Battery
Rated Capacity (0.5C, 25°C): 100 Ah
Dimension: 10.6 x 6.9 x 8.6 in / 260 x 169 x 211 mm
Nominal Voltage: 12.8 V
Weight: 23.15 lbs / 10.5 kg
Energy: 1280Wh
Terminal Bolt Size: M8 x 1.25 x 15 mm
Cycle Life(0.5C/1C, 25℃): 5000 Cycles (80% DOD 80% EOL) Protection Rating: IP65


Warranty Information

Panels

25-year power output warranty: 5 year 95% efficiency rate, 10 year 90% efficiency rate, 25 year 80% efficiency rate

10-year material and workmanship warranty

Accessories 1-year material and workmanship warranty

1. What do I need to complete my off-grid solar power system ?


A solar panel has to be connected to a charge controller to regulate current, and a battery to store the electrical power. You will need adapter kit cables to wire the solar panel(s) and charge controller, and tray cables connecting the charge controller to a deep-cycle battery.

2. What does off-grid and on-grid mean ?

On-grid simply means solar power equipment (array or solar panel) is connected to the electrical grid, while off-grid refers to systems that are not connected to the grid and therefore store the generated power for later use. Off-grid systems are not affected by grid blackouts.
3. Why is my solar panel under producing ?

Solar panel performance may be hindered for a number of reasons. Most commonly environmental conditions such as indirect sunlight, temperature rise, cloudy sky, and dirt and stain build up on the top glass will cause a reduced power output.
4. How should I connect solar panels in my electrical circuit (series vs parallel)?

Solar panels can be connected in series or in parallel to meet your electrical circuit size and power demand. Connecting solar panels in series will have the effect of adding up their operating voltage output, while system current output will be the same as that for one panel. While, connecting solar panels in parallel will have a different effect; individual panels operating current output will add up to be the system output current, while system output voltage will be the same as the output voltage of one solar panel. To meet the optimum power output and system rating for your power system, you can use both parallel and series connections.
5. How many solar panels do I need ?

The best way to gauge how many solar panels you need, is to understand and define the power load needed from this system. Power is measured in Watts, and capacity is commonly measured in Watt-hours (multiplying power output in watts by the required number of hours of operation multiplied by a safety factor of 1.5-2). Therefore, it is wise to size your battery bank first based on the minimum required capacity, and accordingly decide how many panels or how much power input is needed.




Please click the links below to download the materials:
30A PWM Wanderer Li Charge Controller
MOUNTING Z BRACKETS (SET)



5 Reviews Hide Reviews Show Reviews

  • 4
    Good Kit but improvement required

    Posted by Norm on Mar 23rd 2023

    This 400 Watts (4 X 100 Watts Panels) is a good starter kit BUT in order to connect all 4 panels there is a pair of cable required which is not supplied that we need to purchase. Therefore we can't immediately install the kit on reception as we have to research for the additional pair of cable ? This additional pair of cable could be added to the kit for a minimal cost ($5 or so at their cost) and would make a better kit

  • 5
    400 Watt Kit

    Posted by Jacques Ouellet on Aug 17th 2022

    Finished the installation on a class A 30 Feet ... everything was included, Wires were long enough and of a decent caliber, Controller is very basic but does the job and it has a Serial interface plug on wich you can connect a Bleutooth adaptor .. idon't know what kind on information will be available on the app but i will try it since there is absolutely no display on the controller (4 status LED). Very satisfied for the price.

  • 5
    400 solar h kit

    Posted by Anthony Clancey on Sep 16th 2021

    Excellent

  • 5
    400 solar h kit

    Posted by Anthony Clancey on Sep 16th 2021

    Very good build quality very impressed.

  • 5
    400 watt solar kit

    Posted by Kevin on Jun 11th 2021

    This product works as advertised arrived on time I gave it five stars
