Robust Charging. Serious Value.

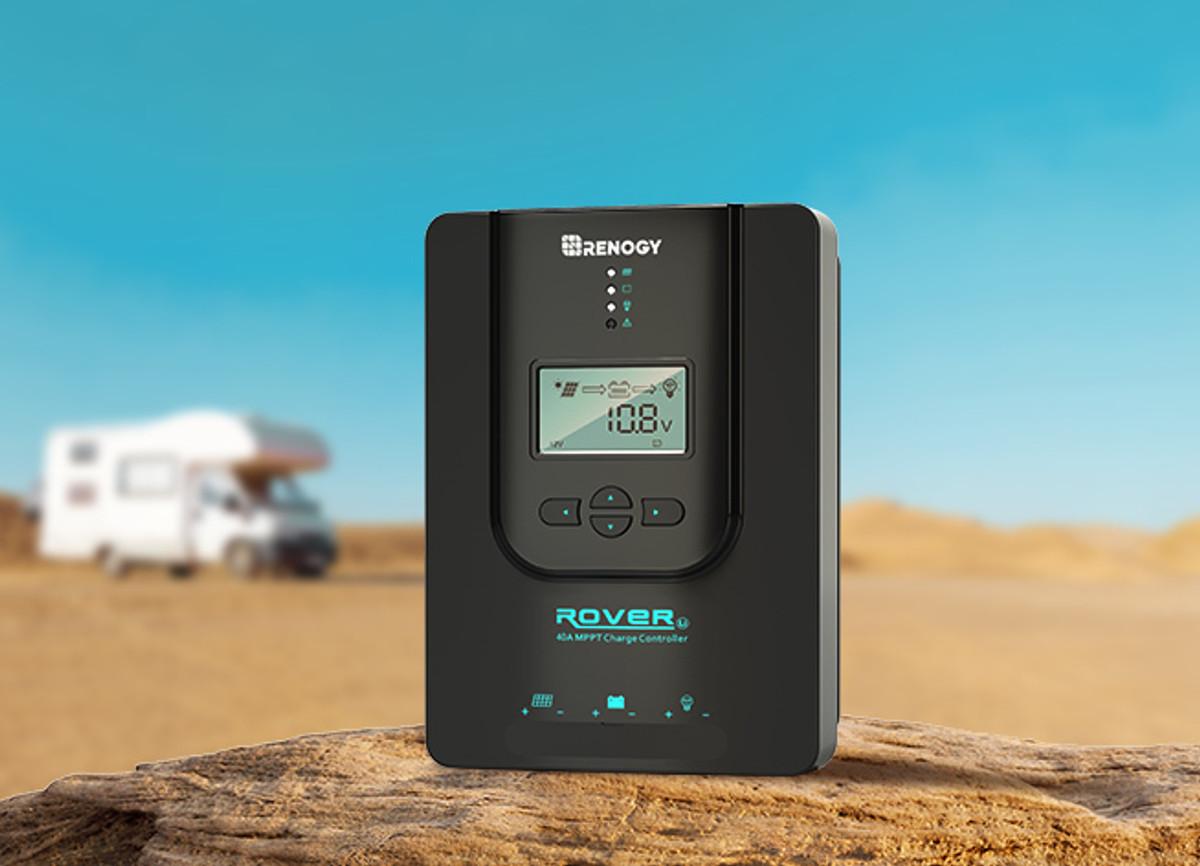

Renogy Rover Series MPPT Solar Charge Controller
Room for Expansion
20A MPPT Charge Controller
30A MPPT Charge Controller
40A MPPT Charge Controller

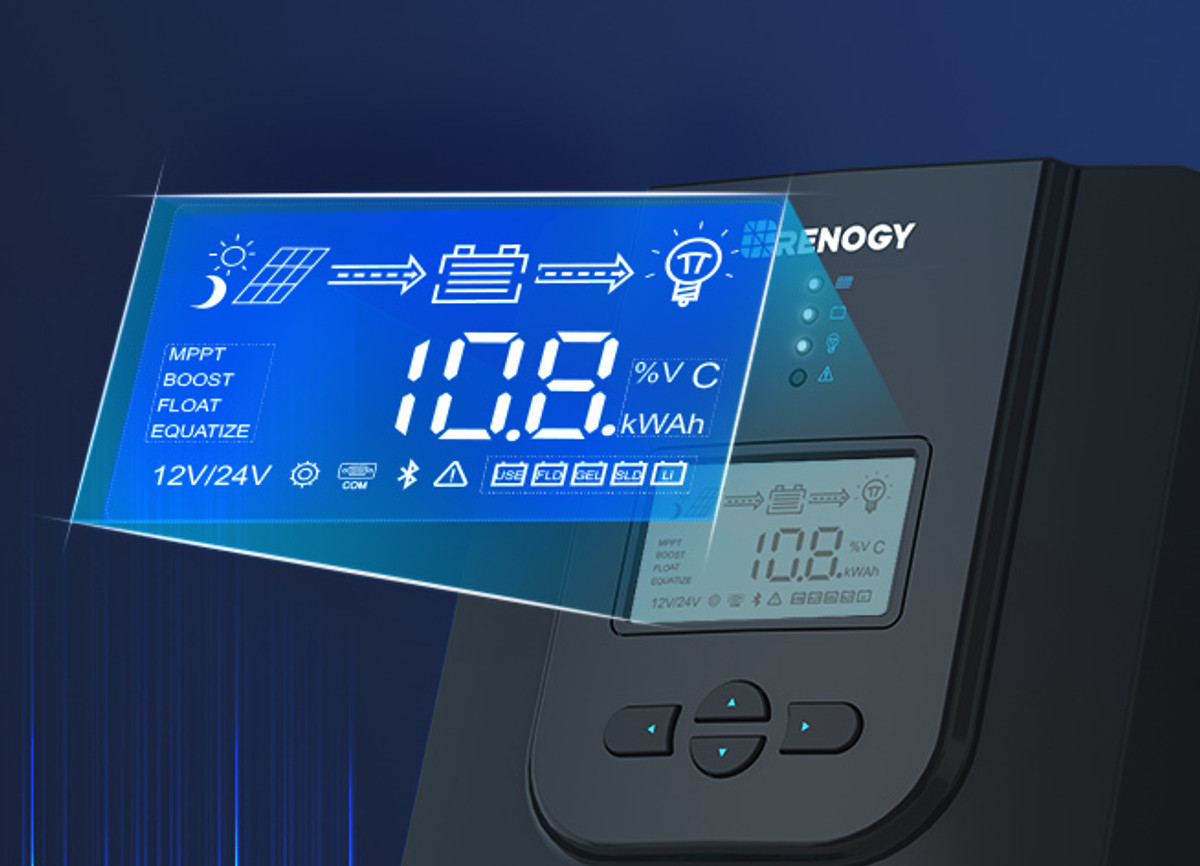

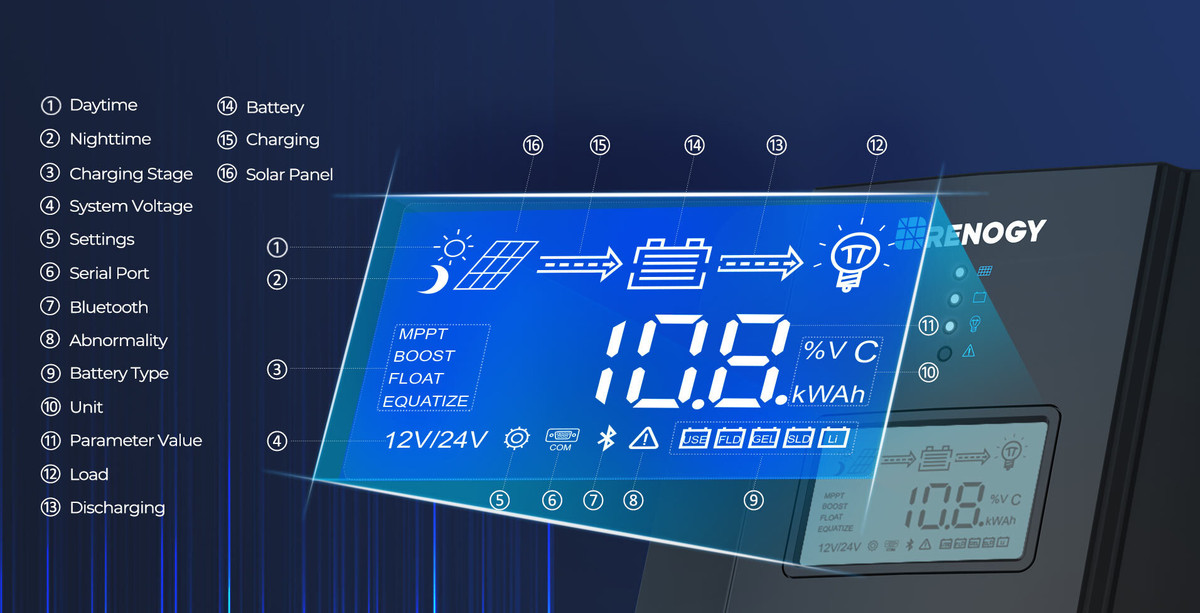

Visualized Energy Data

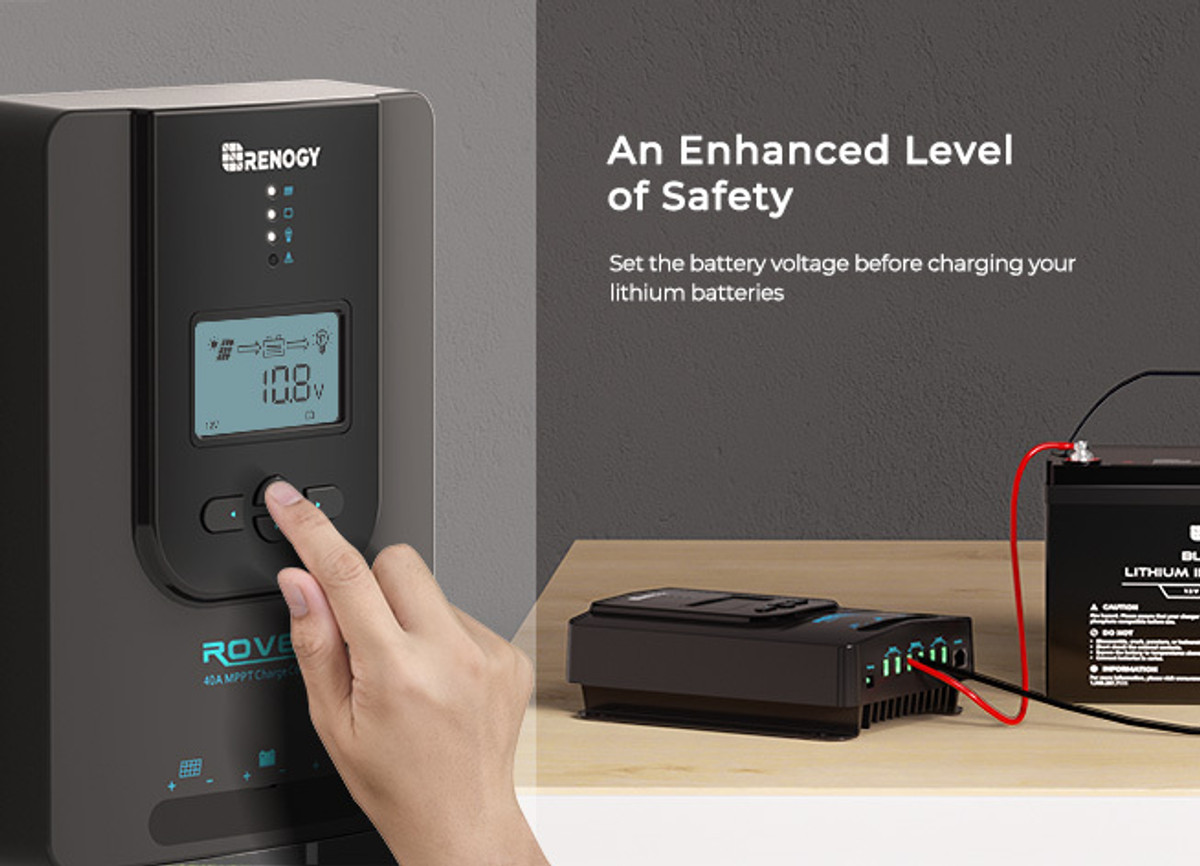

Certified Protections
The Renogy Rover Series Solar Charge Controller features 8 electronic protections to actively monitor voltage, current, and load changes for efficient and safe battery charging.

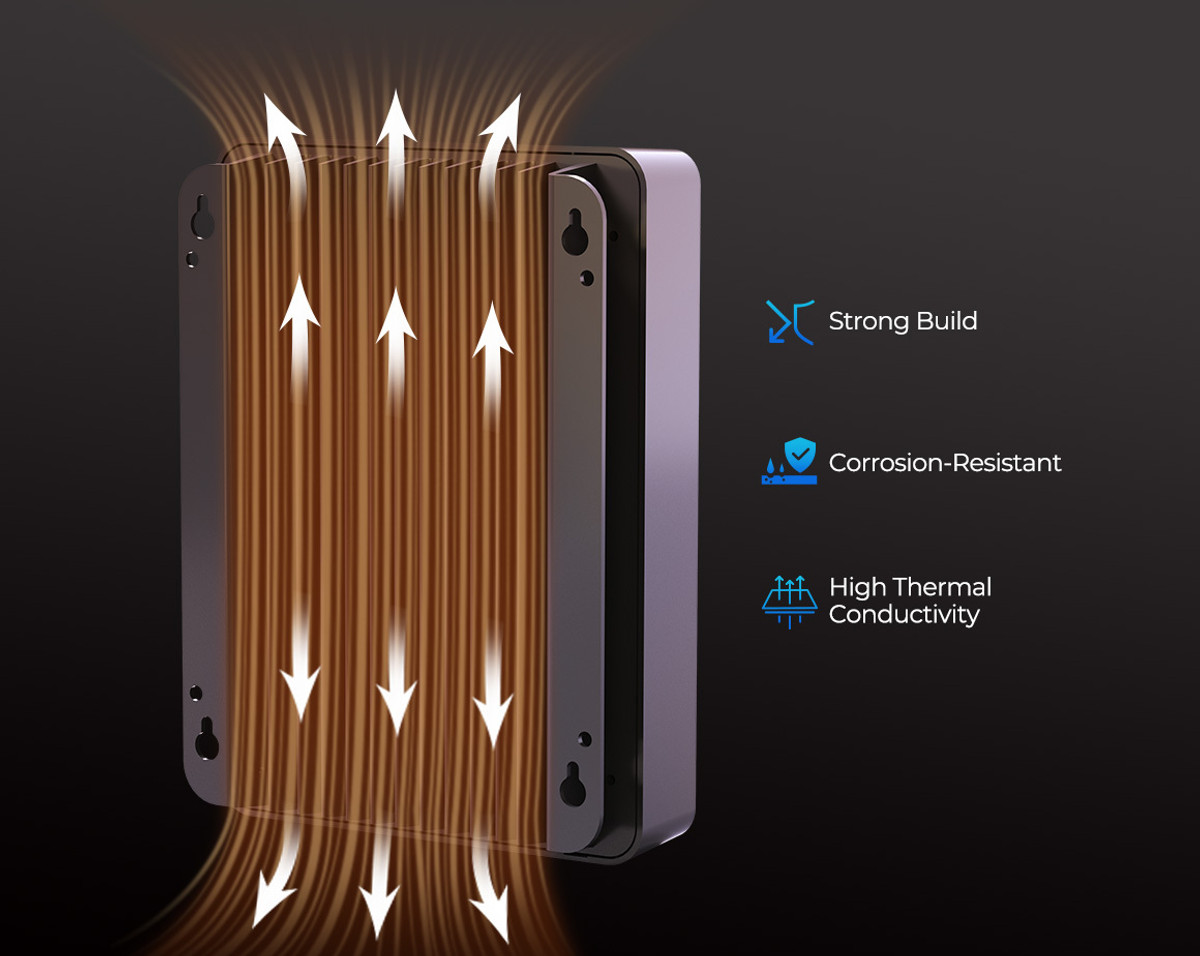

Stay Cool, Stay Empowered
Made of robust die-cast aluminum, the heat sink that comes with the Rover Series Solar Charge Controller allows the heat to flow away through tubes to ensure maximum charging efficiency and safety of critical components.
Works with Bluetooth
Versatile Load Control
Versatile Load Control
Rover Series Charge Controller features Auto-On/Off Mode, Timer Mode, Manual Mode, Test Mode, and Always-On Mode, maximizing your system flexibility.
Control Your Energy From Distance
Wiring Steps
Do not insert the wires into the space below the socket/hatch, which will damage terminals because of loose connections.
Step 1.
Loosen the screws above the terminals to make the socket/hatch descend.
Step 2.
Insert the wires into the socket/hatch.
Step 3.
Tighten the screws to elevate the socket/hatch to complete the wiring.

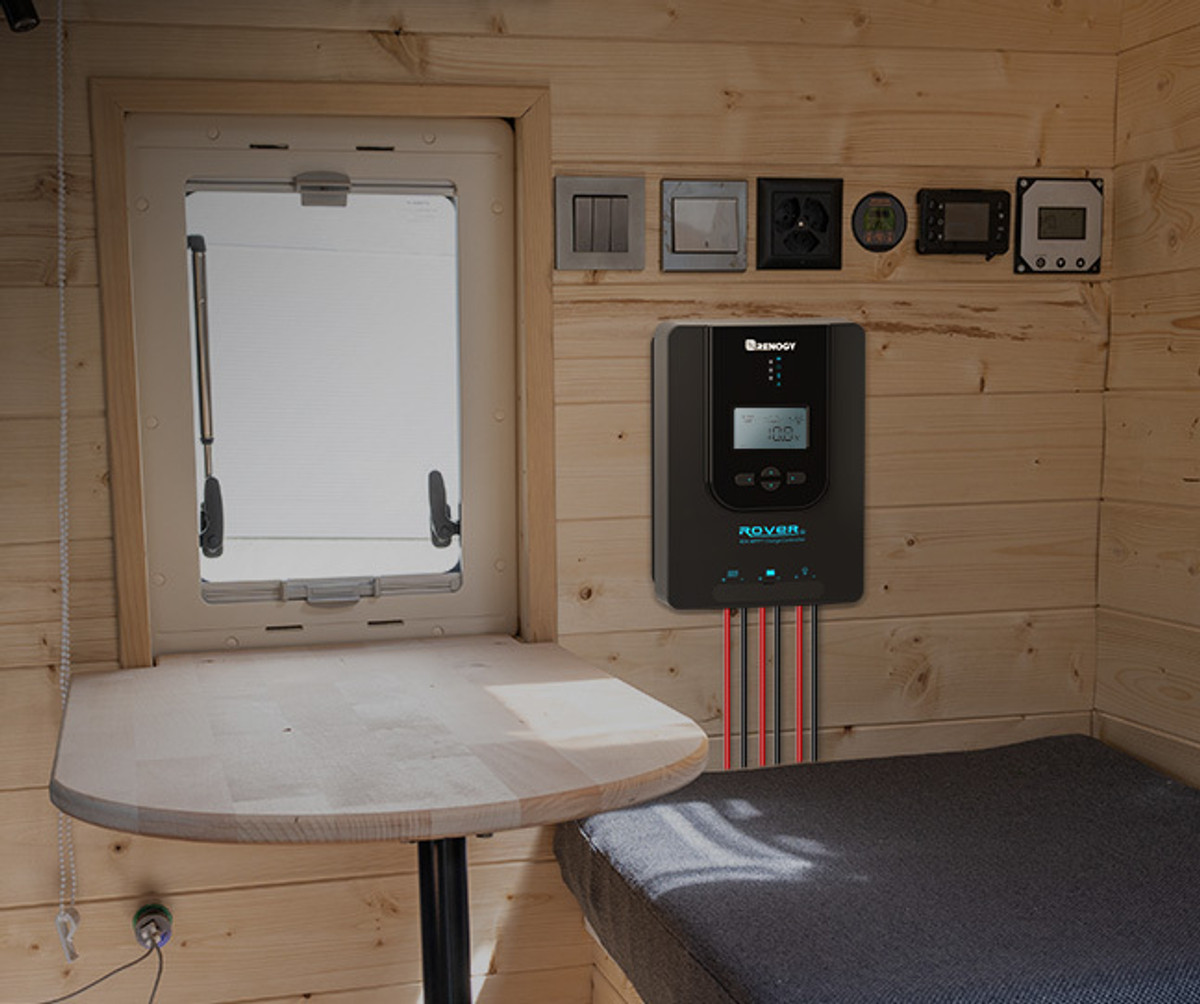

Power Your Wild Adventures
Designed to excel in a variety of scenarios including RVs, yachts, cabins, and camping. Embrace the freedom of renewable energy wherever your adventures take you.
RV
Camping
Yacht
Cabin
Package Includes
20A MPPT Charge Controller
Rover Li 20 Amp MPPT Charge Controller
x 1
Remote Temperature Sensor
x 1
Mounting Brackets
x 4
Option：with Bluetooth
x 1
30A MPPT Charge Controller
Rover Li 30 Amp MPPT Charge Controller
x 1
Remote Temperature Sensor
x 1
Mounting Brackets
x 4
Option：with Bluetooth
x 1
40A MPPT Charge Controller
Rover Li 40 Amp MPPT Charge Controller
x 1
Remote Temperature Sensor
x 1
Mounting Brackets
x 4
Option：with Bluetooth
x 1
Rover Li 20 Amp MPPT Solar Charge Controller
CHARGER DATA
Nominal System Voltage
12/24V (Auto-Detect for Non-Lithium types)
Rated Charge Current
20A
Max. PV Input Voltage
95 VDC
Max. PV Input Power
12V/260W, 24V/520W
Power Consumption
＜100mA/12V; ＜58mA/24V
Max Battery Voltage
32V
Max. Terminals Size
8 AWG 10mm2
Grounding
Common Negative
Communication
RS485 Modbus
Operating Temperature
'-35°C to 45°C; -31°F to 113°F
Storage Temperature
'-35°C to 75°C; -31°F to 167°F
Humidity
≤ 90%, No Condensation
Enclosure Rating
IP32
Dimensions
210 x 151 x 68 mm; 8.27 x 5.95 x 2.69 in
Weight
3.1 lbs / 1.4 kg
Electrical Protection
Overcharging, over-discharging, overload, and short circuit.Capable of charging over-discharged lithium batteries
CERTIFICATIONS
CE
FCC Class B Part 15 Compliant
FCC Class B Part 15 Compliant
Material and workmanship warranty
3 Year
Rover Li 30 Amp MPPT Solar Charge Controller
CHARGER DATA
Nominal System Voltage
12/24V (Auto-Detect for Non-Lithium types)
Rated Charge Current
30A
Max. PV Input Voltage
95 VDC
Max. PV Input Power
12V/400W, 24V/800W
Power Consumption
＜100mA/12V; ＜58mA/24V
Max Battery Voltage
32V
Max. Terminals Size
8 AWG 10mm2
Grounding
Common Negative
Communication
RS485 Modbus
Operating Temperature
'-35°C to 45°C; -31°F to 113°F
Storage Temperature
'-35°C to 75°C; -31°F to 167°F
Humidity
≤ 90%, No Condensation
Enclosure Rating
IP32
Dimensions
238 x 172 x 77 mm; 9.38 x 6.78 x 3.05 in
Weight
4.4 lbs / 2.0 kg
Electrical Protection
Overcharging, over-discharging, overload, and short circuit.Capable of charging over-discharged lithium batteries
CERTIFICATIONS
CE
FCC Class B Part 15 Compliant
FCC Class B Part 15 Compliant
Material and workmanship warranty
3 Year
Rover Li 40 Amp MPPT Solar Charge Controller
CHARGER DATA
Nominal System Voltage
12/24V (Auto-Detect for Non-Lithium types)
Rated Charge Current
40A
Max. PV Input Voltage
100VDC
Max. PV Input Power
12V/520W, 24V/1040W
Power Consumption
＜100mA/12V; ＜58mA/24V
Max Battery Voltage
32V
Max. Terminals Size
8AWG - 6AWG
Grounding
Common Negative
Communication
RS485 Modbus
Operating Temperature
-31℉ to 113℉/-35℃ to 45℃
Storage Temperature
-31℉ to 167℉/-35℃ to 75℃
Humidity
≤ 90%, No Condensation
Enclosure Rating
IP32
Dimensions
9.38 x 6.78 x 3.05 in / 238 x 172 x 77 mm
Weight
4.41 lb/2.03kg
Electrical Protection
Overcharging, over-discharging, overload, and short circuit.Capable of charging over-discharged lithium batteries
CERTIFICATIONS
CE
FCC Class B Part 15 Compliant
FCC Class B Part 15 Compliant
Material and workmanship warranty
3 Year
RENOGYRENOGY BT-2 BLUETOOTH MODULE (RCM-BT2)
Communication Protocol
RS485
Port Type
RJ45
Input Voltage
5V or 12V
Protection Grade
IP54
Standby Power Consumption
0.04W
Operating Power Consumption
0.05W
Serial Baud Rate
Fixed Baud Rate 9600bps
Communication Range
≤82ft (25m)
Cable Length
16.4 ft (5.00m )
Dimensions
2.65 X 1.38 X 0.55 in (67.3 X 35 X 14 mm)
Weight
4.58oz (130 g)
Operation Temperature
' -4°F to 185°F (-20℃~85℃)
CERTIFICATIONS
FCC Class B Part 15 Compliant
WARRANTY
1 Year
Frequently Asked Questions
In what order do I connect my system?
The off-grid solar system includes the solar panels, charge controller, batteries, inverter, Bluetooth module, and wirings.
First, the battery should be hooked up to the charge controller with tray cables. Second, then connect your solar panel to your charge controller with adaptor kits.
First, the battery should be hooked up to the charge controller with tray cables. Second, then connect your solar panel to your charge controller with adaptor kits.
What type of protection does the Rover MPPT Charge Controller have?
Battery Protection: Battery Over Discharge protection , Battery Over Voltage protection, Battery Reverse Polarity protection
Load Protection: Load Overload protection, Load Short Circuit protection, Controller Overheating protection
PV Protection: PV Over Current Protection , PV Short Circuit protection , PV Reverse Polarity protection, Battery overheating protection
Load Protection: Load Overload protection, Load Short Circuit protection, Controller Overheating protection
PV Protection: PV Over Current Protection , PV Short Circuit protection , PV Reverse Polarity protection, Battery overheating protection
What are the Positive ground and negative ground charge controllers?
In charge controllers, positive ground or negative ground refers to how the controller is wired internally. Positive ground means all the positives are hard-wired together, and the internal switching happens on the negatives. The negative ground is the opposite. It doesn't matter as long as your solar +/- runs to the charge controller and isn't grounded anywhere else.
What is a Solar Charge Controller and what is MPPT?
The Charge Controller takes the power made by the solar panels and transform the ‘solar panel power’ into a form of power that the batteries can use. MPPT stands for Maximum Power Point Tracking, and it relates to the solar cell itself. Each solar cell has a point at which the current (I) and voltage (V) output from the cell result in the maximum power output of the cell. MPPT ensures that you get the most power possible from your solar panels at any point in time. It is particularly effective during low light level conditions.
What are the advantages of Renogy MPPT technology?
Renogy Rover series solar charge controller uses the most advanced Maximum Power Point Tracking (MPPT) technology to track solar panels' maximum power voltage point as it varies depending on sunlight exposure and temperature. This technology ensures the maximum efficiency of your solar system and significantly outperforms standard PWM solar controllers. Another benefit of MPPT technology is the wide solar input voltage range. This controller can work with standard off-grid 12/24V solar panels and with high voltage or multiple panels with voltage up to 95V.
