Description

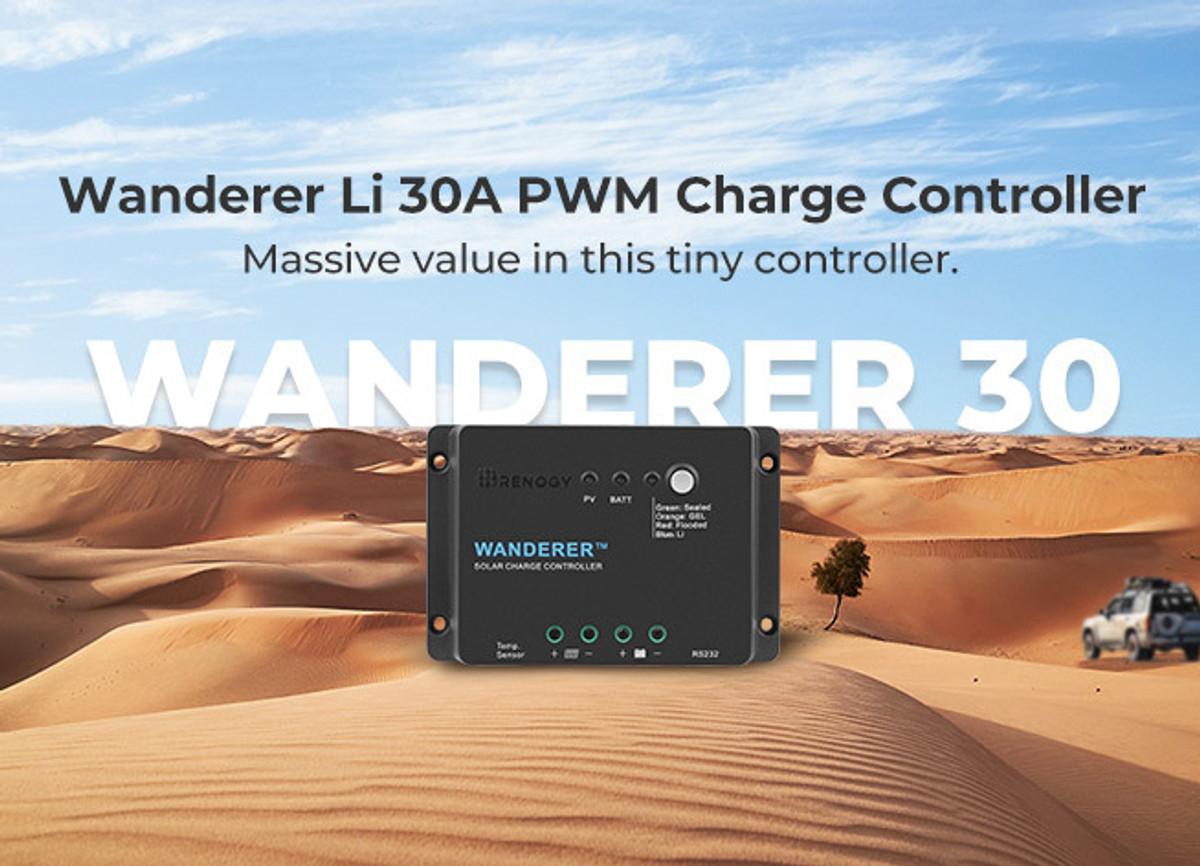

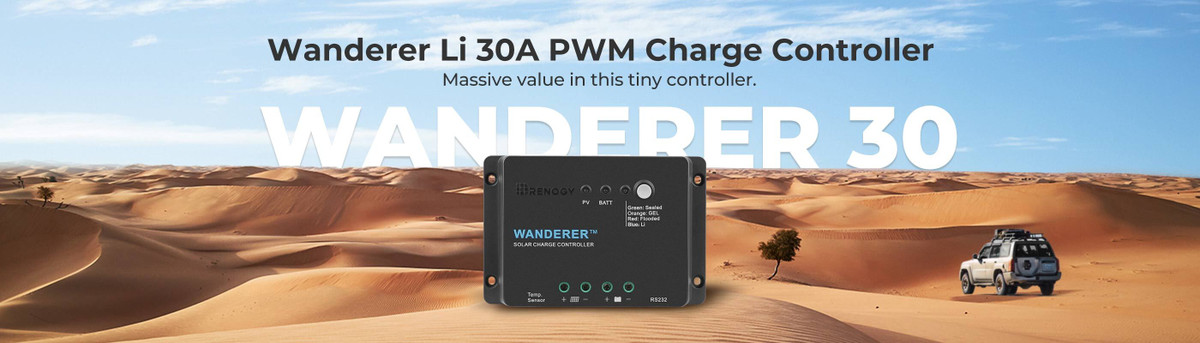

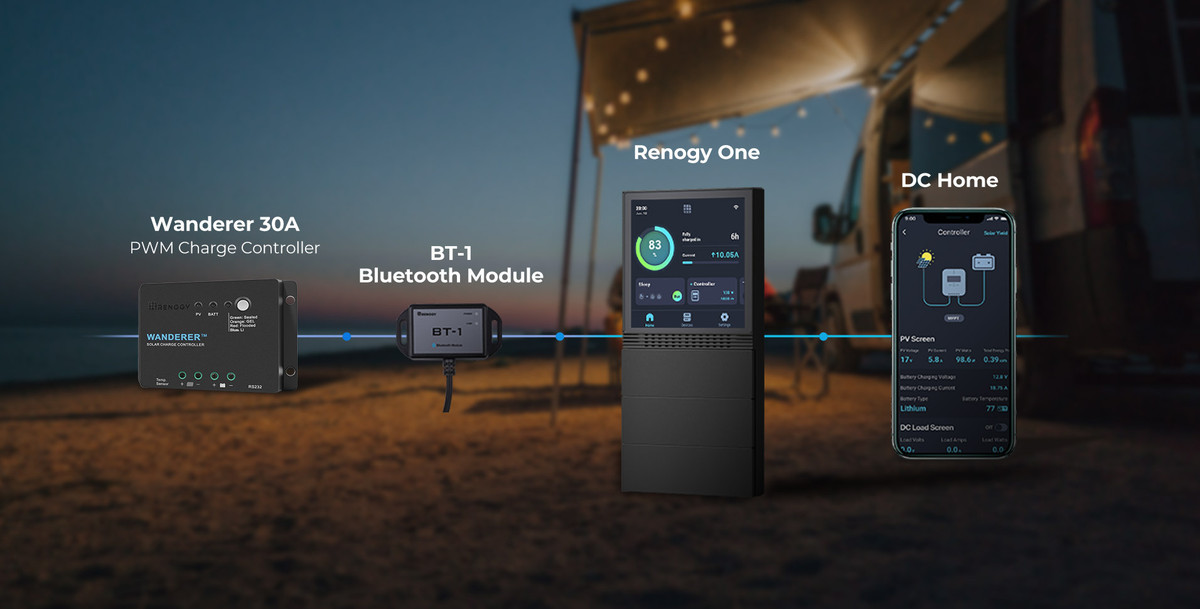

The Renogy Wanderer-Li is a 30A PWM solar charge controller that integrates efficient PWM charging to increase battery life and improve system performance. Designed with a simple interface for ease of use, the controller uses multiple LED indicators to notify users of charge status and battery information. This newly improved model has two advanced features: an RS232 port and Lithium battery charging. With the addition of the RS232 port, users can now connect and communicate with the Renogy BT-1 Bluetooth module. By adding the BT-1 to the Wanderer-Li, you can now use the smartphone app, DC Home, to monitor and adjust your solar system remotely. With the inclusion of the Lithium Battery Mode, the 30A negative-ground controller is now capable of charging various 12V battery types and banks, including most 12V lithium models available on the market.
If you have any questions regarding this product, please submit a case.
Key Features
- Optimized for a 12V system; Deep cycle Sealed (AGM), Gel, Flooded and Lithium battery option ready. (Please set the voltage manually to charge lithium batteries.)
- Smart 4 Stage PWM charging (Bulk, Boost, Float, and Equalization) and temperature compensation increases battery life and improves system performance.

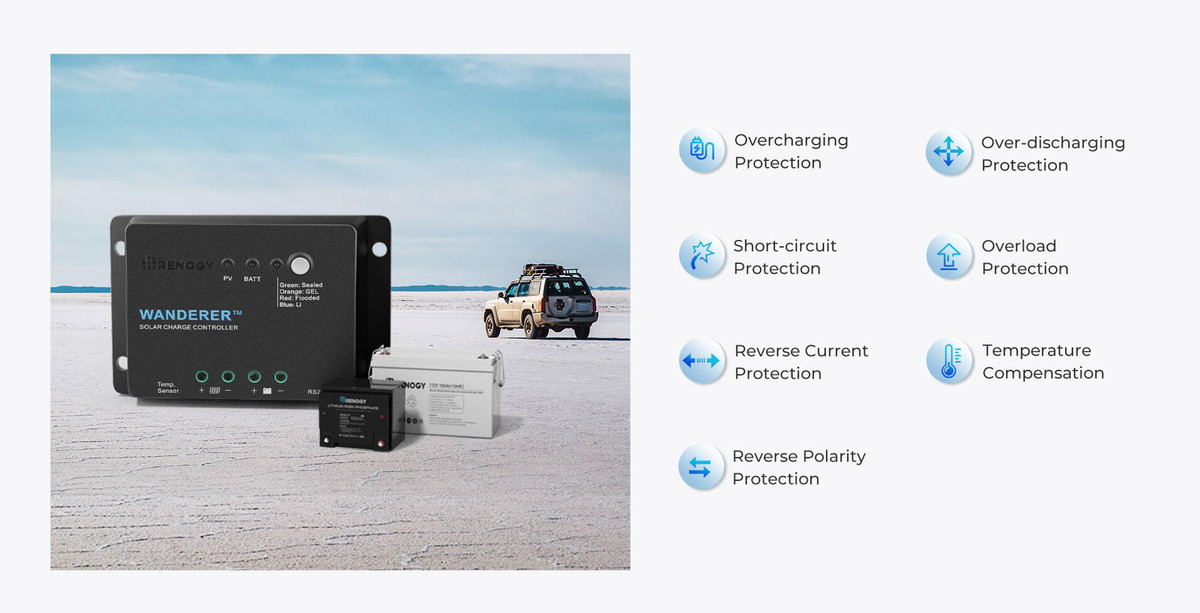

- Intelligent protection against reverse polarity, overcharging, short-circuit, and reverse current. Multiple LED indicators for easy to read charge status and battery information.

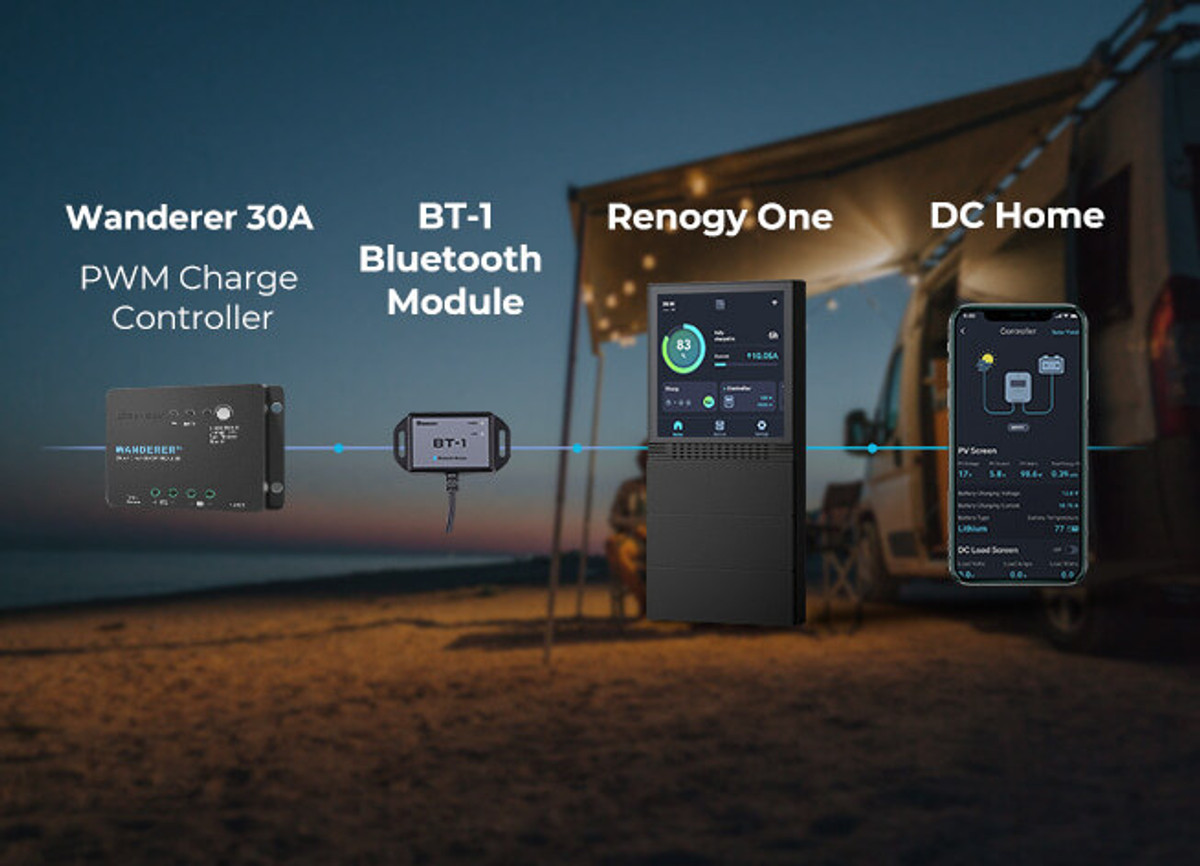

- The integrated RS232 port can work with the BT-1 Bluetooth module to deliver real-time energy data across the DC Home smart phone app & Renogy ONE M1
Package Includes
|
Wanderer Li 30A PWM Charge Controller
1 x
|
Options: BT-1 Bluetooth Module
1 x |
| The Renogy Wanderer Li 30A Negative PWM Charge Controller | |
|---|---|
| Nominal Voltage: 12 VDC | Max. PV Input Power: 400W |
| Rated Charge Current: 30A | Max. PV Input Voltage: 25 VDC |
| Self-Consumption: <10mA | High Voltage Disconnect: 16V |

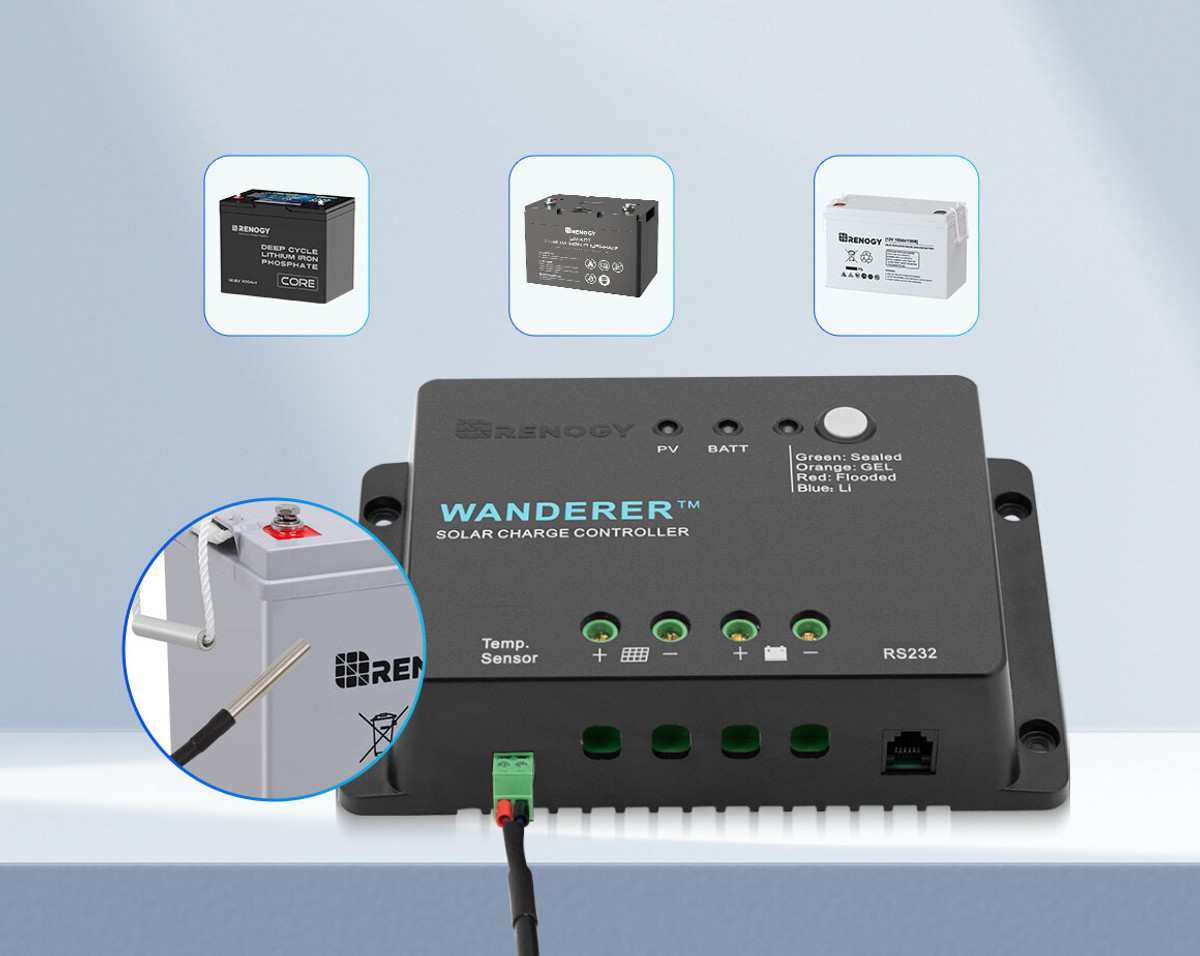

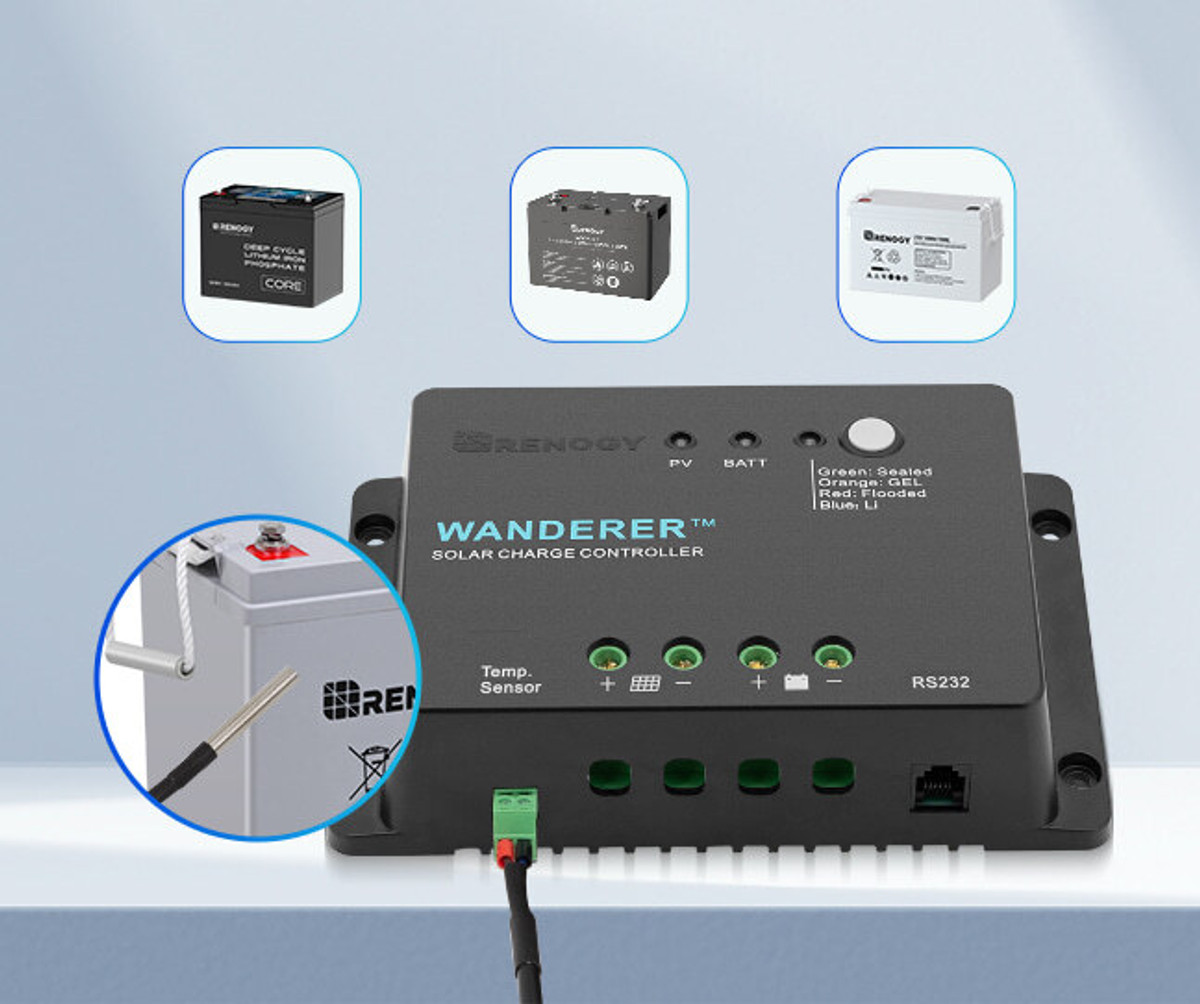

| Boost Duration: 120 min | Temperature Compensation: -3mV/°C/2V |

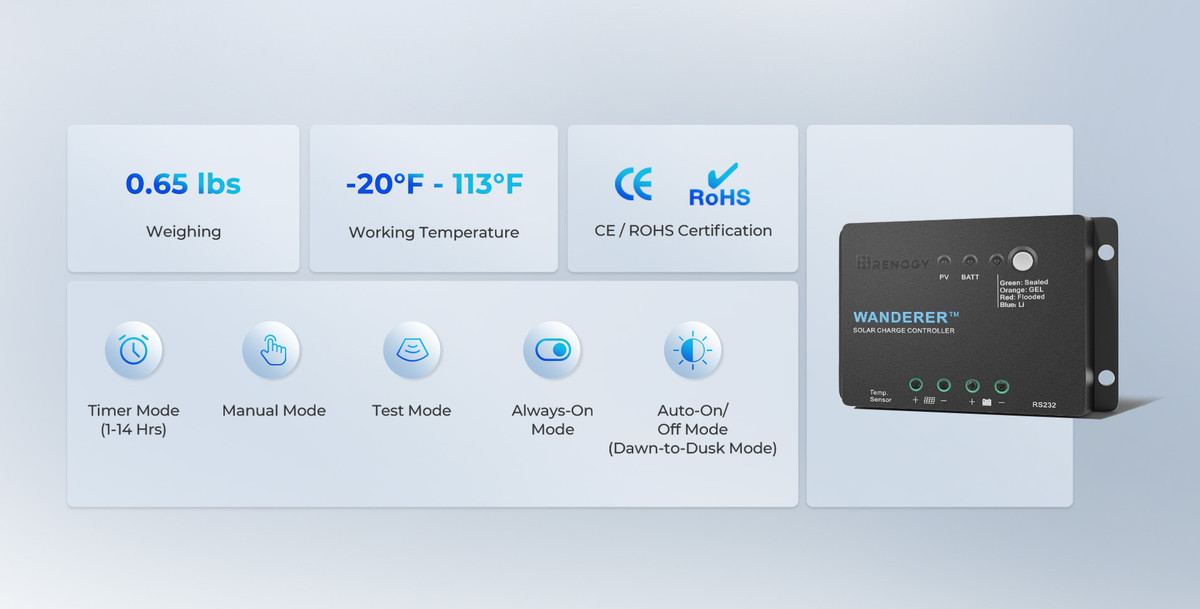

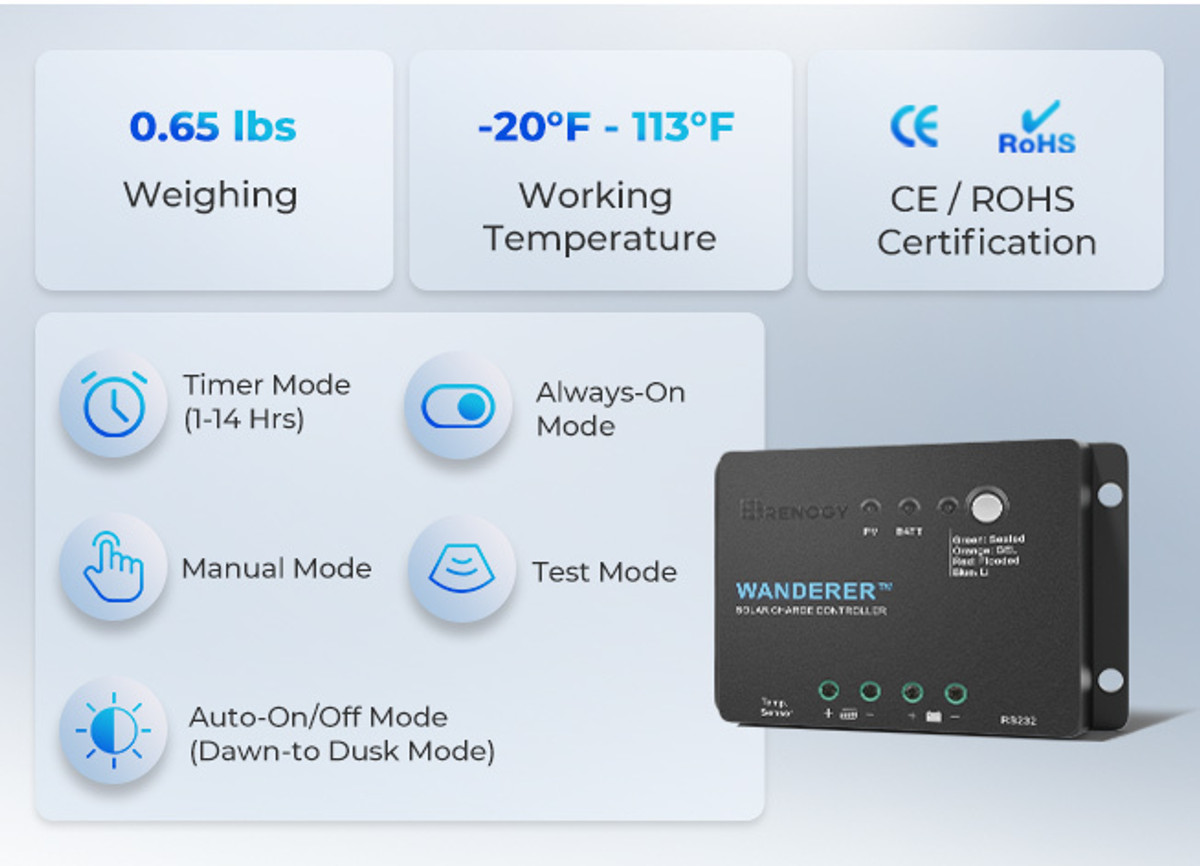

| Working Temperature: -20°F - 113°F | Storage Temperature: -31°F - 176°F |

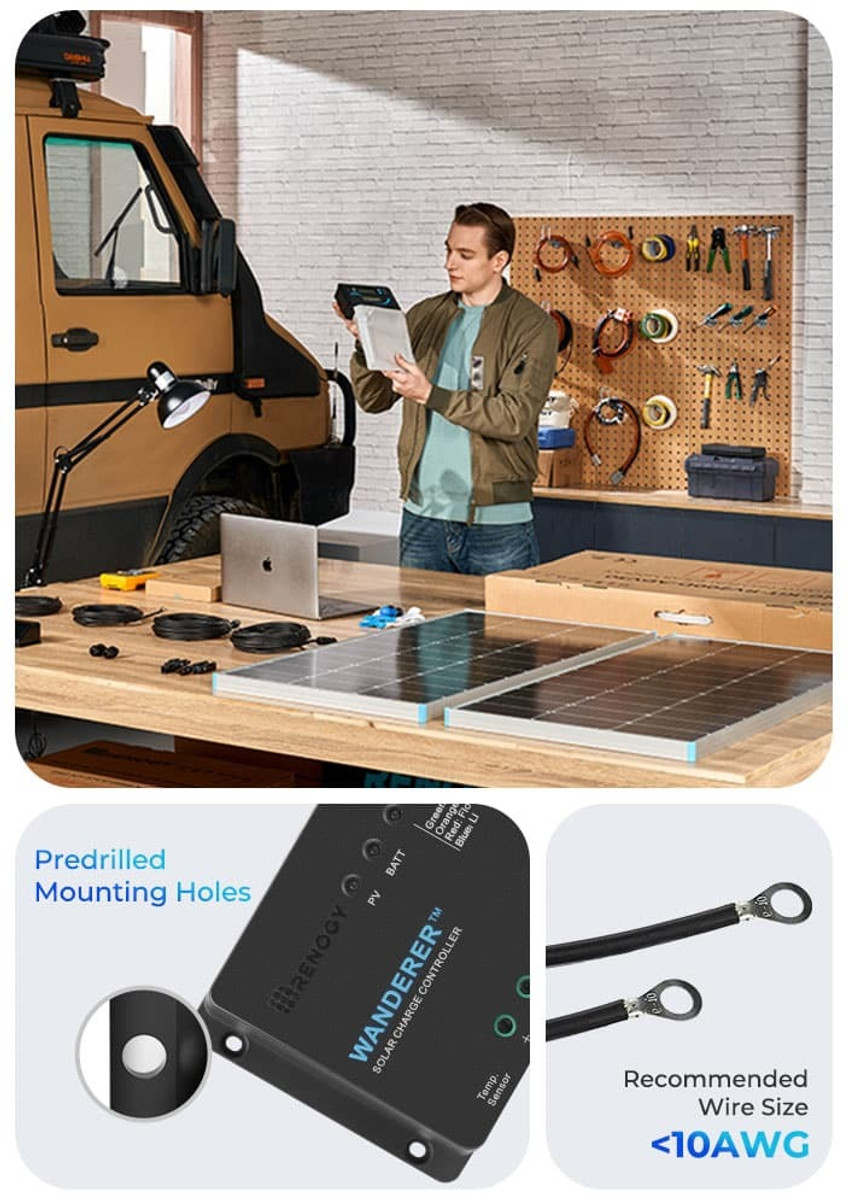

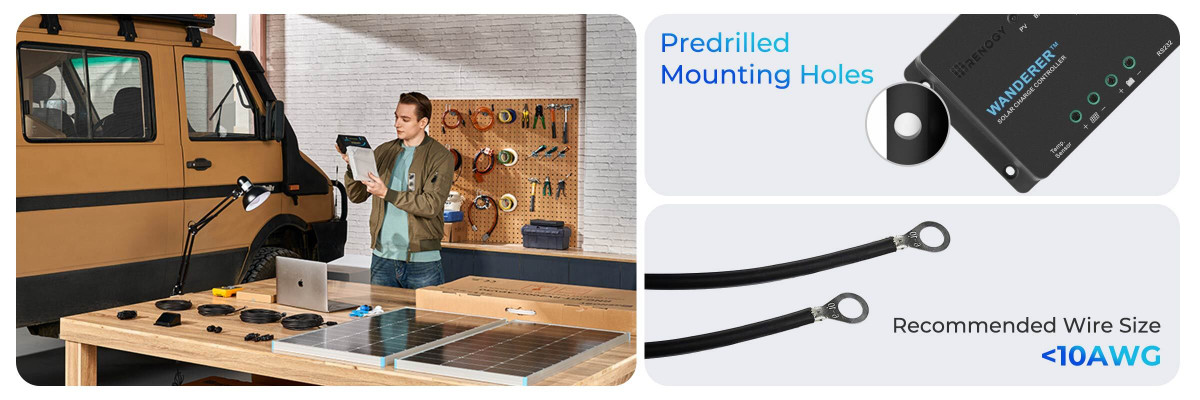

| Max Gauge Size: Up to 8AWG | Weight: 0.65 lbs |
| Dimensions: 6.45 x 4.31 x 1.76 inches | Enclosure: IP20 |
| Options: BT-1 Bluetooth Module | |
| Model: BT-1 | Input Voltage: 5V-12V |
| Standby Power Consumption: 0.04W | Operating Power Consumption: 0.05W |
| Communication Range: ≤15m | Serial Baud Rate: Fixed Baud Rate 9600bps |
| Cable Length: 5.00 m (16.4 ft) | Dimensions: 2.6 X 2.01 X 0.61 In |
| Installation Dimensions: 57.5, φ3.2mm (2.26, φ0.13in) | Operation Temperature: -20°C to 75°C(-4°F to 167°F) |
| Protection Grade: IP54 | Weight: 120 g (4.2oz) |
Warranty Information
| Accessories | 1-year material warranty |
Certification
 |
 |
 |
 |
