700W 12V Pure Sine Wave Inverter

700W 12V Pure Sine Wave Inverter
starts- reviews
SKU: RNG-INVT-700-12V-P2-CA
CAD $219.99 CAD $204.99
Calculater  reward Renogy Rays
Calculater

Availability:

CA stock, usually ships in 1 to 3 business days. Add to cart to enjoy 30CAD OFF.




Description

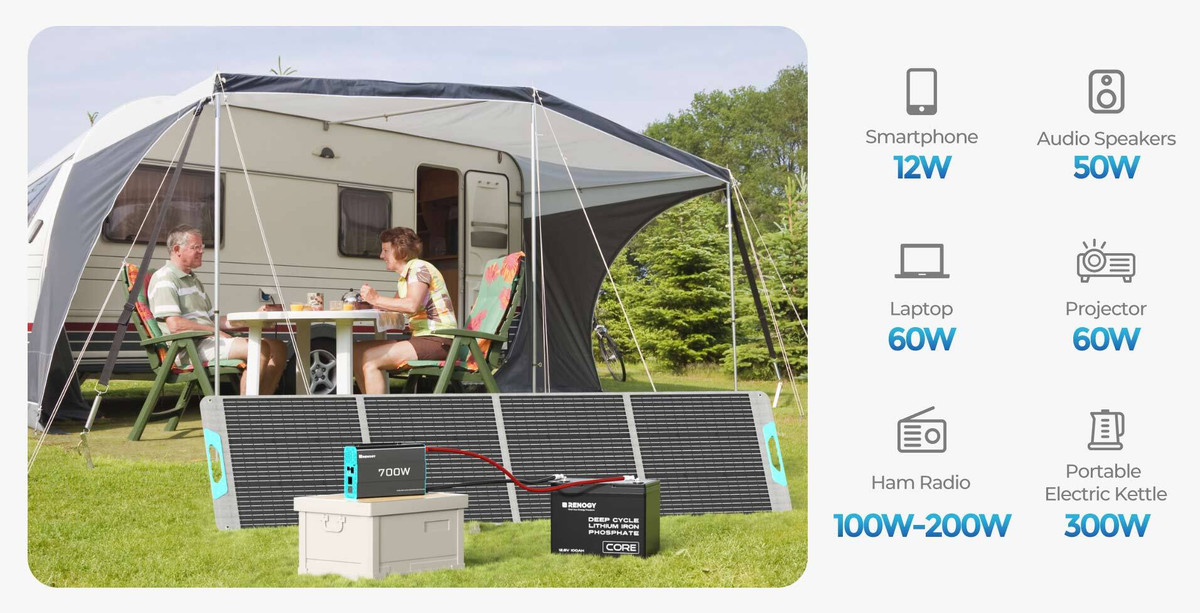

The Renogy 700W Pure Sine Wave Power Inverter is the perfect accessory for smaller off-grid systems, serving as a DC to AC converter, transforming battery-stored DC power into AC power. A necessary component to round up an off-grid system as many of them require a 12V solar inverter to run everyday electronics, from computers to coffee makers. Add this compact solar power inverter to your system to reliably power your devices.

Note: High output AC hardwire terminals not available on the 700W unit, only on 1000W/2000W/3000W units.

If you have any questions regarding this product, please submit a case.

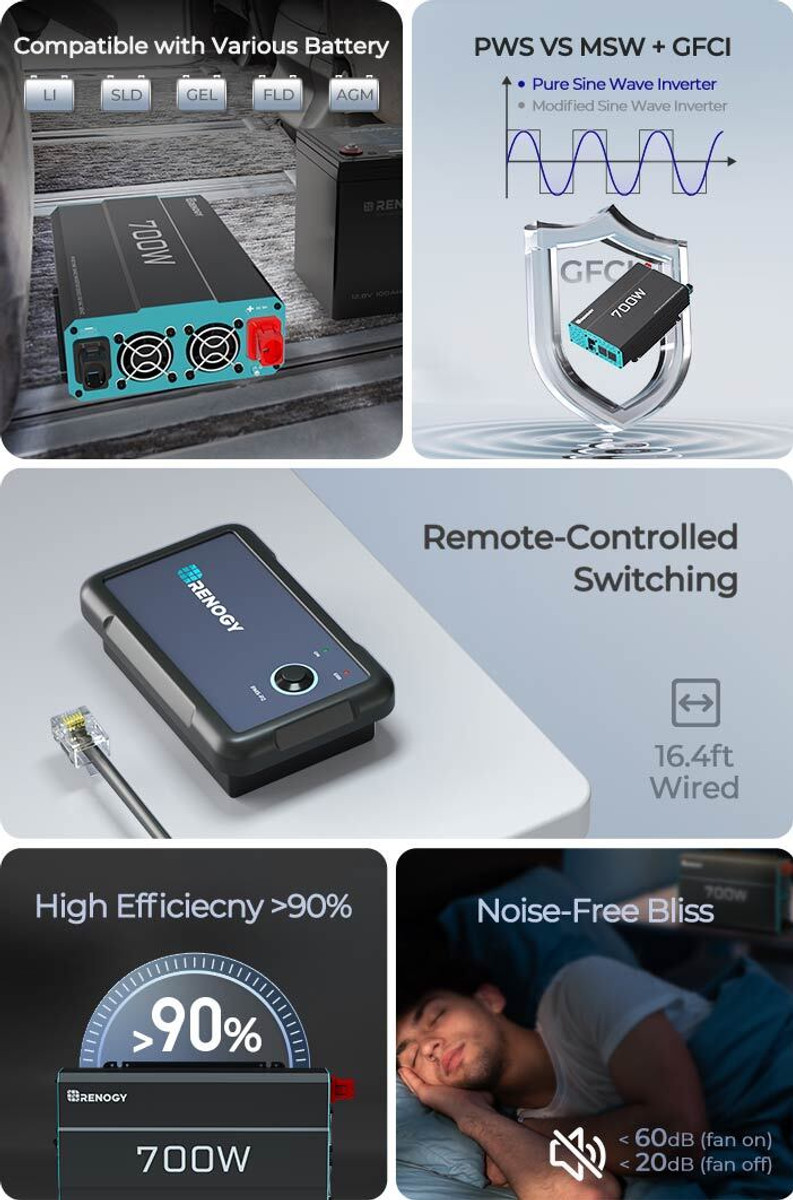

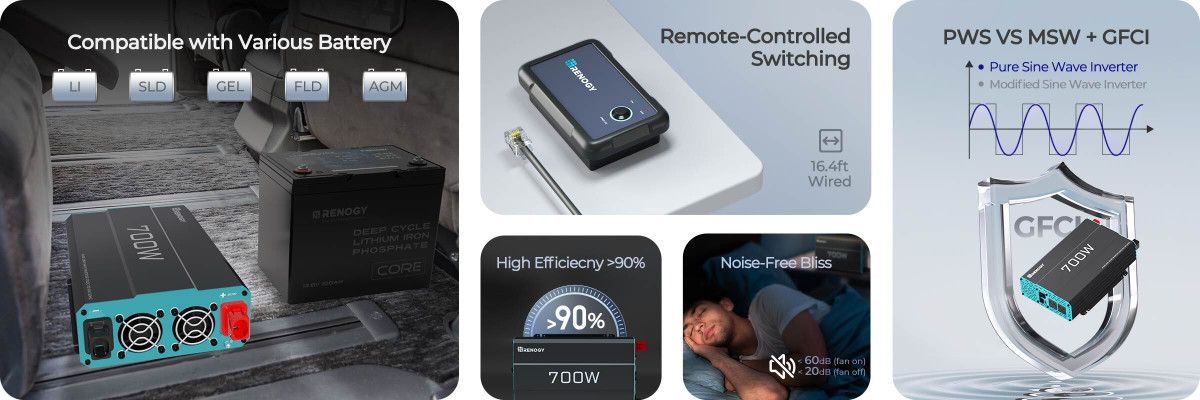

Key Features

Safe
  • Optimized for 12 VDC system voltage.

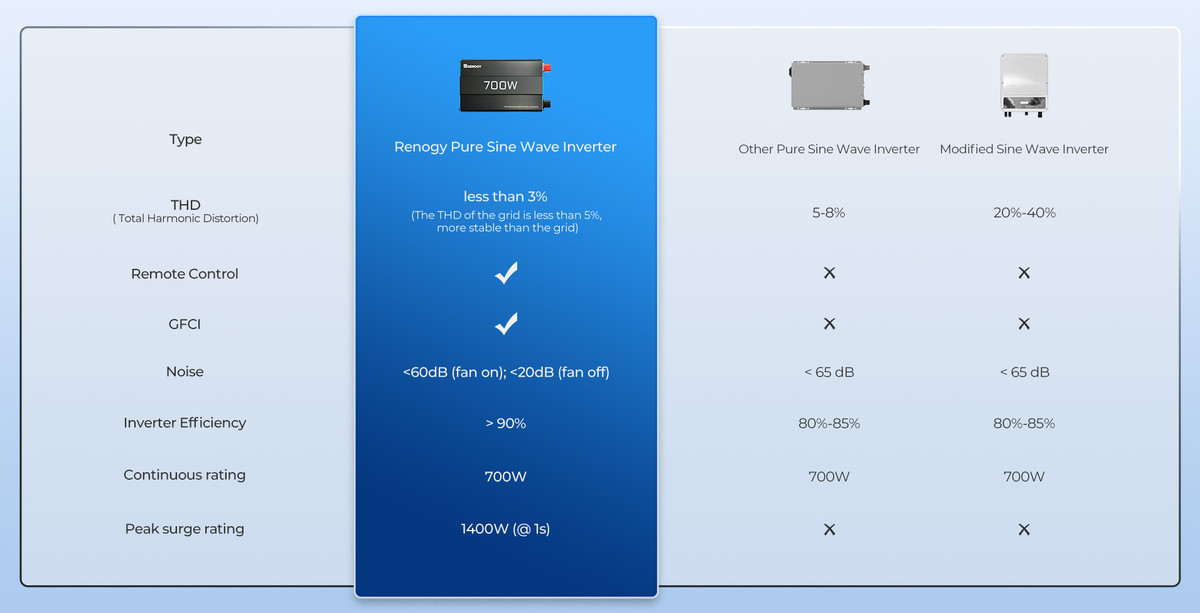

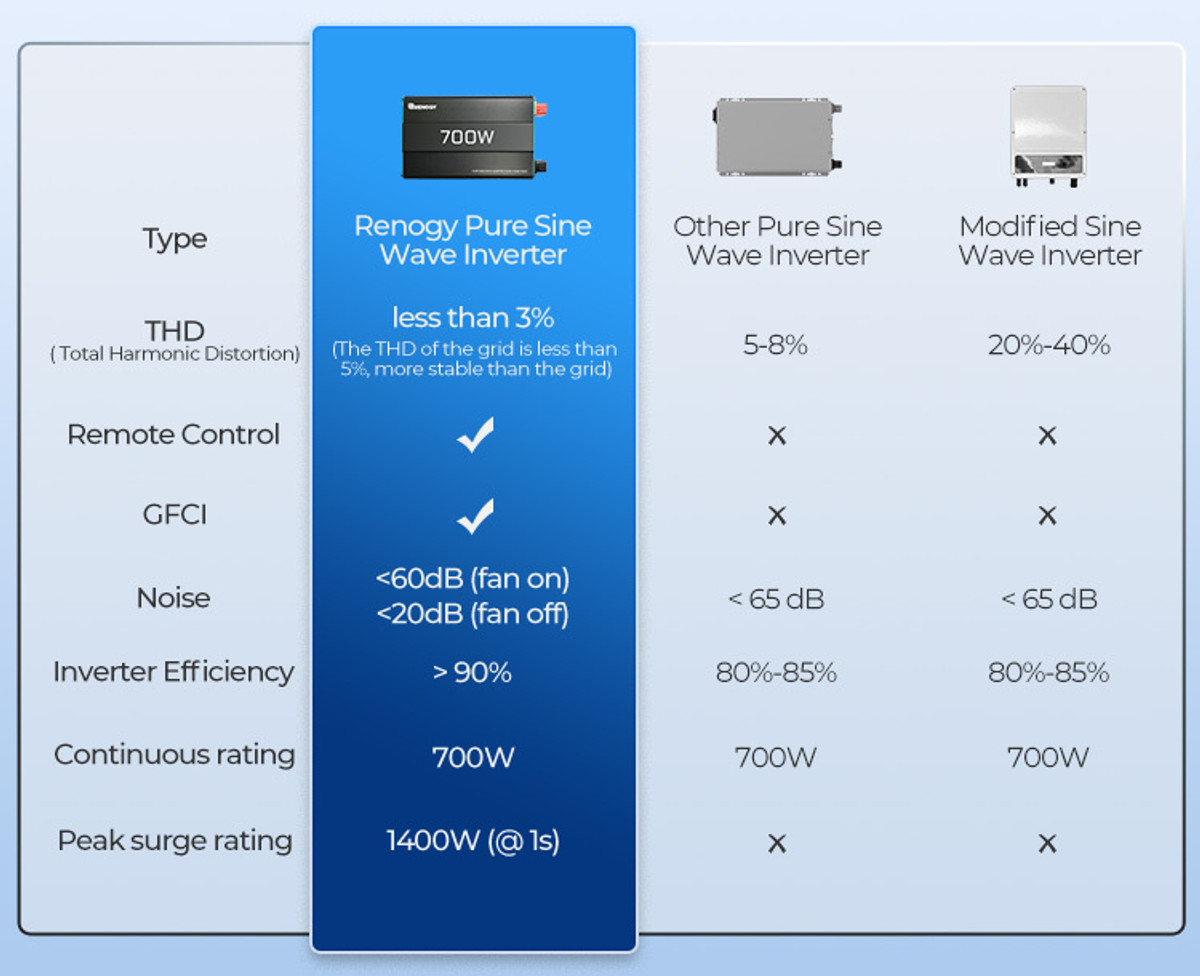

  • Offers high quality waveform with little harmonic distortion.
  • Overload protection for both DC input and AC output to prevent damage to the components and the unit.
  • Special LED indicators for under-voltage and over-voltage protection, over-temperature protection, over-load protection, and short circuit indication.
  • High-speed ventilation fans to help keep the inverter running at a low temperature.
  • Ground-fault circuit interrupter (GFCI) protection
  • ETL Listed, 6AWG cables and remote included
Quiet
  • No static or humming noises.

Minimum 12V Lithium Battery Bank Sizing

The following are the minimum battery quantities to operate Renogy power inverters. This is ONLY for 12V applications.

Battery Bank Qty/ Inverter Size 50Ah 100Ah 170Ah
700W 1 1 1
1000W 2 1 1
2000W 4 2 1
3000W 6 3 2

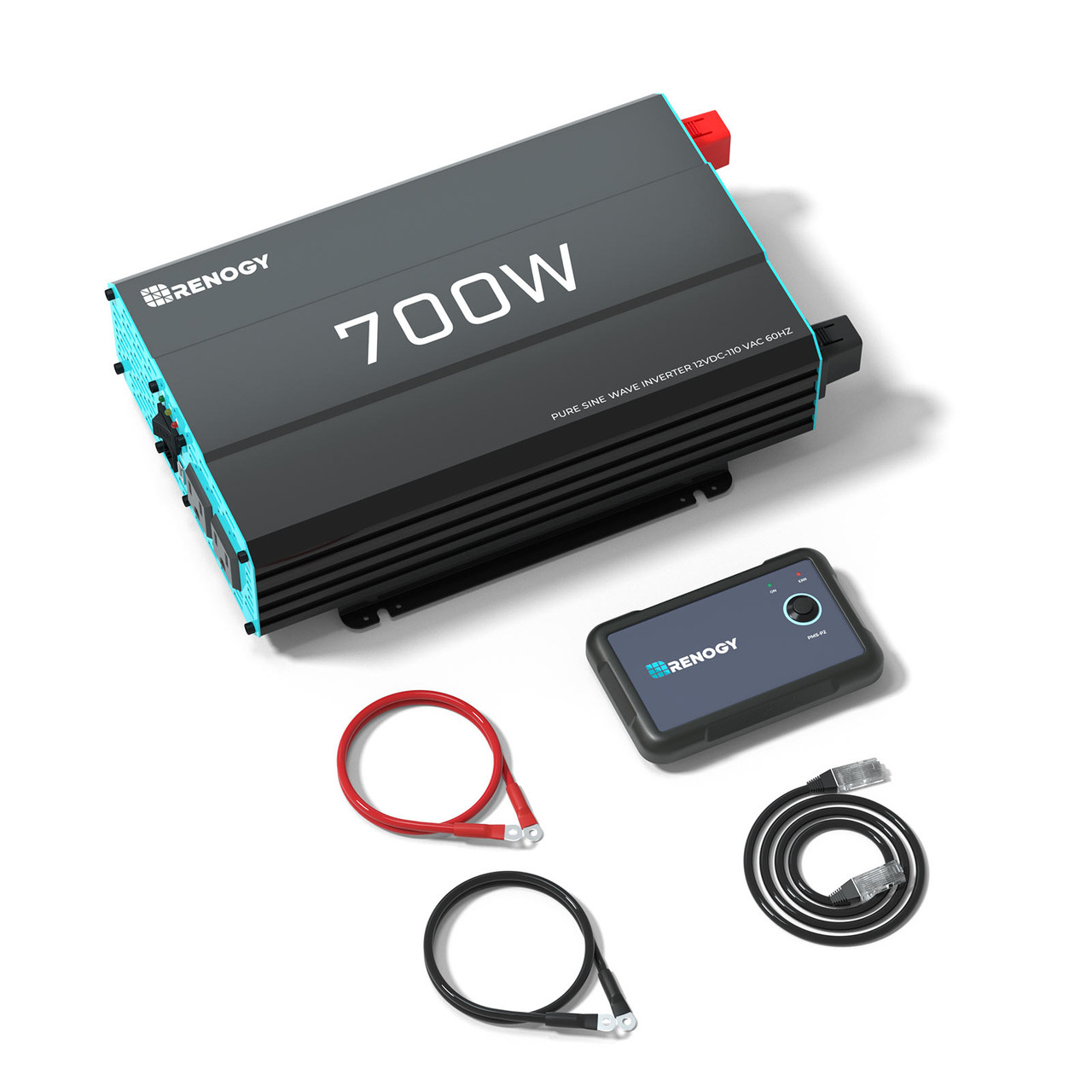

Package Includes

Renogy 700W 12V Pure Sine Wave Inverter

Renogy 700W 12V Pure Sine Wave Inverter

1 x



Inverter Cables

Inverter Cables

1 x



Inverter Remote Control

Inverter Remote Control

1 x




Renogy 700W 12V Pure Sine Wave Inverter
Continuous Power: 700W Surge Power: 1400W
AC Output Voltage Range : 115VAC Output Frequency (Nominal): 60 Hz

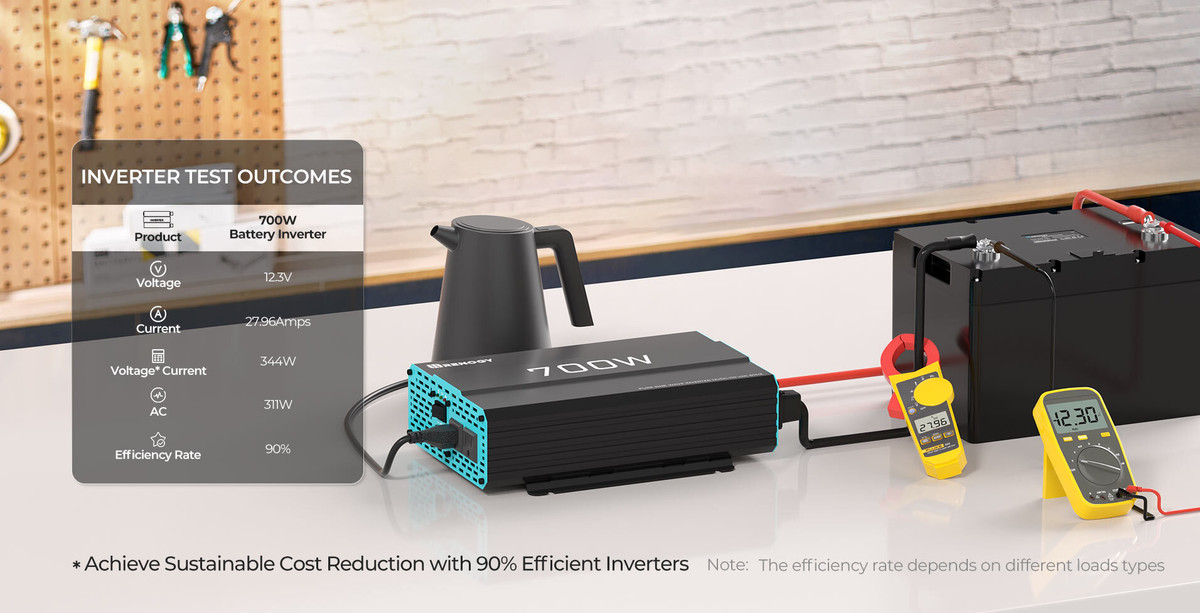

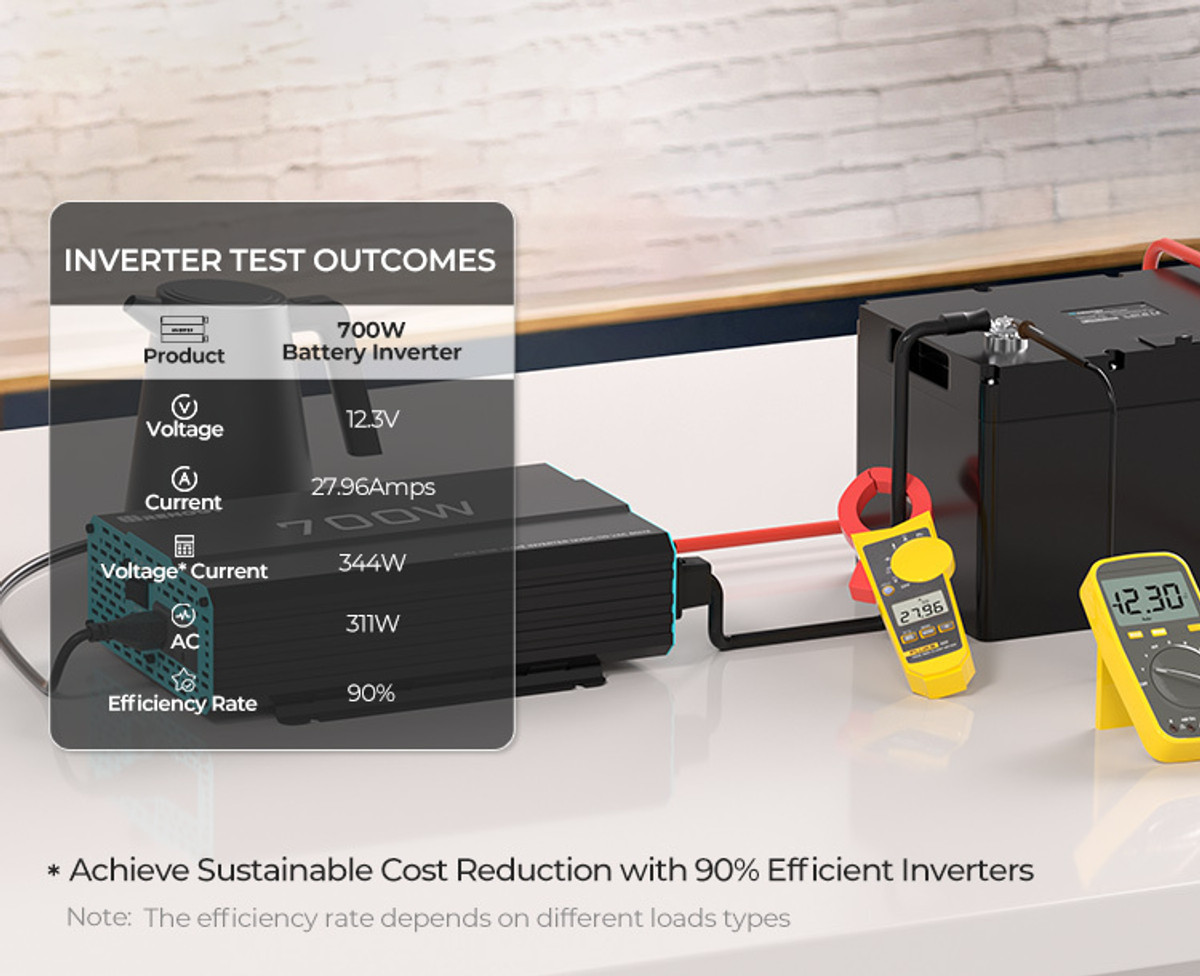

Output Waveform: Pure Sine Wave Efficiency: > 90%
Operating Temp: -4°F - 158°F THD: < 3%
No Load Current Draw: < 1A Dimensions: 11.75 x 7.38 x 3.32 In
Weight: 5.3 lbs.
Renogy 6AWG Inverter Cables (A Pair)
AWG: 6 (3 FT)


Warranty Information

Inverters

1-year material and workmanship warranty

Accessories 1-year material warranty


Certification

1.Can I use the inverter with a 24V system ?

No. This model can only work with 12V battery system.
2. Can I use this inverter to charge my batteries ?

No. The Renogy 12VDC to 120VAC inverter can only convert DC power to AC power. Please check the Renogy Pure Sine Wave Inverter Charger, and we have 12V 2000W and 12V 3000W for your options.
3. What size inverter should I buy ?


1. Sizing the right power output.
Inverters will be rated by a wattage value, telling you how many watts it can run at one time. For example, imagine you had a 500 Watt Fridge and 800 Watt Air Conditioning. These two items would be 1300 Watts and would require an inverter with a higher wattage than 1300W. Renogy 2000W and 3000W inverter will meet your power needs.

2. Check your battery voltage.
The DC voltage rating on the inverter will tell you what battery bank it is compatible with. For example, a 12V battery bank will require an inverter that is compatible with 12V DC input.

3. Size your installation spaces.
What area or space will you set your inverter? Make sure the inverter will fit in the space you have in mind with enough room around it for proper ventilation and no fire hazards.

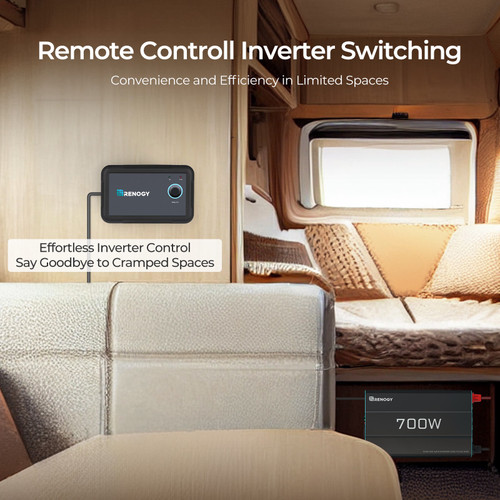

4. Remote operation is important.
Renogy pure sine inverters come with convenient remote control and DC HOME APP options so that you can operate the unit from afar.

4. How do I hook up the Inverter? What size cable should I use, and is it included?

When connecting the inverter to the battery always use the thickest wire available, in the shortest length practical. One 6AWG 3ft cable with battery terminals is included in the pacakge.

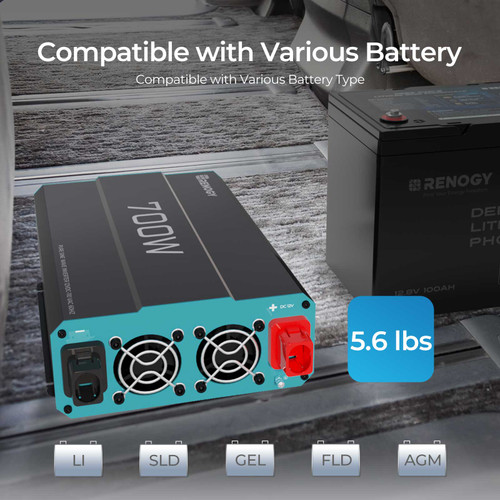

5. Can this inverter work with Lithium batteries ?

Yes, as long as the lithium battery is rated for 12V applications.



Reviews Hide Reviews

700 watt Pure Sine Wave Inverter

Craig Schroff on Nov 28th 2021

Well made case and attractive finish, matched cables and the remote is a welcome feature. Thanks Renogy for getting my solar start running with quality and matched components.

700watt Pure Sign Inverter

John D Dunbar on May 18th 2021

this was an easy addition to make my Tab trailer even more boondock ready. It's almost as easy to install as plugging in your toaster. works great to run the monitor and empower on plug inside the trailer.The remote off on is very nice to have
