Description

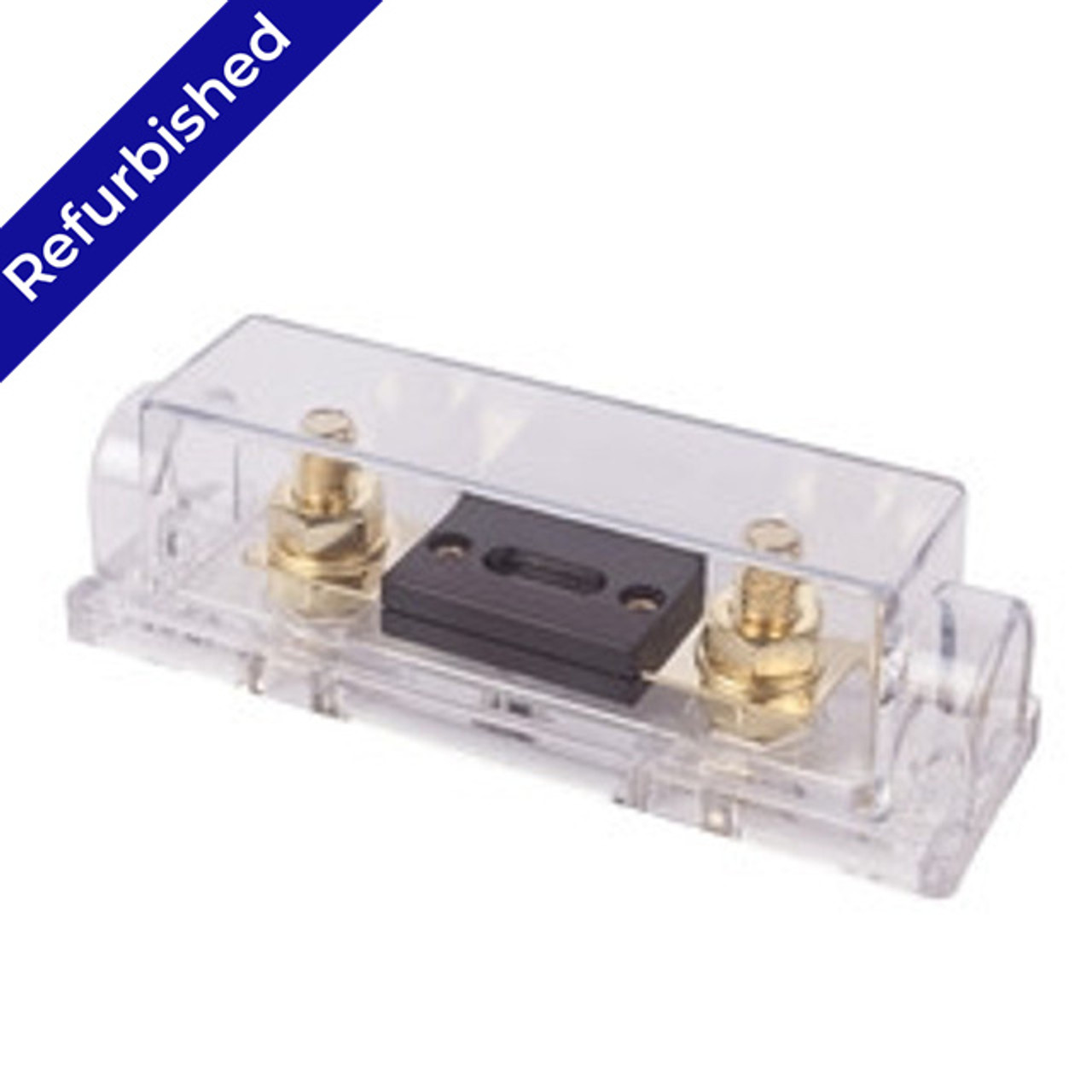

The Renogy ANL fuse offers complete protection to your system, protects your charge controller, battery, inverter, and connecting wires from over-current, and ensures you get the longevity out of your system that expected. This fuse is composed of high-quality alloy and brass copper materials and comes with a clear protective non-conductive resistant cover which is ideal for custom installation and can be easily added to your solar system.
The 40A DC Protection Kit is suitable for: 40A MPPT/PWM Charge Controller，40A DC-DC Battery Charger.
If you have any questions regarding this product; please submit a case.
Key Features
Safeguard Your System
- The Renogy ANL fuse offers complete protection to your system, protects your charge controller, battery, inverter, and connecting wires from over-current, and ensures you get the longevity out of your system that expected. Ignition protection guarantees the safe use of the fuse in RVs, boats, or any other closed environments.
Multiple Specifications are Available
- Renogy offers multiple specifications of the ANL fuses to meet the requirement of different size systems. Optional specifications including 20A/30A/40A/60A/100A/200A/300A/400A.The protective cover is compatible with all specifications.
High Quality and Easy to Use Design
- The Renogy ANL fuse is composed of high-quality alloy and brass copper materials and come with a clear protective non-conductive resistant cover which is ideal for custom installation and can be easily added to your solar system.
System Suitability
- The fuse is designed to work with RENOGY ANL Fuse Block.
Environment Friendly
- The Renogy ANL fuse is RoHS compliant, which confirms that it's free from environmentally hazardous, difficult-to-dispose substances.
Package Includes
|
Renogy 20A/30A/40A/60A/100A/200A/300A/400A ANL Fuse Set w/ Fuse
1 x
|
| Renogy 20A ANL Fuse Set (Included Fuse) |
|
| Current Rating: 20A |
Voltage Rating: 72V |
| Interrupt Capacity:40A |
Terminal Bolt Size: M8(5/16") |
| Dimension: 123 x 37 x 40 mm/4.86 x 1.46 x 1.58 inch |
Weight: 0.11kg/0.24Ib |
| Renogy 30A ANL Fuse Set (Included Fuse) |
|
| Current Rating: 30A |
Voltage Rating: 72V |
| Interrupt Capacity:60A |
Terminal Bolt Size: M8(5/16") |
| Dimension: 123 x 37 x 40 mm/4.86 x 1.46 x 1.58 inch |
Weight: 0.11kg/0.24Ib |
| Renogy 40A ANL Fuse Set (Included Fuse) |
|
| Current Rating: 40A |
Voltage Rating: 72V |
| Interrupt Capacity: 80A |
Terminal Bolt Size: M8(5/16") |
| Dimension: 123 x 37 x 40 mm/4.86 x 1.46 x 1.58 inch |
Weight: 0.11kg/0.24Ib |
| RENOGY 40A DC Protection Kit |
|
This 40A DC Protection Kit is suitable for: 40A MPPT/PWM Charge Controller，40A DC-DC Battery Charger
|
| Renogy 40A ANL Fuse Set（Included Fuse） |
| Current Rating: 40A |
Voltage Rating: 72V |
| Interrupt Capacity: 80A |
Terminal Bolt Size: M8(5/16") |
| Dimension: 123 x 37 x 40 mm/4.86 x 1.46 x 1.58 inch |
Weight: 0.11kg/0.24Ib |
| Renogy 2ft 8AWG Fuse Cable |
| Length: 0.67 ft |
AWG: 8 |
| Rating Voltage: AC Uo/U 0.6/1 KV, DC 1.8KV |
Temperature: -40℉ to + 194℉ |
| Renogy 60A ANL Fuse Set (Included Fuse) |
|
| Current Rating: 60A |
Voltage Rating: 72V |
| Interrupt Capacity:120A |
Terminal Bolt Size: M8(5/16") |
| Dimension: 123 x 37 x 40 mm/4.86 x 1.46 x 1.58 inch |
Weight: 0.11kg/0.24Ib |
| Renogy 100A ANL Fuse Set (Included Fuse) |
|
| Current Rating: 100A |
Voltage Rating: 72V |
| Interrupt Capacity: 200A |
Terminal Bolt Size: M8(5/16") |
| Dimension: 123 x 37 x 40 mm/4.86 x 1.46 x 1.58 inch |
Weight: 0.11kg/0.24Ib |
| Renogy 200A ANL Fuse Set (Included Fuse) |
|
| Current Rating: 200A |
Voltage Rating: 72V |
| Interrupt Capacity: 400A |
Terminal Bolt Size: M8(5/16") |
| Dimension: 123 x 37 x 40 mm/4.86 x 1.46 x 1.58 inch |
Weight: 0.11kg/0.24Ib |
| Renogy 300A ANL Fuse Set (Included Fuse) |
|
| Current Rating: 300A |
Voltage Rating: 72V |
| Interrupt Capacity: 600A |
Terminal Bolt Size: M8(5/16") |
| Dimension: 123 x 37 x 40 mm/4.86 x 1.46 x 1.58 inch |
Weight: 0.11kg/0.24Ib |
| Renogy 400A ANL Fuse Set (Included Fuse) |
|
| Current Rating: 400A |
Voltage Rating: 72V |
| Interrupt Capacity: 800A |
Terminal Bolt Size: M8(5/16") |
| Dimension: 123 x 37 x 40 mm/4.86 x 1.46 x 1.58 inch |
Weight: 0.11kg/0.24Ib |
Warranty Information
| Accessories |
6-month material warranty |
Certification
