Renogy Core - 12V 300Ah Deep Cycle Lithium Iron Phosphate Battery with self-heating function

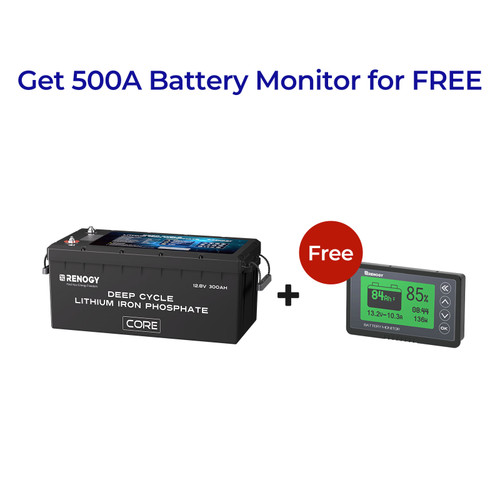

1 Battery (Limited Time: Get FREE Battery Monitor)
Choose your option
Cancel
Confirm
×
Quantity: 1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
CAD $1,139.99
CAD $1,399.99
x1

Renogy Core - 12V 300Ah Deep Cycle Lithium Iron Phosphate Battery with self-heating function

SKU: RBT12300LFPSH-CA
Write a Review
CAD $1,139.99
CAD $1,399.99
SAVE C$260.00
18%OFF
+ 11390   Renogy Rays after purchase.
  Learn more
Save C$50 on C$1000 | C$100 on C$1500 | C$250 on C$2500
LIMITED OFFER
Celebrate 15th Renogy Day - Spend More and Save More!
Get Coupon
This battery is eligible for a 7-day unconditional return.
  • • 50% more power than a same-sized 200Ah LiFePO4 Battery.
  • • BMS protection for low-temperature protection.
  • • Support series, parallel, or series-parallel connections.
  • • 2x faster self-heating triggered at 32℉ (0℃).
  • • 5-year limited warranty & 24-hour timely assistance.
View More
Renogy Core - 12V 300Ah Deep Cycle Lithium Iron Phosphate Battery with self-heating function
Renogy Core - 12V 300Ah Deep Cycle Lithium Iron Phosphate Battery with self-heating function
CAD $1,139.99
CAD $1,399.99
CAD $1,139.99
CAD $1,399.99
Add to cart
Adding to cart… The item has been added
Shop alone
Start group buy
Option
Size: 1 Battery (Limited Time: Get FREE Battery Monitor)
Renogy Core - 12V 300Ah Deep Cycle Lithium Iron Phosphate Battery with self-heating function
Want to purchase in bulk? Request Bulk Purchase Prices

Return & refund policy
Same Lasting Power at Lighter Weight
Experience the same 2x faster self-heating to ensure safe charging below in freezing conditions–now easier to move and store with 12% reduced weight than the last generation. If you are considering expansion, do choose the battery of the same generation to complete your setup.
Take a Closer Look
300Ah Core vs. Lead-acid
Upgrade to lithium for the next-level performance
300Ah Core vs. Other LiFePO4
Unparalleled performance to meet your most demanding energy needs.
More Power, More Possibilities.
The Renogy 12V 300Ah Core delivers 50% more power than a 200Ah LiFePO4 battery of the same size. Get the extra capacity you need to weather unexpected storms, hurricanes, wildfires, and other challenges whenever they come your way.
Powerful to the Core
With consistent power lasting nearly 10 times longer than a typical lead-acid battery, the Renogy 12V 300Ah Core LiFePO4 Battery is built with EV-grade cells for lasting performance.
Extra Warmth. Extended Runtime.
With the industry’s highest 200W heating elements, the 12V 300Ah LiFePO4 Battery heats up 2X faster than other heated batteries. Ensure a stable charge current greater than 10A for each battery to activate the self-heating function.
Protections Against Bumps
We know the journey can be a bumpy one. That’s why the battery is designed with rugged structural elements to protect components from shocks and impacts along the way.
Connect in Parallel
Connect in Series
Connect in Series-Parallel
Power Your Journey Longer
Whether you’re a weekend adventurer or a full-time nomad, Renogy Core 300Ah LiFePO4 batteries provide easy power access on the road. Connect 4 batteries in parallel to power essential RV appliances for up to 5.5 days, offering days of off-grid power for added comfort.
Power Your Cabin Getaway
Experience uninterrupted power in your cabin retreat with our 12V 300Ah Core Batteries. Connect 4 batteries in series to power the devices in your cabin, including air conditioning, refrigerators, and more, for up to 4.5 days. Spend less time on maintenance and more time enjoying the comforts of your cabin getaway.
Uncompromising Modern Convenience on the Waves
You're just a step away from transforming your fishing boat into a haven of modern comfort. Renogy 12V 300Ah Core batteries can be connected in 4P4S—16 batteries in series and parallel—to power the devices on your boat for up to 5 days.
Dimensional Reference Guide
Before installation, ensure you leave 1.97-3.94 inches (50-100 mm) above the battery and at least 7.87 inches (200 mm) of clearance on the side with busbars for proper setup.
Find the Right Battery for You
Scroll down to explore detailed comparisons and find the perfect fit.
Renogy Core - 12V 300Ah Deep Cycle Lithium Iron Phosphate Battery with self-heating function
CA$1139.99
Nominal Voltage
12.8V
Rated Capacity
300Ah
Cycle Life (80% DOD, 80% EOL)
5000 Cycles
Maximum Continuous Charge Current
200A
Maximum Continuous Discharge Current
200A
Peak Discharge Current
390A@5s
Connection
Series & Parallel (4S4P)
Self-Heating Function
Bluetooth
Add Bluetooth compatibility with a 300A Battery Shunt, sold separately
Dimensions
20.55 x 9.45 x 8.62 in 522 x 240 x 219 mm
Weight
69.0 lbs (31.3 kg)
Protection Rating
IP65
Certifications
MSDS, UN38.3, FCC , PSE, CE, UKCA
Warranty
5-year prorated material and workmanship warranty
Renogy Core Mini - 12V 300Ah Lithium Iron Phosphate Battery
CA$939.99
Nominal Voltage
12.8V
Rated Capacity
300Ah
Cycle Life (80% DOD, 80% EOL)
5000 Cycles
Maximum Continuous Charge Current
150A
Maximum Continuous Discharge Current
200A
Peak Discharge Current
380A @ 10s
Connection
Series & Parallel (4S4P)
Self-Heating Function
×
Bluetooth
Add Bluetooth compatibility with a 300A Battery Shunt, sold separately
Dimensions
15.12 x 7.64 x 9.96 in 384 x 194 x 253 mm
Weight
55.1 lbs (25.0 kg)
Protection Rating
IP65
Certifications
MSDS, UN38.3, FCC, CE, PSE, RCM, RoHS and UKCA
Warranty
5-year prorated material and workmanship warranty
Renogy Core Mini - 12V 200Ah Lithium Iron Phosphate Battery w/ Low-Temperature Protection
CA$699.99
Nominal Voltage
12.8V
Rated Capacity
200Ah
Cycle Life (80% DOD, 80% EOL)
5000 Cycles
Maximum Continuous Charge Current
100A
Maximum Continuous Discharge Current
200A
Peak Discharge Current
380A@10s
Connection
Series & Parallel (4S8P)
Self-Heating Function
×
Bluetooth
Add Bluetooth compatibility with a 300A Battery Shunt, sold separately
Dimensions
15.12×7.64×9.96 in (384×194×253 mm)
Weight
42.44 lbs (19.25 kg)
Protection Rating
IP65
Certifications
MSDS, UN38.3, FCC, CE, PSE, RCM, IC, RoHS, and UKCA
Warranty
5-year prorated material and workmanship warranty
Renogy Pro - 12V 200Ah Smart Lithium Iron Phosphate Battery w/ Bluetooth & Self-Heating
CA$949.99
Nominal Voltage
12.8V
Rated Capacity
200Ah
Cycle Life (80% DOD, 80% EOL)
5000 Cycles
Maximum Continuous Charge Current
200A
Maximum Continuous Discharge Current
200A
Peak Discharge Current
270A@30s
Connection
Parallel (Up to 8)
Self-Heating Function
Bluetooth
Yes
Dimensions
18.4 x 8.4 x 8.2 in 467 x 212 x 208 mm
Weight
50.7 lbs (23 kg)
Protection Rating
IP67
Certifications
UL, MSDS, UN38.3, FCC, PSE, CE, UKCA
Warranty
7-year material and workmanship warranty
Renogy Pro - 12V 100Ah Smart Lithium Iron Phosphate Battery w/ Bluetooth & Self-Heating
CA$549.99
Nominal Voltage
12.8V
Rated Capacity
100Ah
Cycle Life (80% DOD, 80% EOL)
5000 Cycles
Maximum Continuous Charge Current
100A
Maximum Continuous Discharge Current
100A
Peak Discharge Current
245A@30s
Connection
Parallel (Up to 8)
Self-Heating Function
Bluetooth
Yes
Dimensions
10.6 x 7.6 x 8.1 in 268 x 193 x 205 mm
Weight
26.9 lbs (12.2 kg)
Protection Rating
IP67
Certifications
UL, MSDS, UN38.3, FCC, PSE, CE, UKCA
Warranty
7-year material and workmanship warranty
Renogy Core Mini - 12.8V 100Ah Lithium Iron Phosphate Battery
CA$299.99
Nominal Voltage
12.8V
Rated Capacity
100Ah
Cycle Life (80% DOD, 80% EOL)
5000 Cycles
Maximum Continuous Charge Current
100A
Maximum Continuous Discharge Current
100A
Peak Discharge Current
300A@5s
Connection
Series (4S) Parallel (8P) Series & Parallel (4S4P)
Self-Heating Function
×
Bluetooth
Add Bluetooth compatibility with a 300A Battery Shunt, sold separately
Dimensions
9.02 x 5.43 x 8.39 in (229 x 138 x 213 mm)
Weight
21.8 lbs (9.9 kg)
Protection Rating
IP65
Certifications
MSDS, UN38.3, FCC, CE, PSE, RCM, IC, RoHS, and UKCA
Warranty
5-year prorated material and workmanship warranty
Renogy DuoHeat Tech - Core Mini 12V 100Ah Lithium Iron Phosphate Battery
CA$399.99
Nominal Voltage
12.8V
Rated Capacity
100Ah
Cycle Life (80% DOD, 80% EOL)
5000 Cycles
Maximum Continuous Charge Current
100A
Maximum Continuous Discharge Current
100A
Peak Discharge Current
300A@10s
Connection
Series & Parallel (4S4P)
Self-Heating Function
Bluetooth
Add Bluetooth compatibility with a 300A Battery Shunt, sold separately
Dimensions
9.02 x 5.43 x 8.39 in 229 x 138 x 213 mm
Weight
21.38 lbs (9.7 kg)
Protection Rating
IP65
Certifications
MSDS, UN38.3, FCC, CE, PSE, IC, RoHS, UKCA
Warranty
5-year prorated material and workmanship warranty
Why Choose Renogy?
10+ Years' Expertise in Off- Grid Power Solutions
Local Warehouses in Canada
5-Year Warranty
24-Hour Prompt Response
Package Includes
Renogy Core - 12V 300Ah Lithium Iron Phosphate Battery (Generation 2)
x 1
Long Terminal Bolts
x 2
Insulating Sleeve
x 2
User Manual
x 1
Electrical Specifications
Rated Capacity (0.5C, 25°C)
300Ah
Nominal Voltage
12.8V
Voltage Range
10V to 14.4V
Cycle Life (0.5C/1C, 25℃)
5000 Cycles (80% DOD)
Charging Parameters
Charge Voltage
14.4V
Maximum Continuous Charge Current
200A
Discharging Parameters
Maximum Continuous Discharge Current
200A
Peak Discharge Current
390A@5s
Temperature Parameters
Operation Temperature Range
Charge: -4°F to 131°F / -20°C to 55°C
Operation Temperature Range
Discharge: -4°F to 140°F / -20°C to 60°C
Storage Temperature Range
-13°F to 149°F / -25°C to 65°C
Operation Relative Humidity
10% to 95%
Mechanical Specifications
Dimension (L x W x H)
20.55 x 9.45 x 8.62 in / 522 x 240 x 219 mm
Weight
60.63 lbs. / 27.5 kg
Terminal Bolt Size
M8 x 1.25 x 15 mm
Protection Rating
IP65
Certifications
MSDS, UN38.3, FCC , PSE, CE, UKCA
Yes
Warranty
5-year material warranty
Yes
Frequently Asked Questions
1. I have 4 Renogy 100W 12V solar panels. Will these work with this LiFePO4 battery or is that too much wattage?
Yes, but please make sure that your solar charge controller is capable of handling the power your solar panels can output. Do not connect solar panels directly to batteries without a solar charge controller. Feel free to contact us if you have questions about how to size the solar charge controller for your system.
2. Can this battery be used in series to build a 48-volt system?
Yes. Renogy 12V Core Series Batteries can be connected in series to increase the voltage to 24V, 36V, or 48V for an off-grid power system. For maximum power output, you can first wire the batteries in series, then connect the sets of batteries in parallel (do use batteries of the same model and generation) to achieve up to 61.44kWh.
3. How many Renogy 12V 300Ah Core Series Batteries can I connect at most?
The Core Series batteries support versatile connections, including series, parallel, and series-parallel connection. You can connect up to 4 batteries in series, 4 in parallel, or 16 in the series-parallel connection. Batteries of the same model and similar capacity are required.
4. How long will the Renogy Core Series Lithium Iron Phosphate Battery last?
Renogy 12V 300Ah Core Series Batteries are capable of delivering 5000 cycles with a recommended 80% depth of discharge (DOD). Meanwhile, these batteries combine a true 200A battery management system (BMS), IP65 protection, and rugged structure design to brace for challenges wherever you go.
5. Can I pair a Bluetooth Module for this battery to monitor the battery status on the phone?
No. This battery is not compatible with the Bluetooth module. You can use a 500A Battery Monitor With Shunt (sold separately) to keep track of battery status.
6. How to recharge my LiFePO4 batteries?
Whether you prefer charging batteries via solar, a DC-DC battery charger, or an AC-DC charger, we highly recommend a solar charge controller/charger that is compatible with lithium iron phosphate batteries.
7. Is it compatible with Renogy ONE?
No. This battery is not compatible with Renogy ONE currently. You can use a 500A Battery Monitor With Shunt (sold separately) to keep track of battery status.
8. Note: Upgraded to G2 from Apr 30; not compatible with G1 version.
