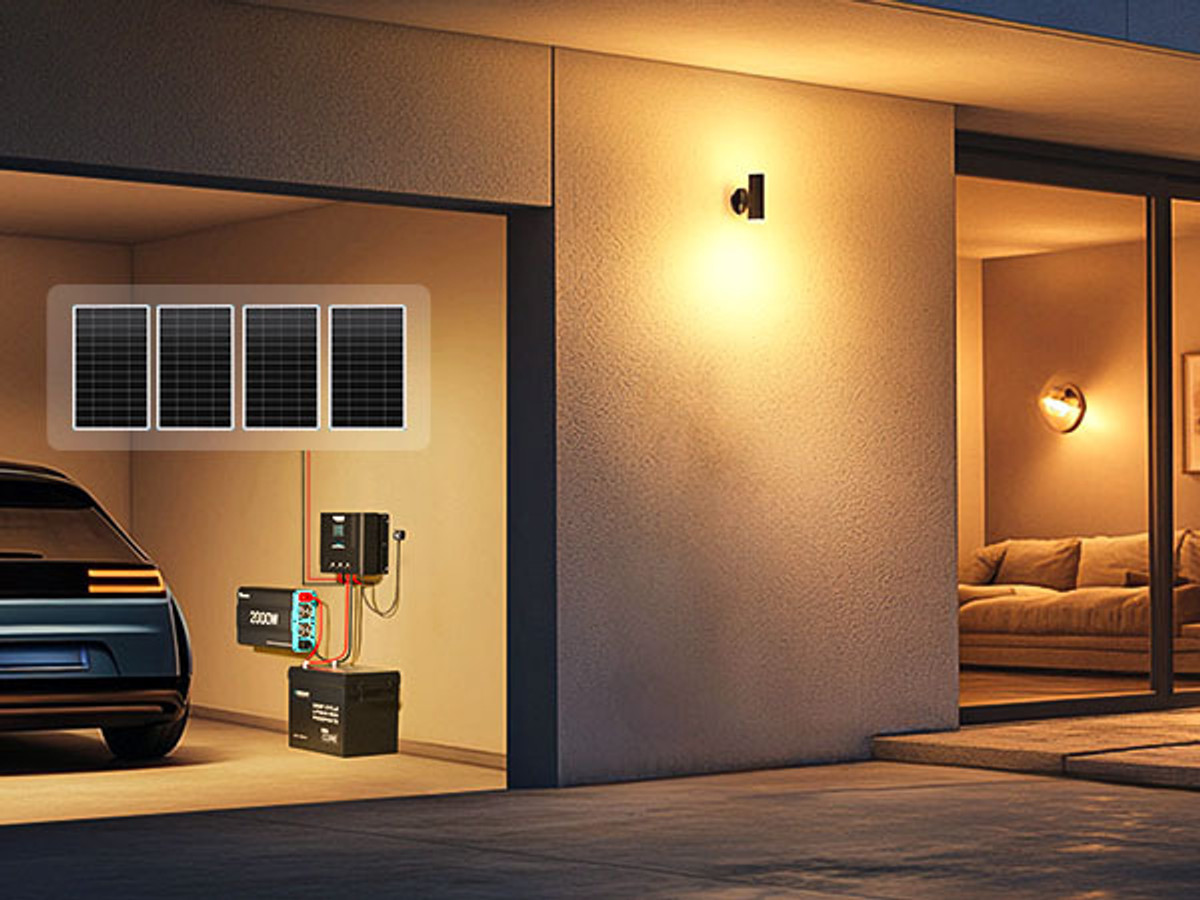

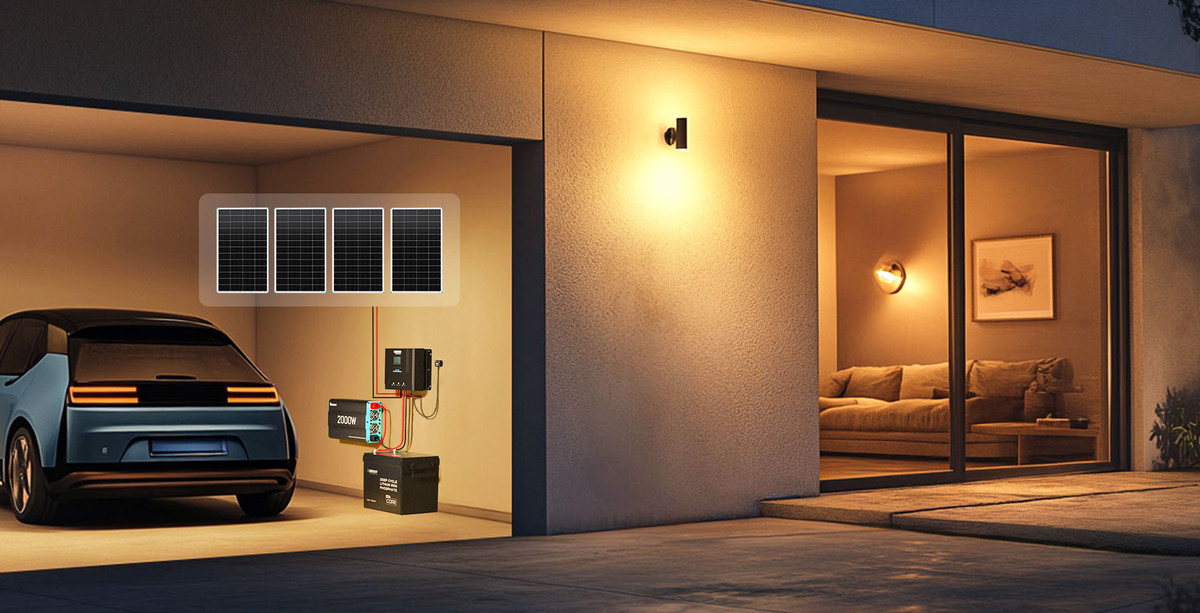

Renogy 780W 12V Complete Solar Kit for Cabins & Off-Grid Living
Power your cabin with 780W solar energy. Choose Core for efficiency or Pro for anti-shading and smarter winter performance. Reliable, expandable, and ready for off-grid living.
Core Complete Solar Kit
Pro Complete Solar Kit

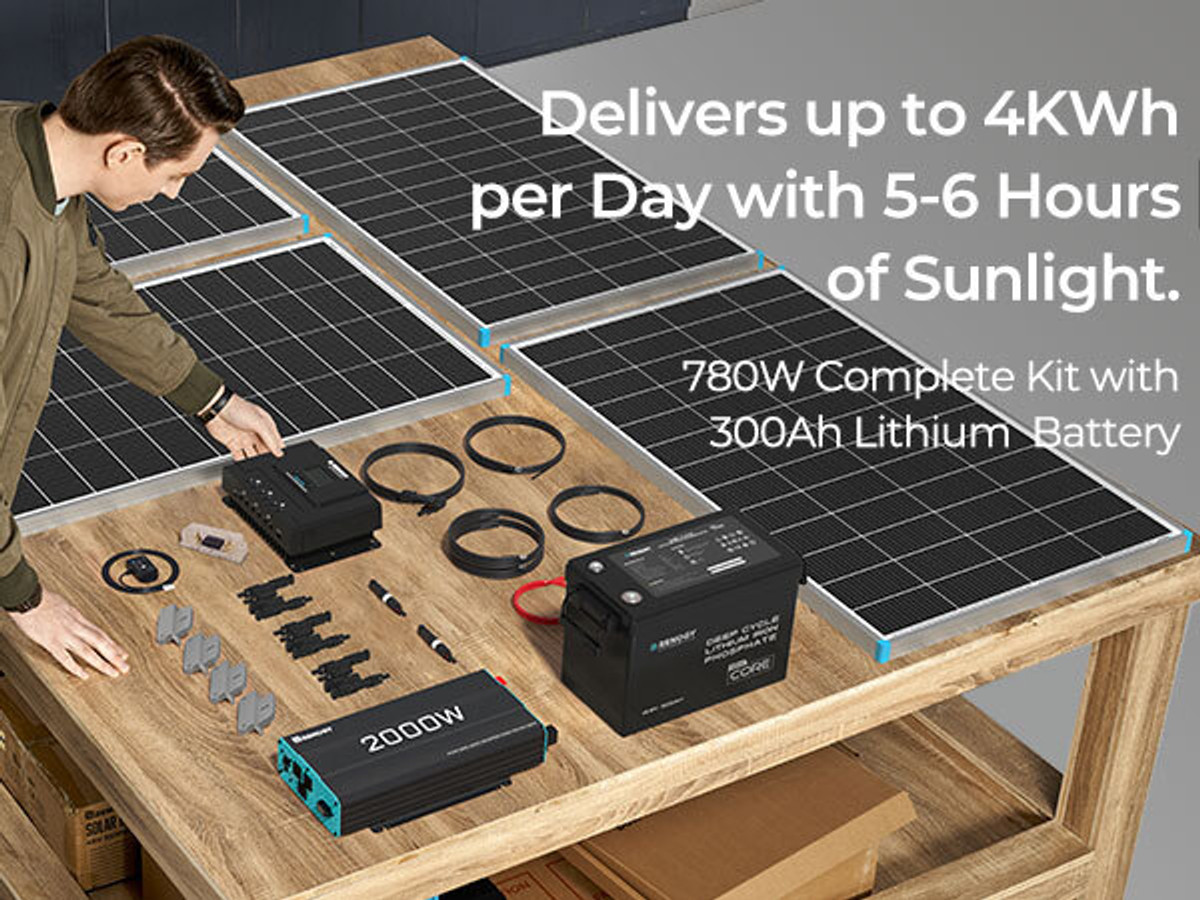

Everything You Need in One Complete Kit
N-Type 195W Solar Panel
60A MPPT Controller
300Ah LiFePO4 Battery
2000W Inverter
Renogy 16BB N-Type 195 Watt Solar Panel
Powerful, and sized just right.
Rover Lite 12V/ 24V/ 36V/ 48V 60A MPPT Solar Charge Controller
Robust 150V solar input guarded by low-temp protection.

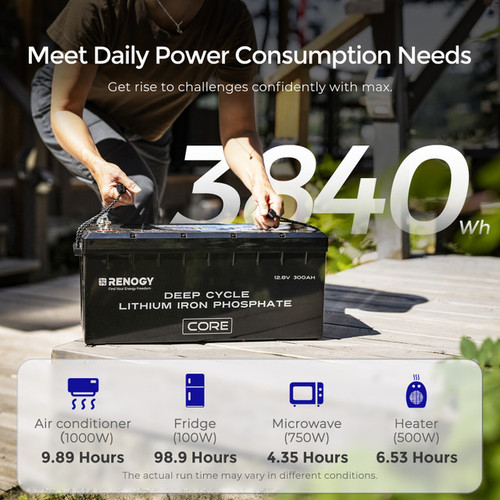

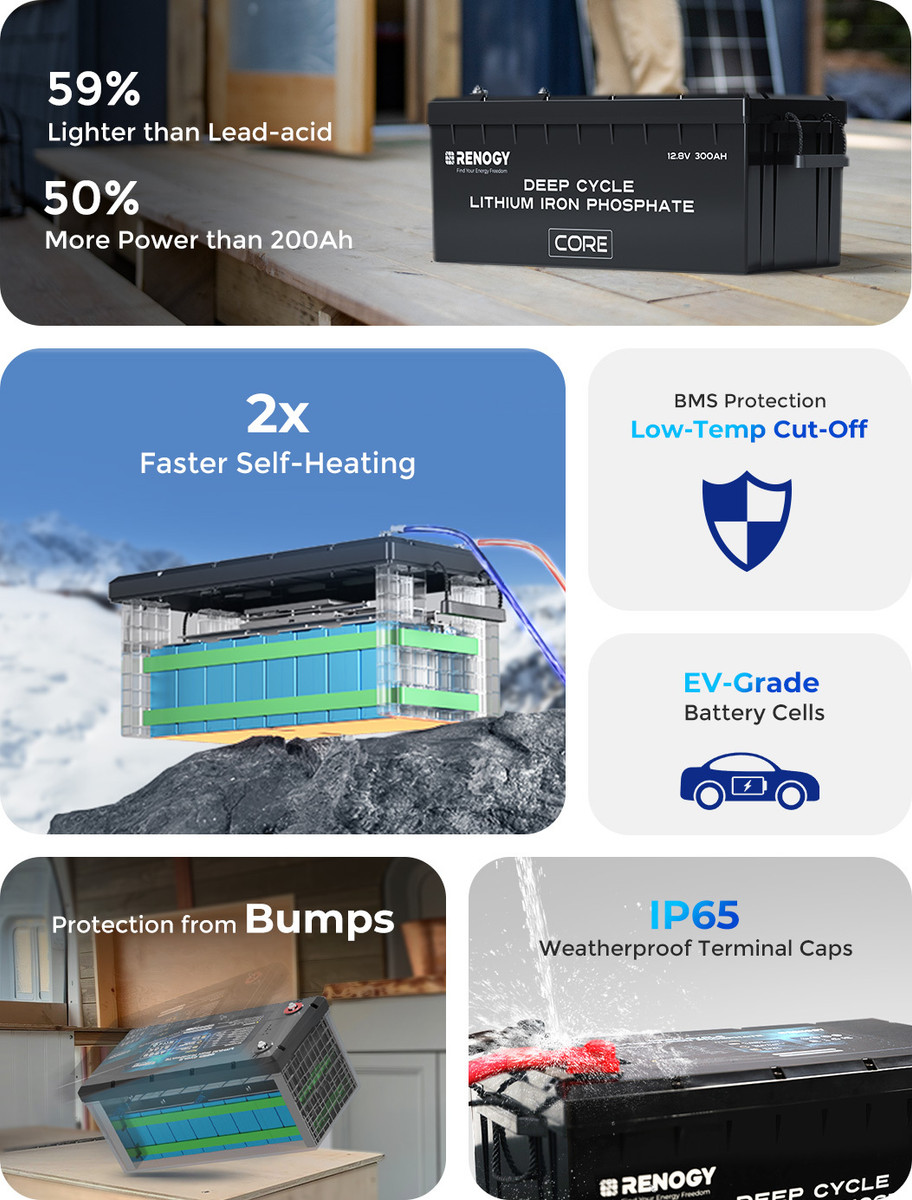

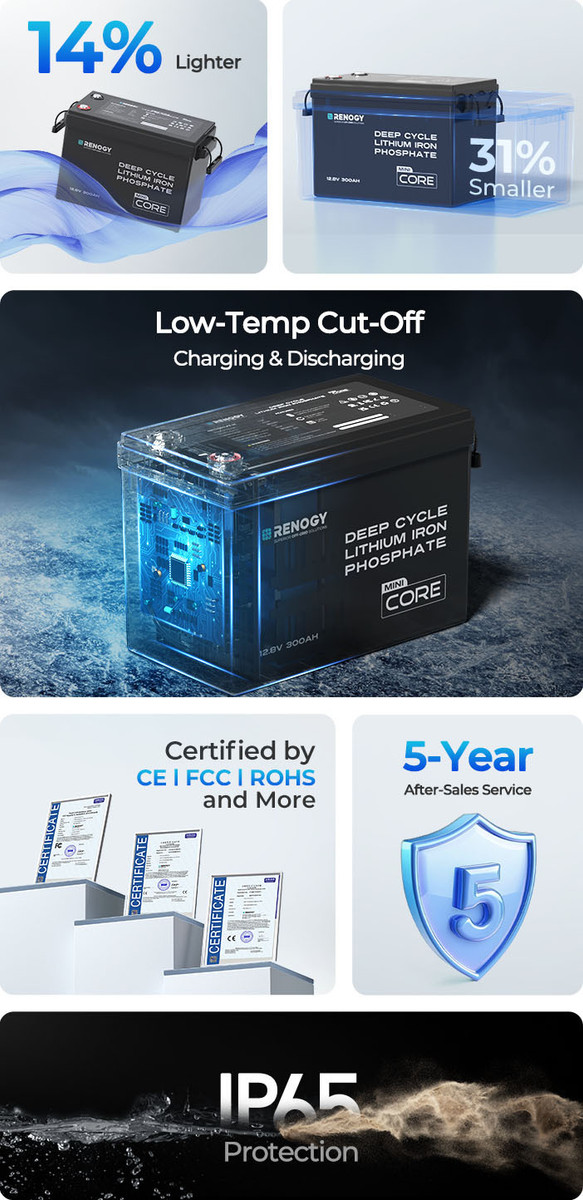

High Capacity. Light weight. Mini Sized.
You won't find a lighter 12V 300Ah Lithium Battery anywhere. With its ultralightweight, compact design, and low-temperature cut-off, this battery is perfect for both travel and home use.
Renogy 2000W 12V Pure Sine Wave Inverter
Unlocking the Magic of Technology & Unlimited Lifestyle Convenience
Big Power for Small Spaces
This panel delivers 25% cell efficiency and 1000Wh per day output while fitting into tight spaces for powerful performance anywhere.
Maximize Efficiency with Exceptional Value
This 60A charge controller delivers 99% MPPT tracking efficiency and 97% conversion efficiency, maximizing your solar power output. With high-performance features at an affordable price, it offers exceptional value for budget-conscious users.

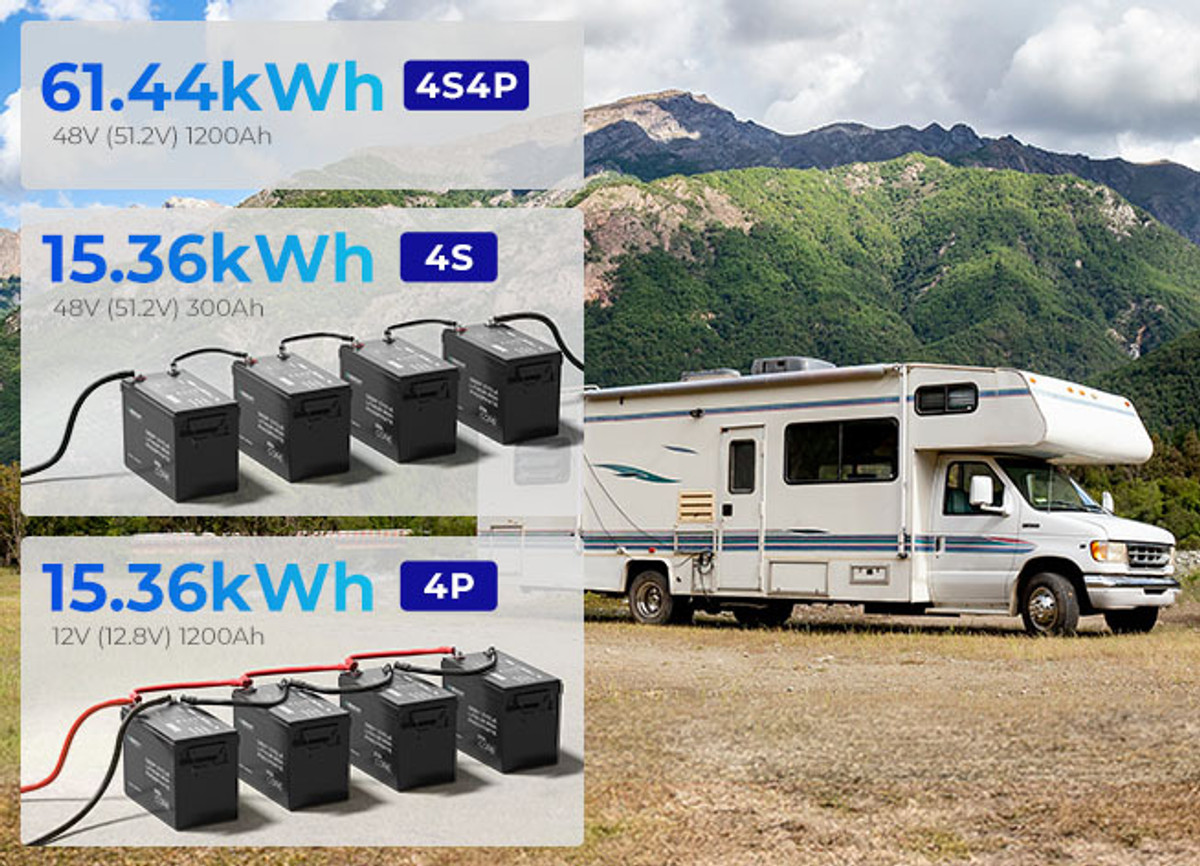

Up to 61.44kWh to Power any Adventure
Customize your power setup to fit your needs. Connect four batteries in series, four in parallel, or a mix of both to create a tailored power backup.
Customized Solution Suite for You

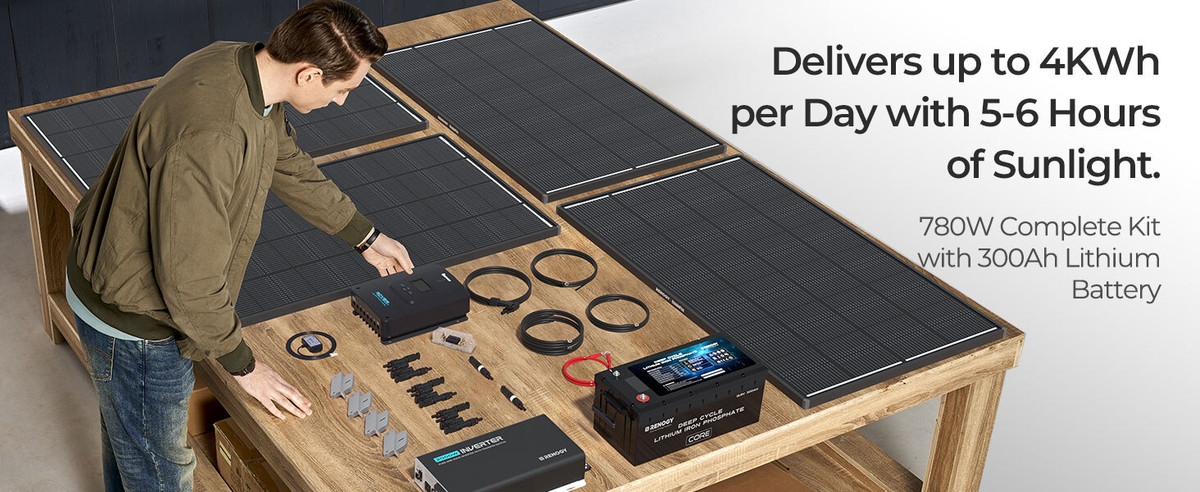

Everything You Need in One Complete Kit
ShadowFlux Solar Panel
60A MPPT Controller
300Ah LiFePO4 Battery
2000W Inverter
195W ShadowFlux Anti-shading N-Type Solar Panel
Revolutionize your solar setup with the market’s first N-Type solar panel, powered by advanced ShadowFlux anti-shading technology for stable, uninterrupted performance—day or night.
Rover Lite 12V/ 24V/ 36V/ 48V 60A MPPT Solar Charge Controller
Robust 150V solar input guarded by low-temp protection.

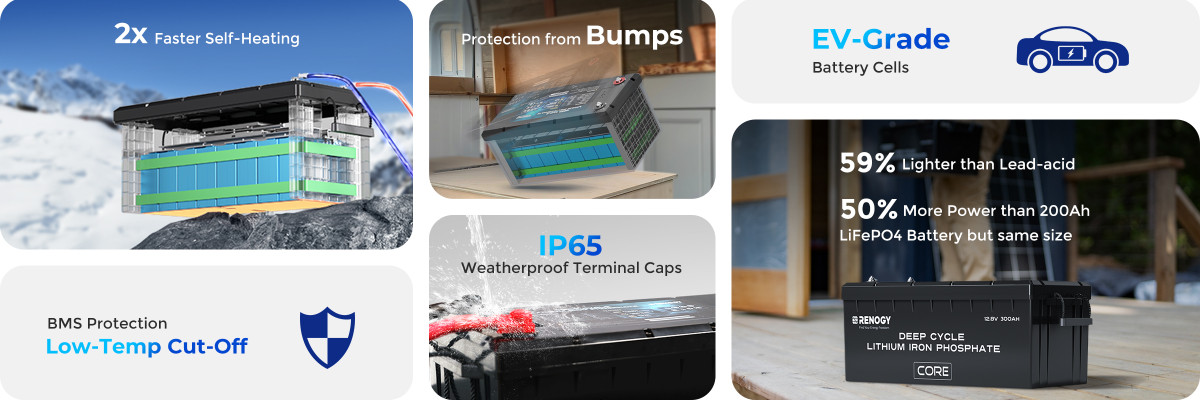

Core 12V 300Ah LiFePO4 Battery for All-Weather Living with self-heating.
2000W 12V Pure Sine Wave Inverter w/ UPS Transfer Switch
Transforming power with safety, efficiency, and adaptability.
Built to Perform, Even in the Shade
From dappled shadows to snow-covered days, ShadowFlux technology guarantees maximum power output, eliminating concerns over shading or debris.
Uncompromising modern convenience on the waves
You're just a step away from transforming your fishing boat into a haven of modern comfort. Renogy 12V 300Ah Core batteries can be connected in 4P4S—16 batteries in series and parallel—to power the devices on your boat for up to 5 days.

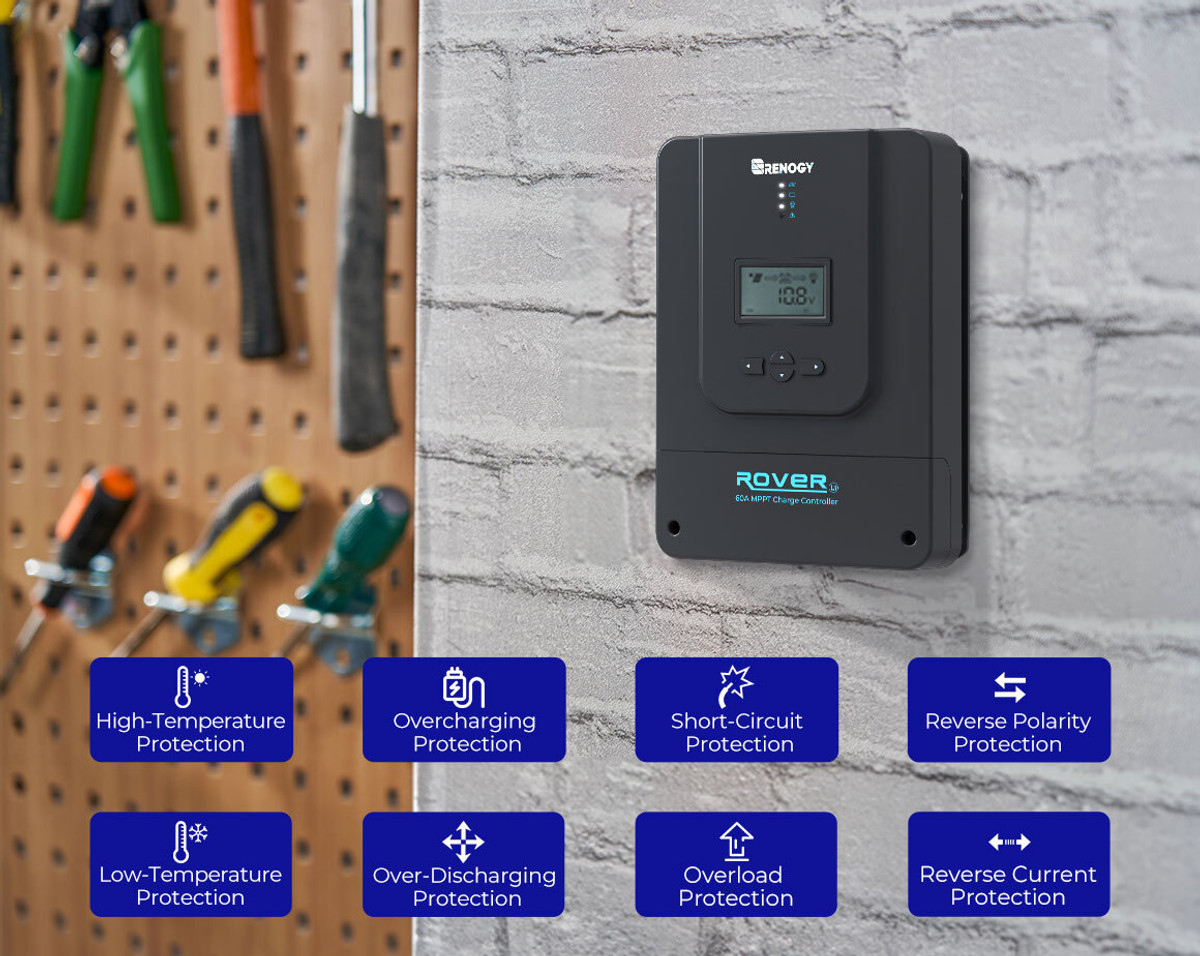

Comprehensive Internal and External Protection
The high-quality casing materials and the addition of a rubber strip make this charge controller more effective in preventing rust, corrosion, and contamination while safeguarding wiring for optimal functionality. Internally, the controller boasts multiple protection mechanisms, ensuring the safety and longevity of your system.
Tripping Issues Caused by Overloaded Appliances
Common causes of overloading include using multiple high-power appliances simultaneously, to avoid tripping issues caused by overloaded appliances, this may involve checking the capacity of your electrical panel and circuit breakers, as well as the power ratings of your appliances. It is essential to ensure that the wattage of all the appliances does not exceed 2000W.

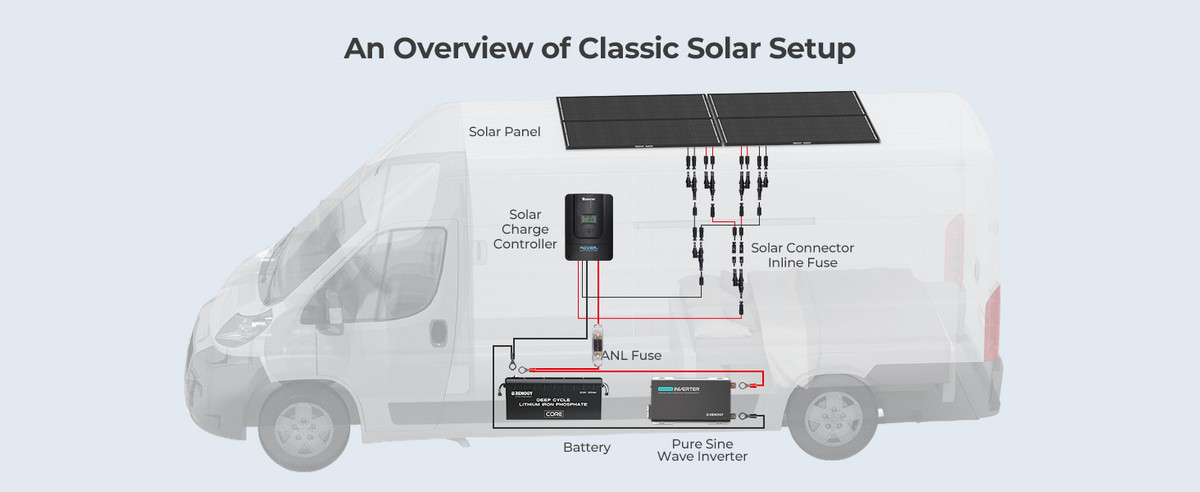

Flexible Wiring Options for Your Solar Power Setup
Power for When & Where You Need It Most
From weekend cabins to emergency prep, enjoy clean, quiet energy wherever life takes you.
Find the Right Solar Kit for Your Off-Grid Needs
NEW 12.8V 104Ah Super Slim Solid State Lithium Iron Phosphate Battery
Super-Slim Lithium Super-Slim Lithium Super-Slim Lithium Super-Slim Lithium Super-Slim Lithium
$1,299.99
$1,599.99
NEW 12.8V 104Ah Super Slim Solid State Lithium Iron Phosphate Battery
Super-Slim Lithium Super-Slim Lithium Super-Slim Lithium Super-Slim Lithium Super-Slim Lithium
$1,299.99
$1,599.99
Package Includes
Core（1*Mini LiFePO4 + 4*N-Type Panel）
Renogy 16BB N-Type 195 Watt Solar Panel
x 4
Rover Lite 12V/ 24V/ 36V/ 48V 60A MPPT Solar Charge Controller
x 1
12V 300Ah LiFePO4 Battery
x 1
2000W Inverter
x 1
Bluetooth Monitor
x 1

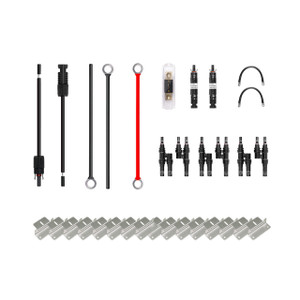

All Required Cables & Mounting Accessories
x 1
Package Includes
Pro（1*Heated LiFePO4 + 4*Shadowflux Panel）
Renogy 195W ShadowFlux Anti-shading N-Type Solar Panel
x 4
Renogy Rover 60Amp MPPT Solar Charge Controller 12V/24V/36V/48V
x 1
12V 300Ah LiFePO4 Battery with self-heating function
x 1
2000W Inverter
x 1
Bluetooth Monitor
x 1
All Required Cables & Mounting Accessories
x 1
Solar Panel
Cell Type
N-Type Cell
Cell Efficiency
25%
Qty
4
Dimensions
Core：1262x764x30mm/49.7x30.1x1.2in；
Pro：1262*764*30mm/49.69*30.08*1.18in
Pro：1262*764*30mm/49.69*30.08*1.18in
Weight
Core：10.6kg/23.4lbs；
Pro：10.81kg/23.83lbs
Pro：10.81kg/23.83lbs
Max Power at STC
195W
Open Circuit Voltage
Core：37.44V；
36.5 V：10.81kg/23.83lbs
36.5 V：10.81kg/23.83lbs
Anti-shading Tech
Core：Bypass Diodes；
Pro：Cell-level Shadow Management Tech
Pro：Cell-level Shadow Management Tech
Protection Rating
Core：IP65；
Pro：IP67
Pro：IP67
Warranty
Core：10 Years；
Pro：5 Years
Pro：5 Years
Battery
Battery Type
Lithium Iron Phosphate
Capacity
300Ah
Rated Power
3600Wh
Cycle Life
Core：5000 Cycles (80% DOD)；
Pro：5000 Cycles (80% DOD, 80% EOL)
Pro：5000 Cycles (80% DOD, 80% EOL)
Discharge Temperature Range
Core：-4°F to 149°F (-20°C to 65°C)；
Pro：-4°F~140°F (-20°C~60°C)
Pro：-4°F~140°F (-20°C~60°C)
Storage Temperature Range
Core：-4°F to 140°F (-20°C to 60°C)；
Pro：-13°F~149°F (-25C~65°C)
Pro：-13°F~149°F (-25C~65°C)
Self-Heating
Core：No；
Pro：Yes
Pro：Yes
Dimensions
Core：15.12 x 7.64 x 9.96 in / 384 x 194 x 253 mm；
Pro：20.55 x 9.45 x 8.62 inch (522 x 240 x 219 mm)
Pro：20.55 x 9.45 x 8.62 inch (522 x 240 x 219 mm)
Weight
Core：55.1 lbs / 25.0 kg；
Pro：69.0 lbs. (31.3 kg)
Pro：69.0 lbs. (31.3 kg)
Warranty
5 Years
Protection Rating
Core：IP65；
Pro：IP67
Pro：IP67
Charge Controller
Model
Core：RCC60RVRE-CA；
Pro：RNG-CTRL-RVR60-CA
Pro：RNG-CTRL-RVR60-CA
Type
MPPT
Max PV Input Voltage
Core：150VDC；
Pro：140VDC
Pro：140VDC
Max Charging Current
60A
System Voltage Compatibility
12V / 24V / 36V / 48V
Bluetooth Monitoring
Core：RCM-BT2-CA；
Pro：RCM-BT1-CA;
（Bluetooth Monitoring all include）
Pro：RCM-BT1-CA;
（Bluetooth Monitoring all include）
Inverter
Power Rating
2000W Pure Sine Wave
Surge Power
4000W
Output Voltage
Core：120V；
Pro：120V AC±3%
Pro：120V AC±3%
Input Voltage
12V
Output
120V AC
AC Output Sockets
Core：3+1 Terminal Block；
Pro：2 x AC Sockets + Terminal Block
Pro：2 x AC Sockets + Terminal Block
Dimensions
Core：17.8 x 8.6 x 4 in；
Pro：18.3 × 9.9 × 3.8 in / 468.3 × 250.4 × 95.3 mm
Pro：18.3 × 9.9 × 3.8 in / 468.3 × 250.4 × 95.3 mm
Warranty
1 Year
System Performance
Total PV Input
780W
Total Battery Storage
3600Wh

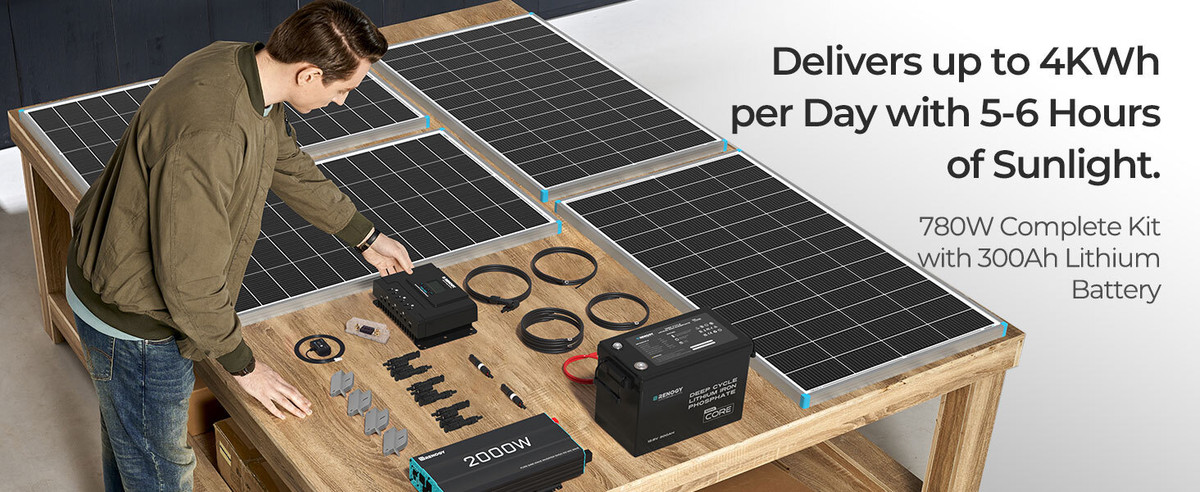

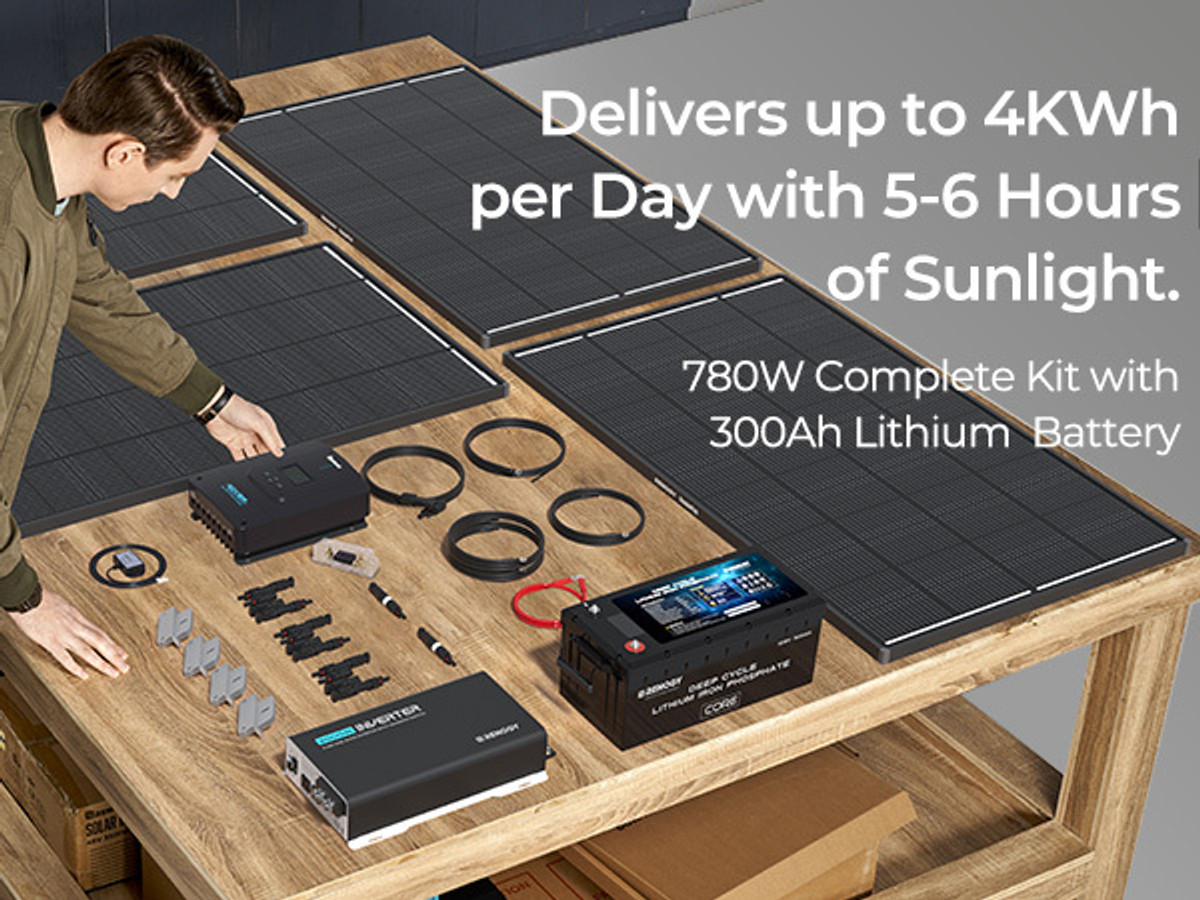

Daily Output Estimation
4000Wh（with 5-6 Hours of Sunlight）
Ideal Use Cases
Off-grid home/Cabin, Power Backup
Frequently Asked Questions
What appliances can the 780W solar cabin kit power?
The 780W kit can power lights, a mini fridge, laptops, routers, fans, and even power tools, depending on daily sun exposure and usage patterns.
How does the Pro kit perform in cold or shaded conditions?
The Pro version includes a self-heating LiFePO4 battery and ShadowFlux panels that maximise performance during winter or partial shading, ensuring stable off-grid power.
Is this solar power panel kit suitable for motorhomes or RV campers?
Yes, while designed for off-grid cabins, this solar power panel kit is fully compatible with motorhomes and RV campers, offering ample energy for extended road trips.
What’s the difference between the Core Kit and the Pro Kit?
The Core Kit includes standard 195W N-Type panels and a compact LiFePO4 battery, while the Pro Kit upgrades to ShadowFlux anti-shading panels, a self-heating battery, and a smart inverter with UPS.
