Take a Closer Look
Feel the Lithium Difference
Drop the weight, not your score. 200+ pounds lighter means effortless glides, precise maneuvers, and lasting power in your buggies to enjoy every round longer.
Save Energy for Your Next Play
The last thing you want is a fully drained battery waiting in your golf cart when you leave for days or months. The smart Auto-Off feature kicks in after 5 days of inactivity, ensuring your battery stays healthy and ready even if you forget to turn it off manually.

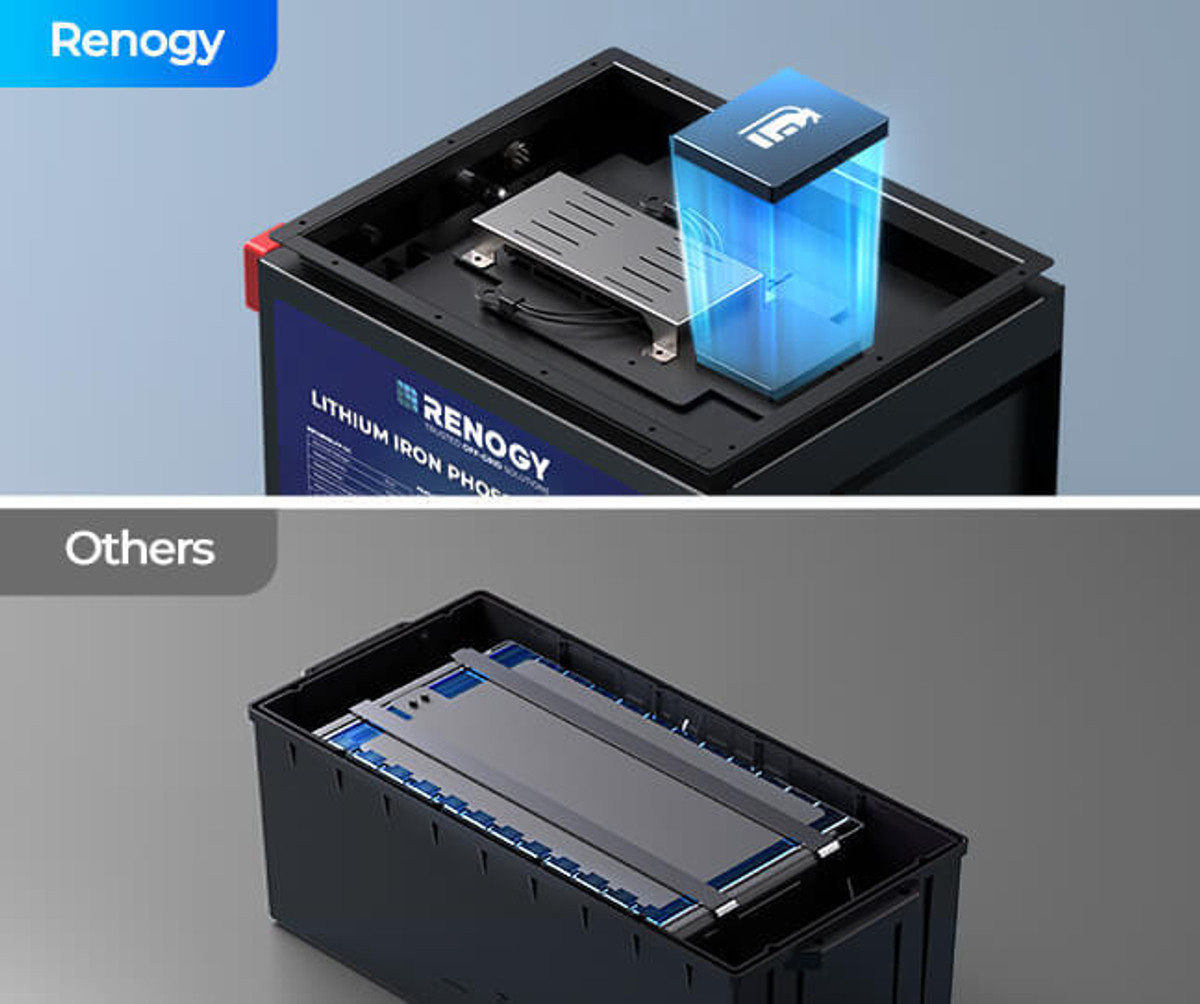

Auto Extinguisher
Valve Vent

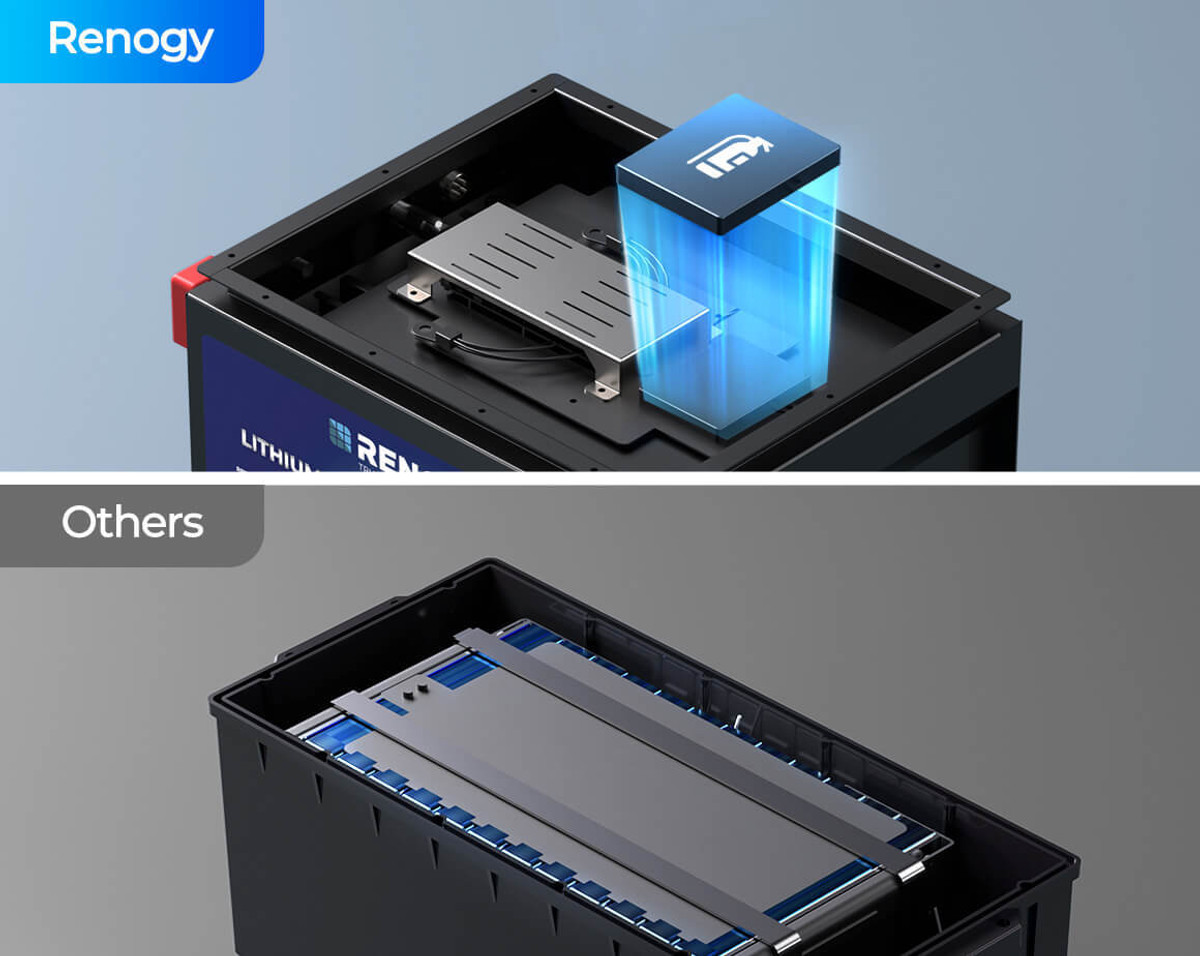

Burn Risks? Not in This Battery
When temperatures spike to 338°F / 170°C, the FireFade™ fire suppression system activates– like a built-in firefighter that smothers flames in seconds. Game on, worry off.

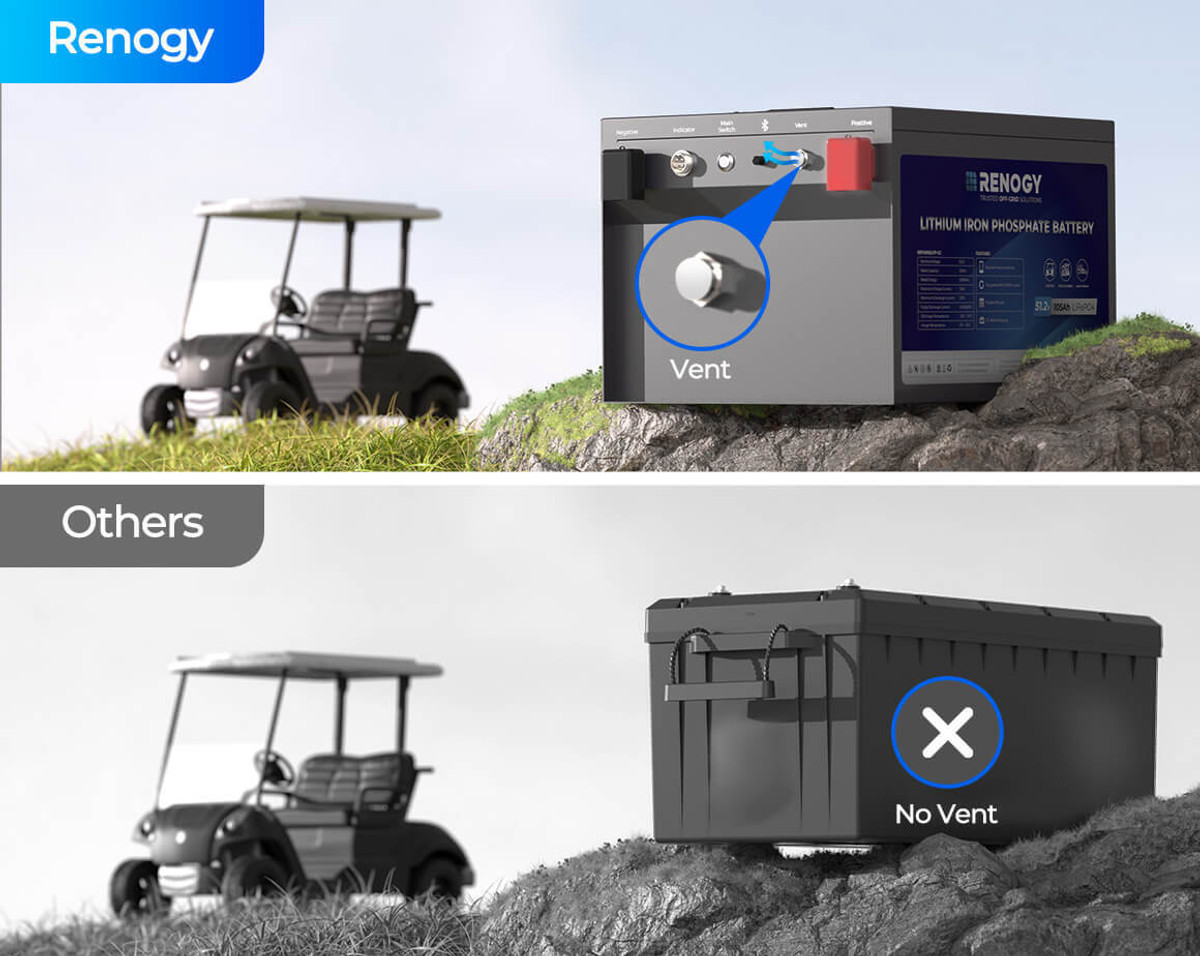

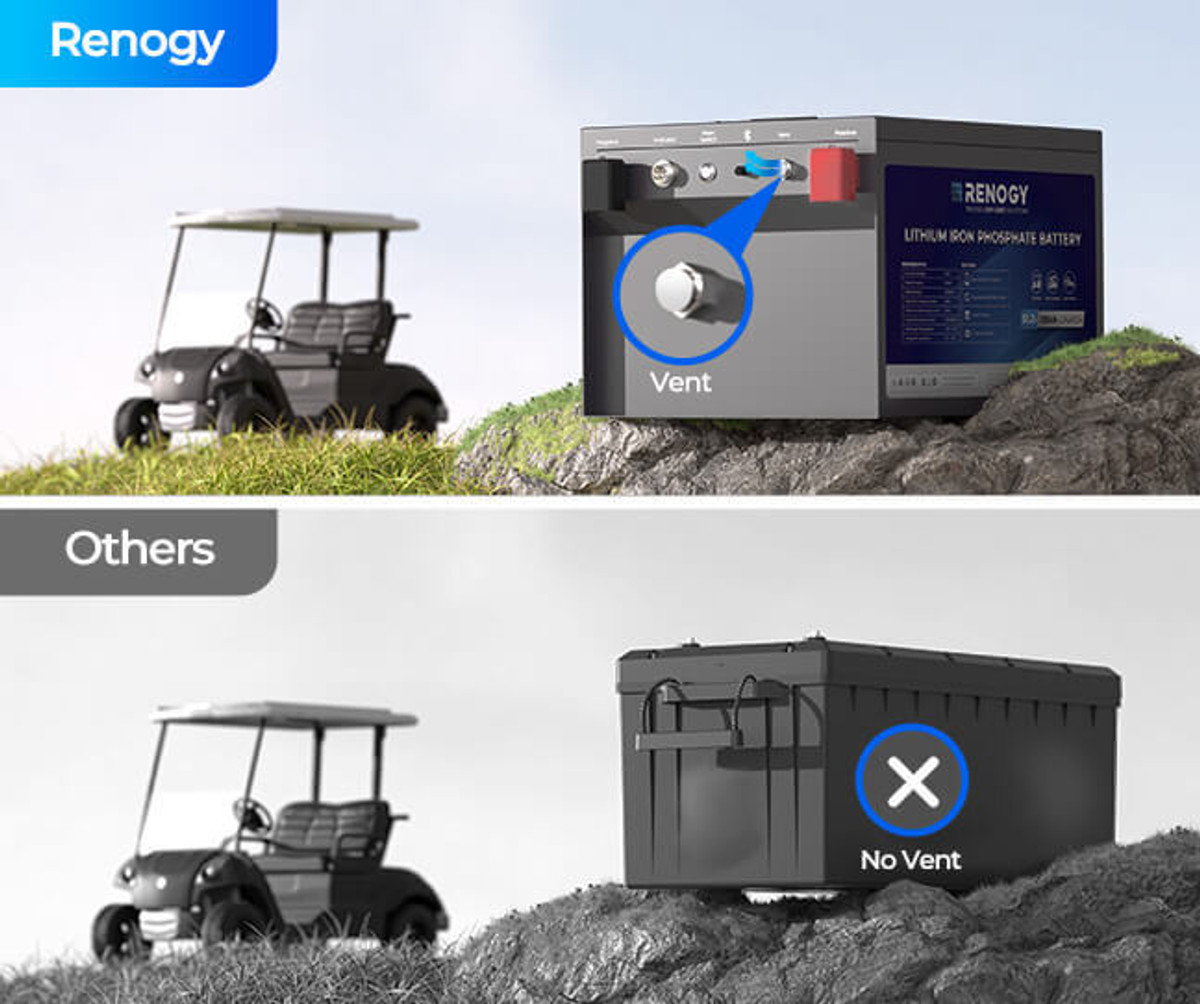

Let Go of the Pressure
The internal pressure will build up when the battery operates overtime. The smart valve automatically releases pressure before it even thinks about causing trouble and reducing the lifespan of your golf cart battery.
Easy to Install
What' s in the Box
Install Upon Delivery
With full accessories that are above the average, you can make the switch the minute you receive the package and enjoy a smoother, faster driving experience brought by the Renogy lithium power.

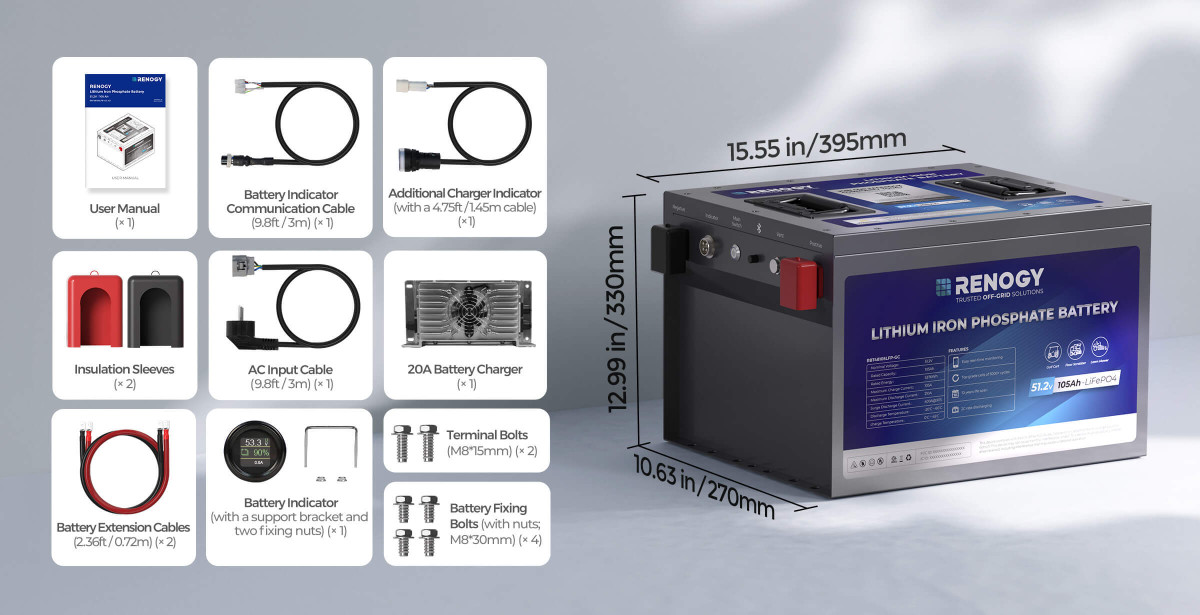

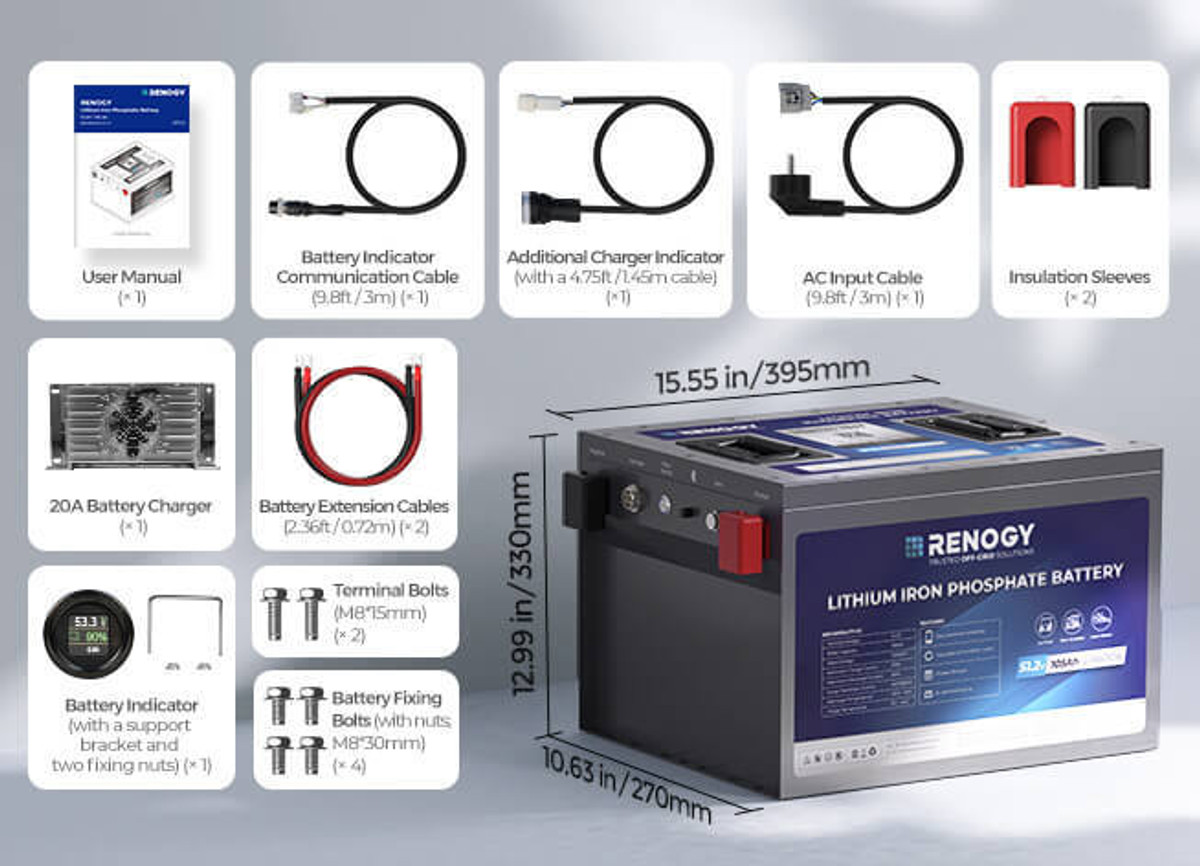

What's in the Box
From the 20A AC-DC Battery Charger to the Battery Indicator Communication Cable, we've had you covered for a seamless upgrade from the lead-acid to the lithium battery.

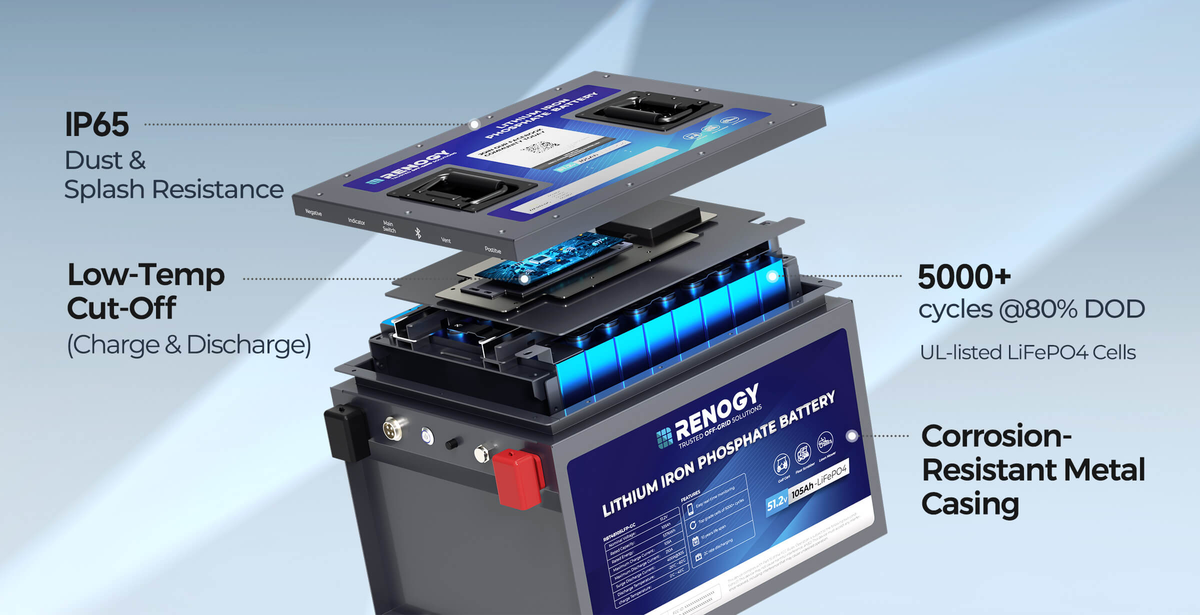

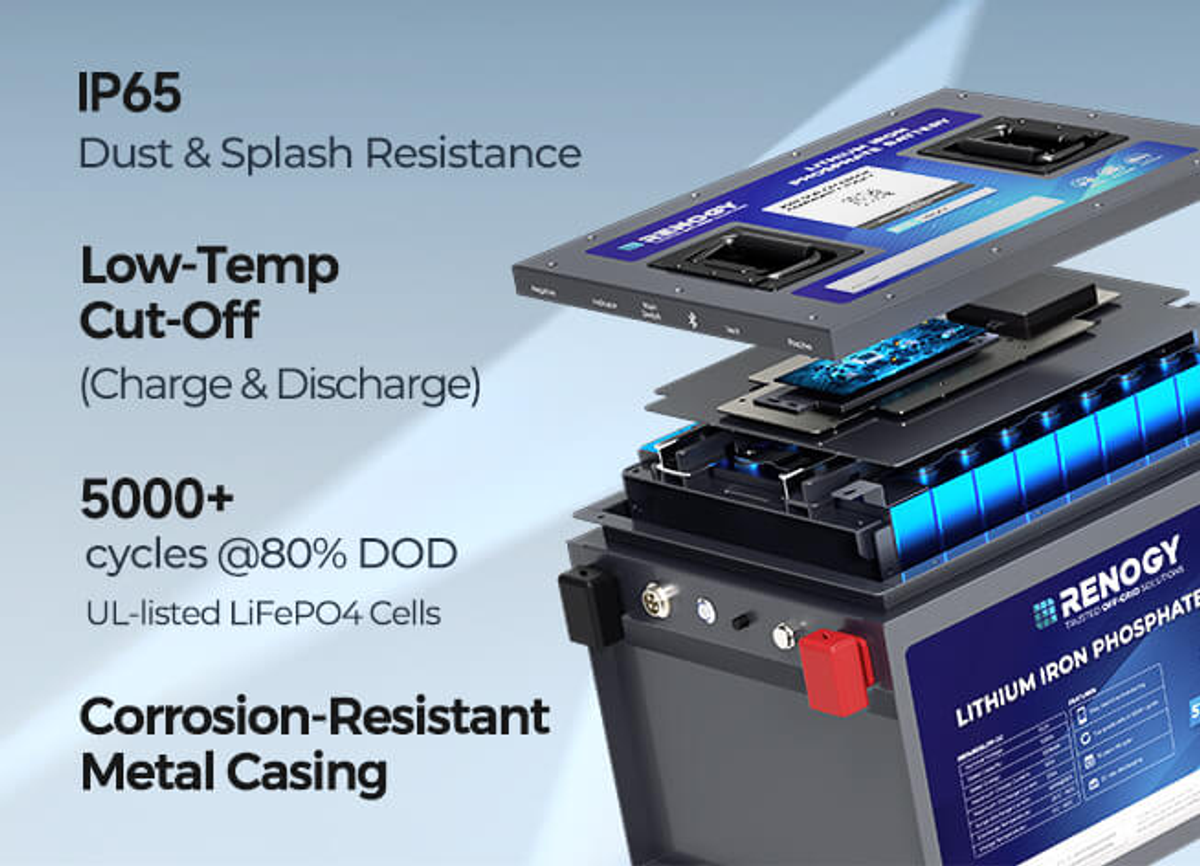

Performance from the Inside Out
The corrosion-resistant metal casing keeps dirt and water out, while the 220A BMS is always on duty: balancing cells, preventing overloads, monitoring temperatures, and keeping your cart rolling smoothly.

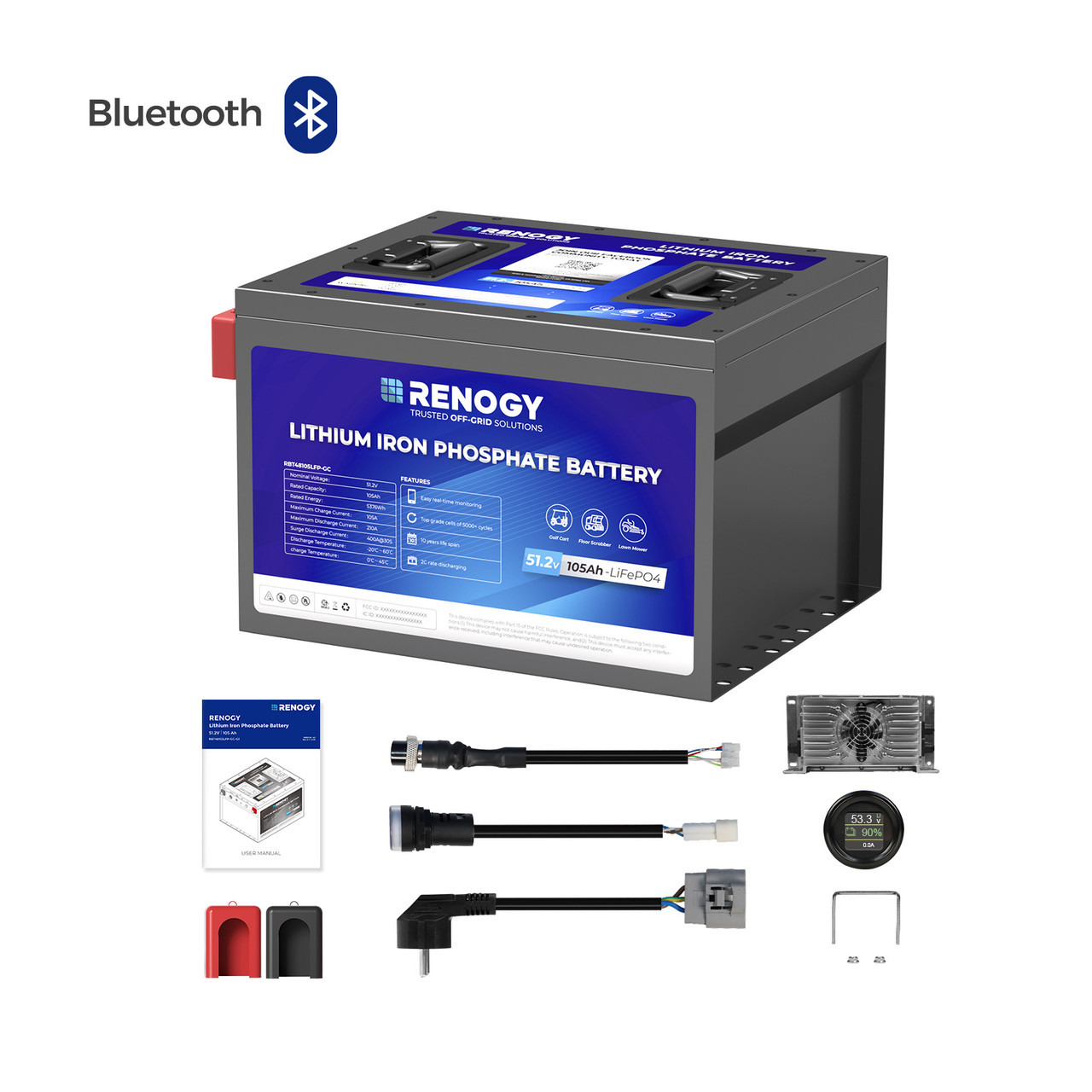

Package Includes
"RENOGY 48V 105Ah Golf Cart Lithium Iron Phosphate Battery"
x 1
Insulation Sleeves
x 2
Terminal Bolts (M8*15mm)
x 2
Battery Fixing Bolts (with nuts; M8*30mm)
x 4
Battery Indicator (with a support bracket and two fixing nuts)
x 1
Battery Indicator Communication Cable (9.8ft. / 3m)
x 1
Battery Extension Cables (2.36ft. / 0.72m)
x 2
Battery Charger
x 1
AC Input Cable (9.8ft. / 3m)
x 1
Additional Charger Indicator (with a 4.75ft. / 1.45m cable)
x 1
User Manual
x 1
Renogy 48V 105Ah Deep Cycle Lithium Iron Phosphate Battery
Electrical Specifications
Rated Capacity (0.5C, 25°C)
105Ah
Nominal Voltage
51.2V
Energy
5376Wh
Cycle Life (0.5C/1C, 25℃)
5000 Cycles (80% DOD, 80% EOL)
Charging Parameters
Voltage Range
40V to 58.4V
Recommended Charge Current
15A to 105A
Discharging Parameters
Maximum Continuous Discharge Current
210A
Peak Discharge Current
400A@30s
Temperature Parameters
Operation Temperature Range
Charge: 32°F to 113°F (0°C to 45°C)
Operation Temperature Range
Discharge: -4°F to 140°F (-20°C to 60°C)
Storage Temperature Range
41°F to 113°F (-5°C to 45°C)
Operation Relative Humidity
10% to 95%
Mechanical Specifications
Dimension (L x W x H)
15.55 × 12.99 × 10.63 in / 395 × 330 × 270 mm
Weight
42.44 lbs / 19.25 kg
Terminal Bolt Size
M8 × 15 mm
Protection Rating
IP65
Warranty
Warranty
5-year material warranty
Certifications
UN38.3, MSDS, FCC ID, andIC ID
YES
Battery Charger
Nominal Charge Voltage
51.2V
Maximum Charge Voltage
58.4V
Maximum Continuous Charge Current
20A
AC Input Voltage Range
90V to 264V
Operating Temperature
-40°F to 122°F (-40°C to 50°C)
IP Rating
IP66
Operation Relative Humidity
10% to 95%
Dimension (L x W x H)
11.1 × 5.75 × 3.24 in / 282 × 146 × 82.4 mm
Frequently Asked Questions
1. What kind of golf carts are compatible with this 48V 105Ah Golf Cart Lithium Battery?
Firstly, make sure the battery system of your buggy is 48V. Then, you can refer to the motor of your golf cart. This 48V 105Ah Golf Cart Lithium Battery is recommended to work with golf cart motors rated from 3.5-7.5kW.
2. Does this battery have BMS protection?
Yes. It has a built-in 220A battery management system (BMS) that includes protection features such as overcharge, over-discharge, over-current, and short-circuit protection, and supports automatic disconnection at low/high temperatures to ensure safety and durability.
3. How long does this golf cart battery last?
A full charge provides up to 52 miles of range for your golf cart. Note: Actual range may vary depending on terrain, vehicle type, driving speed, and other conditions.
4. Can I pair a Bluetooth Module for this battery to monitor the battery status on the phone?
Yes. This battery integrates a Bluetooth Module. You can add your battery on the Renogy app to keep track of battery status in real time. Meanwhile, you can also use the included Battery Indicator to check basic information such as current, voltage, etc.
5. How long does it take to charge this LiFePO4?
It is recommended to use the included 20A lithium battery charger for lithium batteries. It will take approximately 6 hours to fully charge this 48V 105Ah LFP golf cart battery.
6. What is FireFade technology?
FireFade is an integrated fire suppression system in Renogy’s latest 48V 105Ah golf cart lithium iron phosphate battery. When internal temperatures reach 338°F / 170°C, the FireFade extinguisher automatically activates, releasing suppressant to lower temperatures and prevent fire spread.
7. What is the purpose of the vent valve on this golf cart battery?
During prolonged use in varying atmospheric conditions, internal pressure can build up within the battery, affecting performance and lifespan. Renogy’s 48V 105Ah golf cart LFP battery features a one-way vent valve that actively releases accumulated pressure, ensuring the battery operates safely and maintains long-term health.
