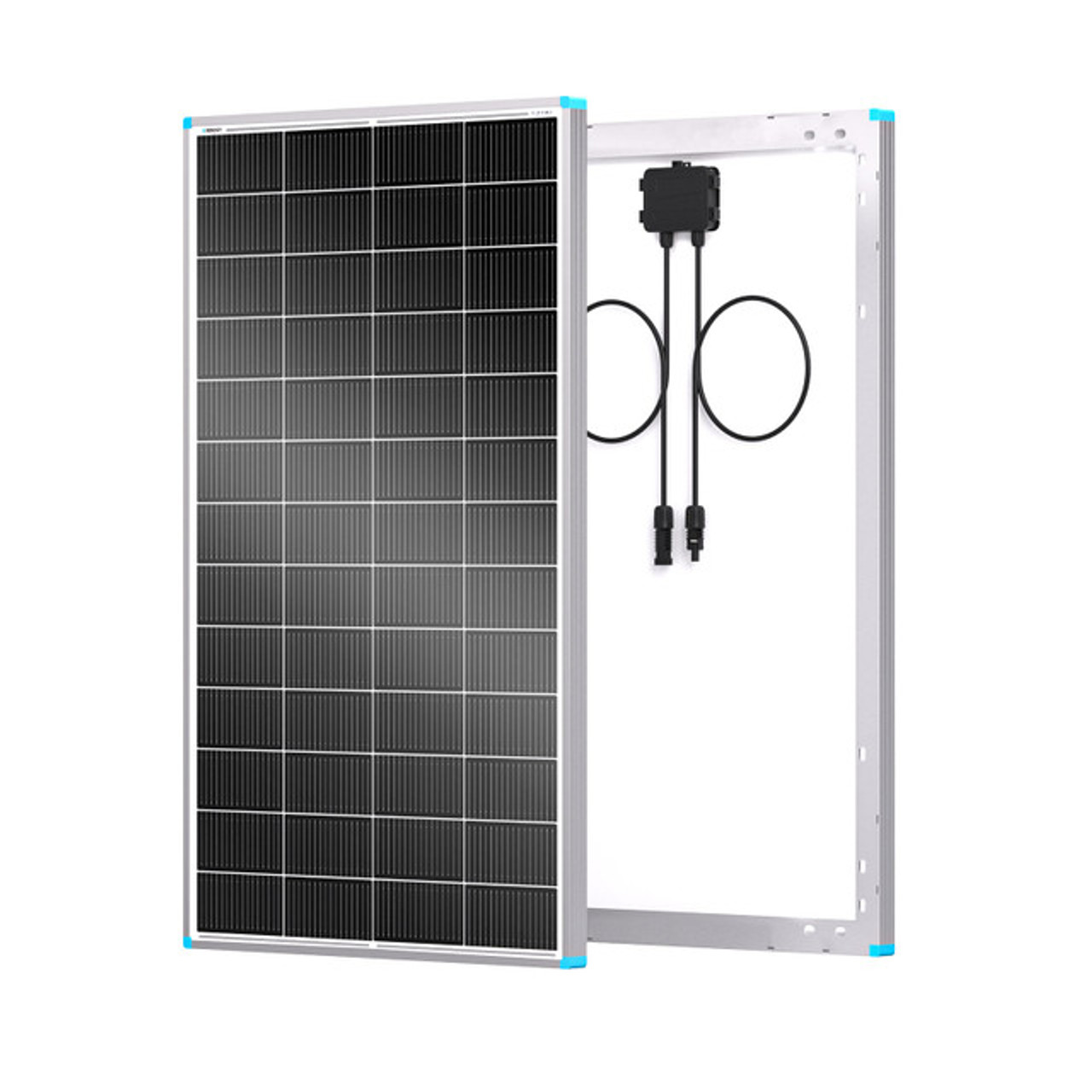

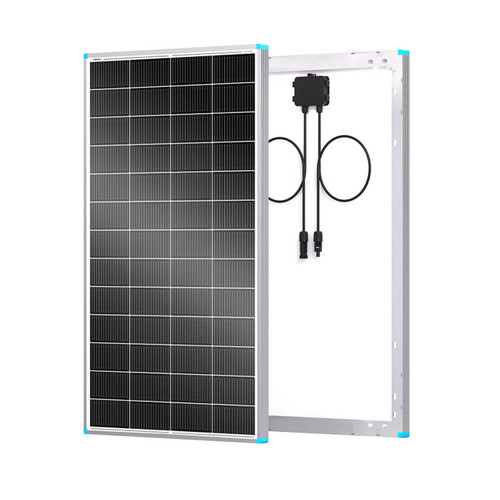

Renogy 16BB N-Type 195 Watt 24V Solar Panel
Powerful, and sized just right.
Designed to Fit Your Class B Van Roof
7.5% smaller and 11.7% lighter than previous 200W PERC panels, maximizing space for that perfect edge-to-edge fit.
Big Power for Small Spaces
This panel delivers 25% cell efficiency and 1000Wh per day output while fitting into tight spaces for powerful performance anywhere.
Unrivaled Power in Extreme Environments
Advanced N-Type solar cells ensure consistent power output even inhigh-temperature environments.
Tough Enough for the Long Haul
EVA film and N-Type cells create a solar panel that holds up through years of travel. Whether parked under the sun or pushing through storms, it stays strong and reliable.
Wind & Snow Resistance
Built to endure 2400Pa wind and 5400Pa snow loads with ease.
Rainproof & Worry-Free
IP65 junction box and IP67 connectors ensure all-weather protection.
Strong Enough for the Roughest Roads
Crafted with a durable aluminum alloy frame, it withstands bumps, vibrations, and tough road conditions for long-lasting durability.
Installs Fast and Travels Easy
A durable frame with PA66 GB30 reinforced corners ensures safer handling and easier setup.
Find the Right Solar Panel for You
Scroll down to explore detailed comparisons and find the perfect fit.
Renogy 16BB N-Type 100 Watt Solar Panel
CA$89.99
Max Power at STC
100W
Open Circuit Voltage
22.79V
Cell Type
N-Type Cell
Cell Efficiency
25%
Busbar
16 Busbar
Anti-shading Tech
Bypass Diodes
Dimensions
865x578x30mm/34.1x22.8x1.2in
Weight
5.9kg/13.0lbs
Protection Rating
IP65
Warranty
10 Year
Renogy 16BB N-Type 195 Watt Solar Panel
CA$239.99
Max Power at STC
195W
Open Circuit Voltage
36.5V
Cell Type
N-Type Cell
Cell Efficiency
25%
Busbar
16 Busbar
Anti-shading Tech
Cell-level Shadow Management Tech
Dimensions
1262*764*30mm /49.69*30.08*1.18in
Weight
10.81kg/23.83lb
Protection Rating
IP65
Warranty
5 Year
Renogy 195W ShadowFlux Anti-shading N-Type Solar Panel
CA$329.99
Max Power at STC
195W
Open Circuit Voltage
37.44V
Cell Type
N-Type Cell
Cell Efficiency
25%
Busbar
16 Busbar
Anti-shading Tech
Bypass Diodes
Dimensions
1262x764x30mm/49.7x30.1x1.2in
Weight
10.6kg/23.4lbs
Protection Rating
IP65
Warranty
10 Year
Versatile Solar Power for Home & Travel
Delivering high efficiency in a compact design.
Package Includes
Renogy 16BB N-Type 195 Watt Solar Panel
x 1
Specifications
Max Power at STC
195W
Open Circuit Voltage
37.44V
Short Circuit Current
6.68A
Optimum Operating Voltage
31.03V
Optimum Operating Current
6.28A
Maximum System Voltage
600VDC
Maximum Series Fuse Rating
15A
Module Efficiency
20.2%
Operating Temperature
-40°F~185°F / -40℃~85℃
Dimensions
1262x764x30mm/49.7x30.1x1.2in
Weight
10.6kg/23.4lbs
Warranty
Material and workmanship warranty
10 Years
Performance Warranty
5 year 95% output warranty
10 year 90% output warranty
25 year 80% output warranty
10 year 90% output warranty
25 year 80% output warranty
Certifications
CE
Yes
Manufactured in a Certified ISO 9001 Facility
Yes
Frequently Asked Questions
What do I need to complete my off-grid solar power system ?
A solar panel has to be connected a charge controller to regulate current, and a battery to store the electrical power. You will need adapter kit cables to wire the solar panel(s) and charge controller, and tray cables connecting the charge controller to a deep-cycle battery.
What does off-grid and on-grid mean ?
On-grid simply means solar power equipment (array or solar panel) is connected to the electrical grid, while off-grid refers to systems that are not connected to the grid and therefore store the generated power for later use. Off-grid systems are not affected by grid blackouts.
Why is my solar panel under producing ?
Solar panel performance may be hindered for a number of reasons. Most commonly environmental conditions such as indirect sunlight, temperature rise, cloudy sky, and dirt and stain build up on the top glass will cause a reduced power output.
How should I connect solar panels in my electrical circuit (series vs parallel)
Solar panels can be connected in series or in parallel to meet your electrical circuit size and power demand. Connecting solar panels in series will have the effect of adding up their operating voltage output, while system current output will be the same as that for one panel. While, connecting solar panels in parallel will have a different effect; individual panels operating current output will add up to be the system output current, while system output voltage will be the same as the output voltage of one solar panel. To meet the optimum power output and system rating for your power system, you can use both parallel and series connections.
How many solar panels do I need ?
The best way to gauge how many solar panels you need, is to understand and define the power load needed from this system. Power is measured in Watts, and capacity is commonly measured in Watt-hours (multiplying power output in watts by the required number of hours of operation multiplied by a safety factor of 1.5-2). Therefore, it is wise to size your battery bank first based on the minimum required capacity, and accordingly decide how many panels or how much power input is needed.
What is the meaning of 24V in the product title，Why is this value different from the voltage of the solar panel？
When you open the product page, you will see a title like "xxx Watt 24 Volt Monocrystalline Solar Panel". The "24V" here does not refer to the voltage of this solar panel (VOC or VMP), but to the fact that one xxxW solar panel is suitable for 24V system (i.e. a 24V battery)，no need for additional series and parallel connections.Therefore, these are two completely different values with different meanings.
How to choose a controller suitable for my Renogy 16BB N-Type 200 Watt 24V Solar Panel?
To choose a suitable controller for your Renogy 16BB N-Type 200 Watt 24V Solar Panel, it's important to consider the panel's optimized voltage designed for efficient energy conversion, with an open-circuit voltage (Voc) of 37.44V; for single or parallel connections, the controller's maximum PV input voltage should be at least 40V, while for series connections, the controller's maximum PV input voltage should be no less than 40V multiplied by the number of panels connected in series, ensuring optimal performance and compatibility with your solar panel system.
