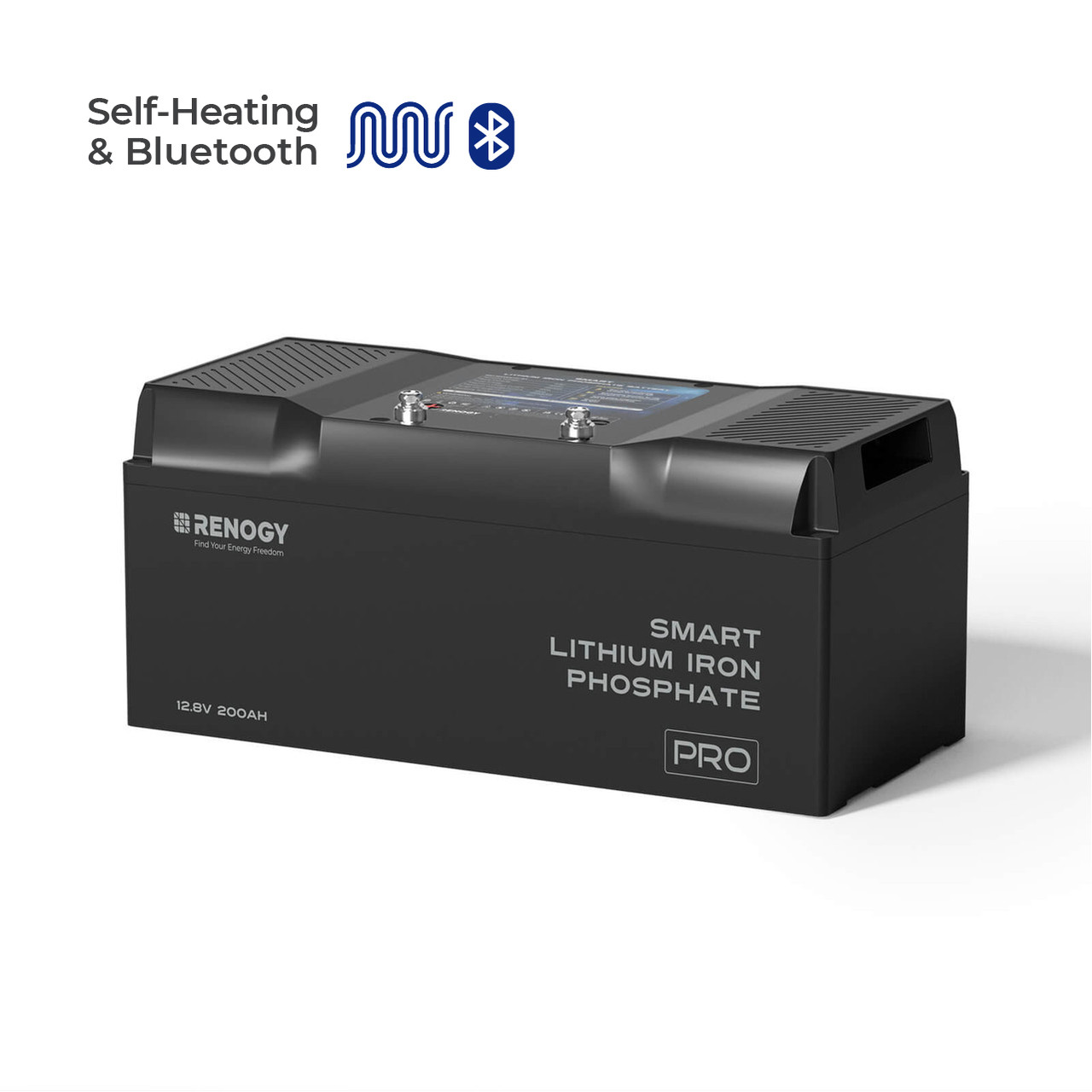

Renogy Pro - 12V 200Ah Smart Lithium Iron Phosphate Battery w/ Bluetooth & Self-Heating
What People Are Saying About It
Watch the 12V 200Ah Pro LiFePO4 Battery in action, delivering safe, trusted power for your needs.
I'd Like to Power Up...
Campervan / Sheds
4x4 Off-Road Trips
Catamaran/5th wheel
Bold Adventures Start Here
Whether you're cruising on a catamaran or towing a 5th wheel trailer, the Renogy 12V 200Ah Pro LiFePO4 Battery Bundle (Pack of 4) transforms the outdoor experience with powerful, reliable energy.
Upgrade Your Off-Grid Retreats
Power your campervans or sheds with the Renogy 12V 200Ah Pro LiFePO4 Battery (pack of 2). Keep everything running smoothly—lights, food, phones—no matter where you are, even without shore power.
Dive into Overland Travel
Embarking on an overland adventure is no easy feat, but the Renogy 12V 200Ah Pro LiFePO4 Battery ensures that you have reliable, safe power for the journey. Built to withstand splashes, heat, vibrations, and more, it lets you reach your destination fully refreshed.
Renogy’s safest 12V 200Ah LiFePO4 battery is designed for all-weather living, offering unmatched protection and performance.
Power for Catamarans
Power for 5th Wheel
Power That Makes Liveaboard Simple
Sail with ease and comfort using the Renogy 12V 200Ah Pro Battery 4-pack bundle, specifically designed to provide all the power needed for your maritime adventures.
60+ EV-Grade BMS Protection
The 12V 200Ah Pro battery features an automotive-grade BMS, offering over 60 protection alerts for greater reliability and precise monitoring to reduce electrical and thermal hazards in any environment.
Brave the Cold for Winter Journeys
For winter outdoor enthusiasts, the self-heating Renogy 12V 200Ah Pro LiFePO4 battery is a must-have. With charging currents above 6A, it automatically heats up to ensure safe charging in sub-zero temperatures, keeping your essentials powered through the cold.
Robust Power Even in Heatwaves
The Renogy 12V 200Ah Pro series is equipped with a fire-resistant casing (UL94 V-0), offering outstanding protection against fire hazards, making it ideal for living off the grid in warmer climates or remote areas.
Performance You Can Count On
With advanced safety features, the Renogy 12V 200Ah Pro ensures exceptional performance while extending battery lifespan, giving you reliable power when you need it most.
Stay ahead with the Renogy 12V 200Ah Pro—simply connect via Bluetooth to the Renogy app and receive future updates for enhanced functionality.
The Renogy 12V 200Ah Pro battery uses EV-class cells and a comprehensive battery management system, ensuring you get safe, dependable power.
The Renogy 12V 200Ah Pro LiFePO4 Battery has passed rigorous testing to meet high standards, offering you a safe and reliable power source.
Dimensional Reference Guide
For proper installation of your battery, ensure a clearance of 1.97-3.94 inches (50-100 mm) above the battery, and leave at least 7.87 inches (200 mm) on the side with the busbars.

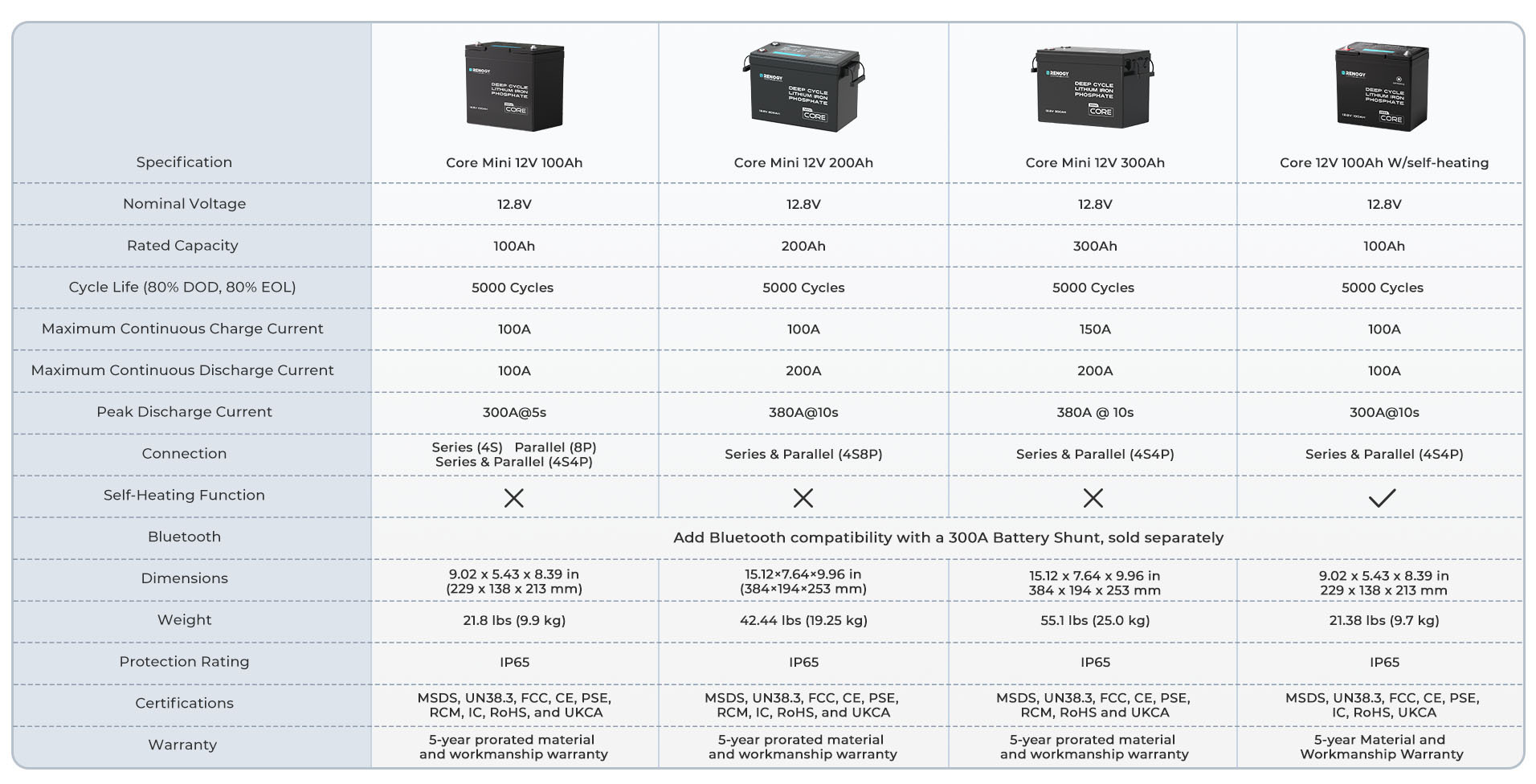

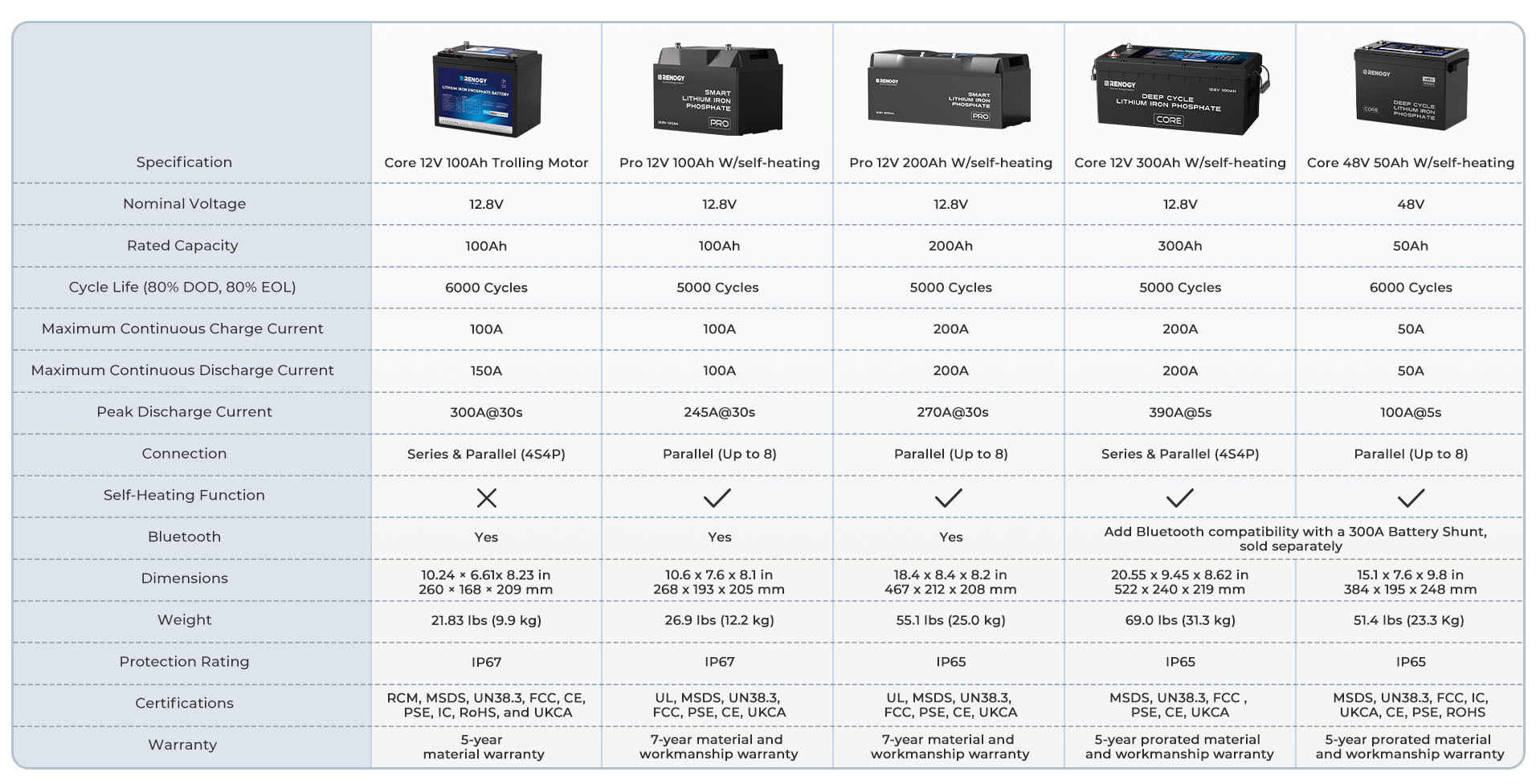

Find the power that is right for you
Scroll down to explore detailed comparisons and find the perfect fit.
Renogy Pro - 12V 200Ah Smart Lithium Iron Phosphate Battery w/ Bluetooth & Self-Heating
CA$949.99
Nominal Voltage
12.8V
Rated Capacity
200Ah
Cycle Life (80% DOD, 80% EOL)
5000 Cycles
Maximum Continuous Charge Current
200A
Maximum Continuous Discharge Current
200A
Peak Discharge Current
270A@30s
Connection
Parallel (Up to 8)
Self-Heating Function
√
Bluetooth
√
Dimensions
18.4 x 8.4 x 8.2 in 467 x 212 x 208 mm
Weight
50.7 lbs (23 kg)
Protection Rating
IP67
Certifications
UL, MSDS, UN38.3, FCC, PSE, CE, UKCA
Warranty
7-year material and workmanship warranty
Renogy Pro - 12V 100Ah Smart Lithium Iron Phosphate Battery w/ Bluetooth & Self-Heating
CA$549.99
Nominal Voltage
12.8V
Rated Capacity
100Ah
Cycle Life (80% DOD, 80% EOL)
5000 Cycles
Maximum Continuous Charge Current
100A
Maximum Continuous Discharge Current
100A
Peak Discharge Current
245A@30s
Connection
Parallel (Up to 8)
Self-Heating Function
√
Bluetooth
√
Dimensions
10.6 x 7.6 x 8.1 in 268 x 193 x 205 mm
Weight
26.9 lbs (12.2 kg)
Protection Rating
IP67
Certifications
UL, MSDS, UN38.3, FCC, PSE, CE, UKCA
Warranty
7-year material and workmanship warranty
Renogy Core - 12V 300Ah Deep Cycle Lithium Iron Phosphate Battery with self-heating function
CA$1139.99
Nominal Voltage
12.8V
Rated Capacity
300Ah
Cycle Life (80% DOD, 80% EOL)
5000 Cycles
Maximum Continuous Charge Current
200A
Maximum Continuous Discharge Current
200A
Peak Discharge Current
390A@5s
Connection
Series & Parallel (4S4P)
Self-Heating Function
√
Bluetooth
Add Bluetooth compatibility with a 300A Battery Shunt, sold separately
Dimensions
20.55 x 9.45 x 8.62 in 522 x 240 x 219 mm
Weight
69.0 lbs (31.3 kg)
Protection Rating
IP65
Certifications
MSDS, UN38.3, FCC , PSE, CE, UKCA
Warranty
5-year prorated material and workmanship warranty
Renogy Core Mini - 12.8V 100Ah Lithium Iron Phosphate Battery
CA$304.99
Nominal Voltage
12.8V
Rated Capacity
100Ah
Cycle Life (80% DOD, 80% EOL)
5000 Cycles
Maximum Continuous Charge Current
100A
Maximum Continuous Discharge Current
100A
Peak Discharge Current
300A@5s
Connection
Series (4S) Parallel (8P) Series & Parallel (4S4P)
Self-Heating Function
×
Bluetooth
Add Bluetooth compatibility with a 300A Battery Shunt, sold separately
Dimensions
9.02 x 5.43 x 8.39 in (229 x 138 x 213 mm)
Weight
21.8 lbs (9.9 kg)
Protection Rating
IP65
Certifications
MSDS, UN38.3, FCC, CE, PSE, RCM, IC, RoHS, and UKCA
Warranty
5-year prorated material and workmanship warranty
Renogy Core Mini - 12V 200Ah Lithium Iron Phosphate Battery w/ Low-Temperature Protection
CA$699.99
Nominal Voltage
12.8V
Rated Capacity
200Ah
Cycle Life (80% DOD, 80% EOL)
5000 Cycles
Maximum Continuous Charge Current
100A
Maximum Continuous Discharge Current
200A
Peak Discharge Current
380A@10s
Connection
Series & Parallel (4S8P)
Self-Heating Function
×
Bluetooth
Add Bluetooth compatibility with a 300A Battery Shunt, sold separately
Dimensions
15.12×7.64×9.96 in (384×194×253 mm)
Weight
42.44 lbs (19.25 kg)
Protection Rating
IP65
Certifications
MSDS, UN38.3, FCC, CE, PSE, RCM, IC, RoHS, and UKCA
Warranty
5-year prorated material and workmanship warranty
Renogy Core Mini - 12V 300Ah Lithium Iron Phosphate Battery
CA$939.99
Nominal Voltage
12.8V
Rated Capacity
300Ah
Cycle Life (80% DOD, 80% EOL)
5000 Cycles
Maximum Continuous Charge Current
150A
Maximum Continuous Discharge Current
200A
Peak Discharge Current
380A @ 10s
Connection
Series & Parallel (4S4P)
Self-Heating Function
×
Bluetooth
Add Bluetooth compatibility with a 300A Battery Shunt, sold separately
Dimensions
15.12 x 7.64 x 9.96 in 384 x 194 x 253 mm
Weight
55.1 lbs (25.0 kg)
Protection Rating
IP65
Certifications
MSDS, UN38.3, FCC, CE, PSE, RCM, RoHS and UKCA
Warranty
5-year prorated material and workmanship warranty
Renogy DuoHeat Tech - Core Mini 12V 100Ah Lithium Iron Phosphate Battery
CA$399.99
Nominal Voltage
12.8V
Rated Capacity
100Ah
Cycle Life (80% DOD, 80% EOL)
5000 Cycles
Maximum Continuous Charge Current
100A
Maximum Continuous Discharge Current
100A
Peak Discharge Current
300A@10s
Connection
Series & Parallel (4S4P)
Self-Heating Function
√
Bluetooth
Add Bluetooth compatibility with a 300A Battery Shunt, sold separately
Dimensions
9.02 x 5.43 x 8.39 in 229 x 138 x 213 mm
Weight
21.38 lbs (9.7 kg)
Protection Rating
IP65
Certifications
MSDS, UN38.3, FCC, CE, PSE, IC, RoHS, UKCA
Certifications
5-year prorated material and workmanship warranty
Package Includes
Pro - 12V 200Ah Lithium Iron Phosphate Battery
x 1
Terminal Bolts (M8 x 1.25 x 12 mm)
x 2
Long Terminal Bolts (M8 x 1.25 x 16 mm)
x 2
User Manual
x 1
Electrical Specifications
Rated Capacity (0.5C, 25°C)
200Ah
Nominal Voltage
12.8V
Energy
2560Wh
Cycle Life (0.5C/1C, 25℃)
5000 Cycles (80% DOD, 80% EOL)
Temperature Parameters
Operation Temperature Range
Charge: -4°F to 131°F (-20°C to 55°C)
Operation Temperature Range
Discharge: -4°F to 140°F (-20°C to 60°C)
Storage Temperature Range
-13°F to 149°F / -25°C to 65°C
Operation Relative Humidity
10% to 95%
Charging Parameters
Voltage Range
10V to 14.8V
Maximum Continuous Charge Current
200A
Discharging Parameters
Maximum Continuous Discharge Current
200A
Peak Discharge Current
270A@30s
Mechanical Specifications
Dimension (L x W x H)
18.4 x 8.4 x 8.2 in / 467 x 212 x 208 mm
Weight
50.7 lb / 23 kg
Terminal Bolt Size
Terminal Bolt: M8 x 1.25 x 12 mm Long Terminal Bolt: M8 x 1.25 x 16 mm
Protection Rating
IP67
Certifications
UL, MSDS, UN38.3, FCC, PSE, CE, UKCA
YES
Warranty
7-year material warranty
Yes
Frequently Asked Questions
What is the cycle life of this battery?
The cycle life of this battery is 5000 cycles (0.5C, 25℃) with an 80% depth of discharge (DOD) and 80% end of life (EOL).
What is the grade and type of cell inside this battery?
The battery contains prismatic, EV-grade Class A cells for optimal performance and longevity.
What is the IP protection rating of this battery?
The battery is rated IP67, meaning it is both water-resistant and dust-proof.
What does the double active safety system mean?
The Double Active Safety Design combines 60+ Battery Management System (BMS) protections and active backup protection to prevent damage from electrical abuse and other risks, ensuring safety for both the battery and your system.
What are the advantages of this battery?
60+ EV-grade BMS protection Active backup protection V-0 flame-resistant casing IP67 protection rating EV-grade Class A cells Bluetooth communication capability Self-heating with overheat protection
What is the active backup protection?
Active backup protection is a feature that quickly responds to potential risks like overvoltage or overheating, using newly integrated self-control fuses for faster activation compared to traditional fuses, even if other components fail.
To ensure the battery’s cycle life, what is the recommended depth of discharge (DOD)?
We recommend not exceeding an 80% depth of discharge (DOD) to ensure optimal battery life.
What are the installation requirements for the battery?
The installation environment should be clean, cool, and well-ventilated. Avoid oil, dirt, or debris to prevent leakage and short circuits. Safe operation requires temperatures between -4℉-140℉ (-20℃-60℃), with an ideal range of 59℉ (15℃) to 86℉ (30℃). The battery can be installed on its side or vertically, but should not be stacked or placed upside down.
How can the battery be connected?
The battery can only be connected in parallel, with a maximum of 8 batteries in parallel.
Can the battery communicate with the Renogy APP/Renogy ONE M1/Renogy ONE Core?
Yes, the battery has built-in Bluetooth and can communicate with the DC Home app, Renogy ONE M1, and Renogy ONE Core for easy monitoring and control.
Can I use this battery with other brands of batteries in parallel?
No, batteries connected in parallel must be the same brand, type, voltage, and capacity to ensure proper operation.
Before connecting the batteries in parallel, are there any principles to follow to make the battery pack charge and discharge balanced?
Ensure the initial state of the batteries is the same. It’s recommended to fully charge each battery separately and allow them to rest for 30 minutes to ensure a voltage difference of less than 0.1V before connecting. Do not parallel old and new batteries with more than a six-month difference in age. Follow the wiring guidelines in the product manual for the best configuration.
Does the battery automatically enter shelf mode when not used for a long time?
No, the battery does not enter shelf mode automatically when unused. It requires manual activation if needed.
What is the self-discharge rate of this battery?
The self-discharge rate of this battery is less than 3% per month.
I accidentally over-discharged the battery, resulting in under-voltage protection. What kind of charger should I use to charge the battery?
Disconnect the wiring cables from the battery immediately. Use a charger with lithium activation functionality and charge the battery for more than 24 hours at a temperature above 41°F (5°C). When the terminal voltage rises above 12.4V, the battery will charge normally.
What kind of charger should I choose to charge this battery?
Use a charger specifically designed for 12V LiFePO4 batteries. Ensure the charger’s charging parameters match the battery’s specifications. The charge current should not exceed the battery’s maximum continuous charging current of 100A. The charger should have protection features for reverse polarity, overcurrent, overvoltage, and overtemperature.
Does the battery have a self-heating function? If so, what are the working conditions of the battery's self-heating function?
Yes, the battery includes a self-heating function. The self-heating function activates automatically when the battery temperature drops below 41°F (5°C) and requires a stable charge current of at least 6A. It stops when the temperature exceeds 50°F (10°C). The heating process raises the temperature by approximately 46.4°F (8°C) per hour when running at full power (85W).
How do I store the battery?
To store the battery properly: Charge it to 30%-50%. Disconnect it from the system. Store it in a dry, well-ventilated, clean area away from direct sunlight, moisture, or precipitation. Ensure temperatures range from -13℉ to 149℉ (-25℃ to 65℃). Handle the battery carefully to avoid sharp impacts or pressure on the casing. Charge the battery at least once every 3-6 months to prevent overdischarge. When removed from storage, fully charge it.
