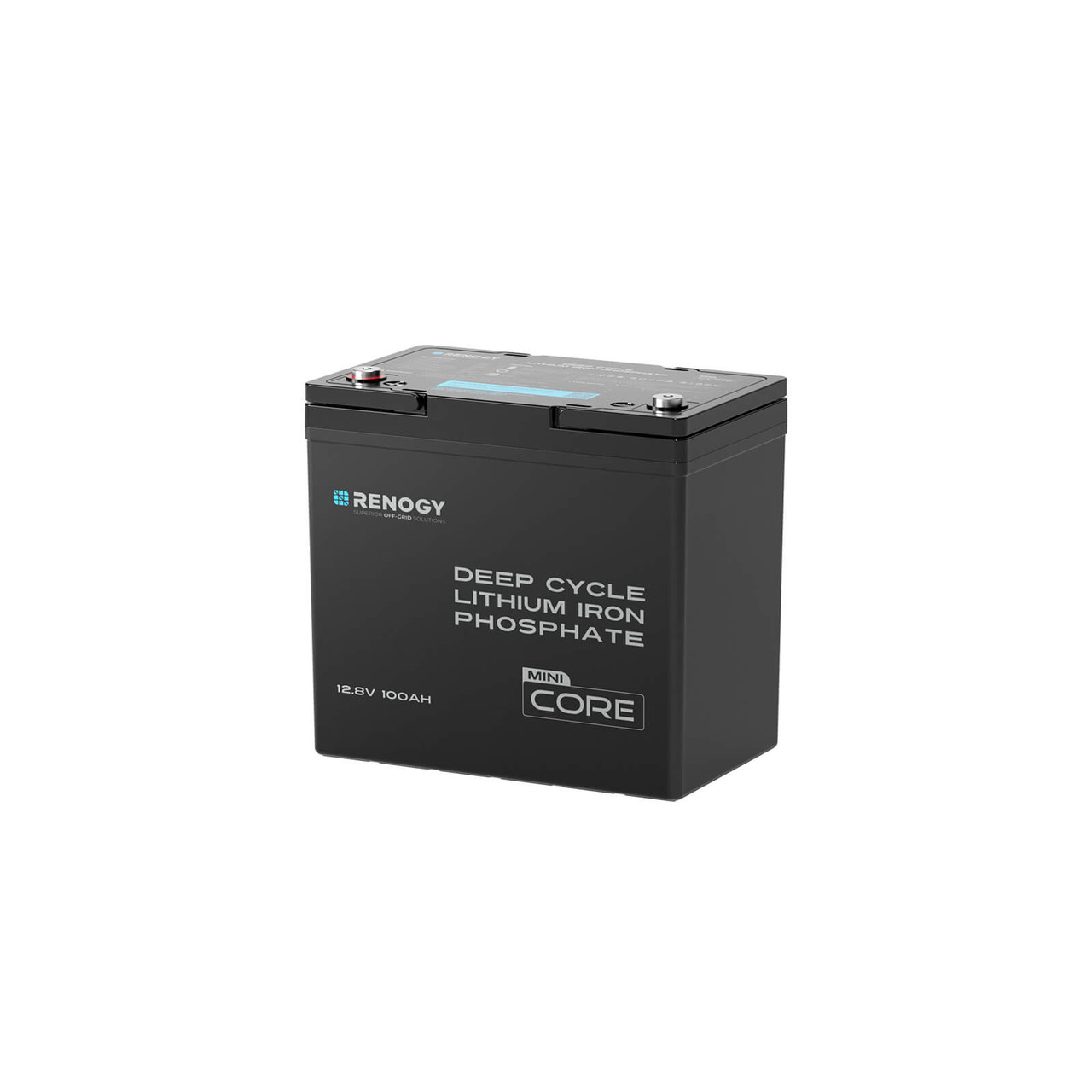

Renogy Core Mini - 12.8V 100Ah Lithium Iron Phosphate Battery
Experience Our Most Compact 100Ah Battery
Lead-Acid vs Core Mini
Same power output in a lighter, more compact design.
The Compact Advantage
Next-gen design with premium safety and full power.
Prismatice Cells
Peak Output Current
Rugged Design
Certified Safety
10X More Battery Life
Premium EV-grade cells deliver 5000 cycles at 80% discharge – outperforming traditional lead-acid batteries in both lifespan and reliability
300A Peak Surge Power
Delivers powerful 5-second surge current for high-demand appliance start-up
Vibration-Resistant Design
Metal cell spacers prevent damage in rough terrain and choppy waters.
Safety Certified Design
UL, FCC, and CE certified for reliable performance in any application.
Teardrop Trailers
Kayak Fishing
Compact Power for Endless Adventure
The perfect power solution for teardrop trailers and compact RVs
Built for Better Fishing
Reliable energy for trolling motors, fish finders, and all your essential fishing gear
Space Requirements
Allow 2-4" above battery, 8" clearance for busbar side
Which Battery Is Right for You?
Scroll down to explore detailed comparisons and find the perfect fit.
Renogy Core Mini - 12.8V 100Ah Lithium Iron Phosphate Battery
CA$299.99
Nominal Voltage
12.8V
Rated Capacity
100Ah
Cycle Life (80% DOD, 80% EOL)
5000 Cycles
Maximum Continuous Charge Current
100A
Maximum Continuous Discharge Current
100A
Peak Discharge Current
300A@5s
Connection
Series (4S) Parallel (8P) Series & Parallel (4S4P)
Self-Heating Function
×
Bluetooth
Add Bluetooth compatibility with a 300A Battery Shunt, sold separately
Dimensions
9.02 x 5.43 x 8.39 in (229 x 138 x 213 mm)
Weight
21.8 lbs (9.9 kg)
Protection Rating
IP65
Certifications
MSDS, UN38.3, FCC, CE, PSE, RCM, IC, RoHS, and UKCA
Warranty
5-year prorated material and workmanship warranty
Renogy Core Mini - 12V 200Ah Lithium Iron Phosphate Battery w/ Low-Temperature Protection
CA$699.99
Nominal Voltage
12.8V
Rated Capacity
200Ah
Cycle Life (80% DOD, 80% EOL)
5000 Cycles
Maximum Continuous Charge Current
100A
Maximum Continuous Discharge Current
200A
Peak Discharge Current
380A@10s
Connection
Series & Parallel (4S8P)
Self-Heating Function
×
Bluetooth
Add Bluetooth compatibility with a 300A Battery Shunt, sold separately
Dimensions
15.12×7.64×9.96 in (384×194×253 mm)
Weight
42.44 lbs (19.25 kg)
Protection Rating
IP65
Certifications
MSDS, UN38.3, FCC, CE, PSE, RCM, IC, RoHS, and UKCA
Warranty
5-year prorated material and workmanship warranty
Renogy Core Mini - 12V 300Ah Lithium Iron Phosphate Battery
CA$939.99
Nominal Voltage
12.8V
Rated Capacity
300Ah
Cycle Life (80% DOD, 80% EOL)
5000 Cycles
Maximum Continuous Charge Current
150A
Maximum Continuous Discharge Current
200A
Peak Discharge Current
380A @ 10s
Connection
Series & Parallel (4S4P)
Self-Heating Function
×
Bluetooth
Add Bluetooth compatibility with a 300A Battery Shunt, sold separately
Dimensions
15.12 x 7.64 x 9.96 in 384 x 194 x 253 mm
Weight
55.1 lbs (25.0 kg)
Protection Rating
IP65
Certifications
MSDS, UN38.3, FCC, CE, PSE, RCM, RoHS and UKCA
Warranty
5-year prorated material and workmanship warranty
Renogy DuoHeat Tech - Core Mini 12V 100Ah Lithium Iron Phosphate Battery
CA$399.99
Nominal Voltage
12.8V
Rated Capacity
100Ah
Cycle Life (80% DOD, 80% EOL)
5000 Cycles
Maximum Continuous Charge Current
100A
Maximum Continuous Discharge Current
100A
Peak Discharge Current
300A@10s
Connection
Series & Parallel (4S4P)
Self-Heating Function
×
Bluetooth
Add Bluetooth compatibility with a 300A Battery Shunt, sold separately
Dimensions
9.02 x 5.43 x 8.39 in 229 x 138 x 213 mm
Weight
21.38 lbs (9.7 kg)
Protection Rating
IP65
Certifications
MSDS, UN38.3, FCC, CE, PSE, IC, RoHS, UKCA
Warranty
5-year prorated material and workmanship warranty
Renogy Core - 12V 100Ah Trolling Motor Group 24 LiFePO4 Battery w/ Bluetooth
CA$379.99
Nominal Voltage
12.8V
Rated Capacity
100Ah
Cycle Life (80% DOD, 80% EOL)
5000 Cycles
Maximum Continuous Charge Current
100A
Maximum Continuous Discharge Current
150A
Peak Discharge Current
300A@30s
Connection
Series & Parallel (4S4P)
Self-Heating Function
×
Bluetooth
Yes
Dimensions
10.24 × 6.61x 8.23 in 260 × 168 × 209 mm
Weight
21.83 lbs (9.9 kg)
Protection Rating
IP67
Certifications
RCM, MSDS, UN38.3, FCC, CE, PSE, IC, RoHS, and UKCA
Warranty
5-year prorated material and workmanship warranty
Renogy Pro - 12V 100Ah Smart Lithium Iron Phosphate Battery w/ Bluetooth & Self-Heating
CA$549.99
Nominal Voltage
12.8V
Rated Capacity
100Ah
Cycle Life (80% DOD, 80% EOL)
5000 Cycles
Maximum Continuous Charge Current
100A
Maximum Continuous Discharge Current
100A
Peak Discharge Current
245A@30s
Connection
Parallel (Up to 8)
Self-Heating Function
√
Bluetooth
Yes
Dimensions
10.6 x 7.6 x 8.1 in 268 x 193 x 205 mm
Weight
26.9 lbs (12.2 kg)
Protection Rating
IP67
Certifications
UL, MSDS, UN38.3, FCC, PSE, CE, UKCA
Warranty
7-year material and workmanship warranty
Renogy Pro - 12V 200Ah Smart Lithium Iron Phosphate Battery w/ Bluetooth & Self-Heating
CA$949.99
Nominal Voltage
12.8V
Rated Capacity
200Ah
Cycle Life (80% DOD, 80% EOL)
5000 Cycles
Maximum Continuous Charge Current
200A
Maximum Continuous Discharge Current
200A
Peak Discharge Current
270A@30s
Connection
Parallel (Up to 8)
Self-Heating Function
√
Bluetooth
Yes
Dimensions
18.4 x 8.4 x 8.2 in 467 x 212 x 208 mm
Weight
50.7 lbs (23 kg)
Protection Rating
IP67
Certifications
UL, MSDS, UN38.3, FCC, PSE, CE, UKCA
Warranty
7-year material and workmanship warranty
Renogy Core - 12V 300Ah Deep Cycle Lithium Iron Phosphate Battery with self-heating function
CA$1139.99
Nominal Voltage
12.8V
Rated Capacity
300Ah
Cycle Life (80% DOD, 80% EOL)
5000 Cycles
Maximum Continuous Charge Current
200A
Maximum Continuous Discharge Current
200A
Peak Discharge Current
390A@5s
Connection
Series & Parallel (4S4P)
Self-Heating Function
√
Bluetooth
Add Bluetooth compatibility with a 300A Battery Shunt, sold separately
Dimensions
20.55 x 9.45 x 8.62 in 522 x 240 x 219 mm
Weight
69.0 lbs (31.3 kg)
Protection Rating
IP65
Certifications
MSDS, UN38.3, FCC , PSE, CE, UKCA
Warranty
5-year prorated material and workmanship warranty
What People Are Saying About It
See how our most compact 12V 100Ah LiFePO4 battery delivers full-sized power in less space
Package Includes
Core Mini - 12.8V 100Ah Lithium Iron Phosphate Battery
x 1
Long Terminal Bolts (M8 x 1.25 x 15 mm)
x 1
User Manual
x 1
Frequently Asked Questions
1. Can this battery be used in series to build a 24-volt system？
Yes. You can connect Renogy 12.8V 100Ah Core Mini Batteries in series for a 24V off-grid power system.
2. Does this Core Mini LFP battery have low-temperature cut-off?
Yes. It is built in with low-temperature charging protection to prevent the battery from charging below 32°F / 0°C.
3. How many Renogy 12.8V 100Ah Core Mini Series Batteries can I connect at most?
You can connect up to 16 batteries in series and parallel to expand power to 20.48kWh. Batteries of the same model and similar capacity are required.
4. Can I pair a Bluetooth Module for this battery to monitor the battery status on the phone?
No. This battery does not have a Bluetooth port for a Bluetooth Module. However, you can connect your battery with a Renogy 300A Battery Shunt (sold separately), which can send the data to the DC Home app via Bluetooth so you can keep track of battery status in real time.
5. How to recharge my LiFePO4 batteries?
Whether you prefer charging batteries via solar, a DC-DC battery charger, or an AC-DC charger, we highly recommend a solar charge controller/charger compatible with lithium iron phosphate batteries.
