100W 12V Monocrystalline Solar Starter Kit w/Wanderer 10A Charge Controller

100W 12V Monocrystalline Solar Starter Kit w/Wanderer 10A Charge Controller
starts- reviews
SKU: RNG-KIT-STARTER100D-WND10-CA
CAD $229.99 CAD $159.99

Availability:

CA stock, usually ships in 1 to 3 business days.

Description

The Renogy 100W Solar Power Starter Kit is perfect for new customers wanting to get a start in solar. The Starter Kit is great for off-grid applications; such as RVs; trailers; boats; sheds; and cabins — providing many benefits; including; but not limited to; quiet power production and grid independence. Adding a monocrystalline solar panel kit can extend your travels further then ever before.

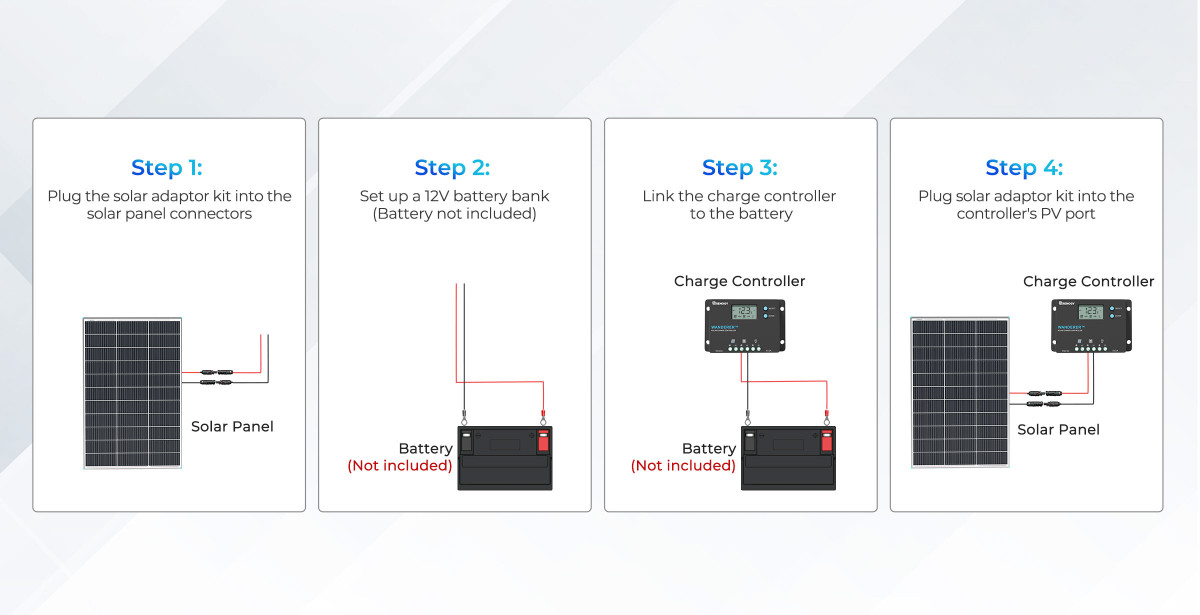

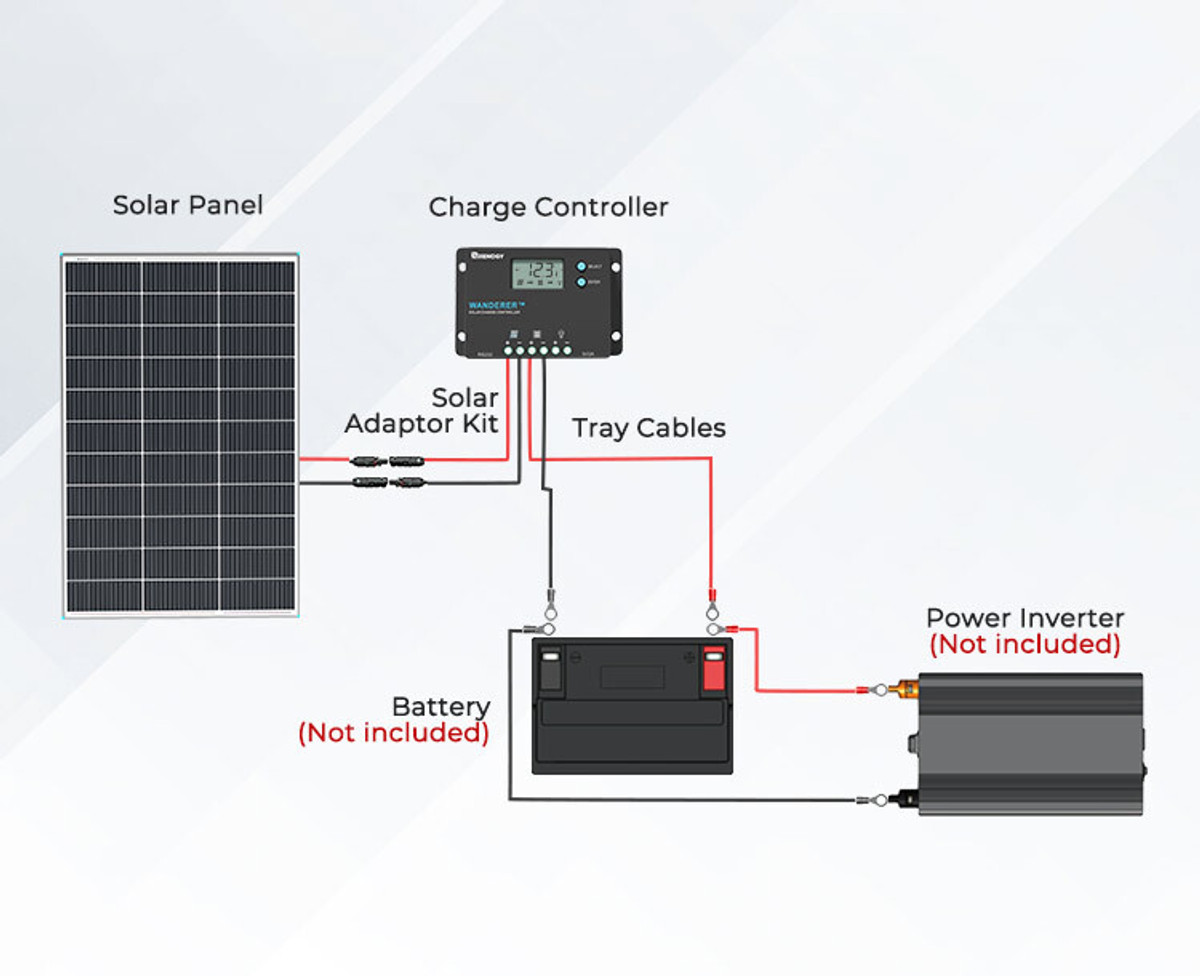

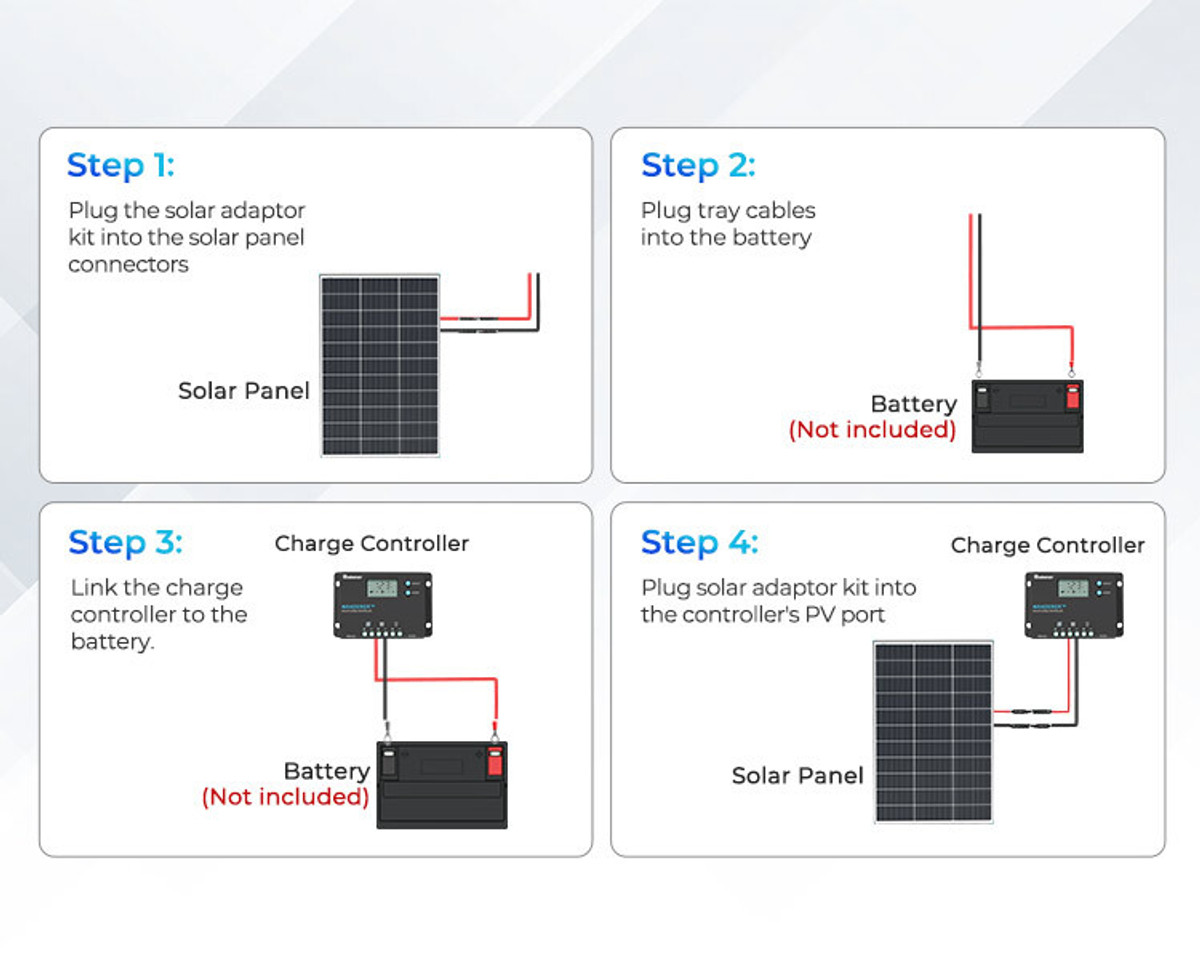

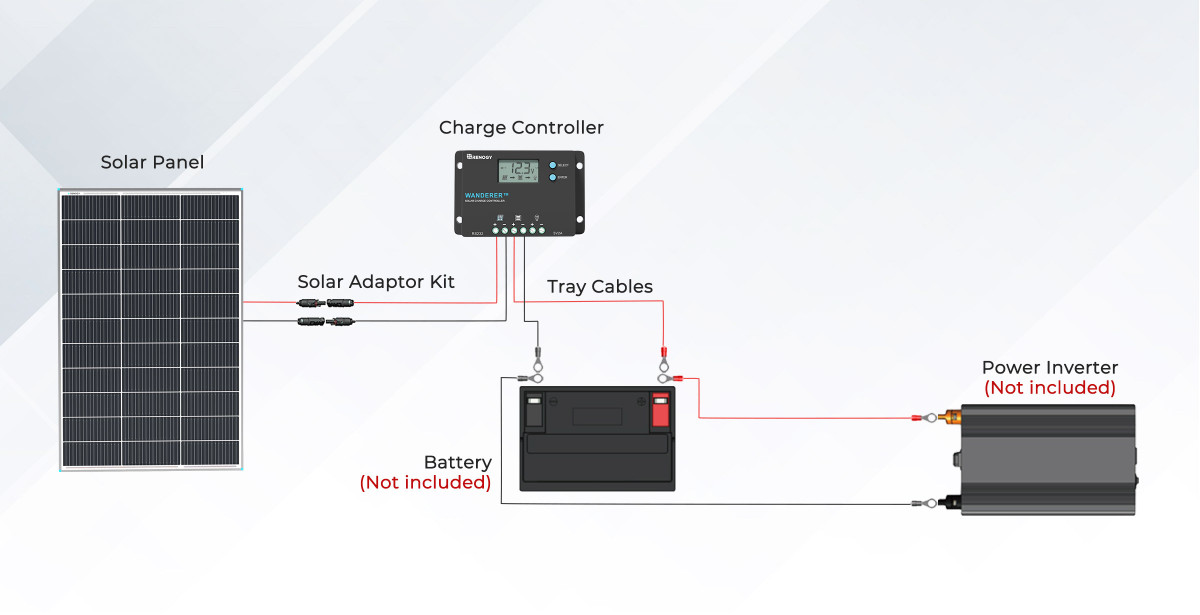

This solar kit comes with the tools necessary for a new system: one Renogy 100W 12V Mono Solar Panel; one 10A PWM Wanderer Charge Controller; one 20ft 10AWG MC4 Adaptor Kit; one 8ft 10AWG Tray Cable; and one set of Z-brackets. Start your solar adventure with a Renogy Starter Kit.

If you have any questions regarding this product; please submit a case.

Key Features

Efficient

  • High solar cell efficiency : Monocrystalline 21%, Polycrystalline 18.6%

Reliable

  • EL tested solar modules; no hot-spot heating guaranteed

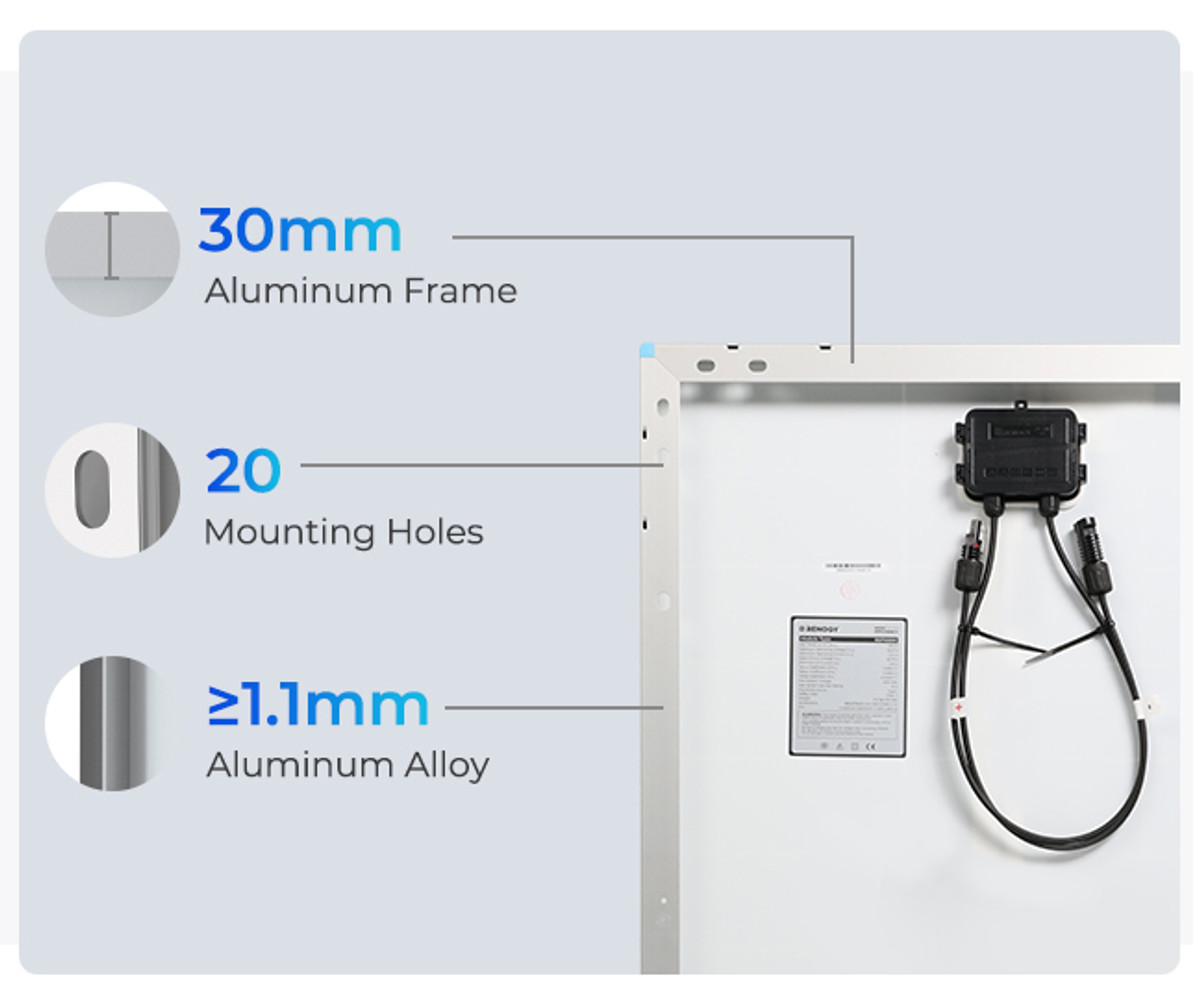

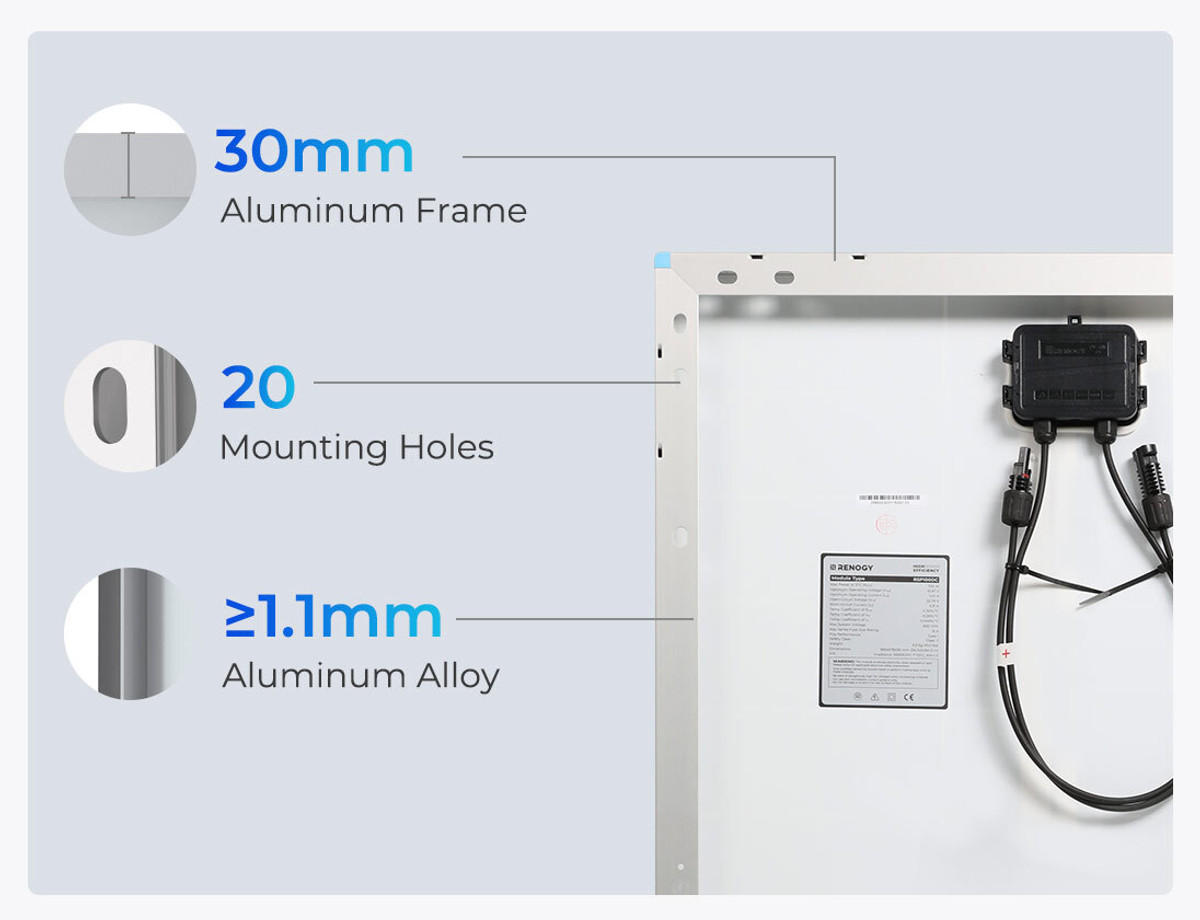

  • Corrosion-resistant aluminum frame for extended outdoor use; allowing the panels to last for decades
  • TPT back sheet ensures smooth performance over a long period of time
  • IP65 rated junction box provides complete protection against environmental particles and low pressure water jets

Intuitive

  • Sealed; Gel and Flooded charging algorithim ready
  • 4-Stage battery charging process for a rapid; efficient; and safe battery charging

Safe

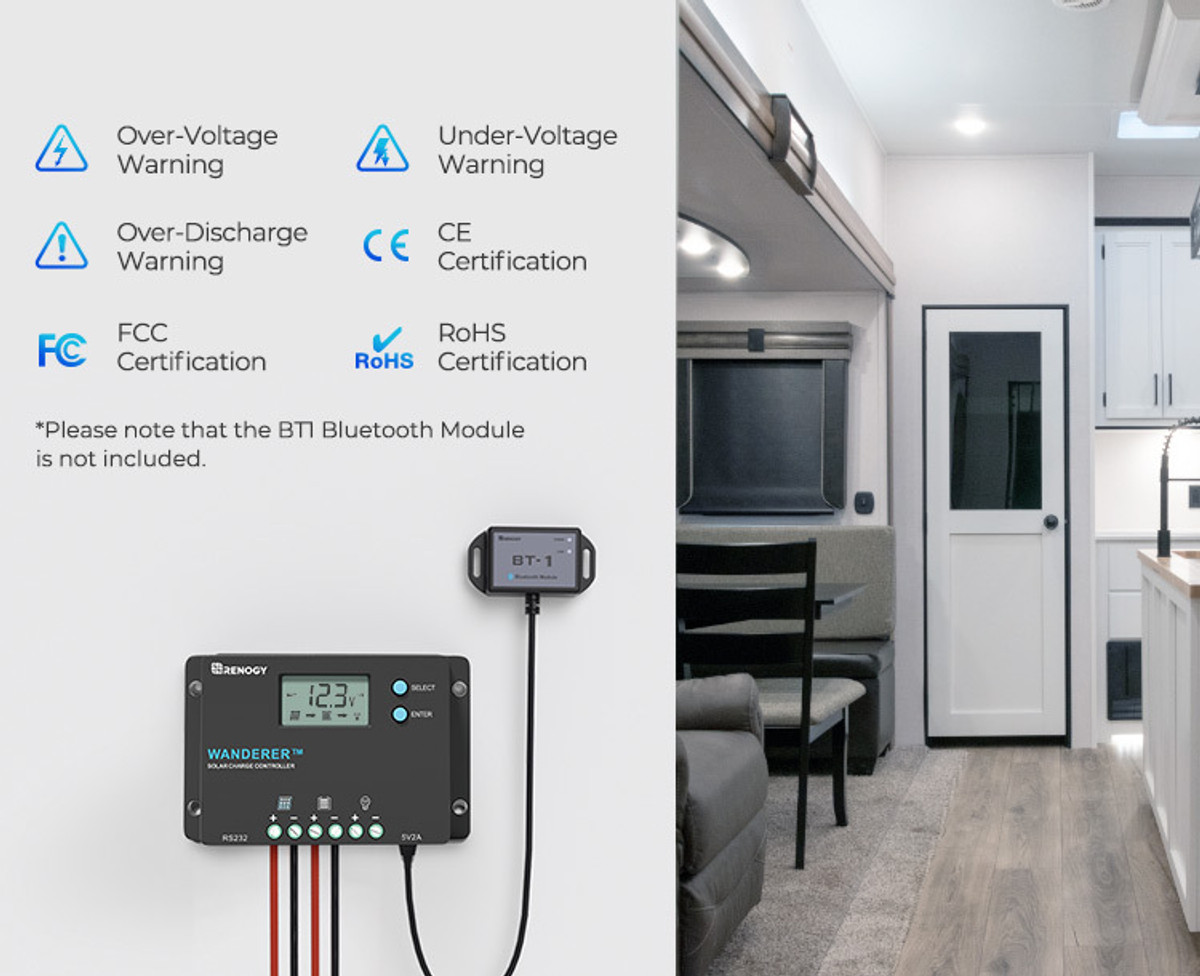

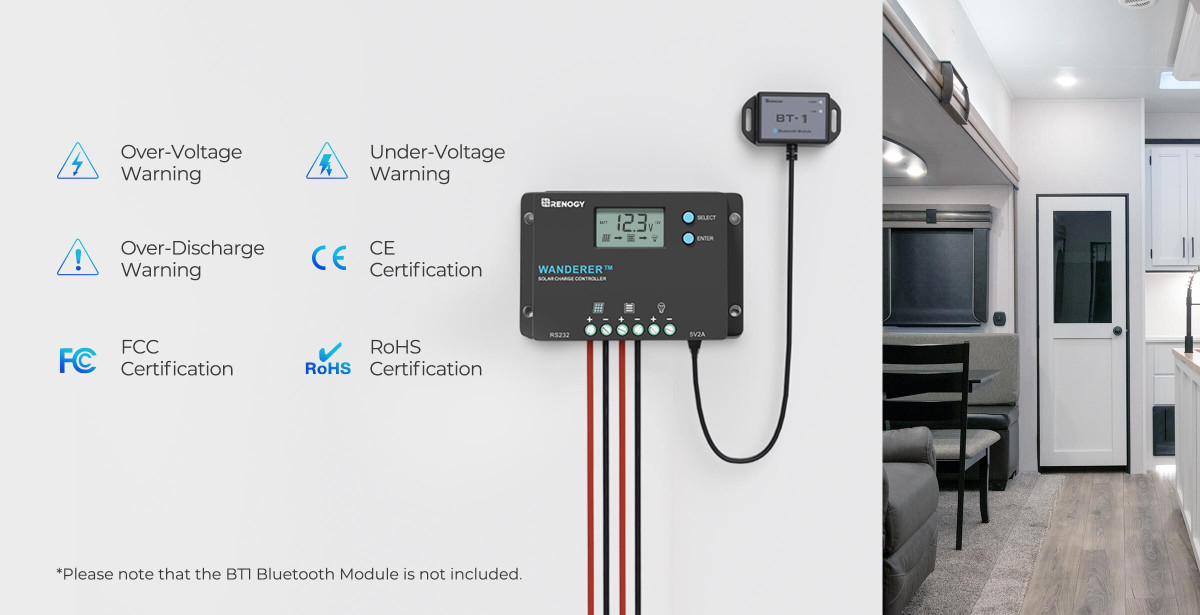

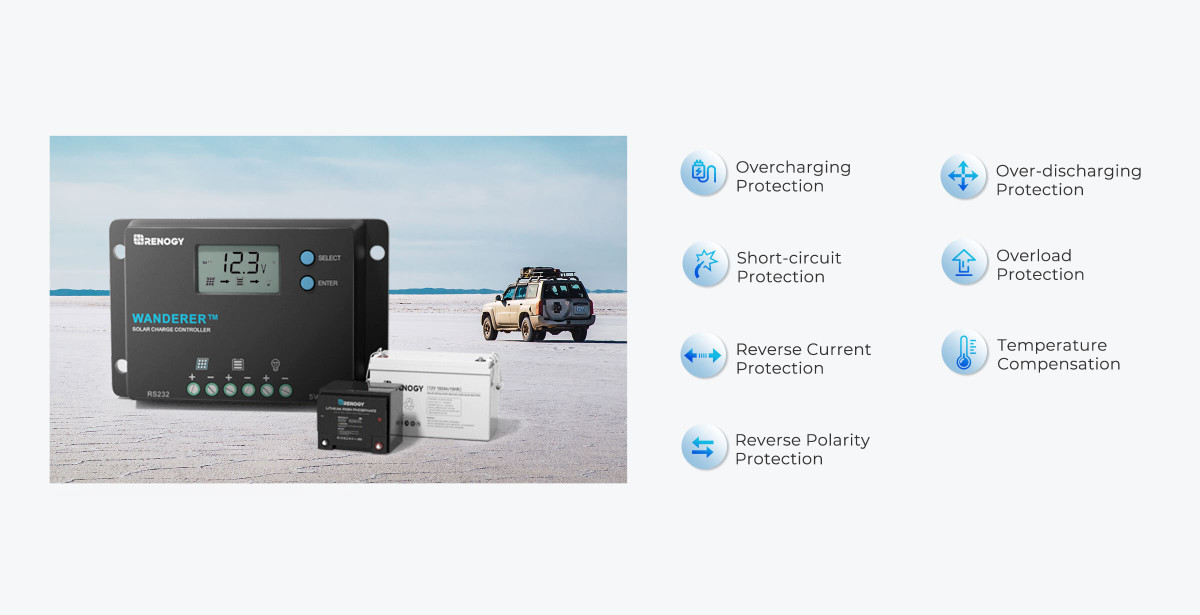

  • The Renogy Wanderer is equipped with multiple electronic protections; overcharging; overload; short-circuit and reversed polarity
  • Pre-drilled holes on the back of the panel allow for fast and secure mounting

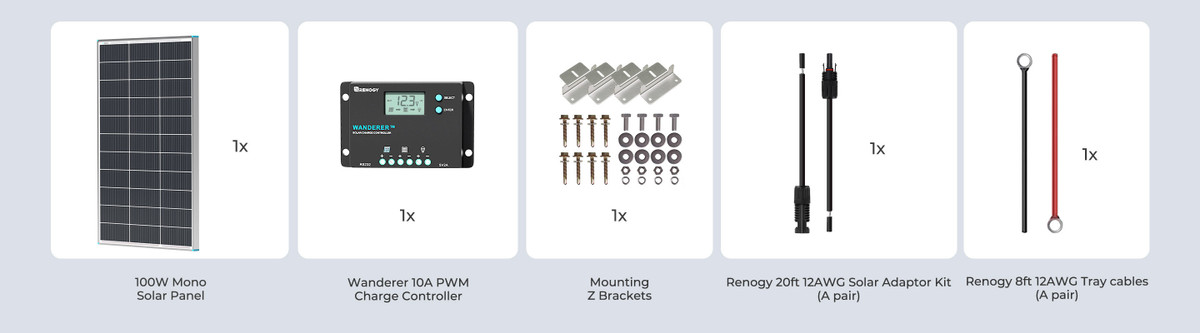

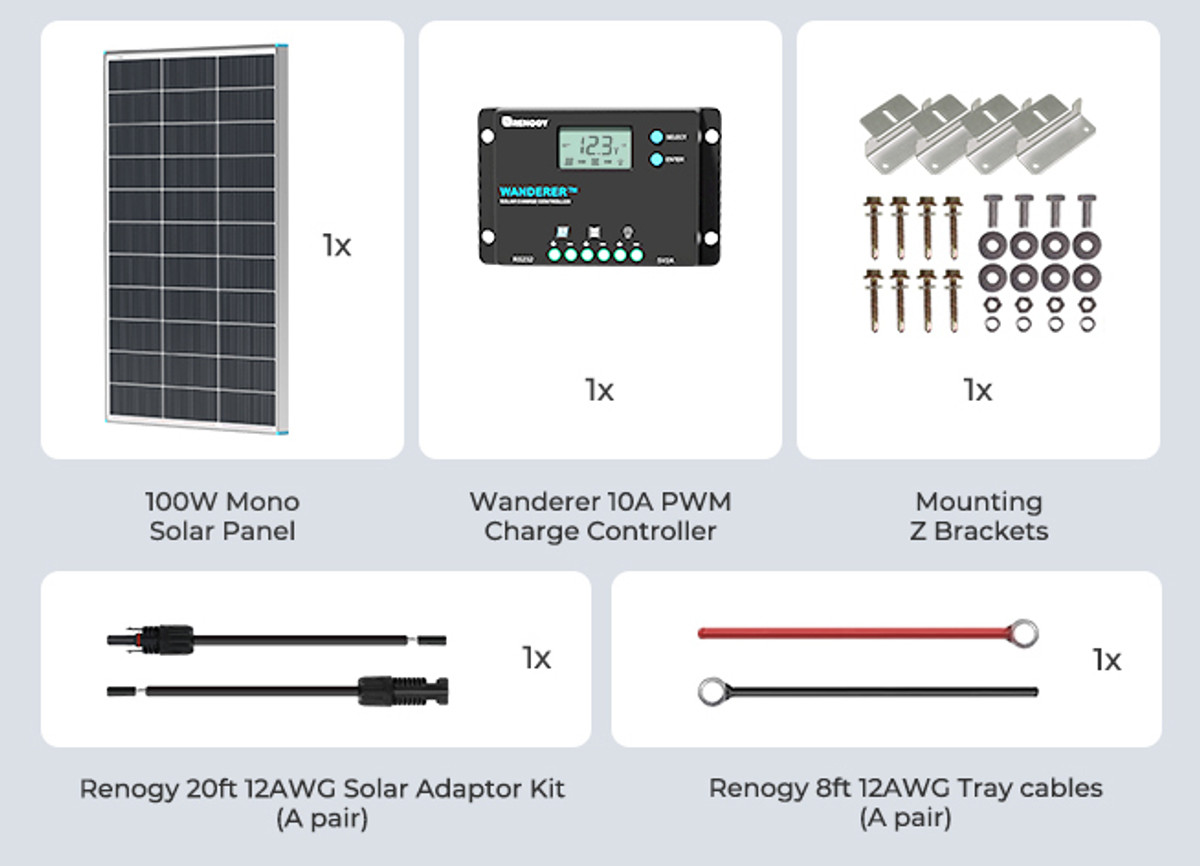

Package Includes

100W Monocrystalline Panel(Compact Design)

100W Monocrystalline Panel(Compact Design)

1 x

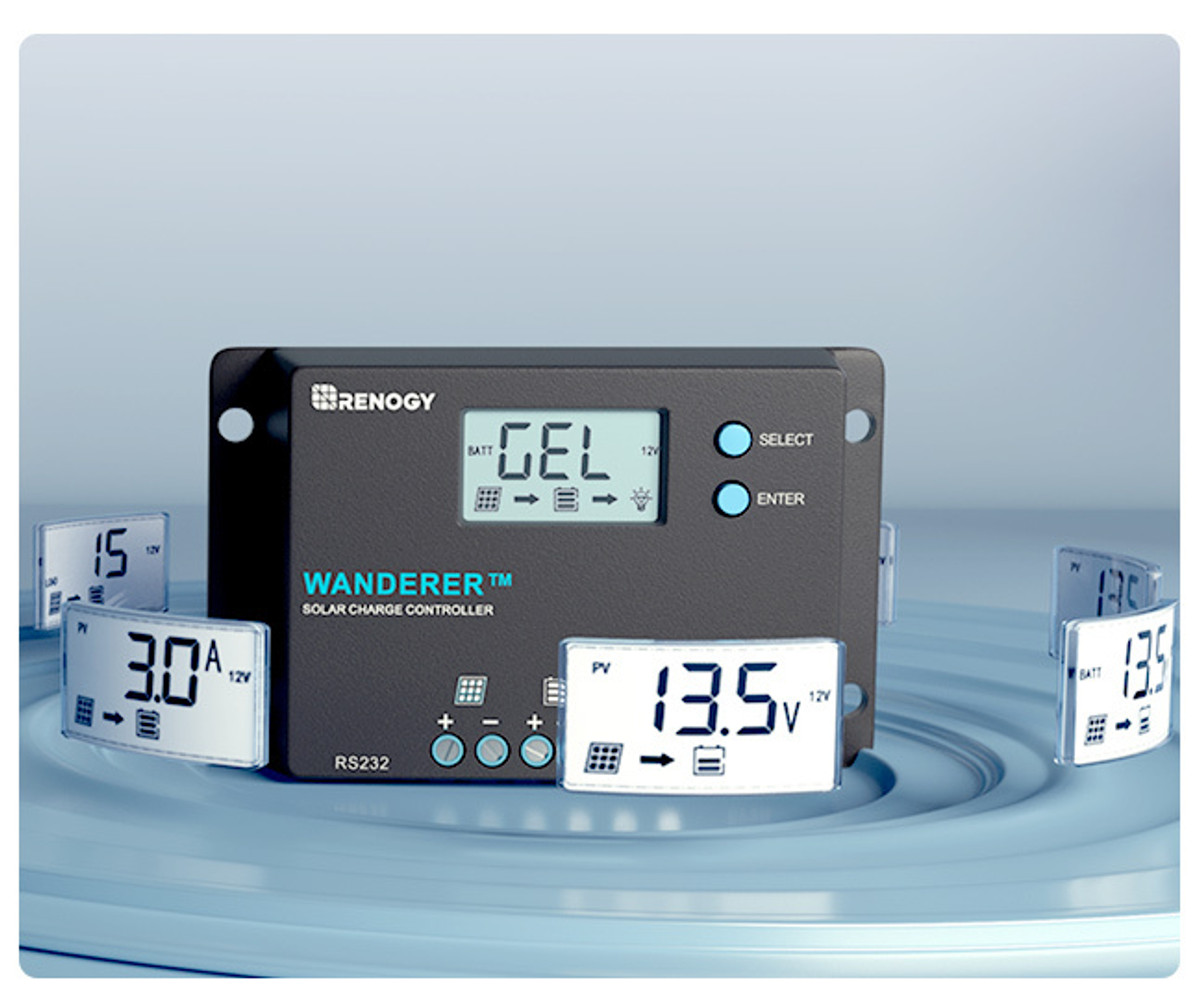

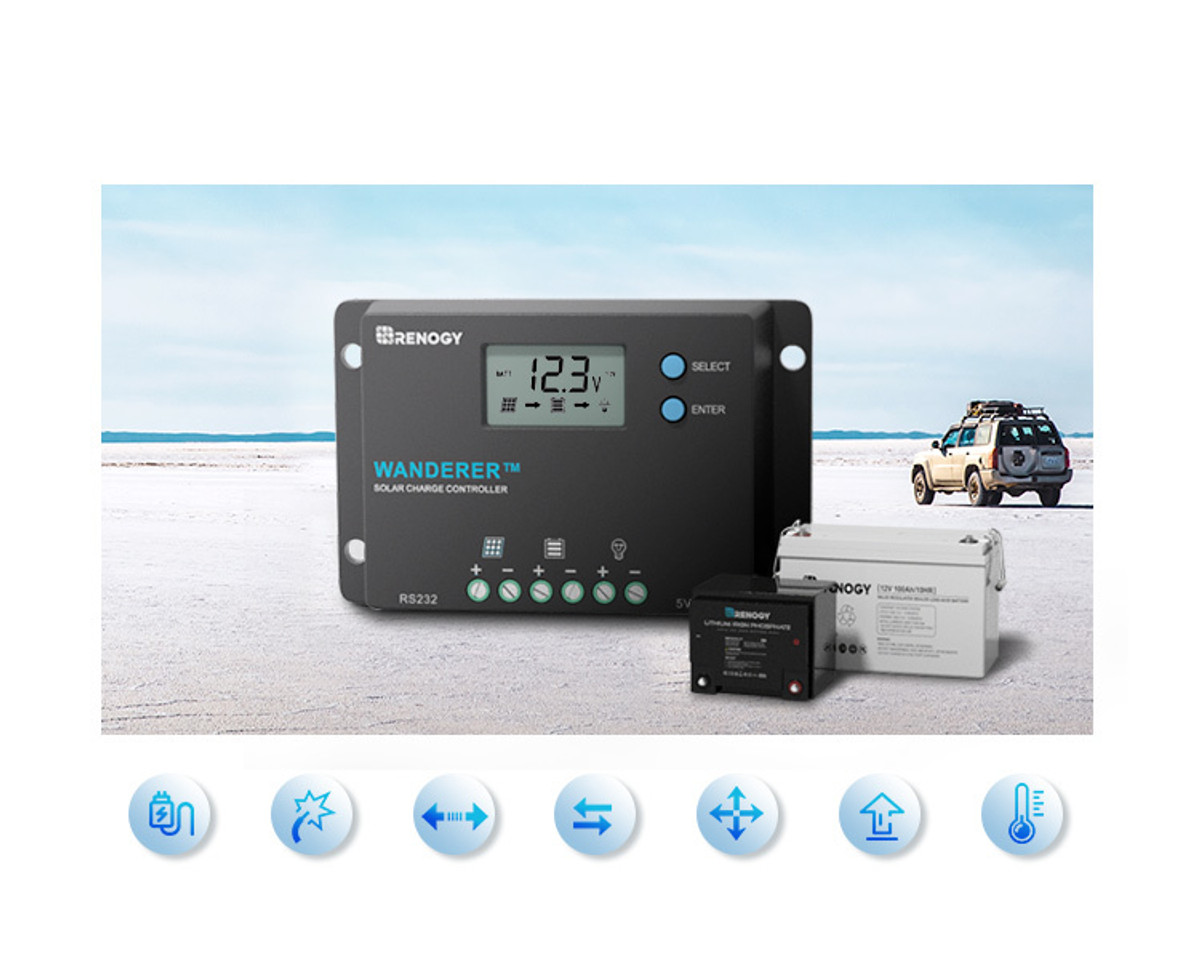

Renogy Wanderer 10A PWM Charge Controller

Renogy Wanderer Li Charge Controller

1 x

Mounting Z Brackets

Mounting Z Brackets

1 x

Renogy 20ft 10AWG MC4 Adaptor Kit (A pair)

Adapter Kit

1 x

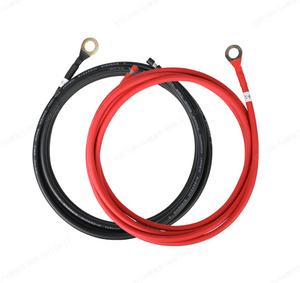

Renogy 8ft 10AWG Tray Cables (A pair)

Tray Cable

1 x

Renogy 100W Monocrystalline Solar Panel(Compact Design)

Renogy Wanderer 10A PWM Charge Controller

Maximum Power: 100W Norminal Voltage: 12V/24V Auto Recognition
Maximum System Voltage:600V DC (UL) Rated Charge Current: 10A
Optimum Operating Voltage (Vmp): 18.6V Max. PV Input Voltage: 50 VDC
Optimum Operating Current (Imp): 5.38A USB port:5V, 2A max
Open-Circuit Voltage (Voc): 22.3V Max Gauge Size: Up to 12AWG
Short-Circuit Current (Isc): 5.86A
Dimensions: 1076x509x35mm / 42.4x20.0x1.4

Renogy 8ft 10AWG Tray Cables (A pair) Mounting Z Brackets (Set)
Length: 8ft Eight Long Cap Bolts and Four Short Bolts
AWG: 10 Four Spring Washers and Four Washers
Rating Voltage: 600/1000V Four Z Shape Solar Panel Brackets
Temperature: -40°F to +185°F Four Nuts
Renogy Adaptor Kit (Set)
Length: 20ft
AWG: 10
Rating Voltage: 600/1000V
Temperature: -40°F to +185°F

Warranty Information

Panels

25-year transferable power output warranty: 5 year/95% efficiency rate; 10 year/90% efficiency rate; 25-year/80% efficiency rate

5-year material and workmanship warranty

Accessories 1-year material warranty

Certification



Review Hide Reviews

Good comprehensive kit

Allan on Oct 14th 2021

Most everything required to get started was included, the panel produces as advertised and the controller works fine. The product description, at the time of this review is incomplete/inaccurate. The wires included are claimed to be 10AWG, however they are 4mm² which is closer to 12AWG. This is fine as the voltage drop over the run of cables included is not significant at 10A, and the controller terminal block can only accept a maximum of 12AWG. One other part of the description indicates the charge controller is compatible with "Sealed; Gel and Flooded" but from the manual, it looks like you can also set it up for lithium. I am using it with a 100Ah AGM battery, and this seems to be working great.
